Pinpoint Test C: No Communication With The Driver Door Module (DDM)

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Electronic modules are sensitive to electrical charges. If exposed to these charges, damage may result.

Fig 1: Pinpoint Test C: No Communication With The Driver Door Module (DDM) (Step C1)

Courtesy of FORD MOTOR CO.

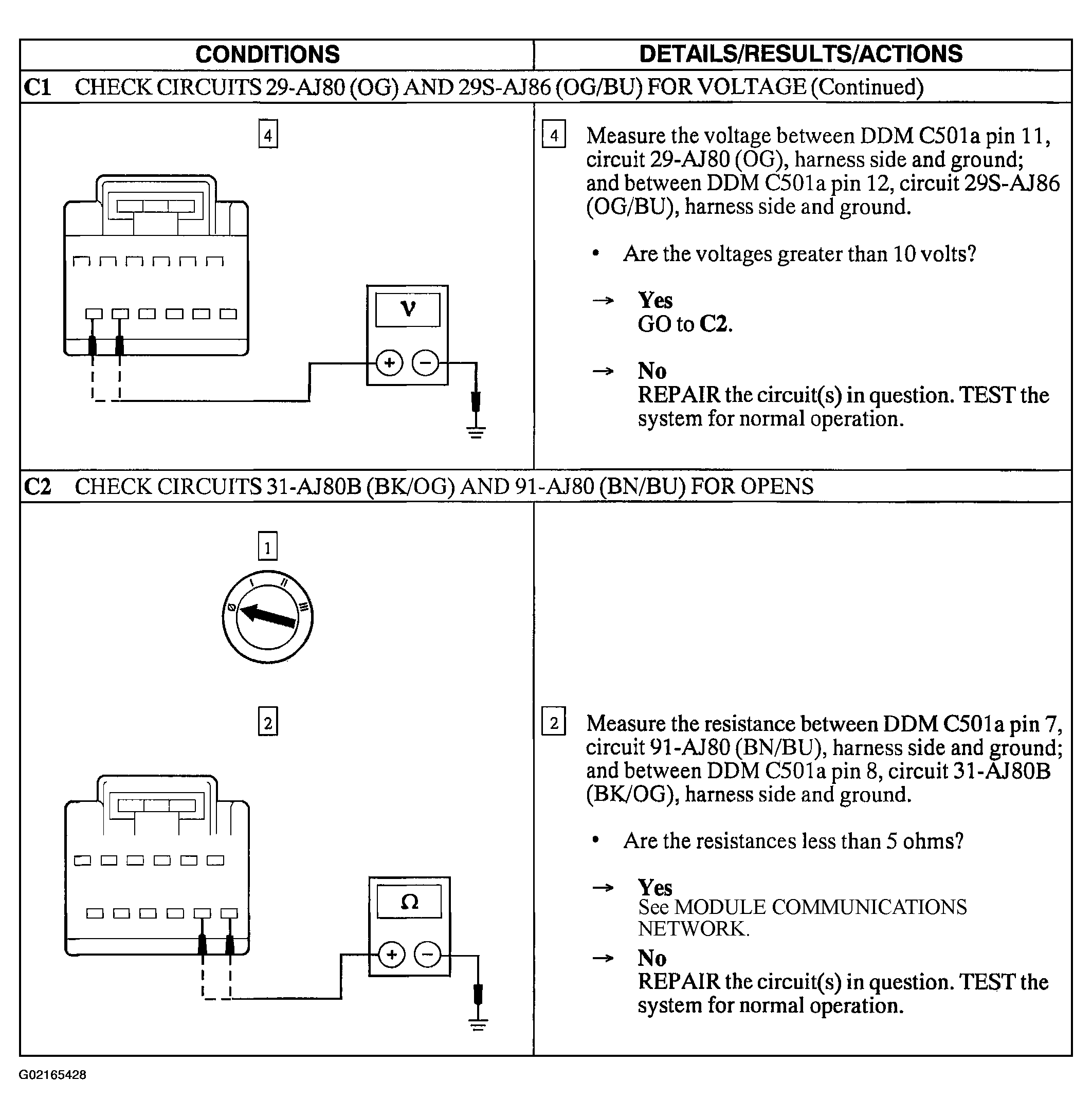

Fig 2: Pinpoint Test C: No Communication With The Driver Door Module (DDM) (Steps C1 Cont. & C2)

Courtesy of FORD MOTOR CO.
