Trim Panel - Upper B-Pillar: Removal

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull back the weatherstrip surrounding the upper B-pillar trim.
  2. Remove the front seat safety belt cover.
    Fig 1: Removing Front Seat Safety Belt Cover
    G02165323Courtesy of FORD MOTOR CO.
  3. Remove the front seat safety belt nut.

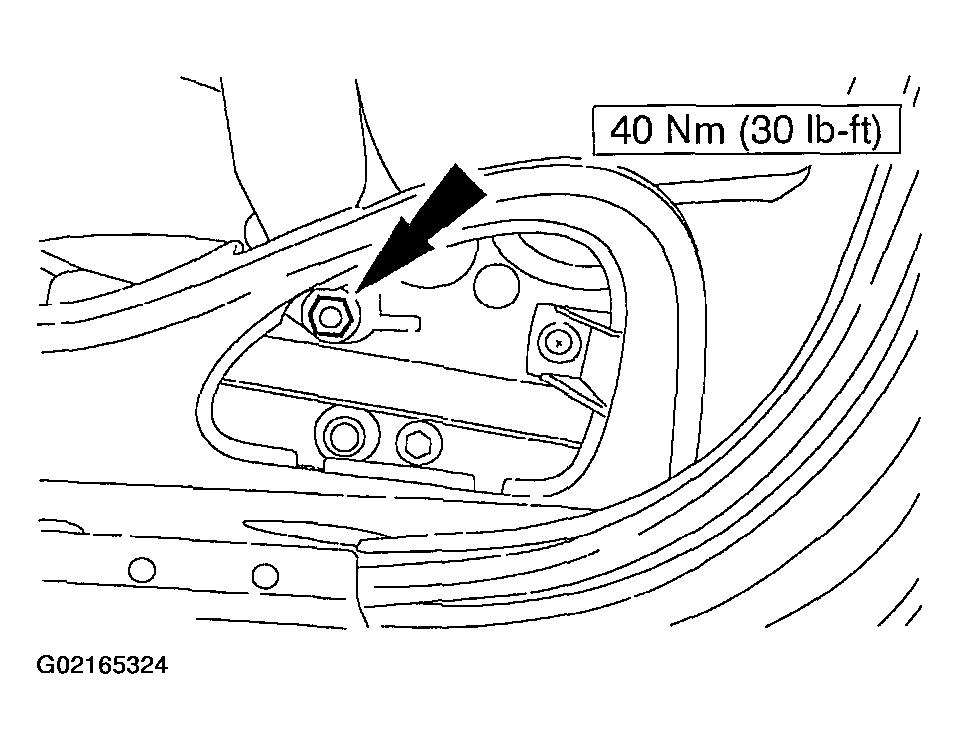

    Fig 2: Removing Front Safety Belt Nut
    G02165324Courtesy of FORD MOTOR CO.
  4. Remove the upper B-pillar trim.
    Fig 3: Removing upper B-Pillar
    G02165325Courtesy of FORD MOTOR CO.
