Trim Panel - Package Tray: Removal

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear seat bolsters. For additional information, see SEATING .
Position the two quarter trim panels aside.

Fig 1: Positioning Quarter Trim Panels Aside
Courtesy of FORD MOTOR CO.
Remove the rear high mounted stoplamp (HMSL) cover.

Fig 2: Removing HMSL Cover
Courtesy of FORD MOTOR CO.
Remove the rear center safety belt cover.

Fig 3: Removing Rear Center Safety Belt Cover
Courtesy of FORD MOTOR CO.

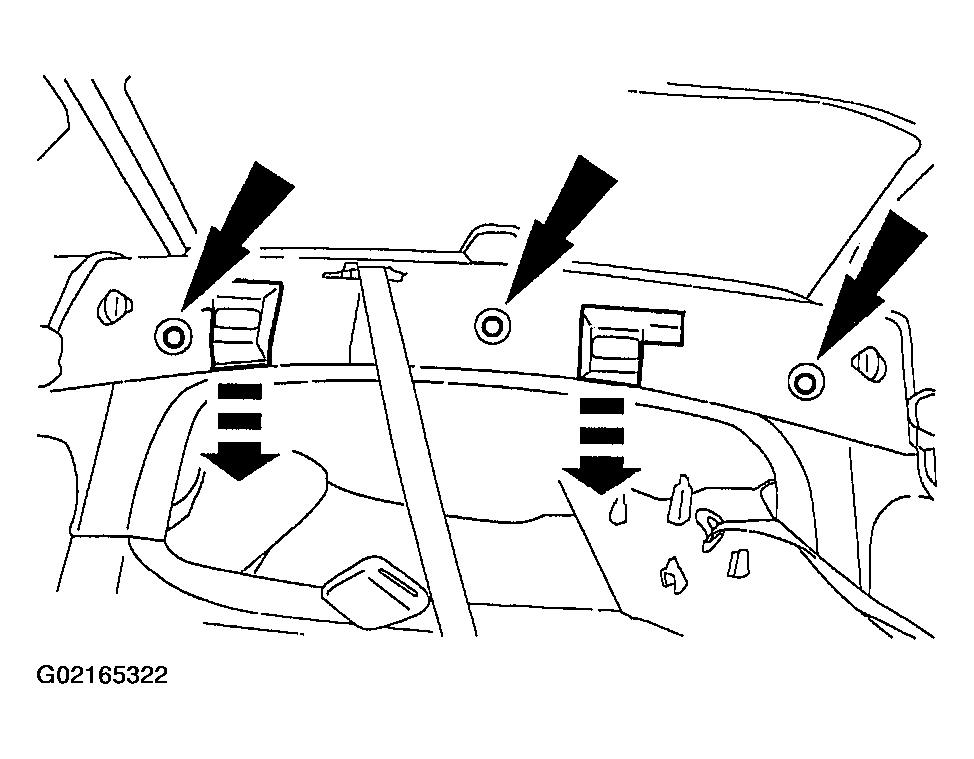

Remove the pin-type retainers and pull down the rear seat latch covers.

Fig 4: Removing Pin-Type Retainers
Courtesy of FORD MOTOR CO.
Remove the package tray trim panel.
