Removal And Installation: Headliner: Removal

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Move the front passenger seat fully rearward and fully recline.
  2. Move the driver seat fully forward and the seat backrest fully upright.
  3. Remove the screws and the sun visors.
    • Disconnect the electrical connectors.
    Fig 1: Removing Sun Visors
    G02165330Courtesy of FORD MOTOR CO.
  4. Remove the screws and the sun visor clips.
    Fig 2: Removing Sun Visor Clips
    G02165331Courtesy of FORD MOTOR CO.
  5. Remove the four assist handles.
    1. Position the end caps aside.
    2. Remove the screws.
    Fig 3: Removing Assist Handles
    G02165332Courtesy of FORD MOTOR CO.
  6. Remove the windshield side garnish moldings.
    Fig 4: Removing Windshield Side Garnish Moldings
    G02165333Courtesy of FORD MOTOR CO.
  7. Position the upper B-pillar trim aside.
    Fig 5: Positioning Upper B-Pillar Trim Aside
    G02165334Courtesy of FORD MOTOR CO.
  8. Position the upper portion of the door weatherstrip seals aside.
  9. Remove the quarter trim panels. For additional information, see TRIM PANEL - QUARTER .
    10. NOTE: Vehicles without moon roofs-Use a plastic scraper to detach the headliner from the roof.
  10. Release the map lamp clips and lower the headliner.
  11. Disconnect the electrical connector.

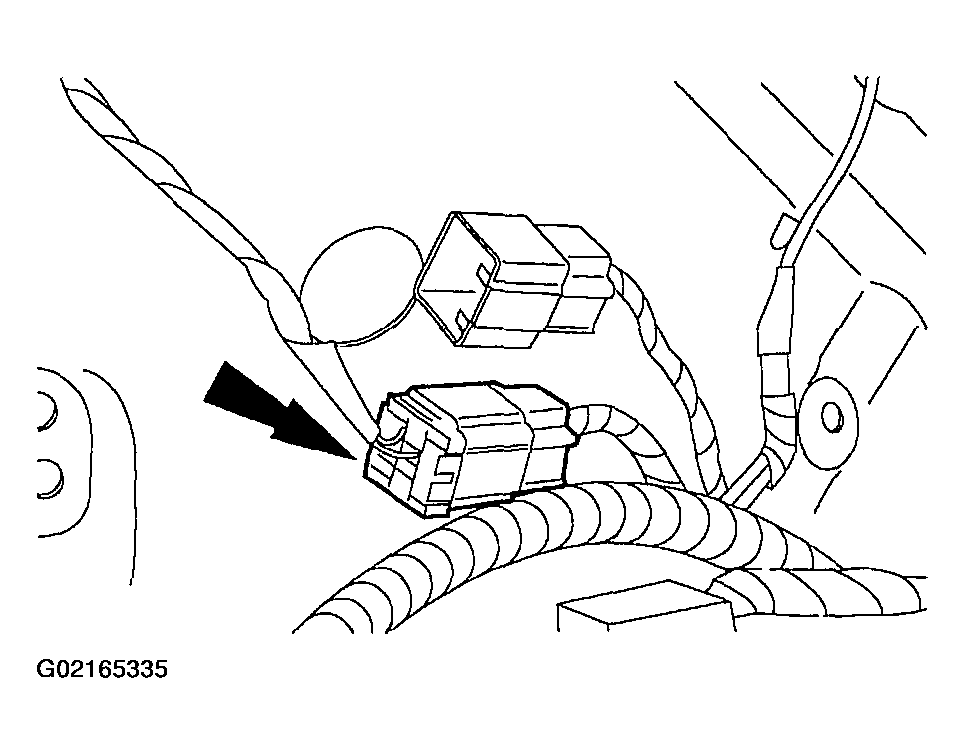

    Fig 6: Disconnecting Electrical Connector
    G02165335Courtesy of FORD MOTOR CO.
  12. Remove the headliner from the left rear door opening.
