Removal And Installation: Headliner: Installation

Installing New Headliner

1. Carefully position the headliner in the vehicle.
NOTE: Adhesive required for vehicles without moon roofs.

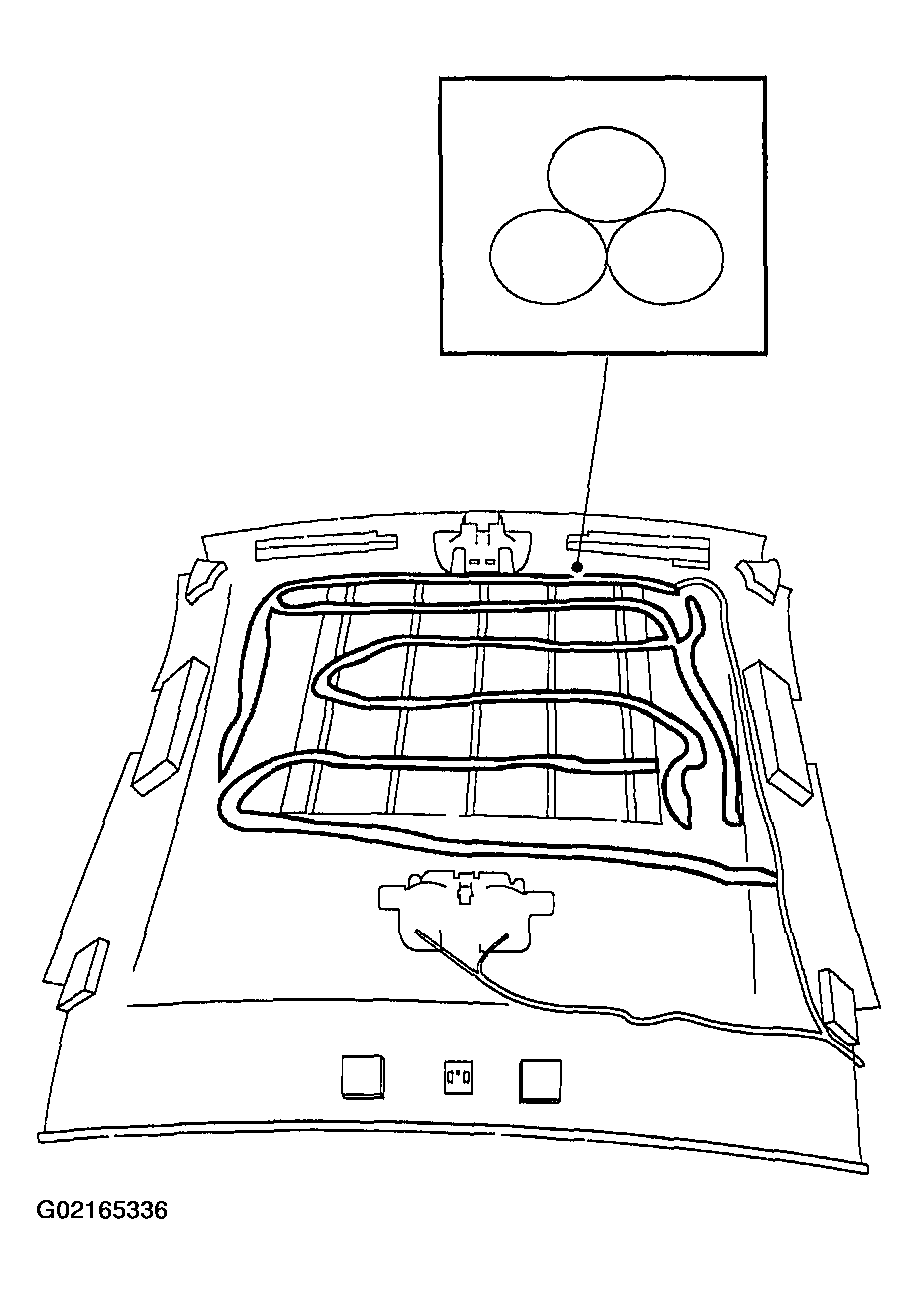

Fig 1: Applying Headliner Adhesive
Courtesy of FORD MOTOR CO.
2. Apply Headliner Adhesive F1VY-19562-A or equivalent meeting Ford specification WSS-M2G355-B in a triangular pattern to the center of the headliner.
3. Connect the electrical connector.

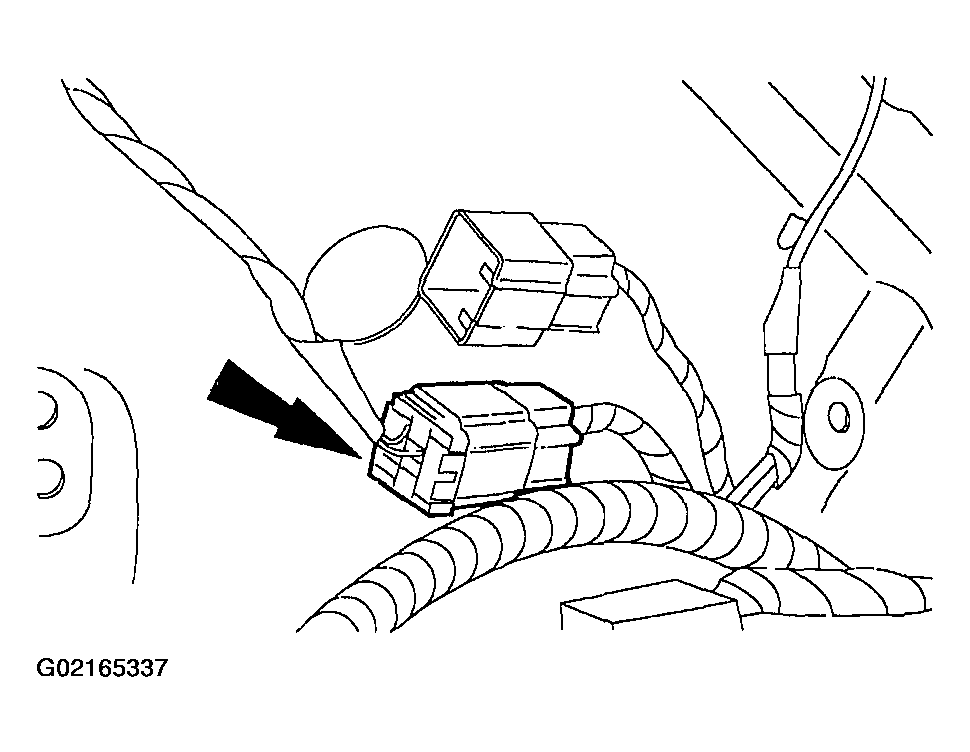

   Fig 2: Connecting Electrical Connector

   Courtesy of FORD MOTOR CO.
4. Press the headliner against the roof to make sure adhesive contacts both surfaces.

   Installing Existing Headliner

CAUTION: Folding the headliner will result in damage to the headliner.
5. Carefully position the roof headliner in the vehicle.
6. Bend the tabs of the rear locator back into their original position.
   Fig 3: Bending Tabs On Rear Locator

   Courtesy of FORD MOTOR CO.
7. Apply Headliner Adhesive F1VY-19562-A or equivalent meeting Ford specification WSS-M2G355-B in a triangular pattern to the center of the headliner.

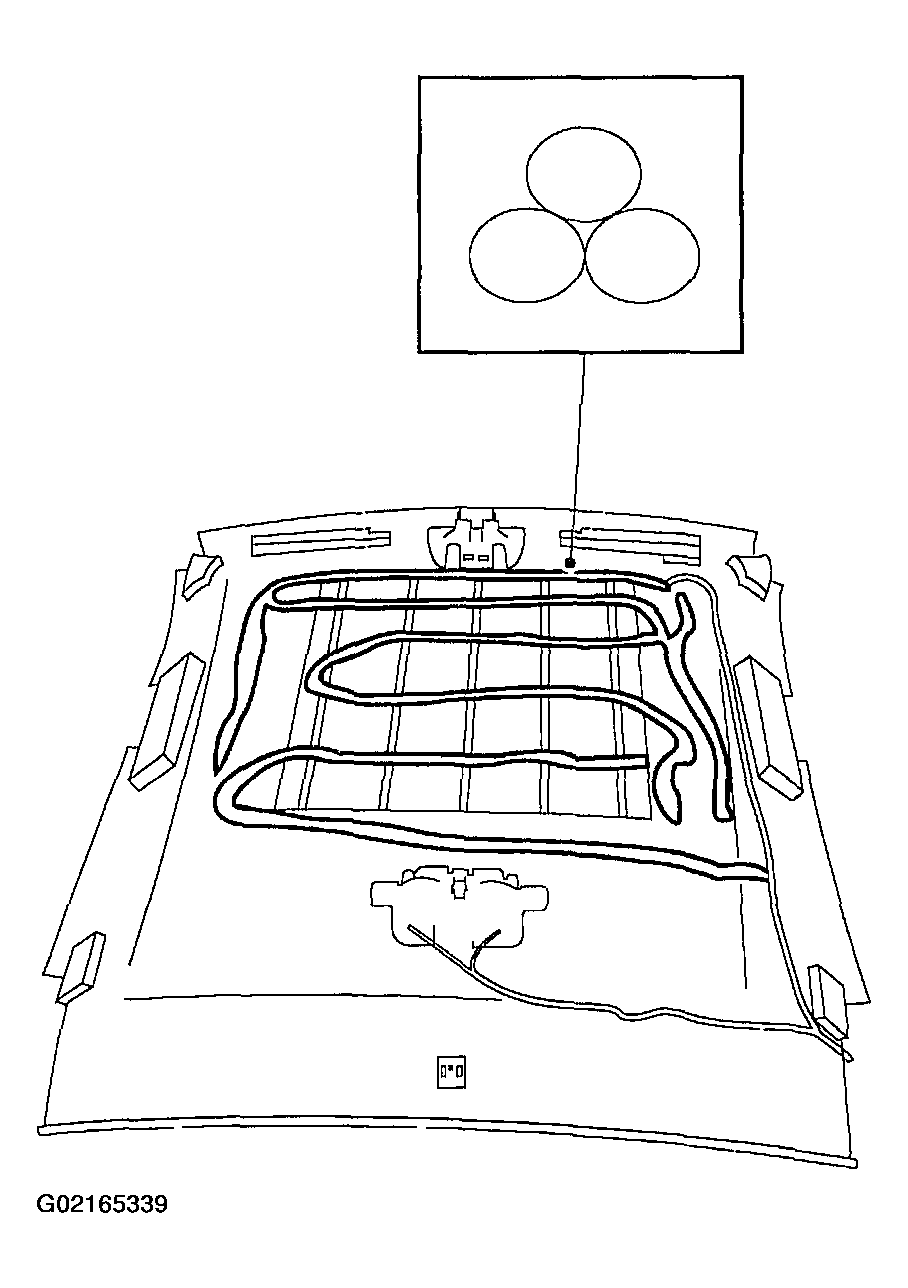

   Fig 4: Applying Headliner Adhesive

   Courtesy of FORD MOTOR CO.
8. Connect the electrical connector.
   Fig 5: Connecting Electrical Connector

   Courtesy of FORD MOTOR CO.
9. Press the headliner against the roof to make sure the adhesive contacts both surfaces.

   New or Existing

10. Install the quarter trim panels. For additional information, see TRIM PANEL - QUARTER .
11. Install the upper B-pillar trim.
    Fig 6: Installing Upper B-Pillar Trim

    Courtesy of FORD MOTOR CO.
12. Install the windshield garnish moldings on each side.
    Fig 7: Installing Windshield Garnish Moldings

    Courtesy of FORD MOTOR CO.
13. Position the sun visor clips and install the screws.
    Fig 8: Installing Sun Visor Clips

    Courtesy of FORD MOTOR CO.
14. Connect the electrical connectors, position the sun visors, and install the screws.
    Fig 9: Installing Sun Visors

    Courtesy of FORD MOTOR CO.
15. Install the four assist handles.
    1. Position the assist handles.
    2. Install the screws.
    3. Install the end caps.
    Fig 10: Installing Assist Handles

    Courtesy of FORD MOTOR CO.
16. Install the door weatherstrips.
17. Place the seats in upright positions.
