Pinpoint Test F: A Chime Does Not Operate Correctly - Air Bag Warning Chime

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

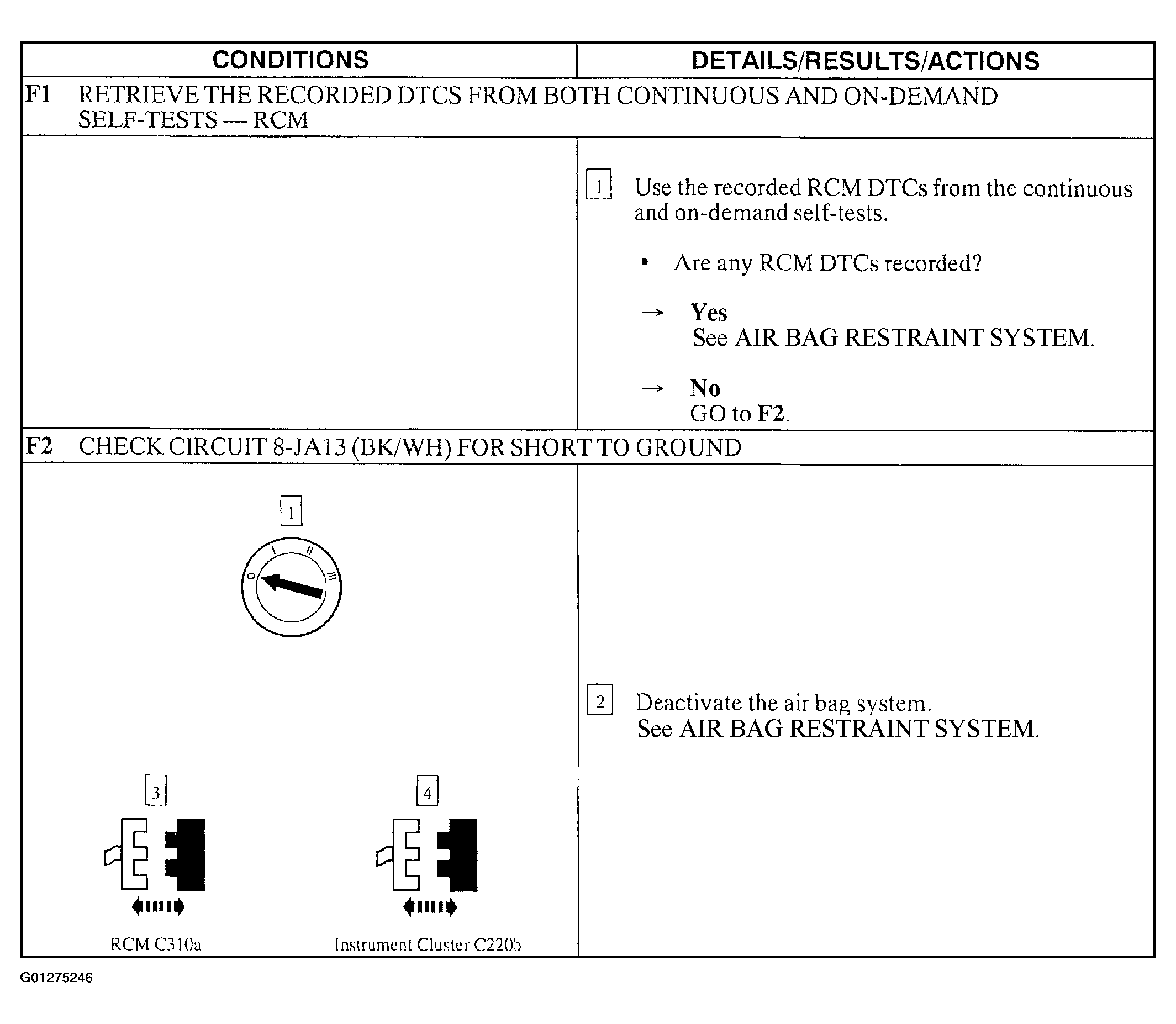

Fig 1: Pinpoint Test F: A Chime Does Not Operate Correctly - Air Bag Warning Chime (Steps F1 & F2)

Courtesy of FORD MOTOR CO.

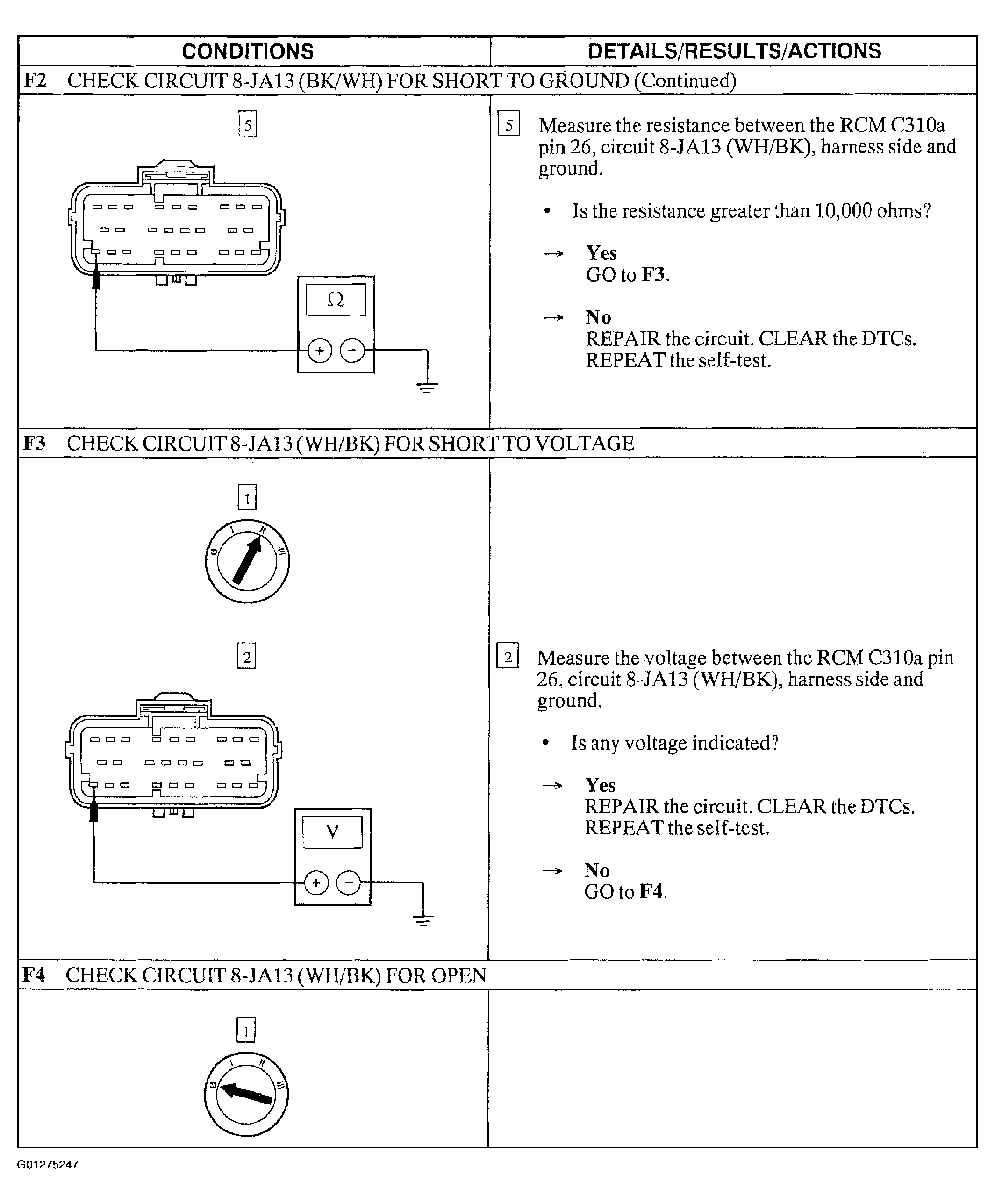

Fig 2: Pinpoint Test F: A Chime Does Not Operate Correctly - Air Bag Warning Chime (Steps F2 To F4)

Courtesy of FORD MOTOR CO.

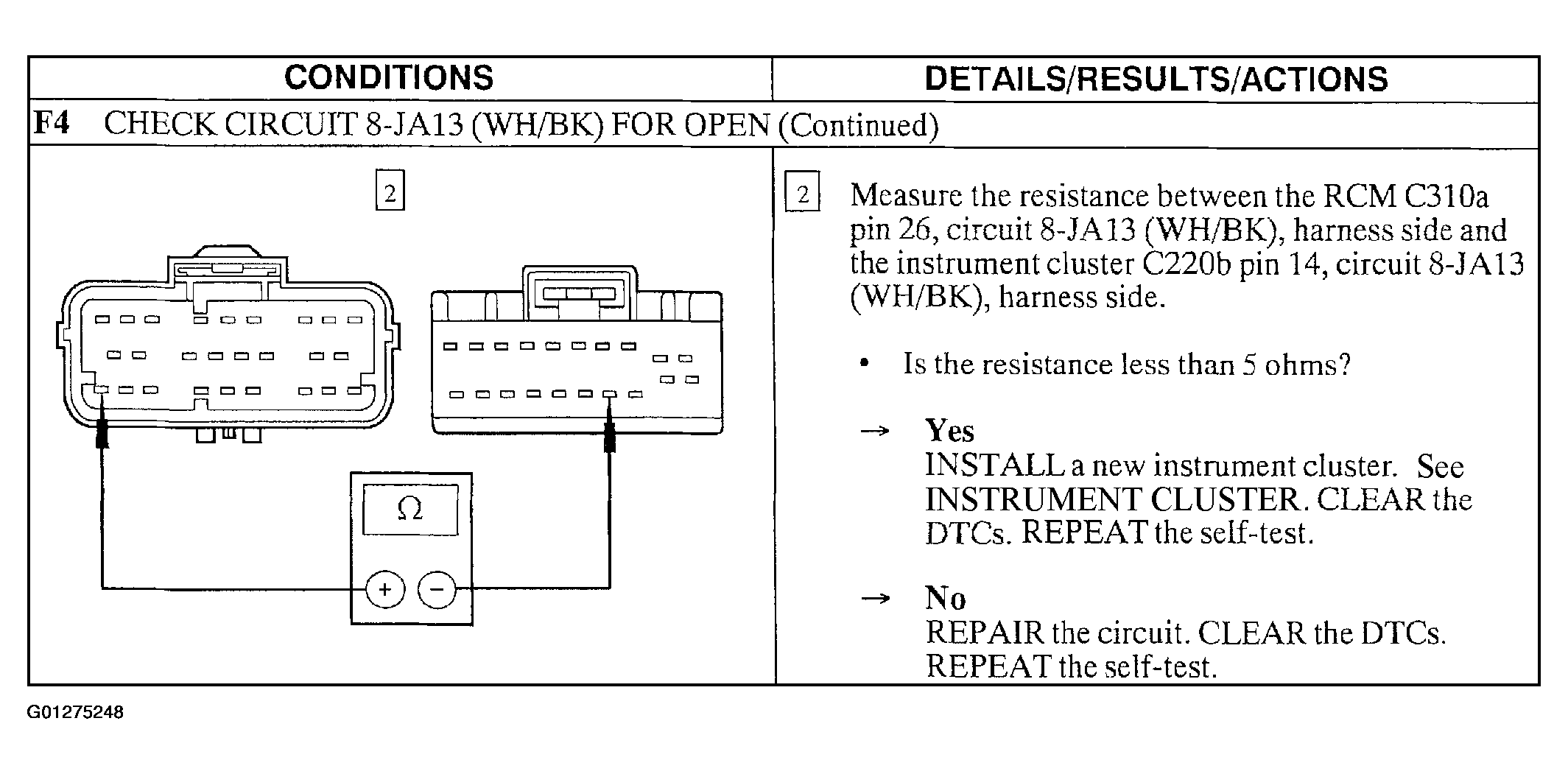

Fig 3: Pinpoint Test F: A Chime Does Not Operate Correctly - Air Bag Warning Chime (Step F4)

Courtesy of FORD MOTOR CO.
