Pinpoint Test E: The Headlamp On Reminder Chime Does Not Operate Correctly

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

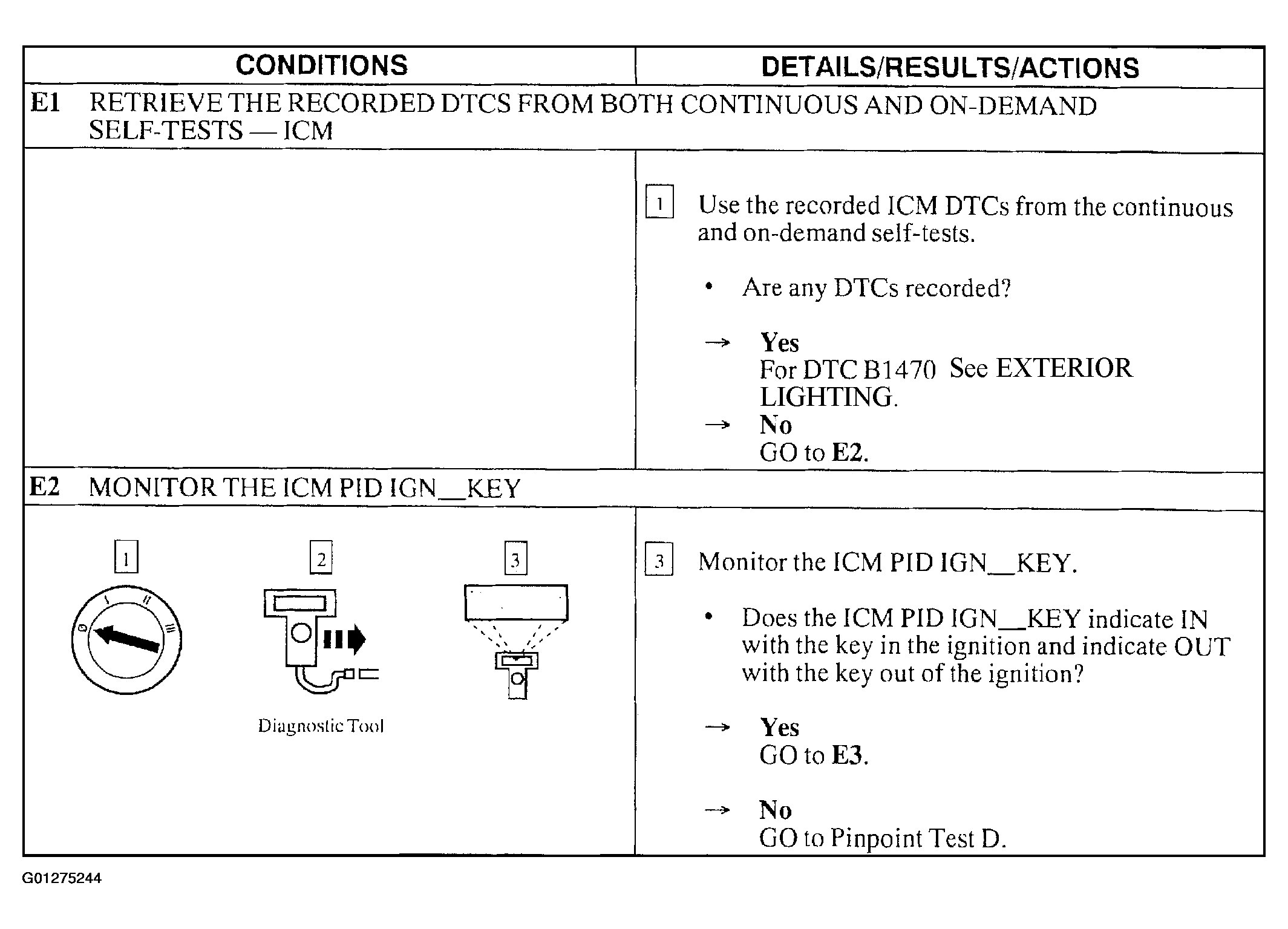

Fig 1: Pinpoint Test E: The Headlamp On Reminder Chime Does Not Operate Correctly (Step E1 & E2)

Courtesy of FORD MOTOR CO.

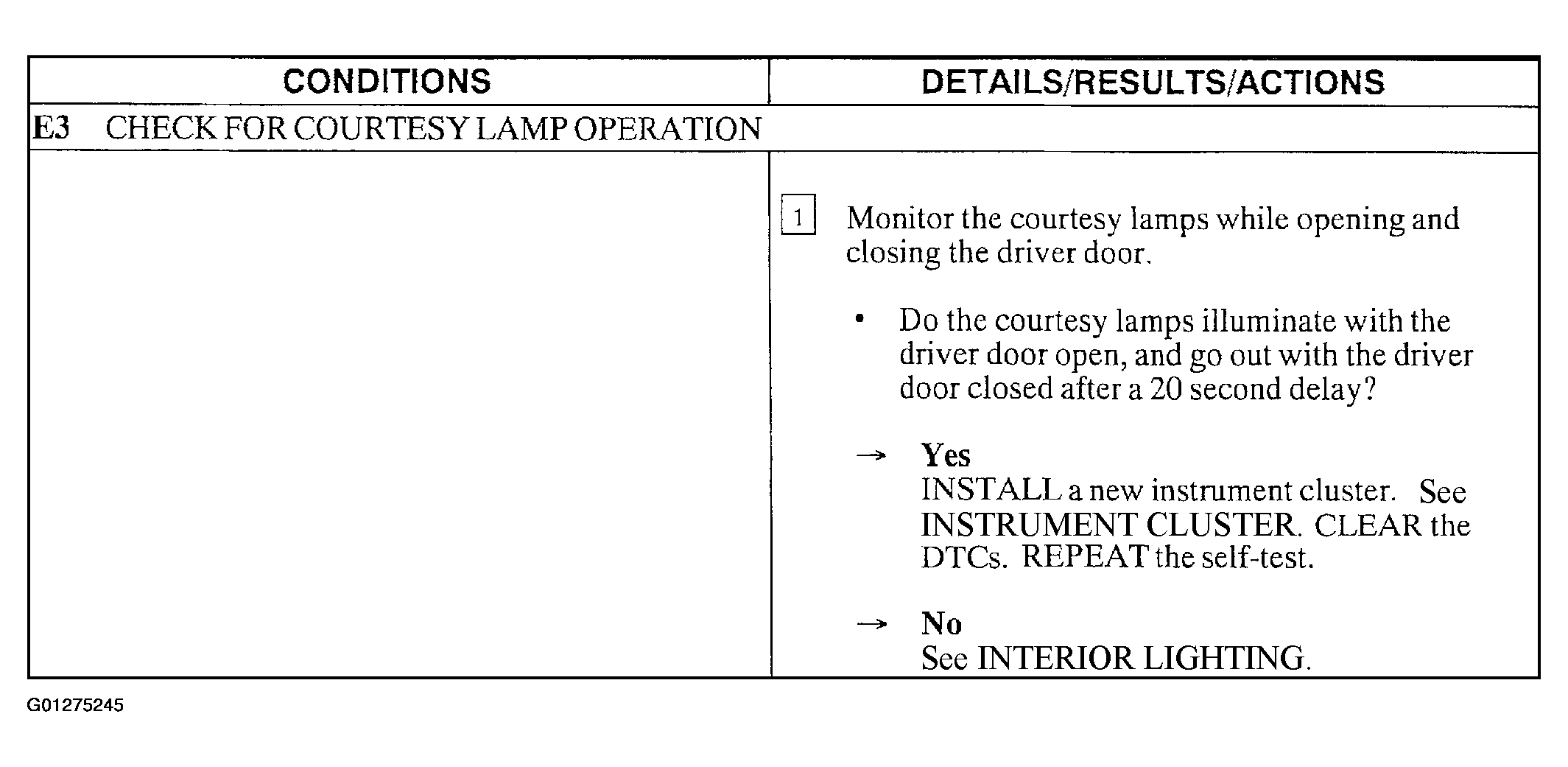

Fig 2: Pinpoint Test E: The Headlamp On Reminder Chime Does Not Operate Correctly (Step E3)

Courtesy of FORD MOTOR CO.
