Pinpoint Test D: The Key-In-Ignition Chime Does Not Operate Correctly

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

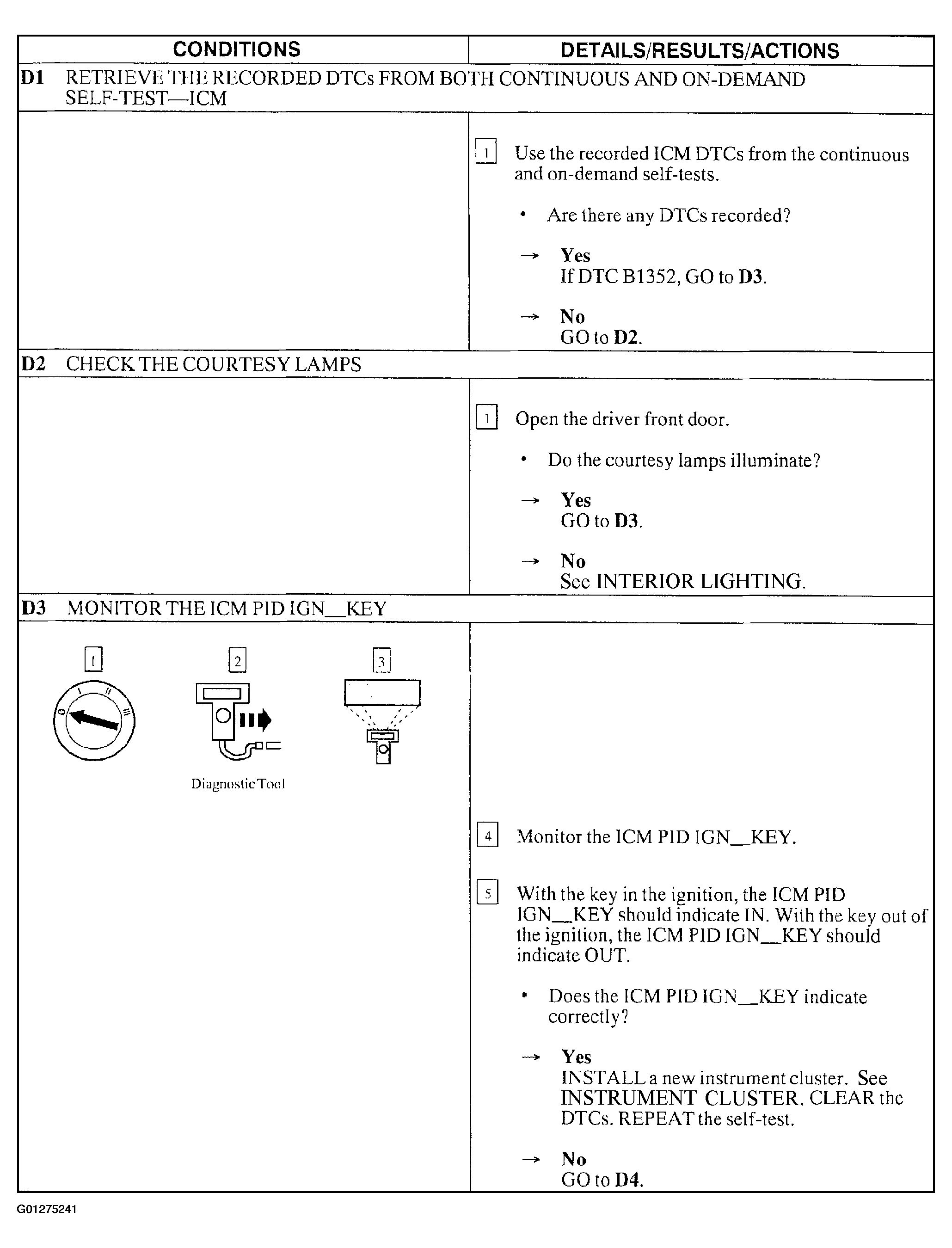

Fig 1: Pinpoint Test D: The Key-In-Ignition Chime Does Not Operate Correctly (Steps D1 To D3)

Courtesy of FORD MOTOR CO.

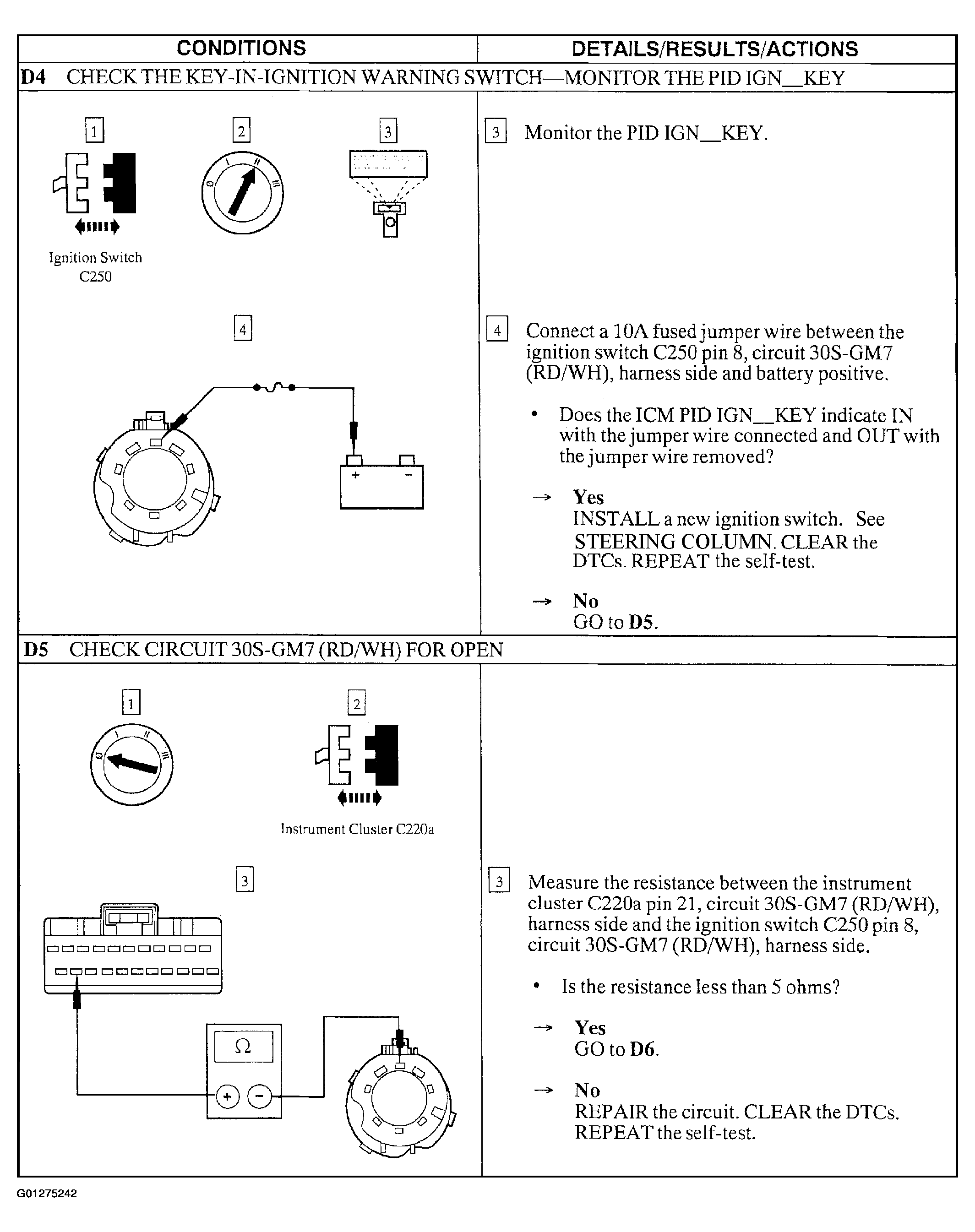

Fig 2: Pinpoint Test D: The Key-In-Ignition Chime Does Not Operate Correctly (Steps D4 & D5)

Courtesy of FORD MOTOR CO.

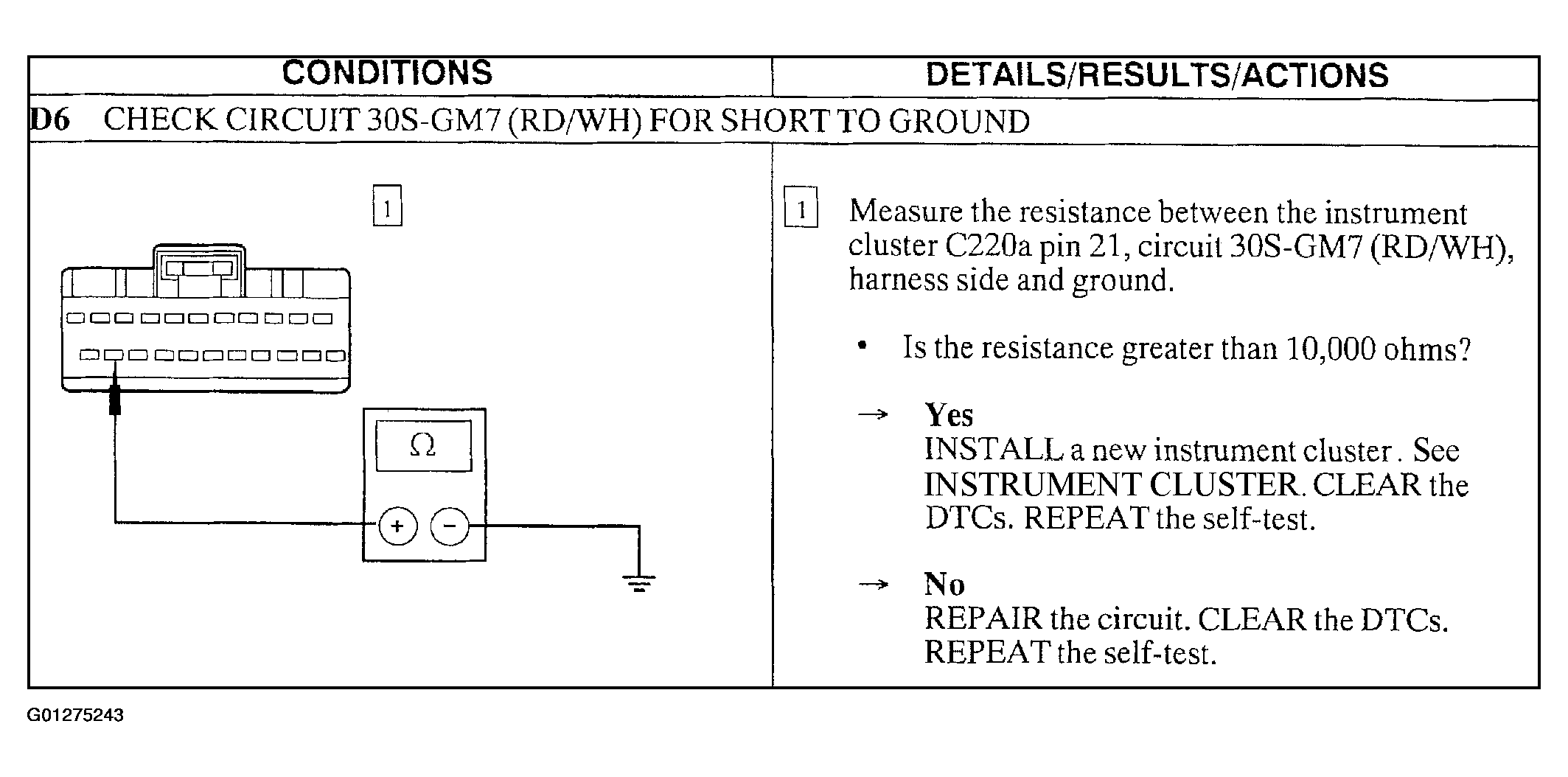

Fig 3: Pinpoint Test D: The Key-In-Ignition Chime Does Not Operate Correctly (Step D6)

Courtesy of FORD MOTOR CO.
