Pinpoint Test C: The Safety Belt Warning Chime Does Not Operate Correctly

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

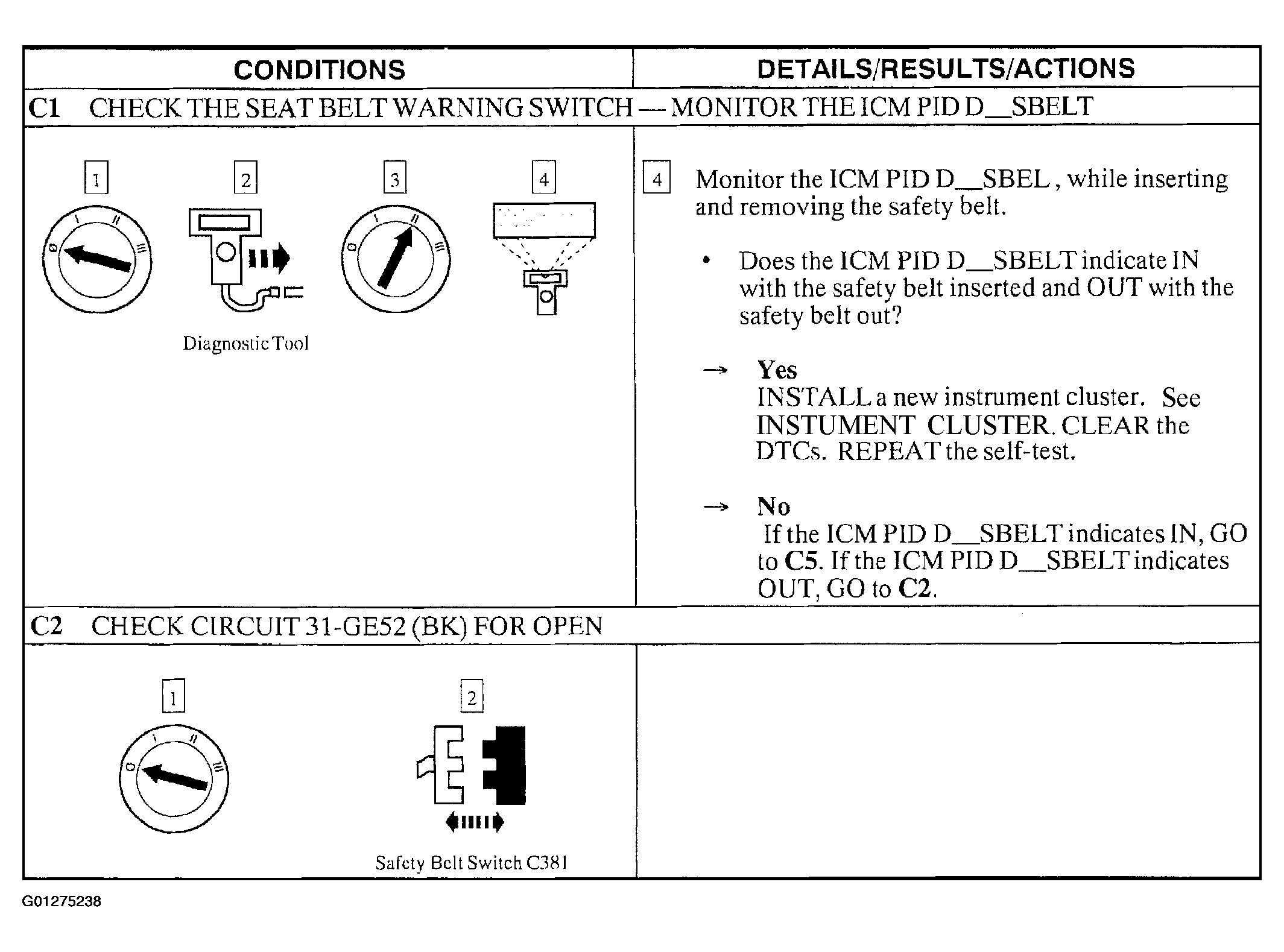

Fig 1: Pinpoint Test C: The Safety Belt Warning Chime Does Not Operate Correctly (Steps C1 & C2)

Courtesy of FORD MOTOR CO.

NOTE: Verify the belt minder is activated before diagnosing the belt minder.

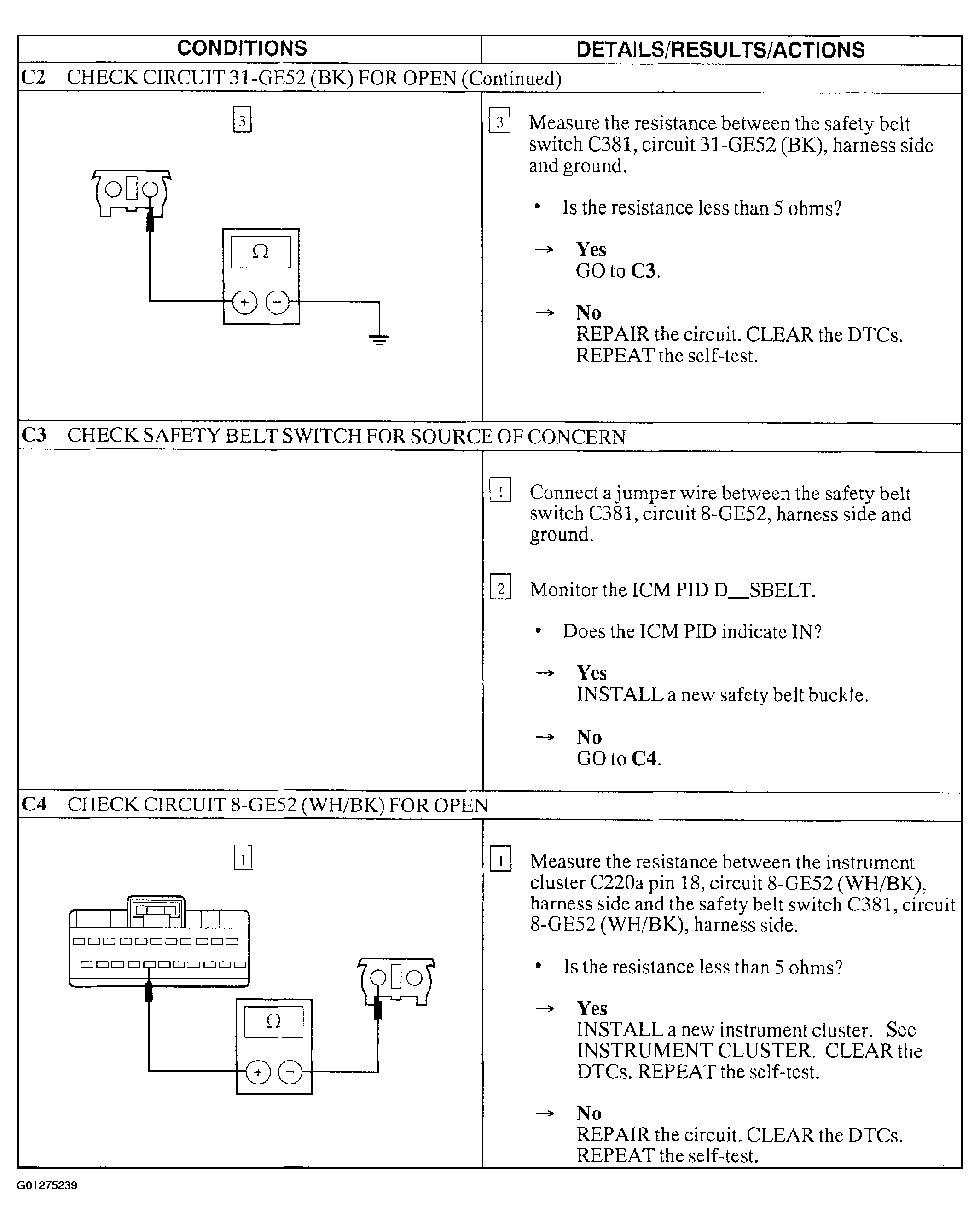

Fig 2: Pinpoint Test C: The Safety Belt Warning Chime Does Not Operate Correctly (Steps C2 To C4)

Courtesy of FORD MOTOR CO.

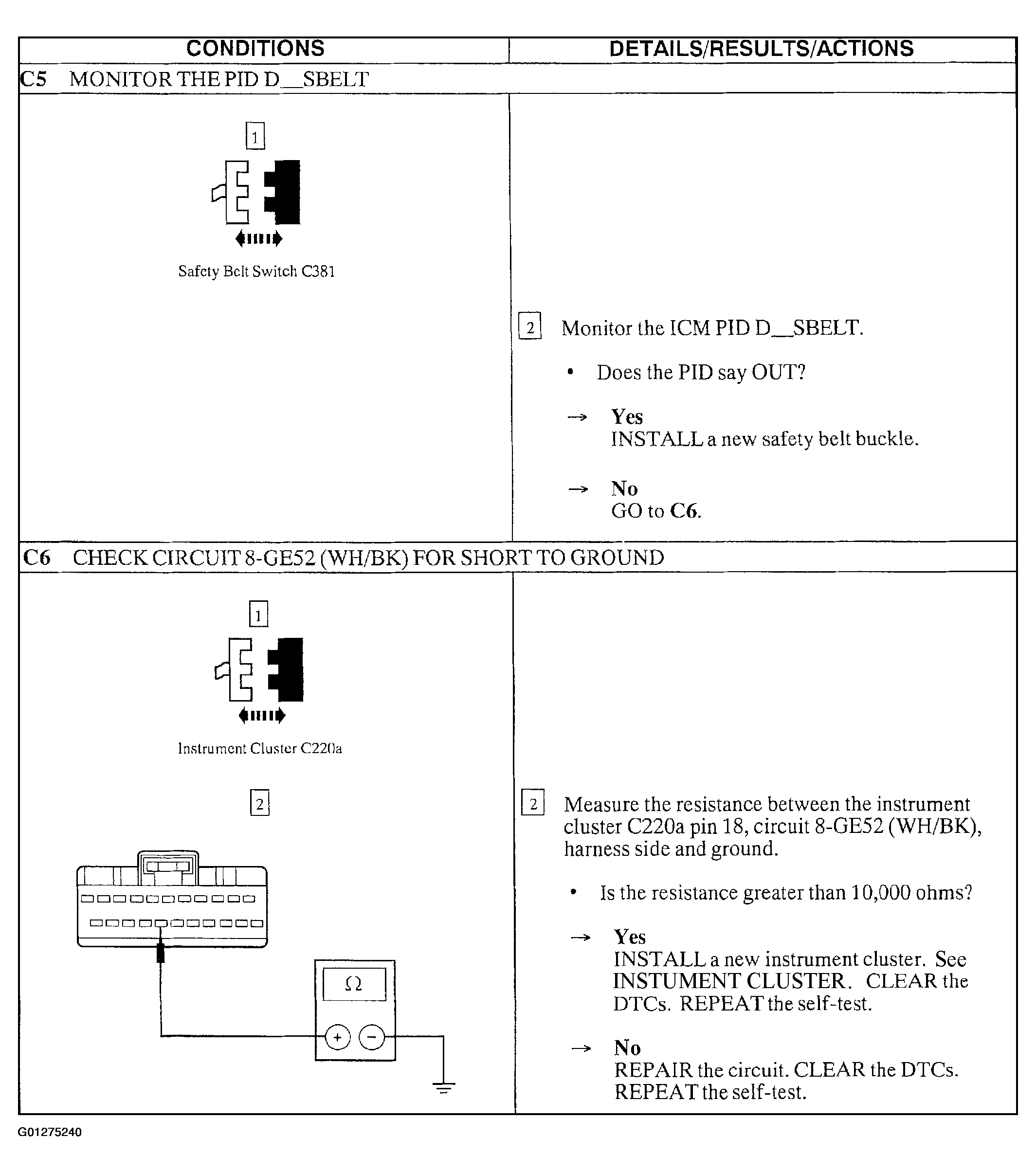

Fig 3: Pinpoint Test C: The Safety Belt Warning Chime Does Not Operate Correctly (Steps C5 & C6)

Courtesy of FORD MOTOR CO.
