Pinpoint Test B: The Chime Sounds When The Driver Door Is Ajar (No Key In Ignition And Headlamps Off)

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

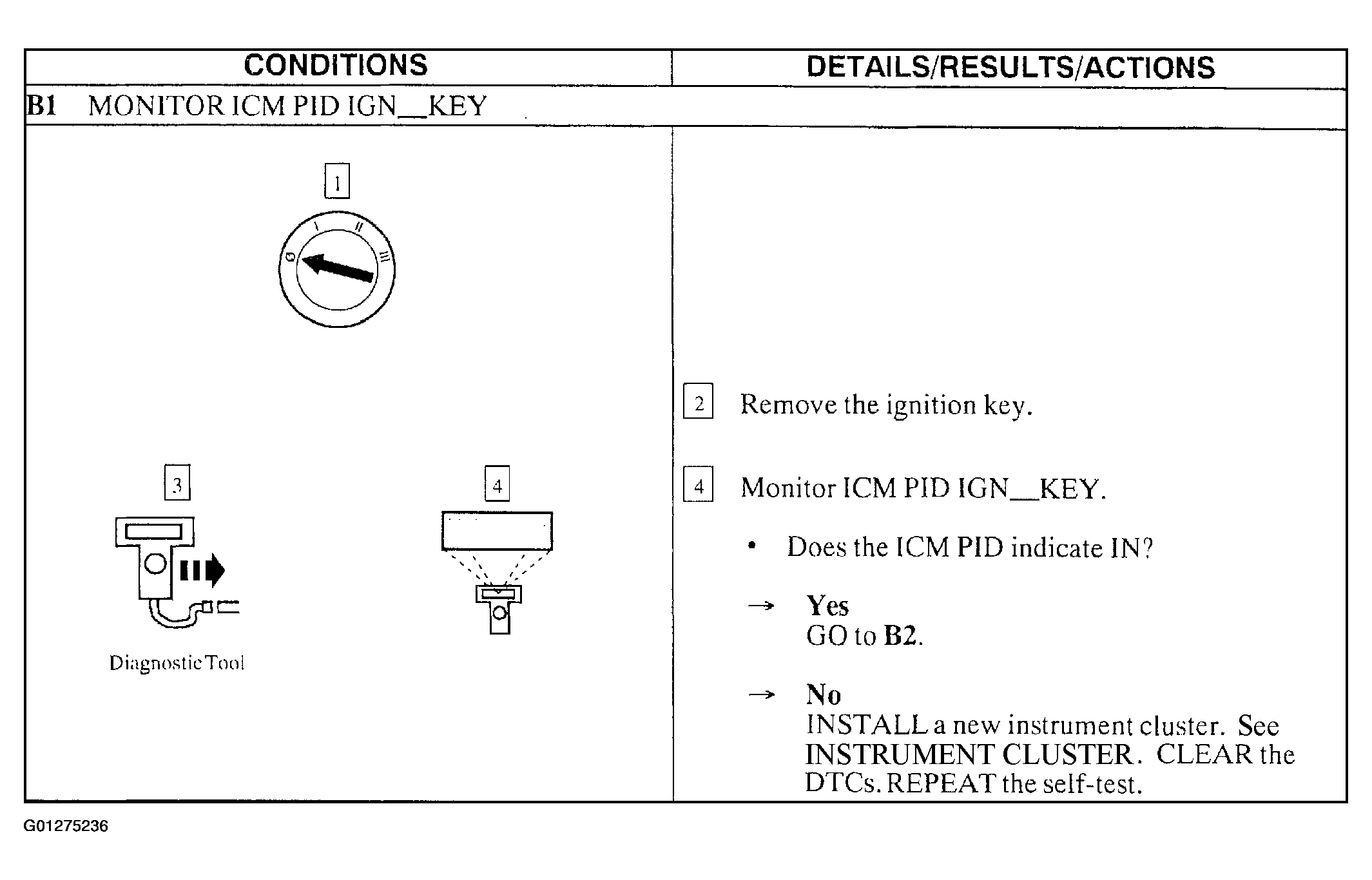

Fig 1: Pinpoint Test B: The Chime Sounds When The Driver Door Is Ajar (No Key In Ignition And Headlamps Off) (Step B1)
G01275236Courtesy of FORD MOTOR CO.
Fig 2: Pinpoint Test B: The Chime Sounds When The Driver Door Is Ajar (No Key In Ignition And Headlamps Off) (Step B2)
G01275237Courtesy of FORD MOTOR CO.
