Pinpoint Test A: No Communication With The Instrument Cluster

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

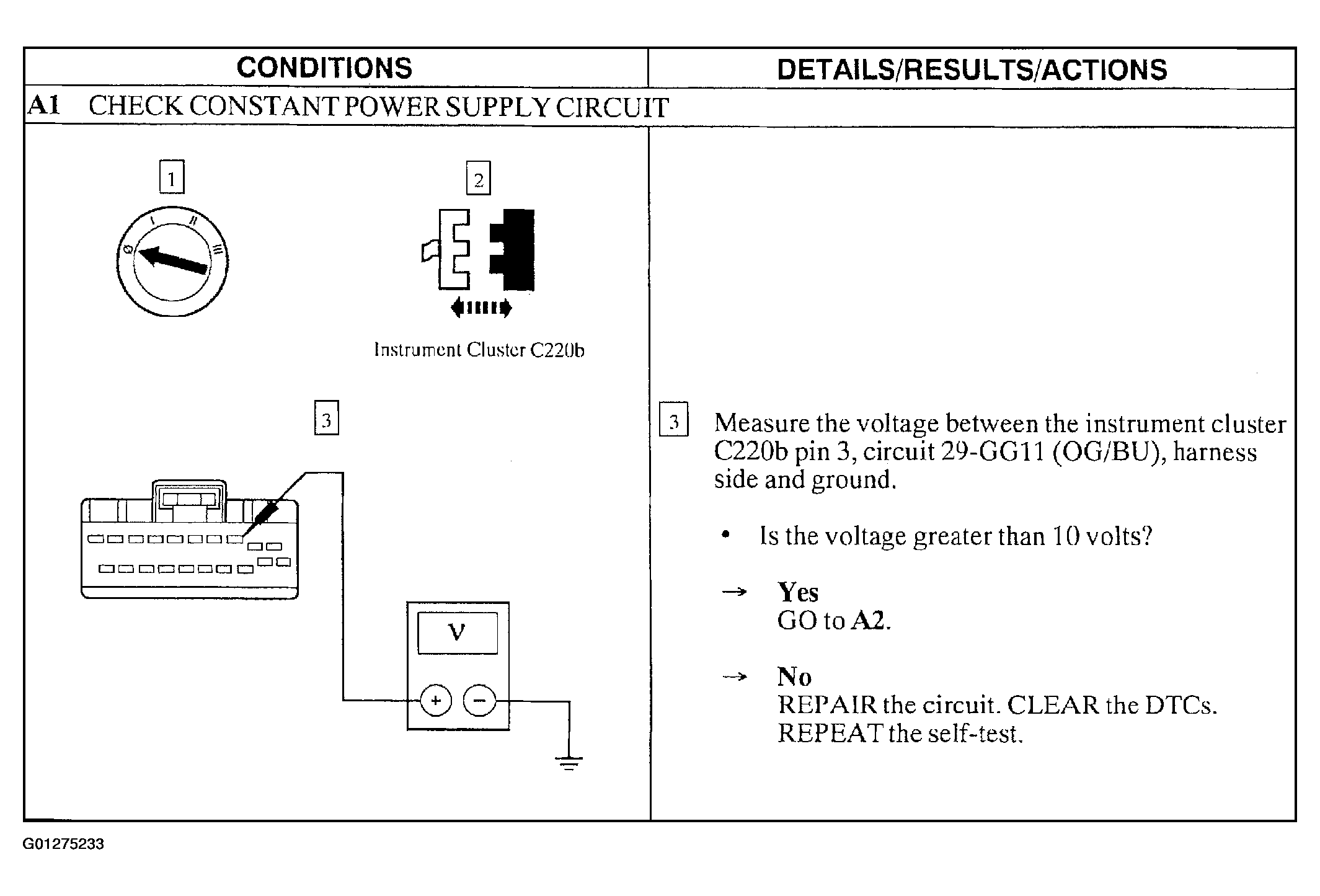

Fig 1: Pinpoint Test A: No Communication With The Instrument Cluster (Step A1)

Courtesy of FORD MOTOR CO.

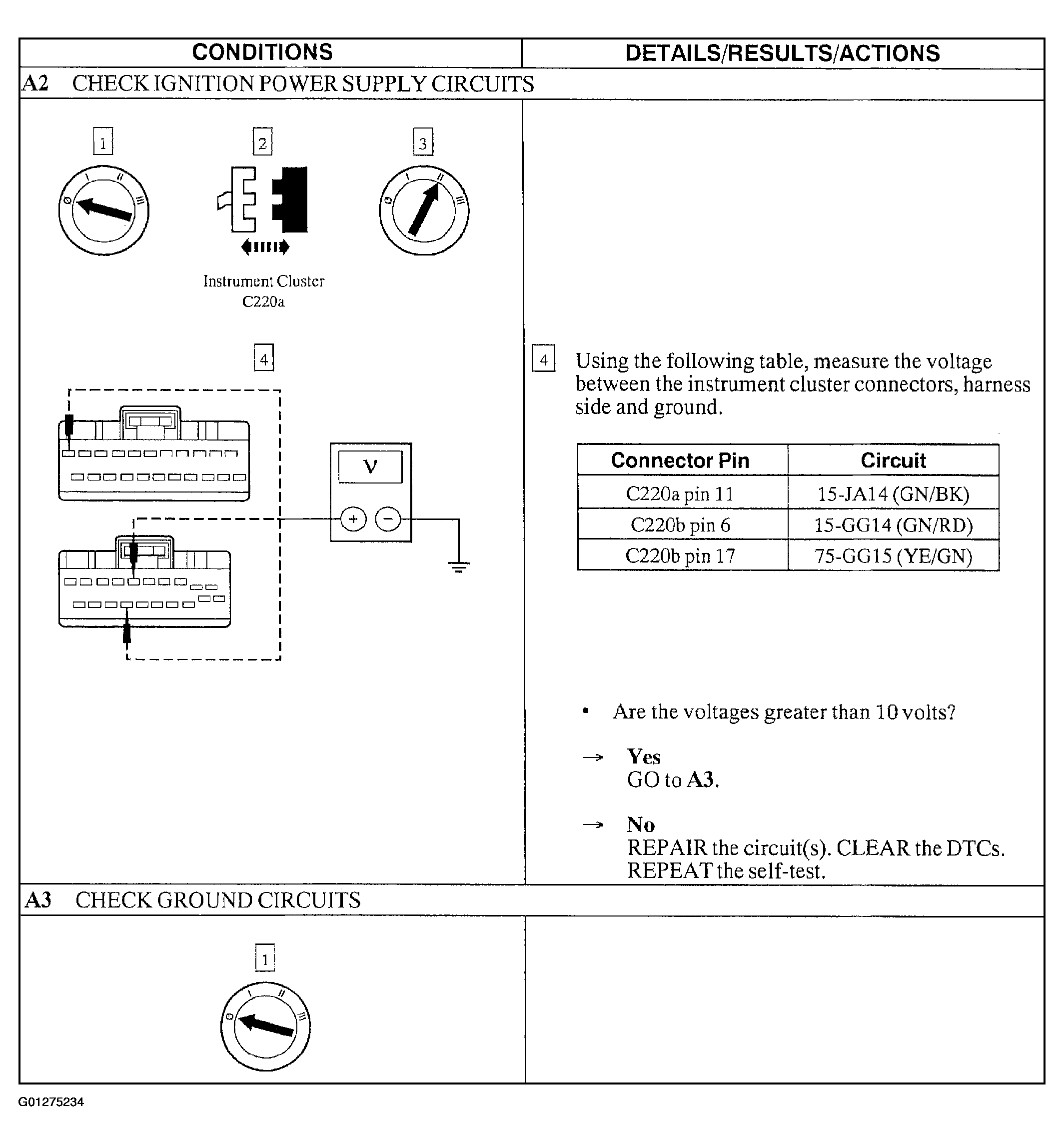

Fig 2: Pinpoint Test A: No Communication With The Instrument Cluster (Steps A2 & A3)

Courtesy of FORD MOTOR CO.

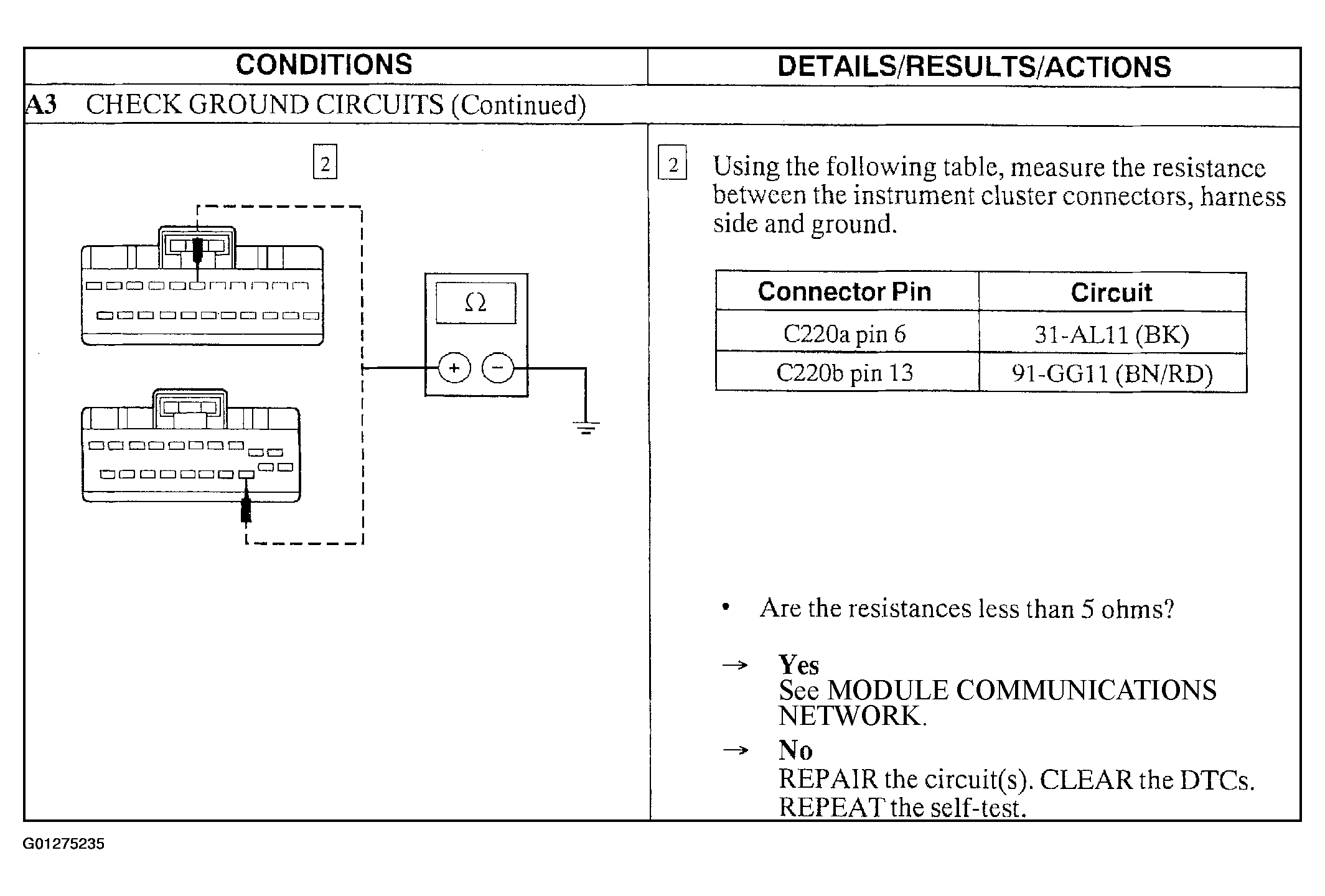

Fig 3: Pinpoint Test A: No Communication With The Instrument Cluster (Step A3, Cont.)

Courtesy of FORD MOTOR CO.
