Removal and Installation

WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

    Drum brake vehicles

  1. Remove the rear drum brake shoes. For additional information, refer to DRUM BRAKE .

    2. Disc brake vehicles

  2. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .

    3. All vehicles

  3. Release the parking brake control boot clips at the floor console by pressing inward on the base of the boot.
    Fig 1: Identifying Parking Brake Control Lever Cover
    G04617698Courtesy of FORD MOTOR CO.
  4. Remove the parking brake control boot.
    • Pull the parking brake control boot up and over the lever.
  5. Loosen the front cable adjuster nut.
  6. Disconnect the cable connector from the LH rear parking brake cable at the equalizer.
  7. If removing the LH rear parking brake cable, remove the 2 parking brake equalizer bracket bolts.
    • To install, tighten to 9 Nm (80 lb-in).
  8. If removing the LH rear parking brake cable, remove the cable-to-fuel tank strap clip.
  9. If removing the LH rear parking brake cable, disconnect the front parking brake cable from the equalizer bracket by compressing the cable conduit locking tabs.
    Fig 2: Disconnecting Front Parking Brake Cable
    G04617699Courtesy of FORD MOTOR CO.
  10. Remove the cable bracket-to-body bolt.
    • To install, tighten to 23 Nm (17 lb-ft).
  11. Remove the cable bracket-to-trailing arm bolt.
    • To install, tighten to 23 Nm (17 lb-ft).

    12. Drum brake vehicles

  12. Compress the rear parking brake cable conduit locking tabs and pull the cable assembly through the brake backing plate.

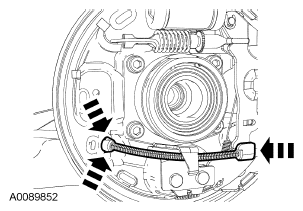

    Fig 3: Disconnecting Rear Parking Brake Cable - Drum Brake Vehicles
    G04617700Courtesy of FORD MOTOR CO.

    13. Disc brake vehicles

  13. Release the rear parking brake cable end from the parking brake actuator lever and compress the cable conduit locking tabs.
    Fig 4: Disconnecting Rear Parking Brake Cable - Disc Brake Vehicles
    G04617701Courtesy of FORD MOTOR CO.

    14. All vehicles

  14. To install, reverse the removal procedure.
