Pinpoint Test M: Data Status Message Is Displayed-Check Fuel Cap

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

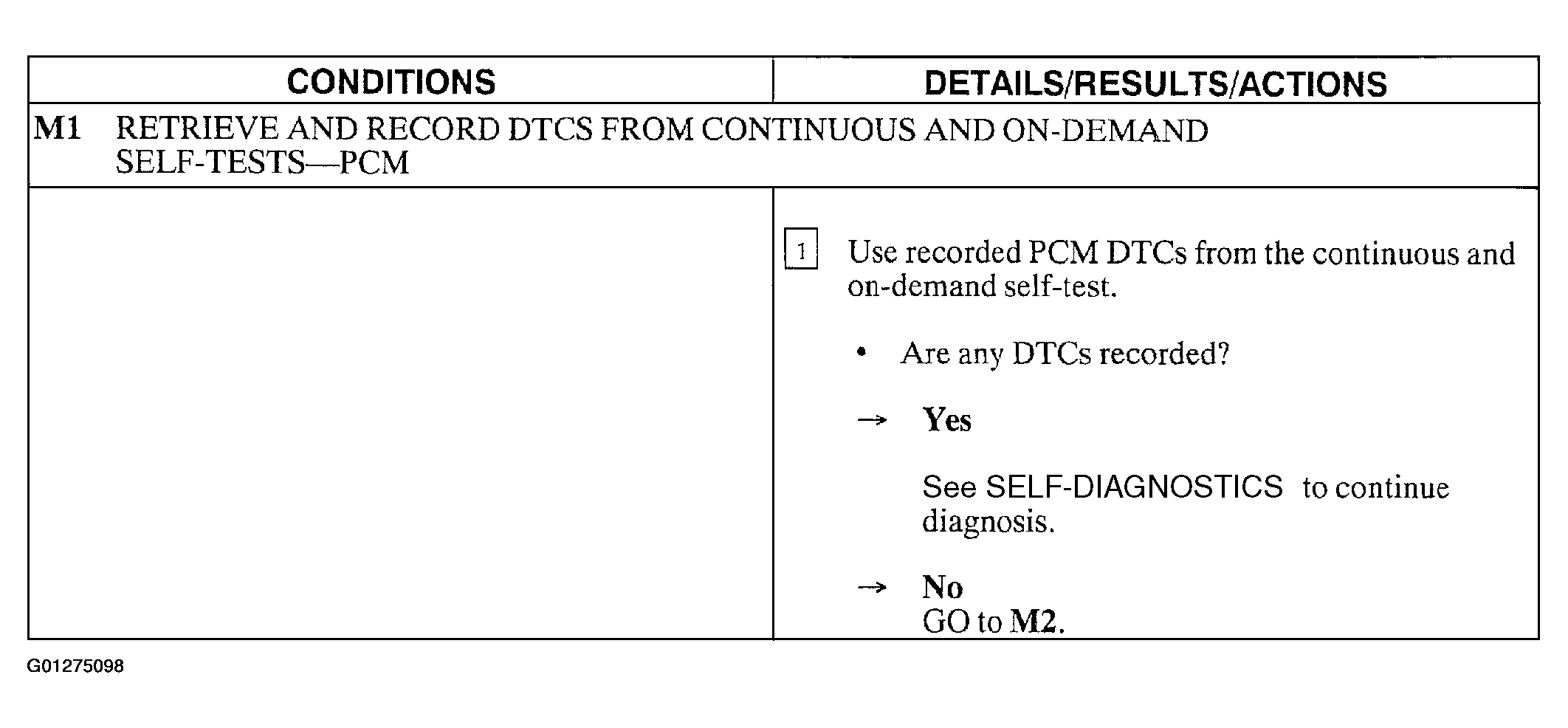

Fig 1: Pinpoint Test M: Data Status Message Is Displayed-Check Fuel Cap (Step M1)
G01275098Courtesy of FORD MOTOR CO.

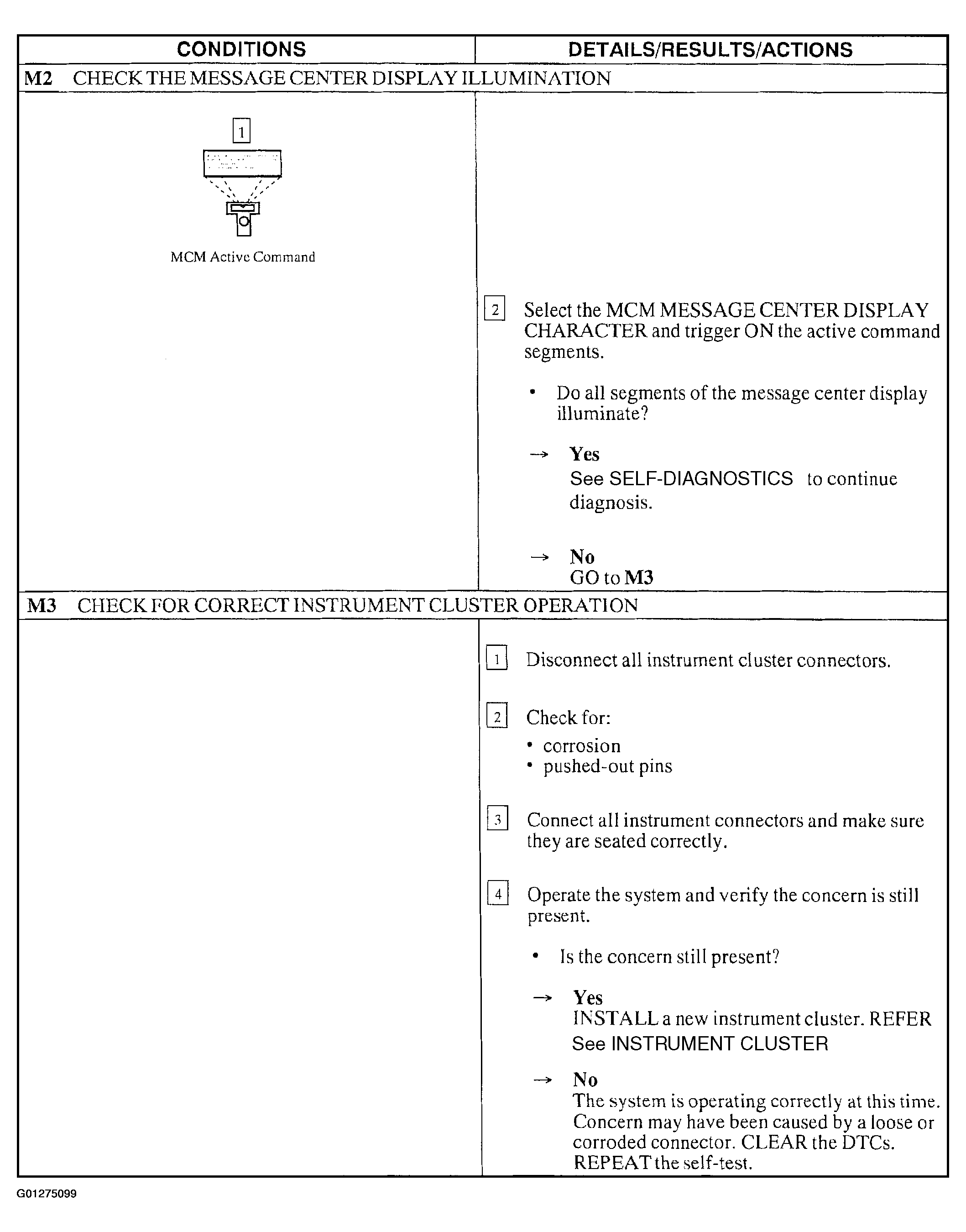

Fig 2: Pinpoint Test M: Data Status Message Is Displayed-Check Fuel Cap (Steps M2 & M3)
G01275099Courtesy of FORD MOTOR CO.
