Pinpoint Test L: Data Status Message Is Displayed - Door Ajar Display

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

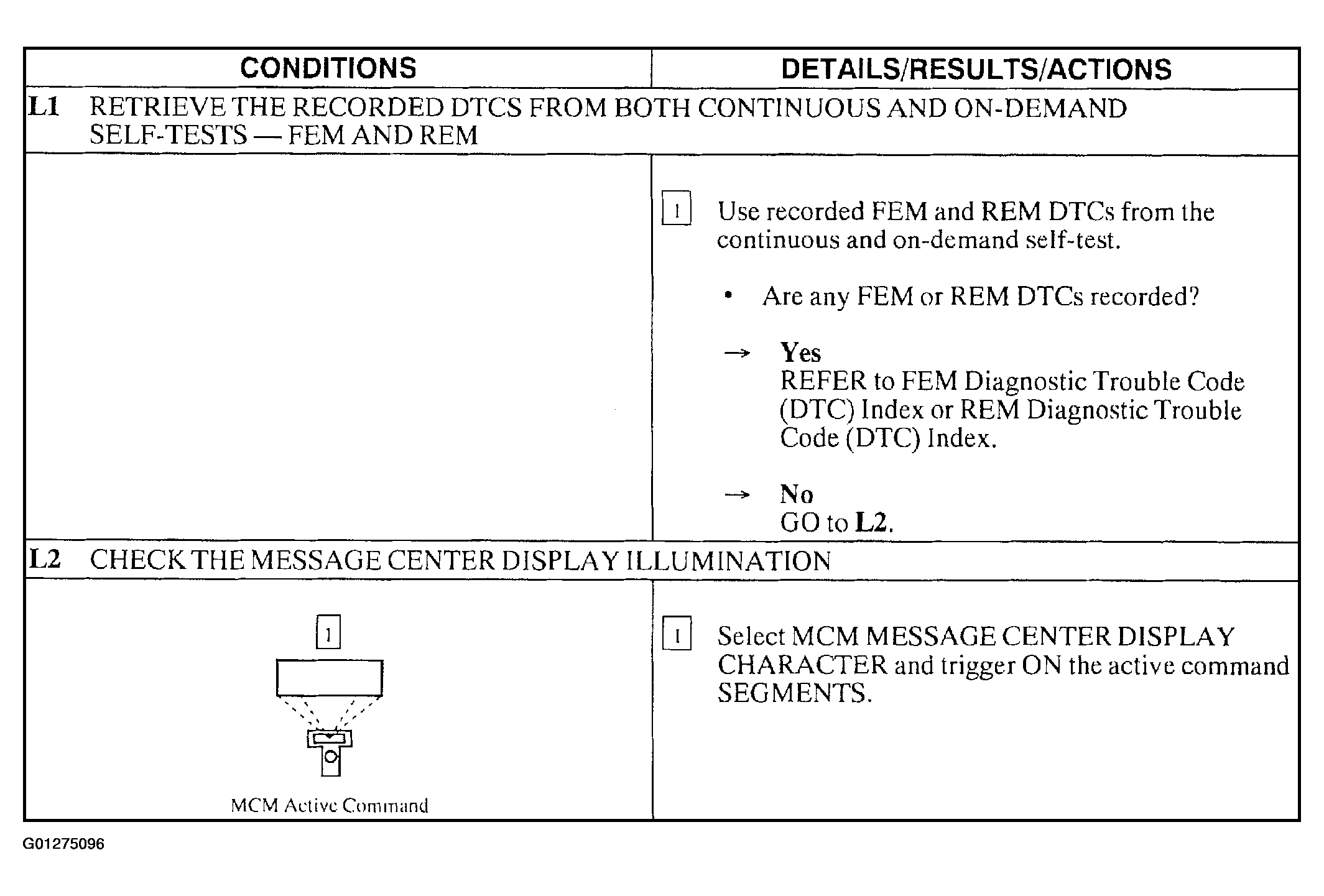

Fig 1: Pinpoint Test L: Data Status Message Is Displayed - Door Ajar Display (Steps L1 & L2)

Courtesy of FORD MOTOR CO.

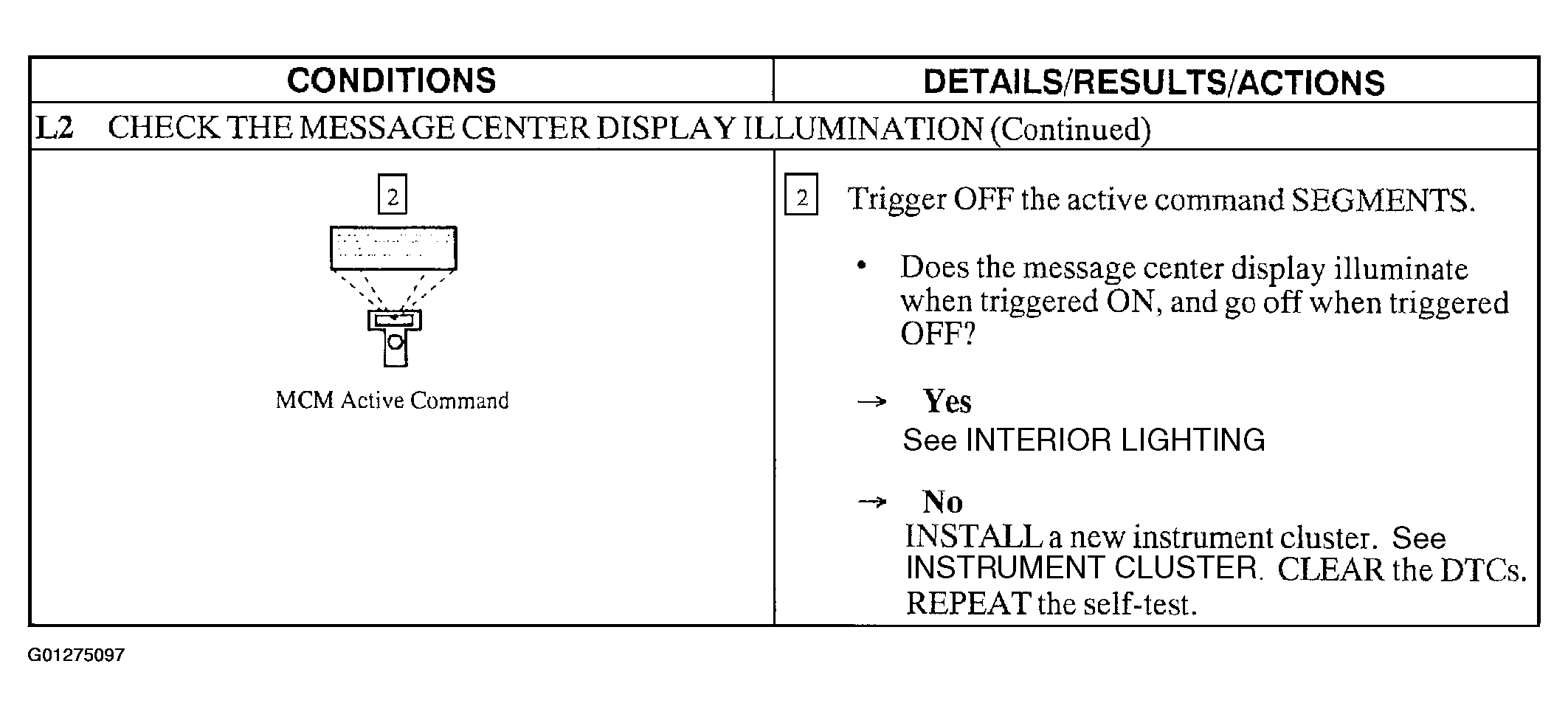

Fig 2: Pinpoint Test L: Data Status Message Is Displayed - Door Ajar Display (Step L2, Cont.)

Courtesy of FORD MOTOR CO.
