Pinpoint Test I: Lampout Warning Indicator Is Inoperative

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Verify that the FEM and REM operate correctly and communicate with the instrument cluster and message center.

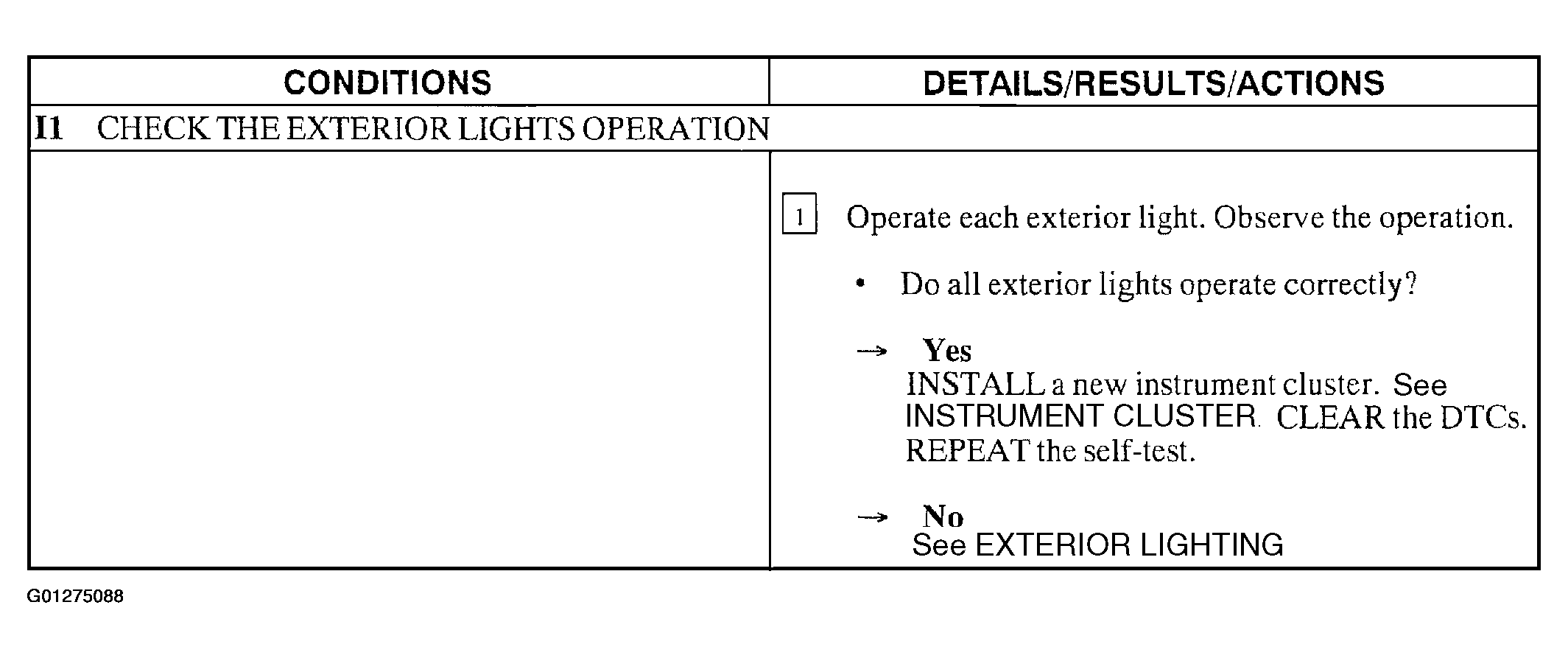

Fig 1: Pinpoint Test I: Lampout Warning Indicator Is Inoperative

Courtesy of FORD MOTOR CO.
