Pinpoint Test C: No Communication With Rear Electronic Module

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

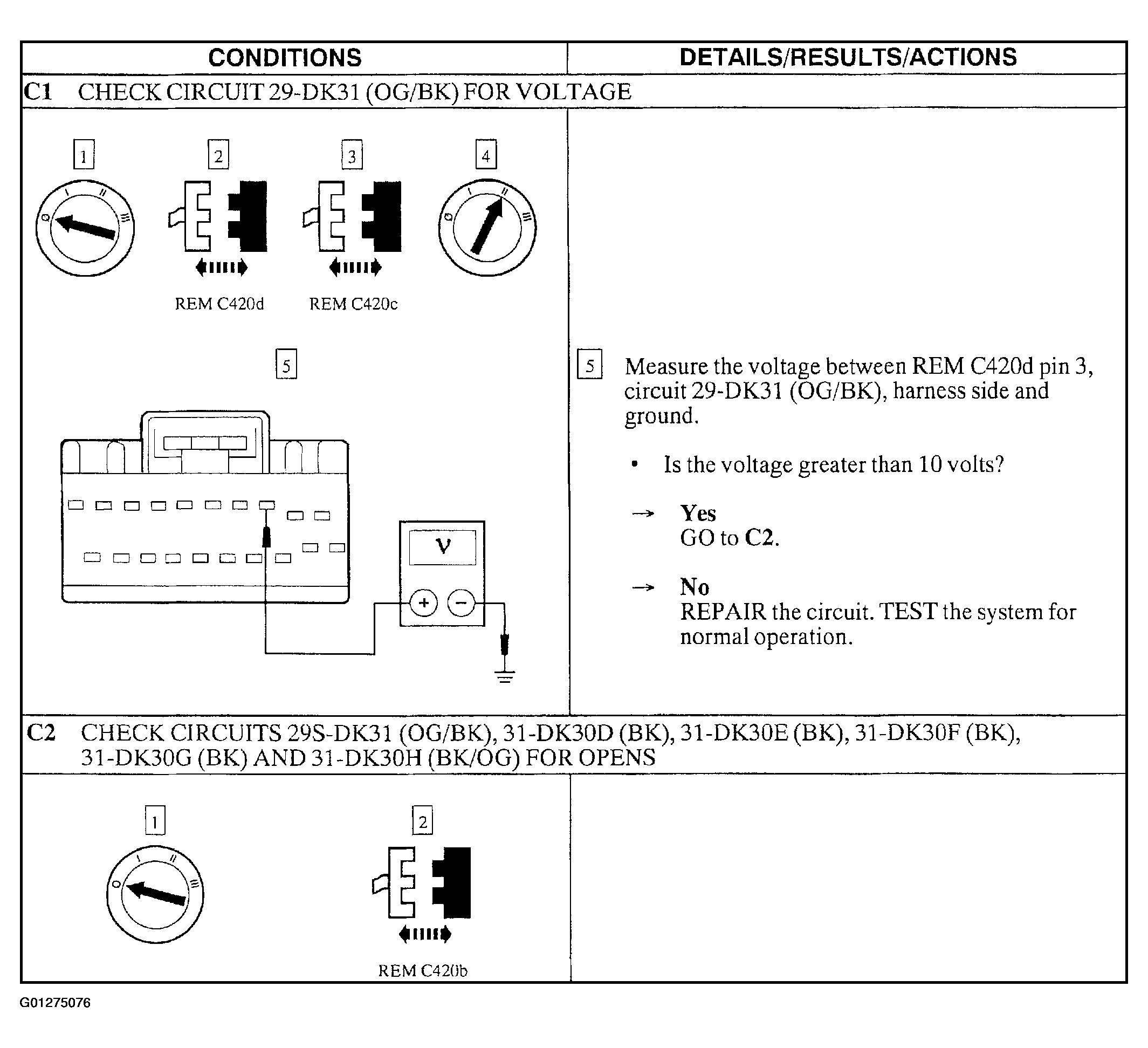

Fig 1: Pinpoint Test C: No Communication With Rear Electronic Module (Steps C1 & C2)

Courtesy of FORD MOTOR CO.

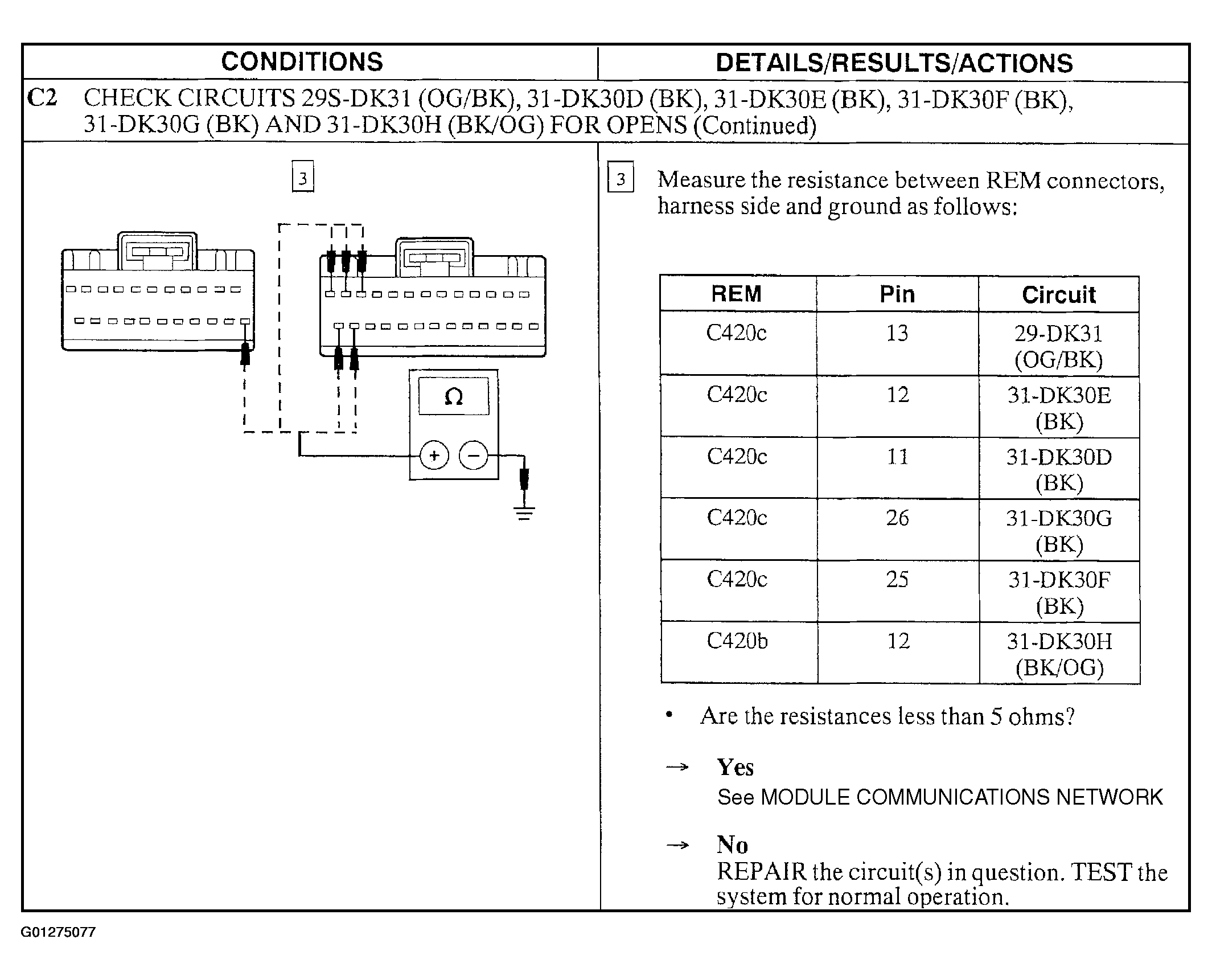

Fig 2: Pinpoint Test C: No Communication With Rear Electronic Module (Step C2, Cont.)

Courtesy of FORD MOTOR CO.
