Pinpoint Test D: The Horn Sounds Continuously

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

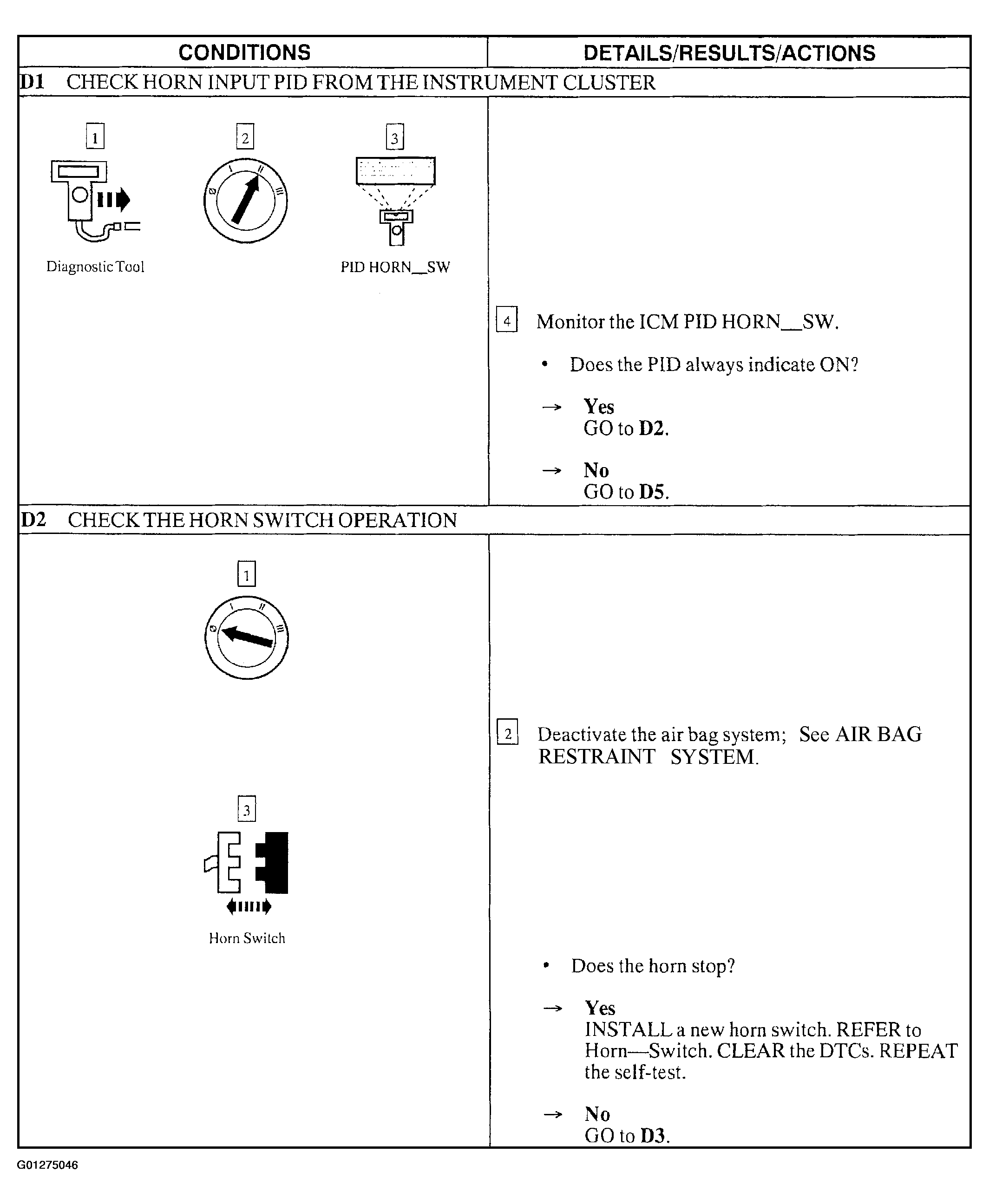

Fig 1: Pinpoint Test D: The Horn Sounds Continuously (Steps D1 & D2)

Courtesy of FORD MOTOR CO.

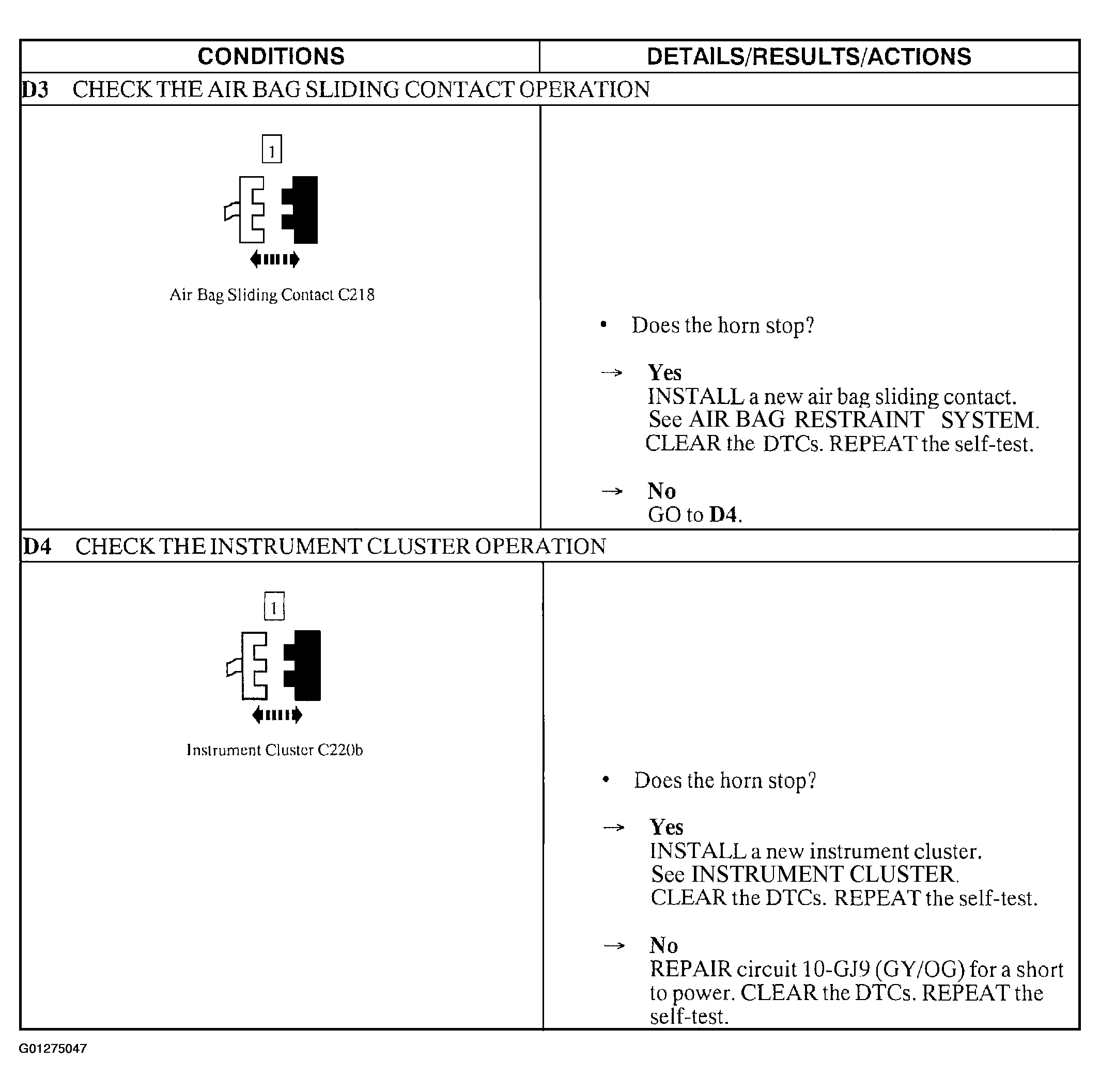

Fig 2: Pinpoint Test D: The Horn Sounds Continuously (Steps D3 & D4)

Courtesy of FORD MOTOR CO.

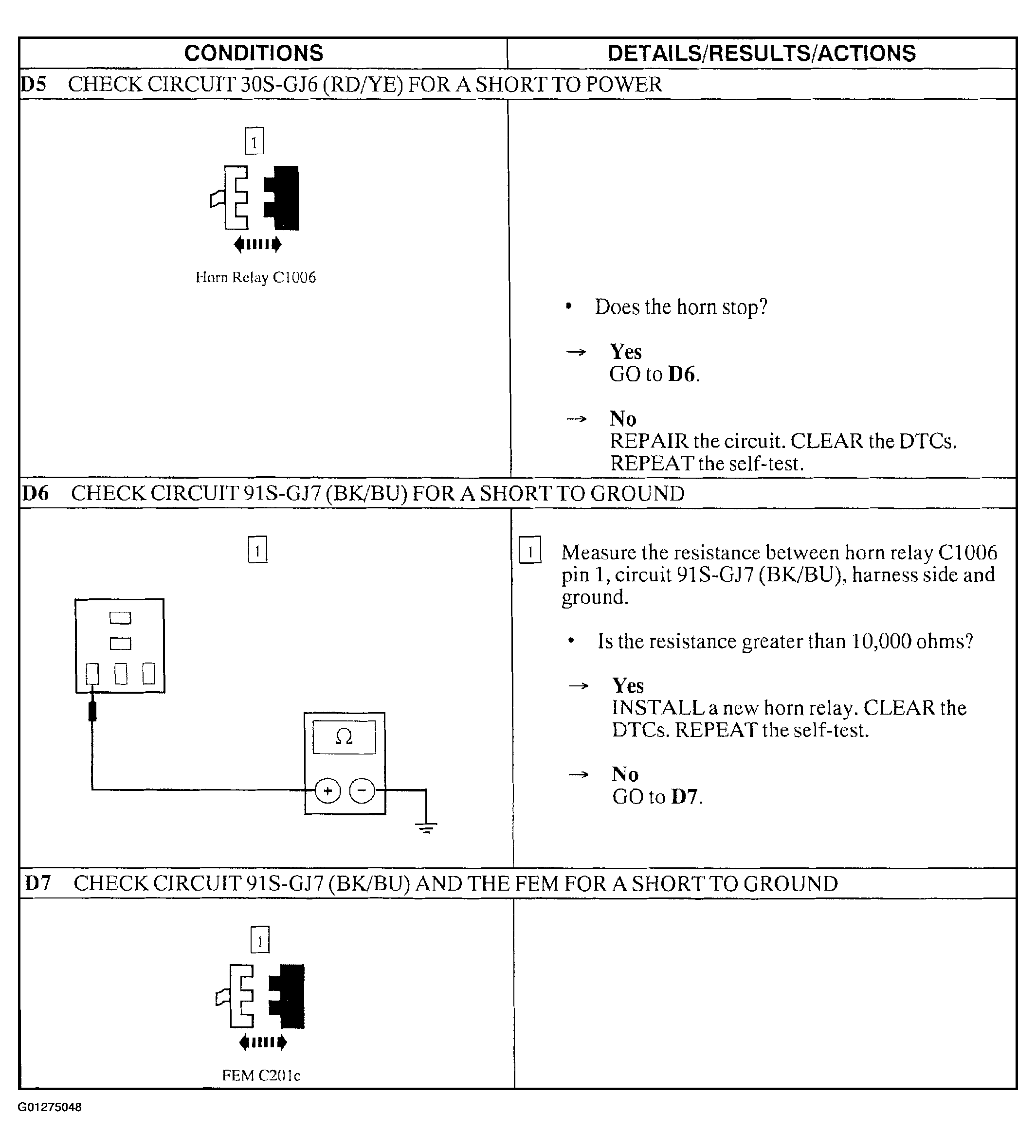

Fig 3: Pinpoint Test D: The Horn Sounds Continuously (Steps D5 To D7)

Courtesy of FORD MOTOR CO.

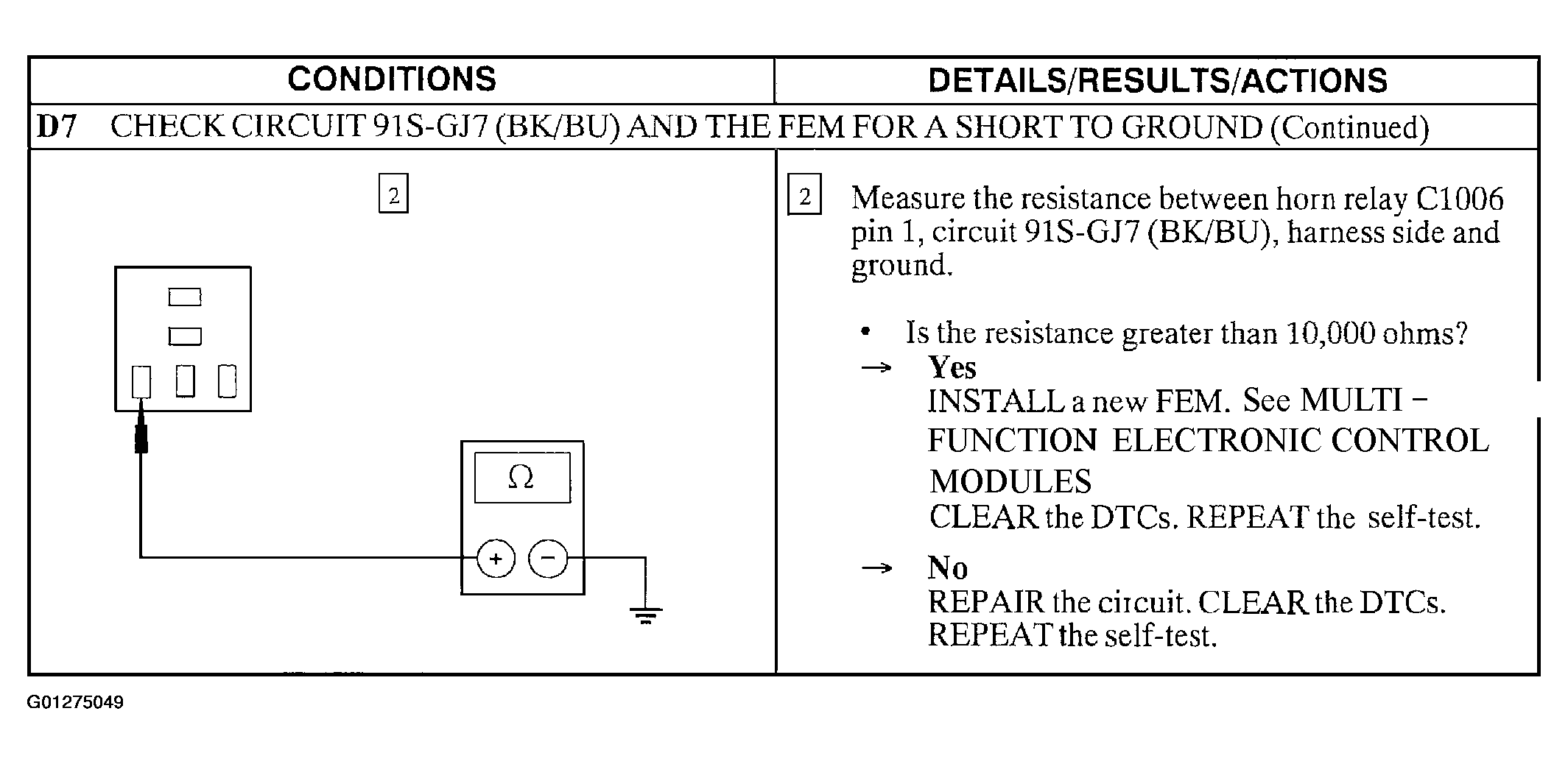

Fig 4: Pinpoint Test D: The Horn Sounds Continuously (Step D7, Cont.)

Courtesy of FORD MOTOR CO.
