Pinpoint Test C: The Horn Does Not Sound

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

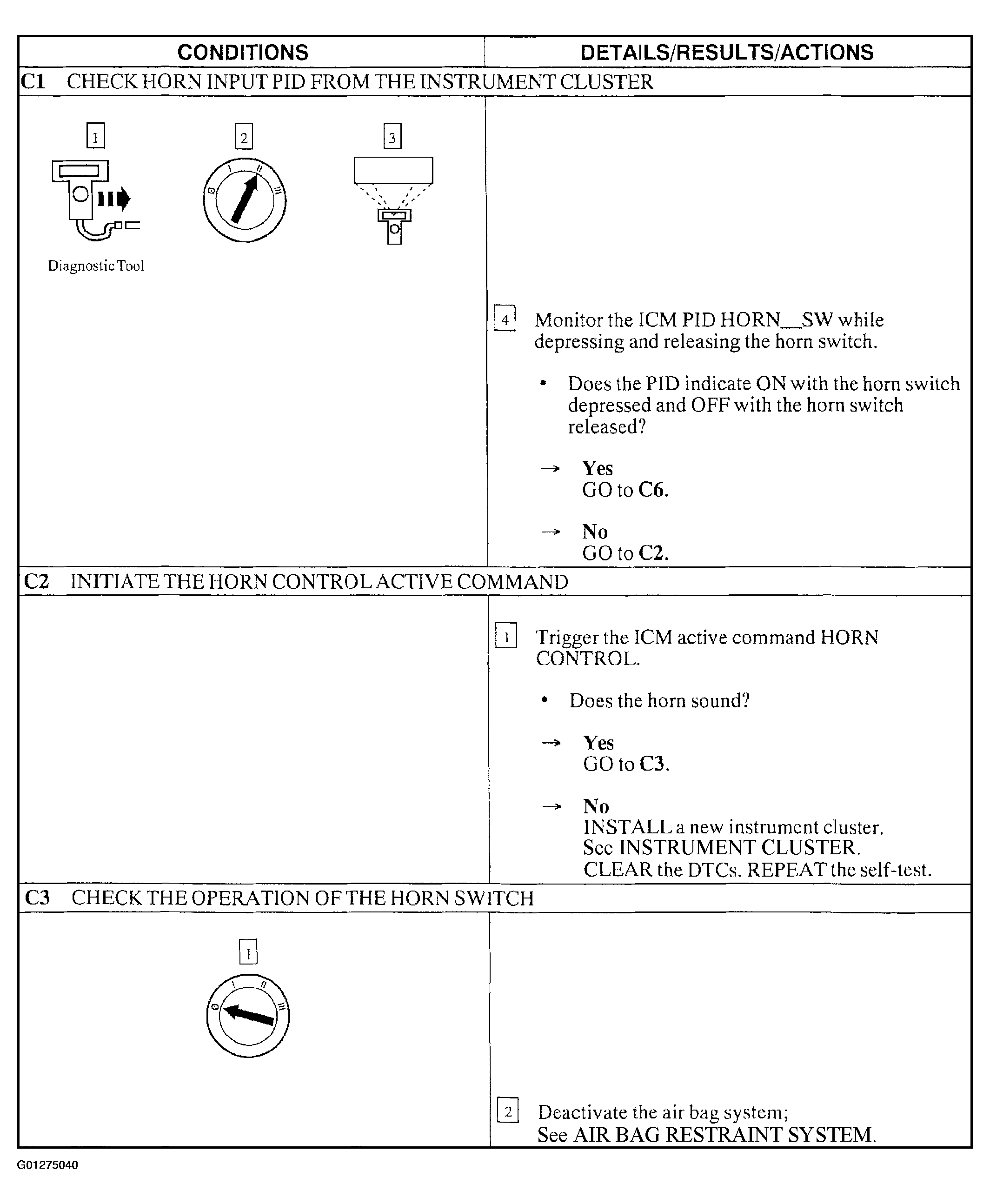

Fig 1: Pinpoint Test C: The Horn Does Not Sound (Steps C1 To C3)

Courtesy of FORD MOTOR CO.

Fig 2: Pinpoint Test C: The Horn Does Not Sound (Steps C3 & C4)

Courtesy of FORD MOTOR CO.

Fig 3: Pinpoint Test C: The Horn Does Not Sound (Steps C5 & C6)

Courtesy of FORD MOTOR CO.

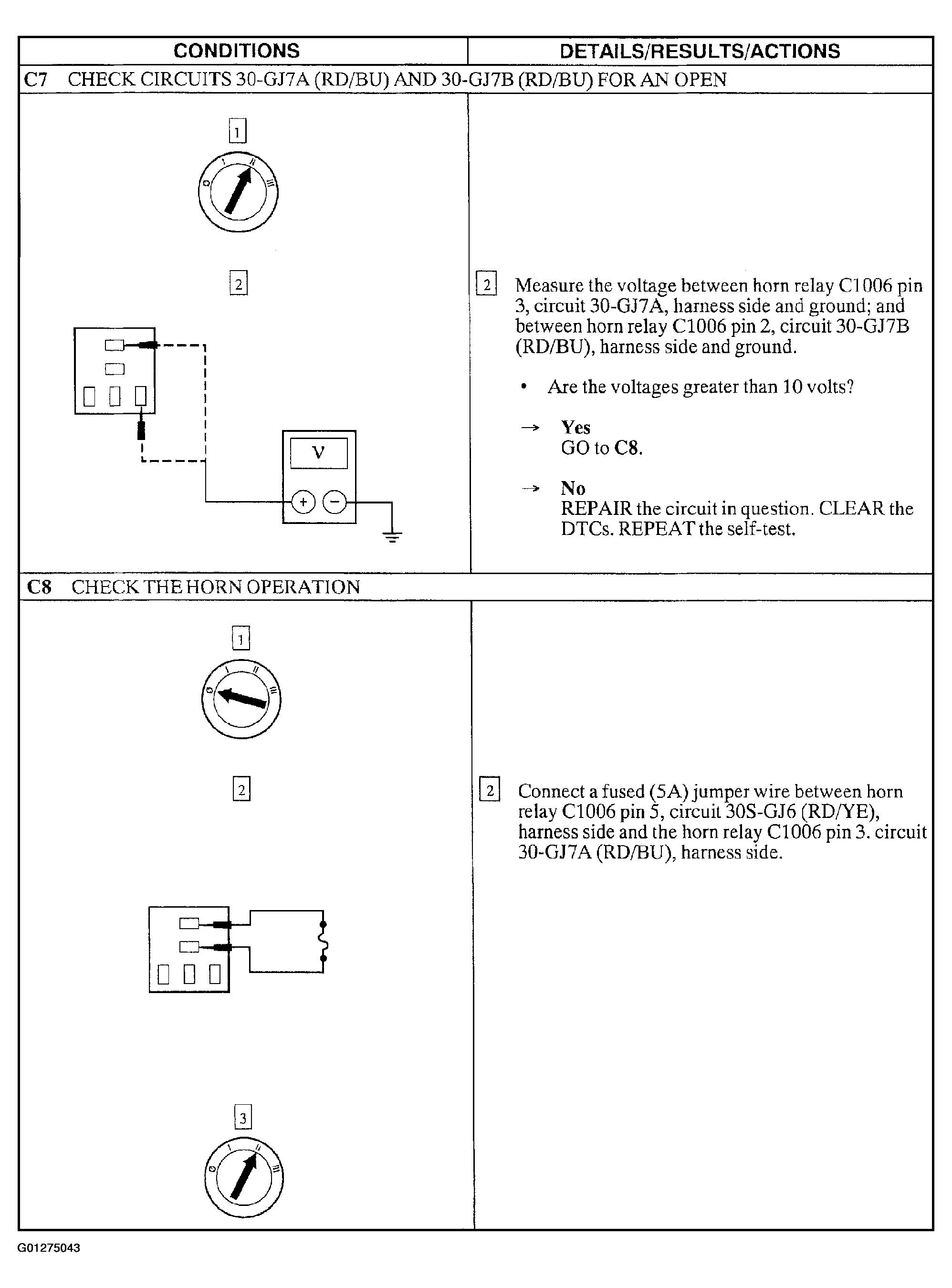

Fig 4: Pinpoint Test C: The Horn Does Not Sound (Steps C7 & C8)

Courtesy of FORD MOTOR CO.

Fig 5: Pinpoint Test C: The Horn Does Not Sound (Steps C8 To C10)

Courtesy of FORD MOTOR CO.

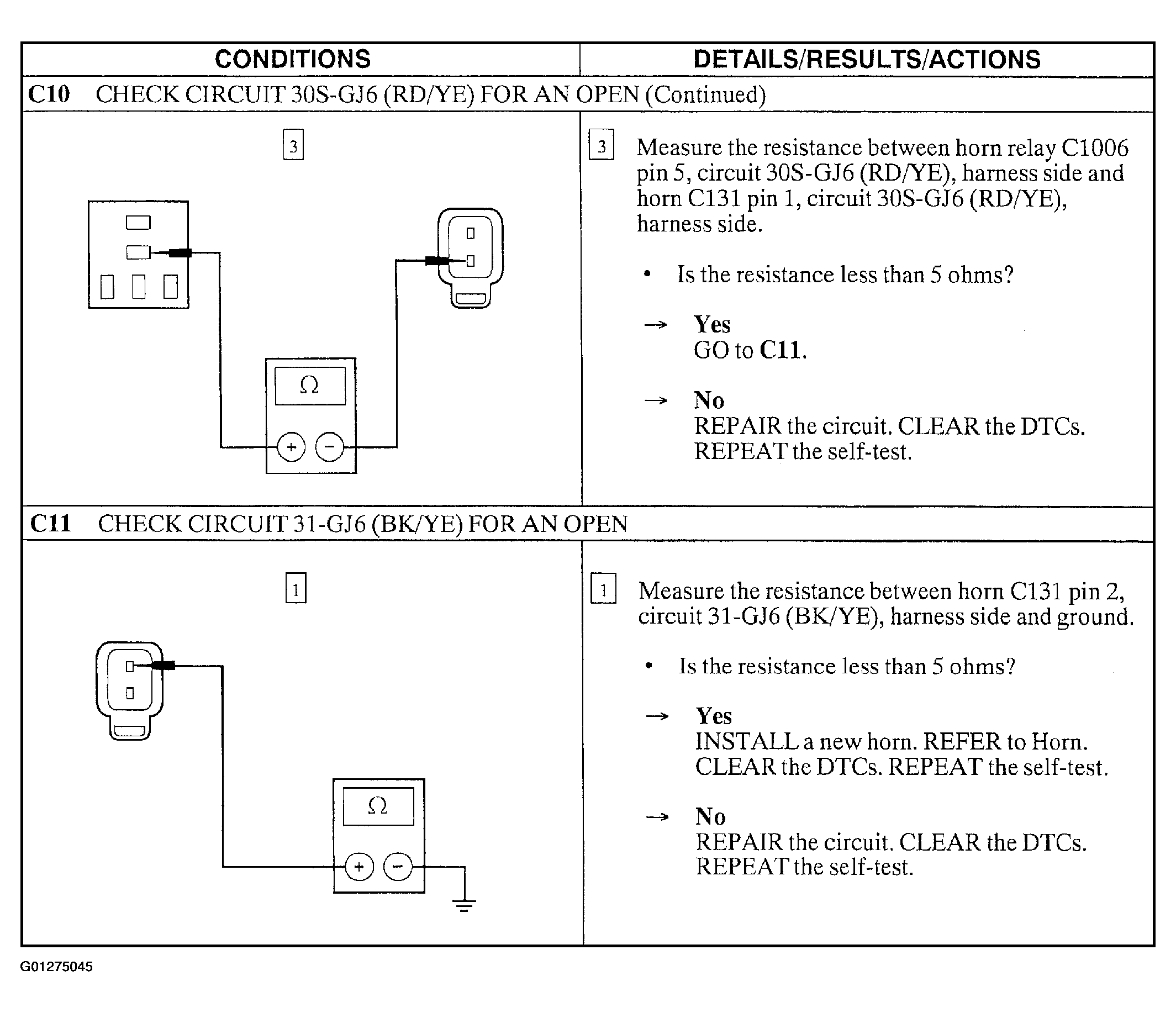

Fig 6: Pinpoint Test C: The Horn Does Not Sound (Steps C10 & C11)

Courtesy of FORD MOTOR CO.
