Instrument Cluster Diagnostic Trouble Code (DTC) Index

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

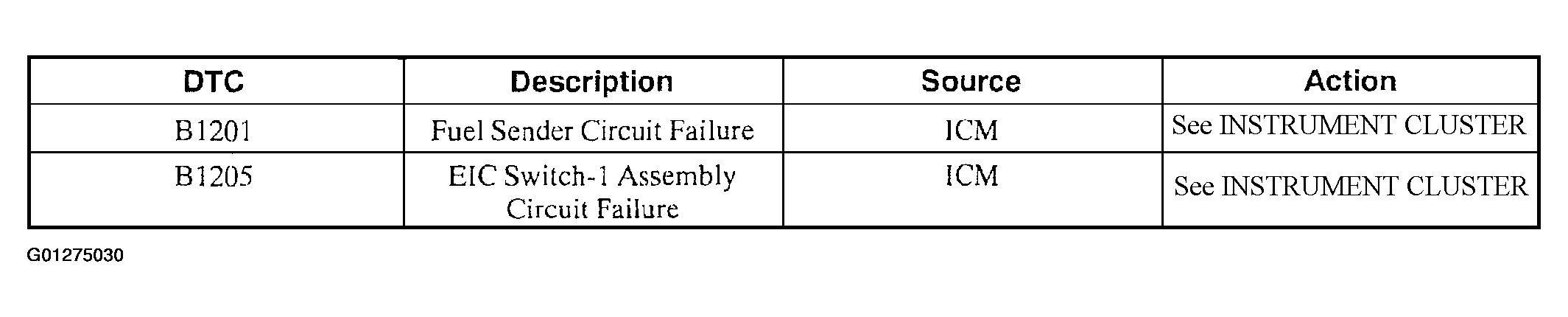

Fig 1: Instrument Cluster Diagnostic Trouble Code (DTC) Index (B1201 & B1205)

Courtesy of FORD MOTOR CO.

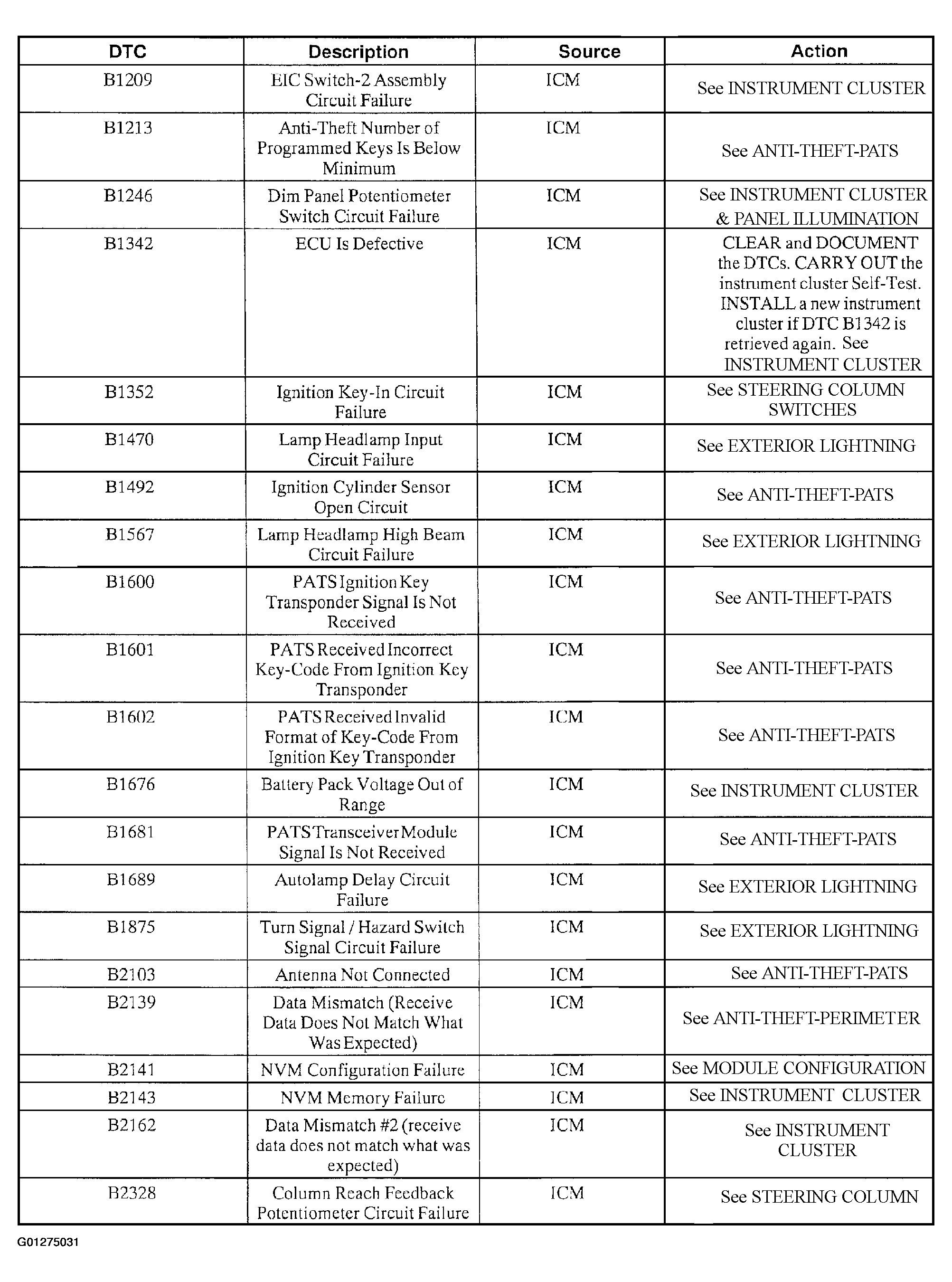

Fig 2: Instrument Cluster Diagnostic Trouble Code (DTC) Index (B1209 To B2328)

Courtesy of FORD MOTOR CO.

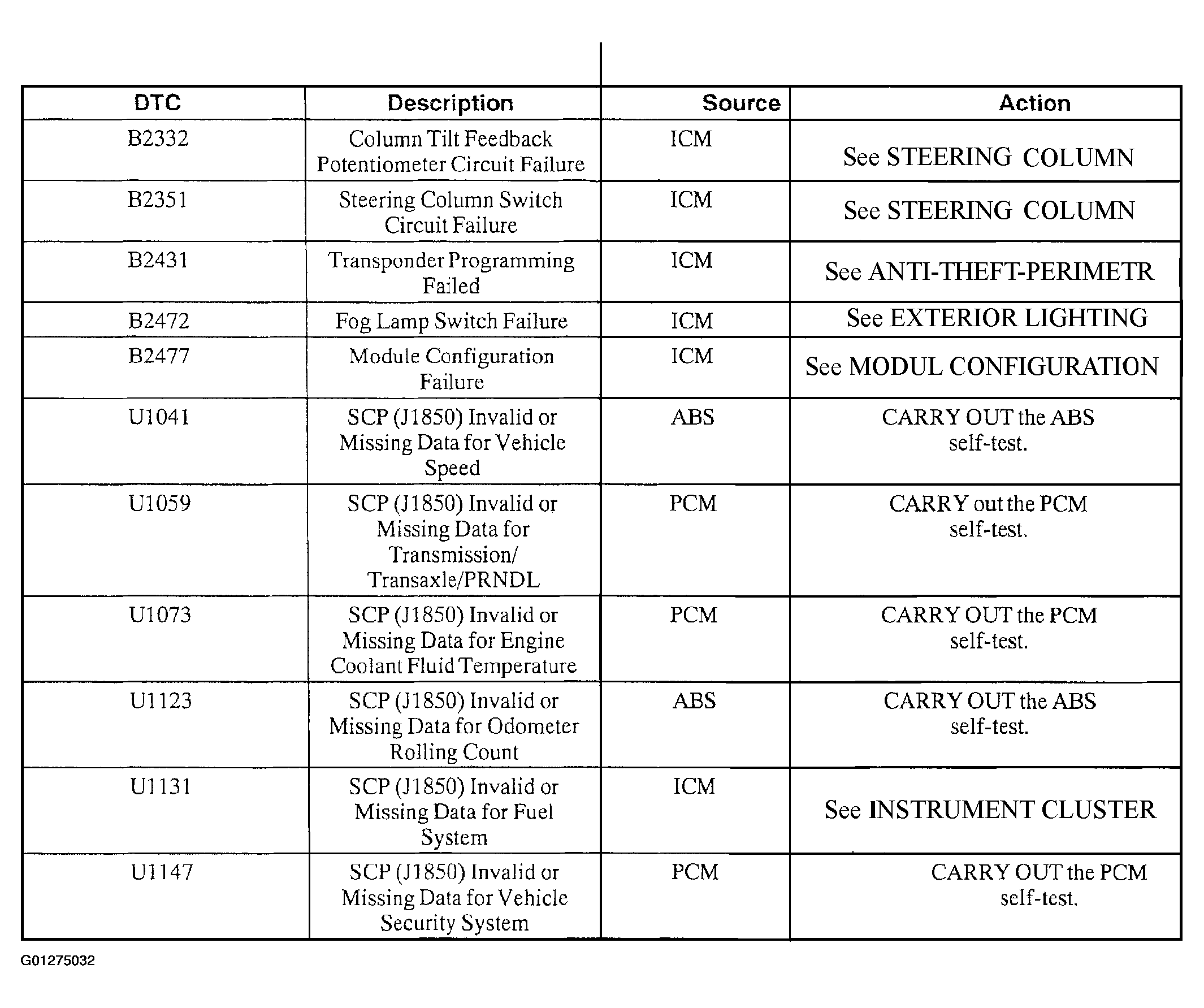

Fig 3: Instrument Cluster Diagnostic Trouble Code (DTC) Index (B2332 To U1147)

Courtesy of FORD MOTOR CO.
