Removal and Installation

WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Disconnect the accelerator pedal electrical connector.
  3. Remove the 3 bolts and release the accelerator pedal from the locating/retaining tabs on the lower RH corner of the accelerator pedal mounting bracket.
    • To install, tighten to 9 Nm (80 lb-in).
  4. To install, reverse the removal procedure.
    • Verify that the accelerator pedal and sensor assembly is engaged in the locating/retaining tabs of the accelerator pedal mounting bracket prior to installing the bolts.

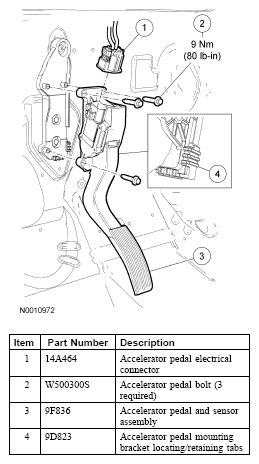

Fig 1: Exploded View Of Accelerator Pedal And Shaft With Torque Specifications
G04621286Courtesy of FORD MOTOR CO.
