Removal and Installation

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument cluster. For additional information, see INSTRUMENT CLUSTER .
  2. Remove the cluster lens.
    1. Remove the screws.
    2. Remove the cluster lens.

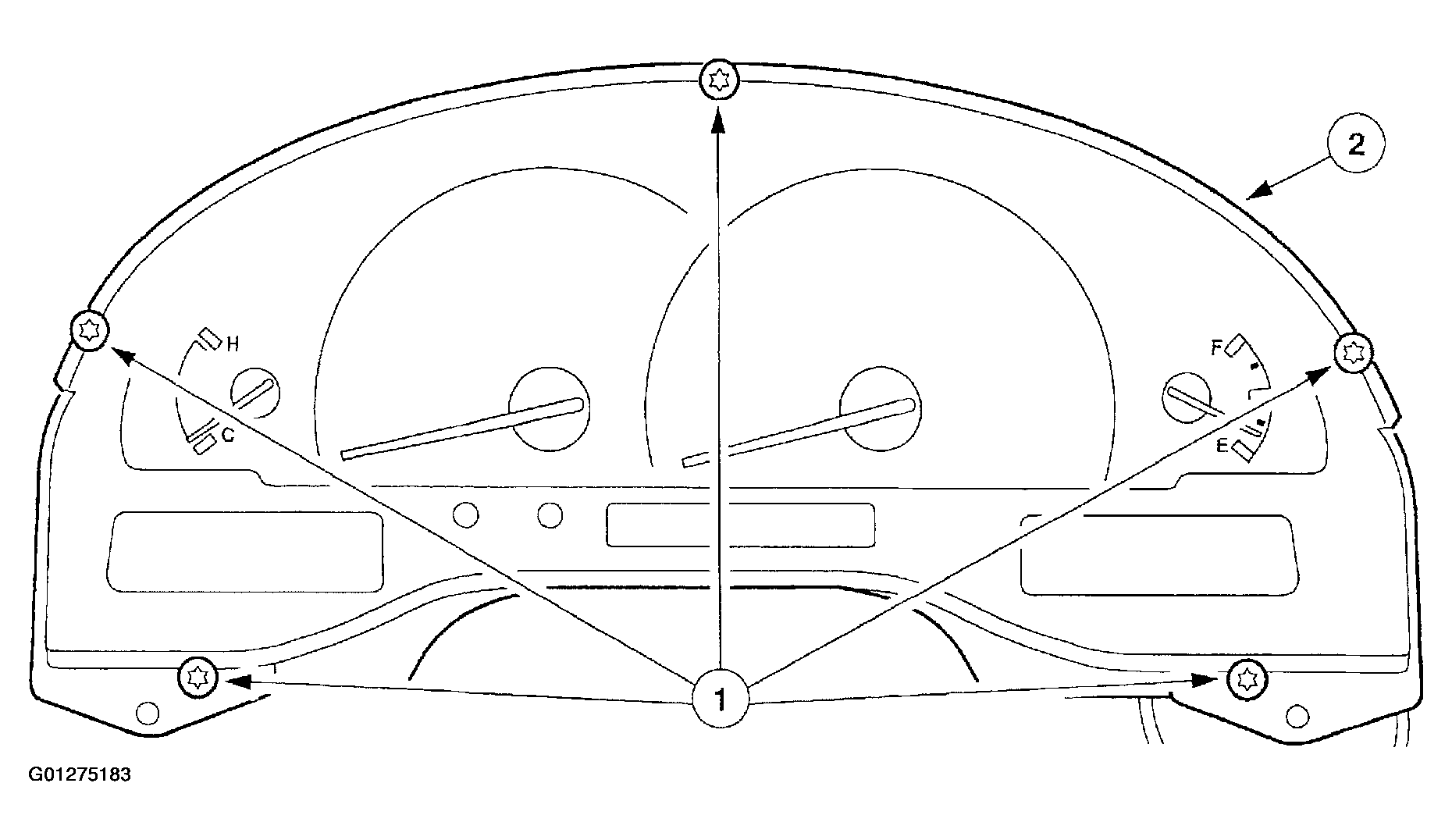

    Fig 1: Removing Instrument Cluster Lens
    G01275183Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
