Pinpoint Test X: An Indicator Is Inoperative/Always On - Engine Over-Temperature

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

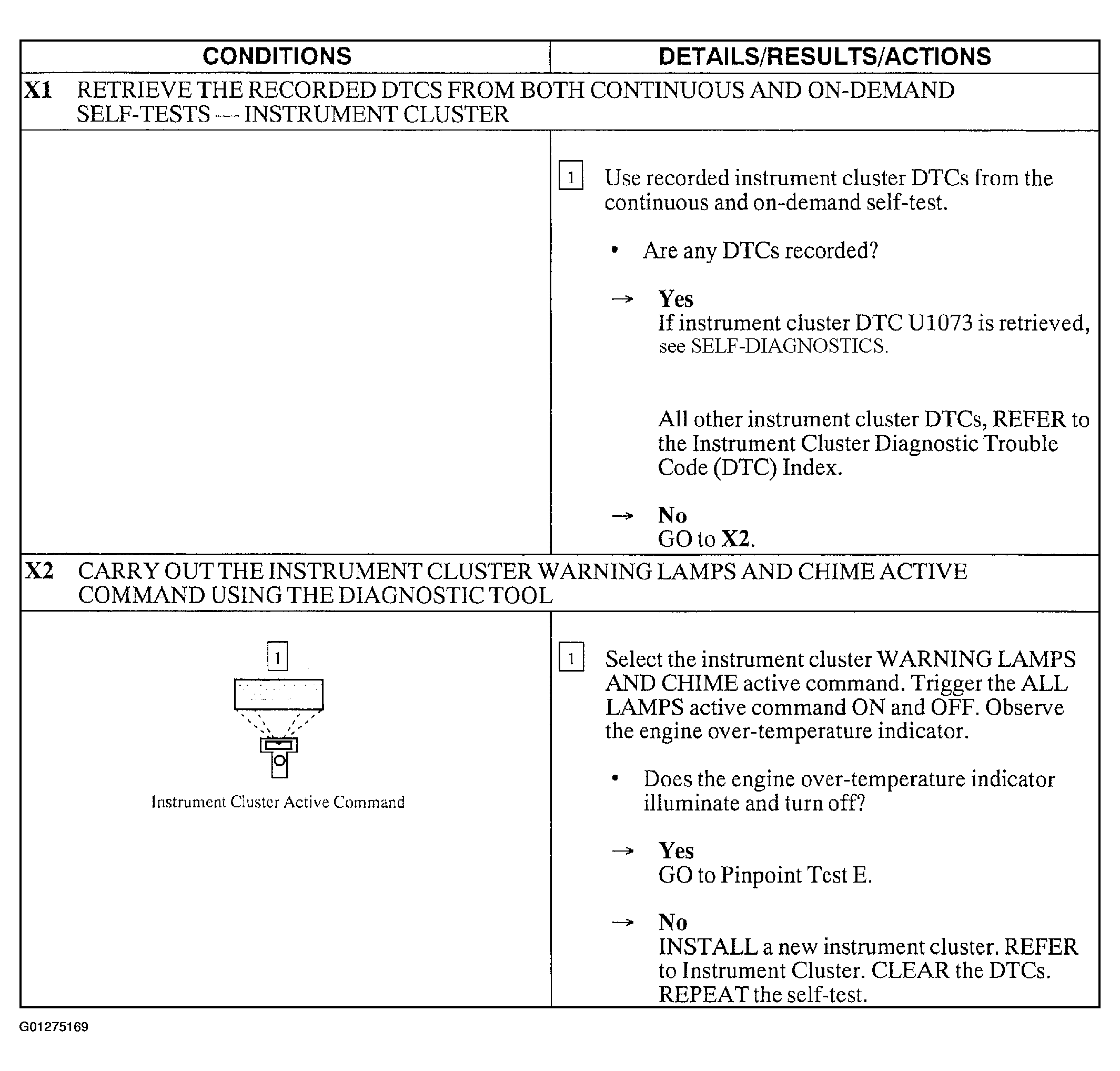

Fig 1: Pinpoint Test X: An Indicator Is Inoperative/Always On - Engine Over-Temperature
G01275169Courtesy of FORD MOTOR CO.
