Pinpoint Test V: An Indicator Is Inoperative/Always On - PRNDL Display

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

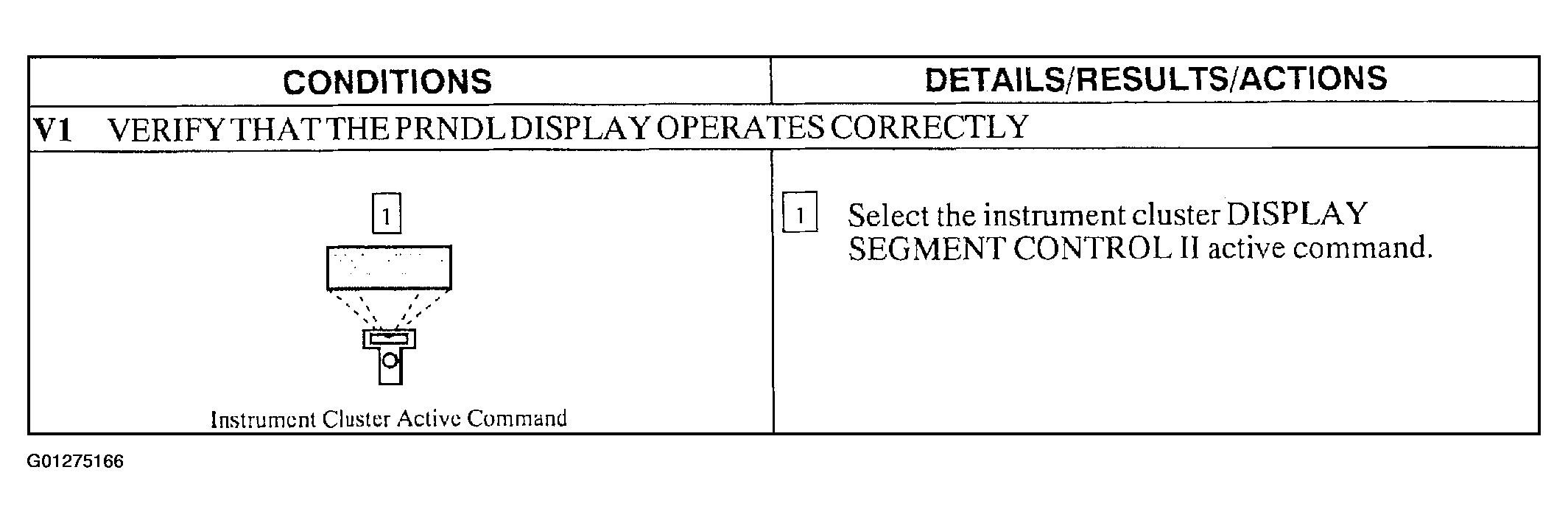

Fig 1: Pinpoint Test V: An Indicator Is Inoperative/Always On - PRNDL Display (Step V1)

Courtesy of FORD MOTOR CO.

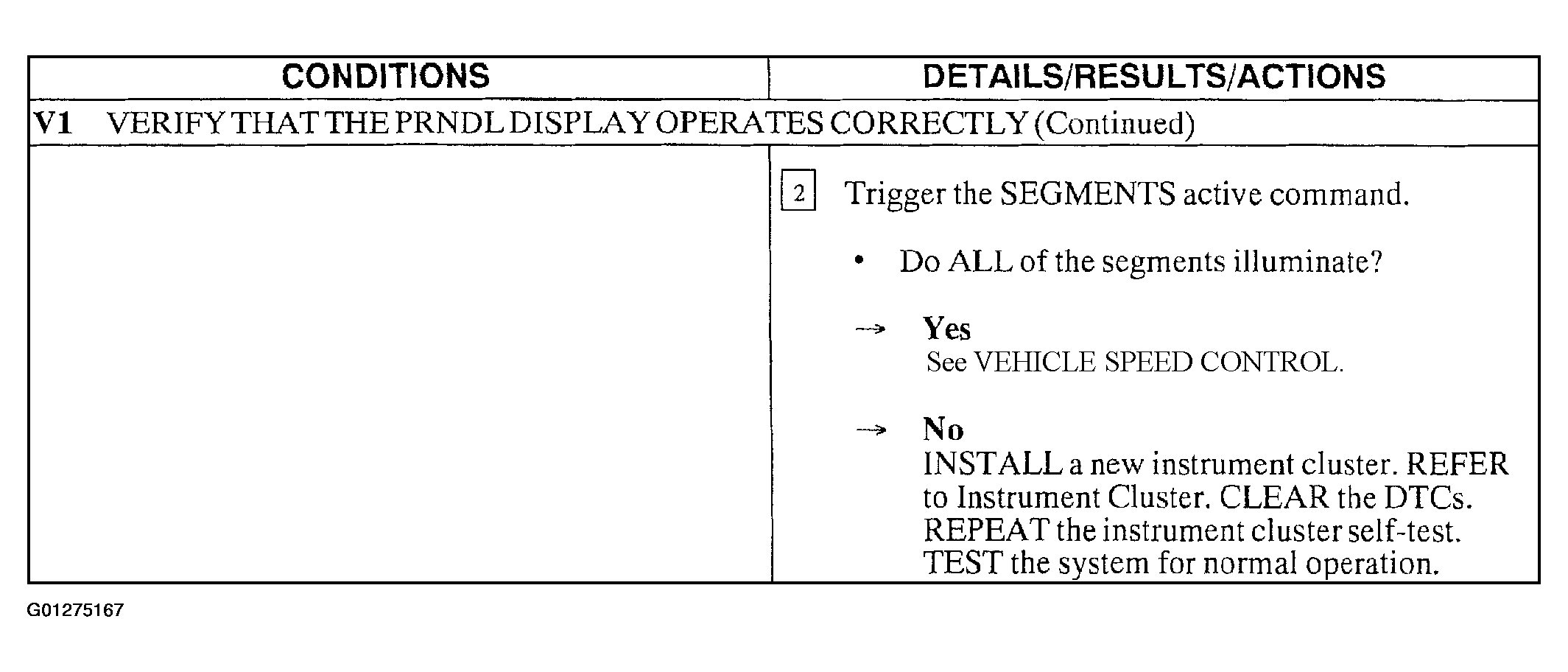

Fig 2: Pinpoint Test V: An Indicator Is Inoperative/Always On - PRNDL Display (Step V1, Cont.)

Courtesy of FORD MOTOR CO.
