Pinpoint Test T: The Tachometer Is Inoperative

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

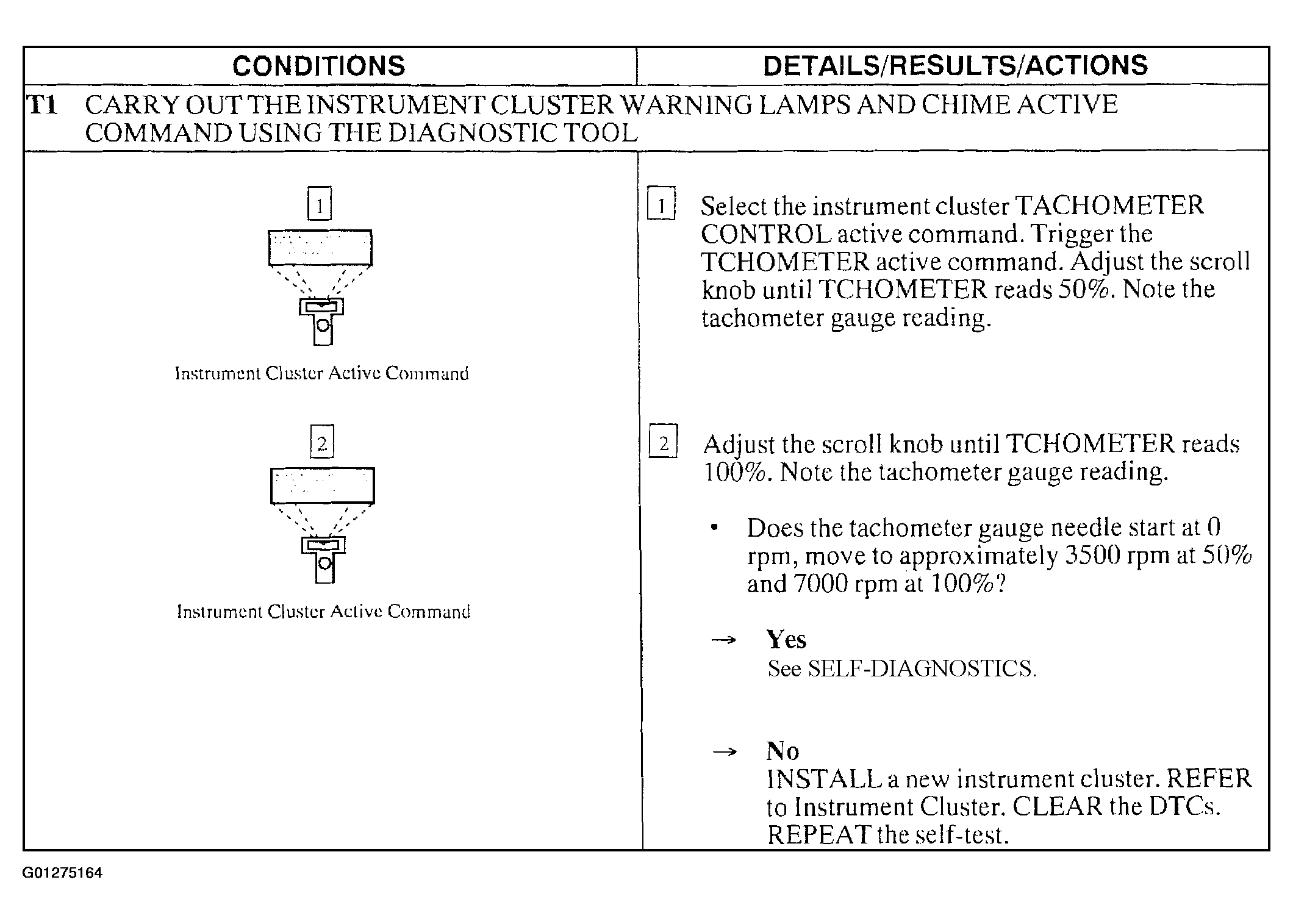

Fig 1: Pinpoint Test T: The Tachometer Is Inoperative
G01275164Courtesy of FORD MOTOR CO.
