Pinpoint Test S: An Indicator Is Inoperative/Always On - Steering Column Lock Warning

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

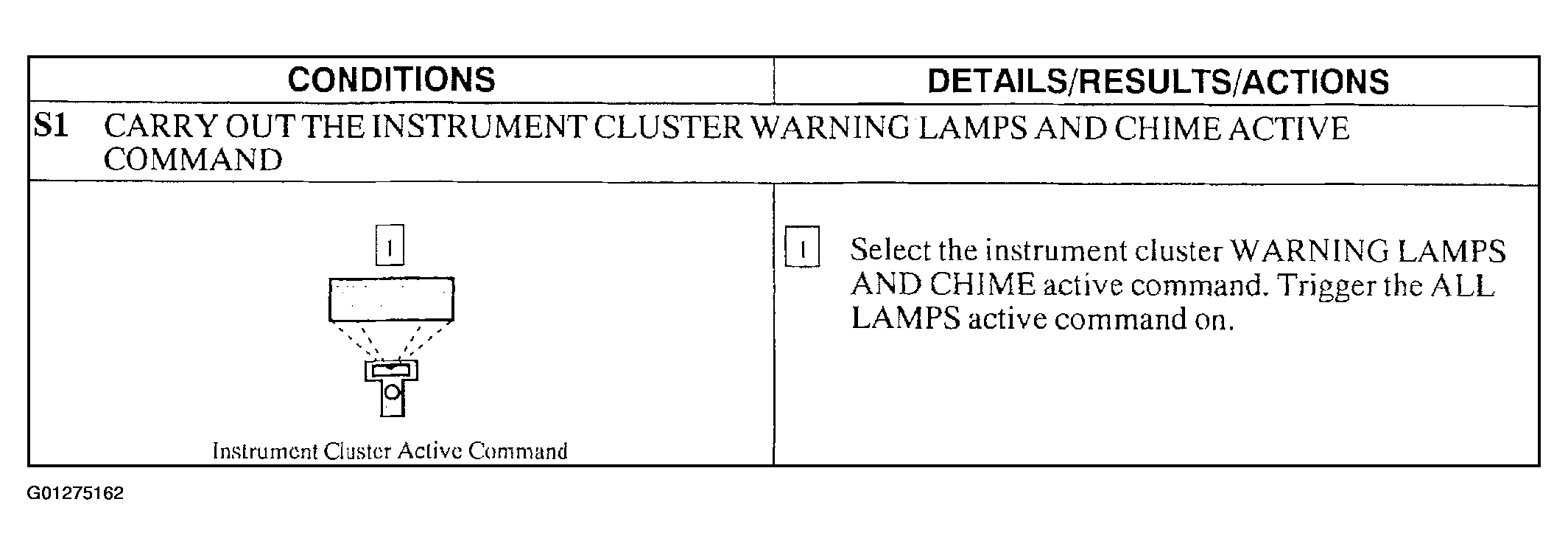

Fig 1: Pinpoint Test S: An Indicator Is Inoperative/Always On - Steering Column Lock Warning (Step S1)

Courtesy of FORD MOTOR CO.

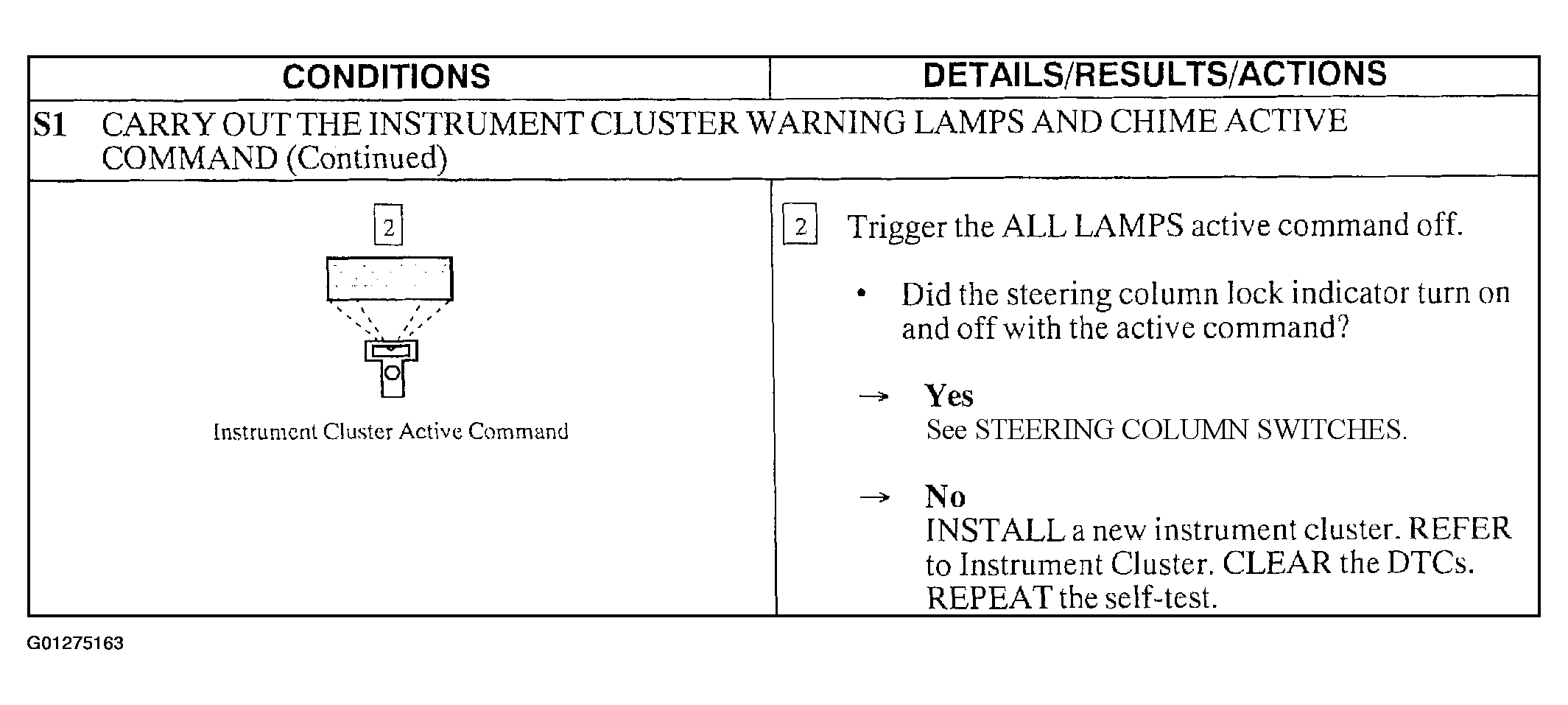

Fig 2: Pinpoint Test S: An Indicator Is Inoperative/Always On - Steering Column Lock Warning (Step S1, Cont.)

Courtesy of FORD MOTOR CO.
