Pinpoint Test M: An Indicator Is Inoperative/Always On - Low Washer Fluid Warning

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

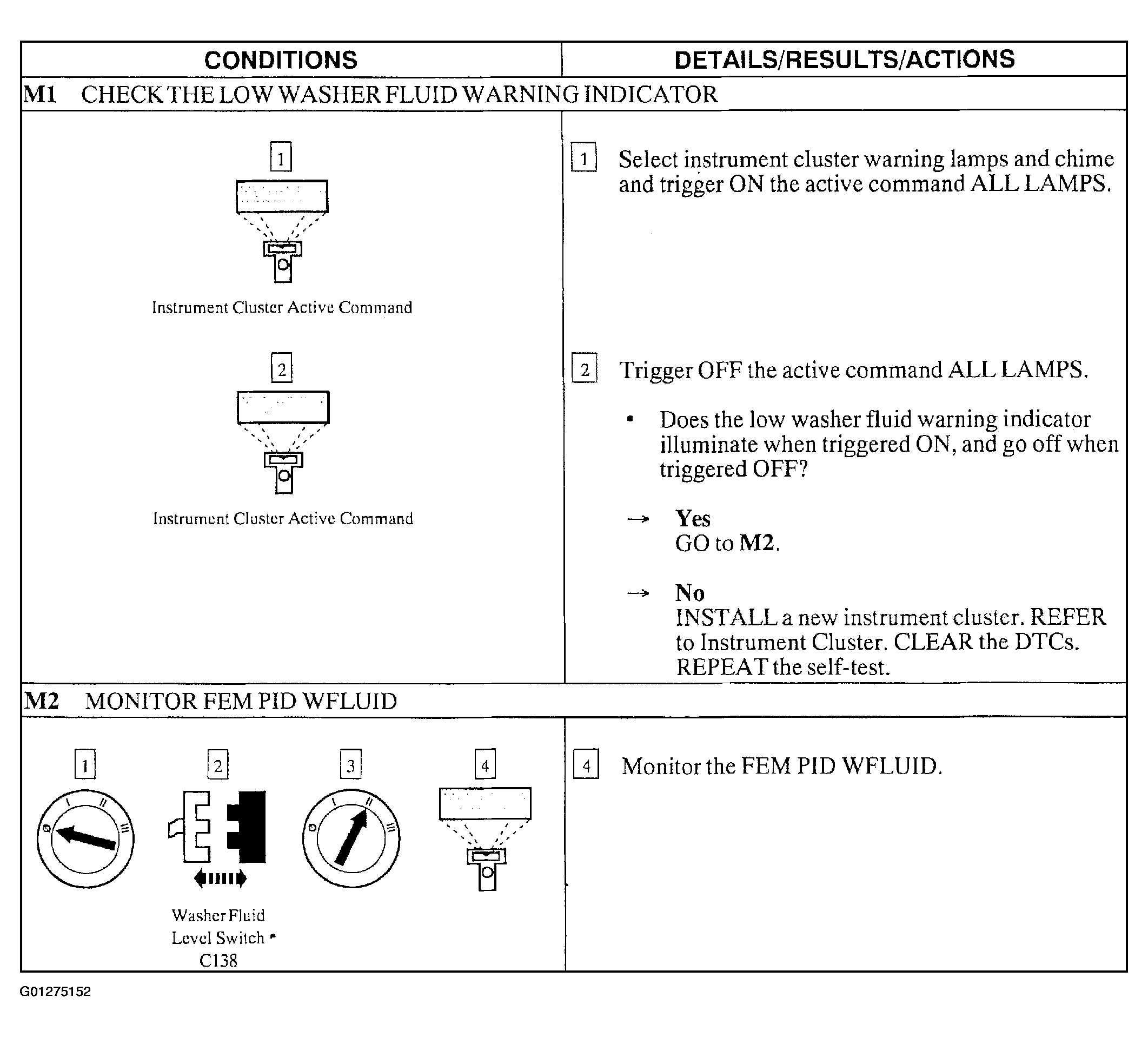

Fig 1: Pinpoint Test M: An Indicator Is Inoperative/Always On - Low Washer Fluid Warning (Steps M1 & M2)

Courtesy of FORD MOTOR CO.

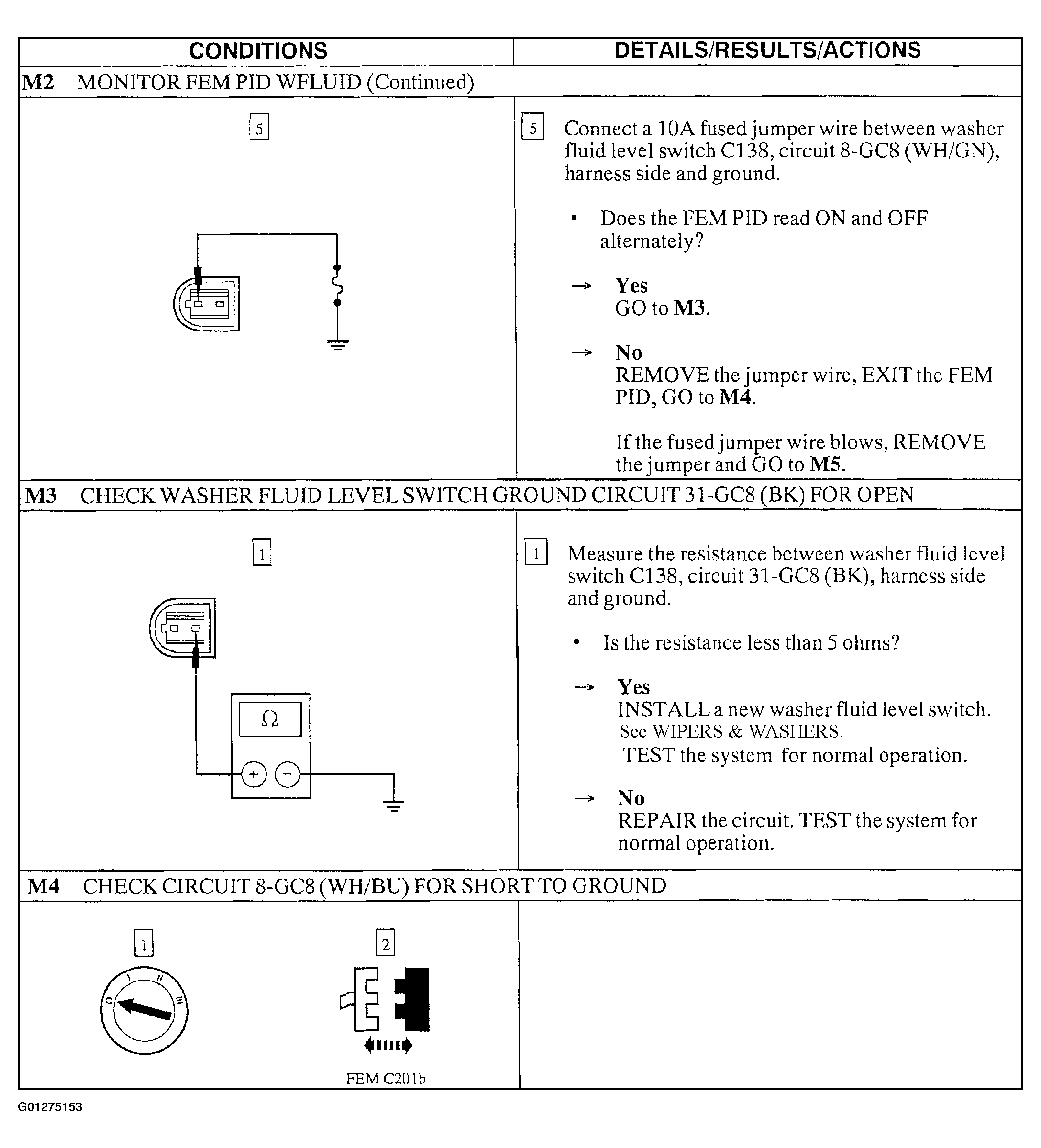

Fig 2: Pinpoint Test M: An Indicator Is Inoperative/Always On - Low Washer Fluid Warning (Steps M2 To M4)

Courtesy of FORD MOTOR CO.

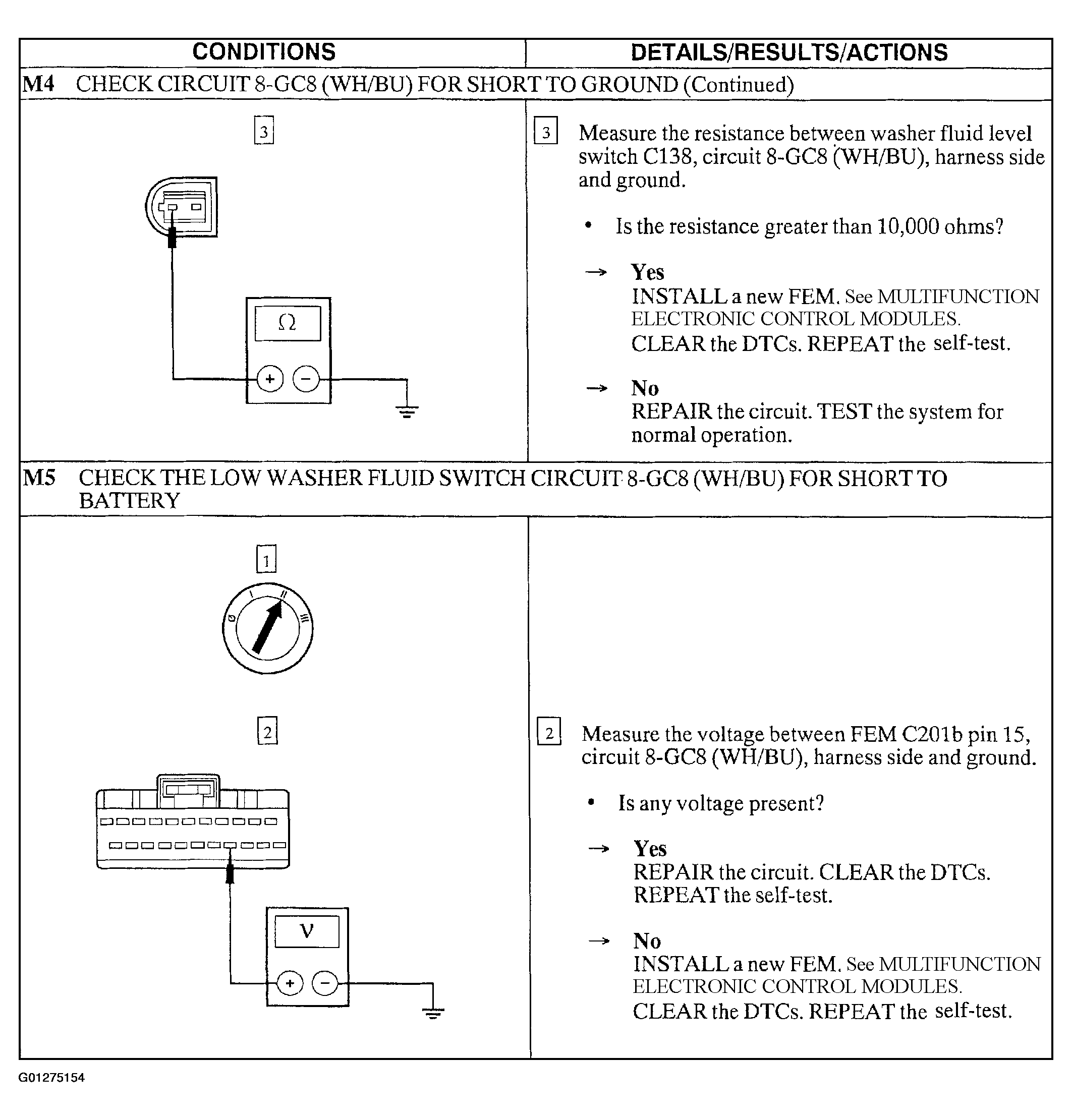

Fig 3: Pinpoint Test M: An Indicator Is Inoperative/Always On - Low Washer Fluid Warning (Steps M4 & M5)

Courtesy of FORD MOTOR CO.
