Pinpoint Test L: An Indicator Is Inoperative/Always On - High Beam

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

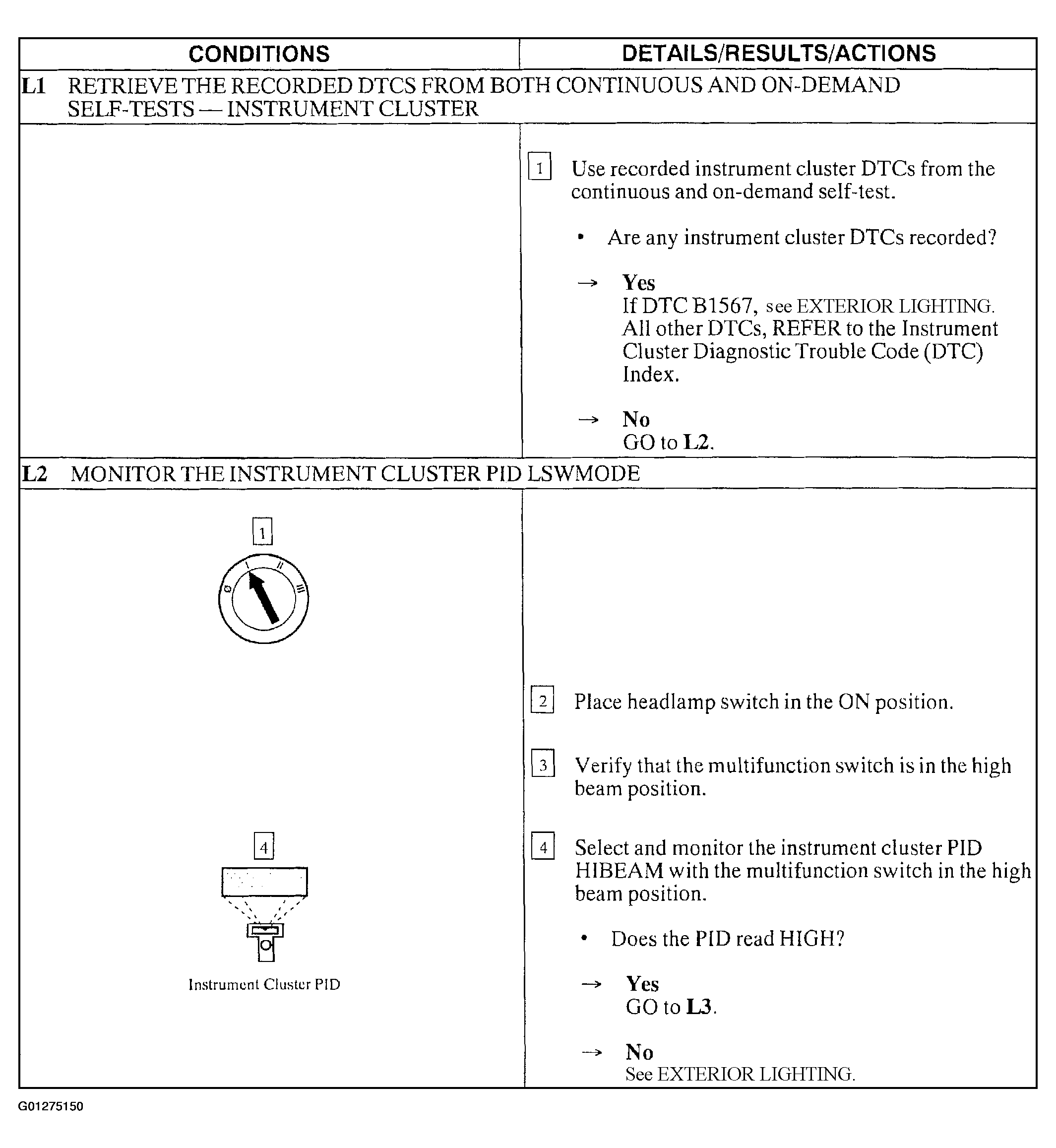

Fig 1: Pinpoint Test L: An Indicator Is Inoperative/Always On - High Beam (Steps L1 & L2)

Courtesy of FORD MOTOR CO.

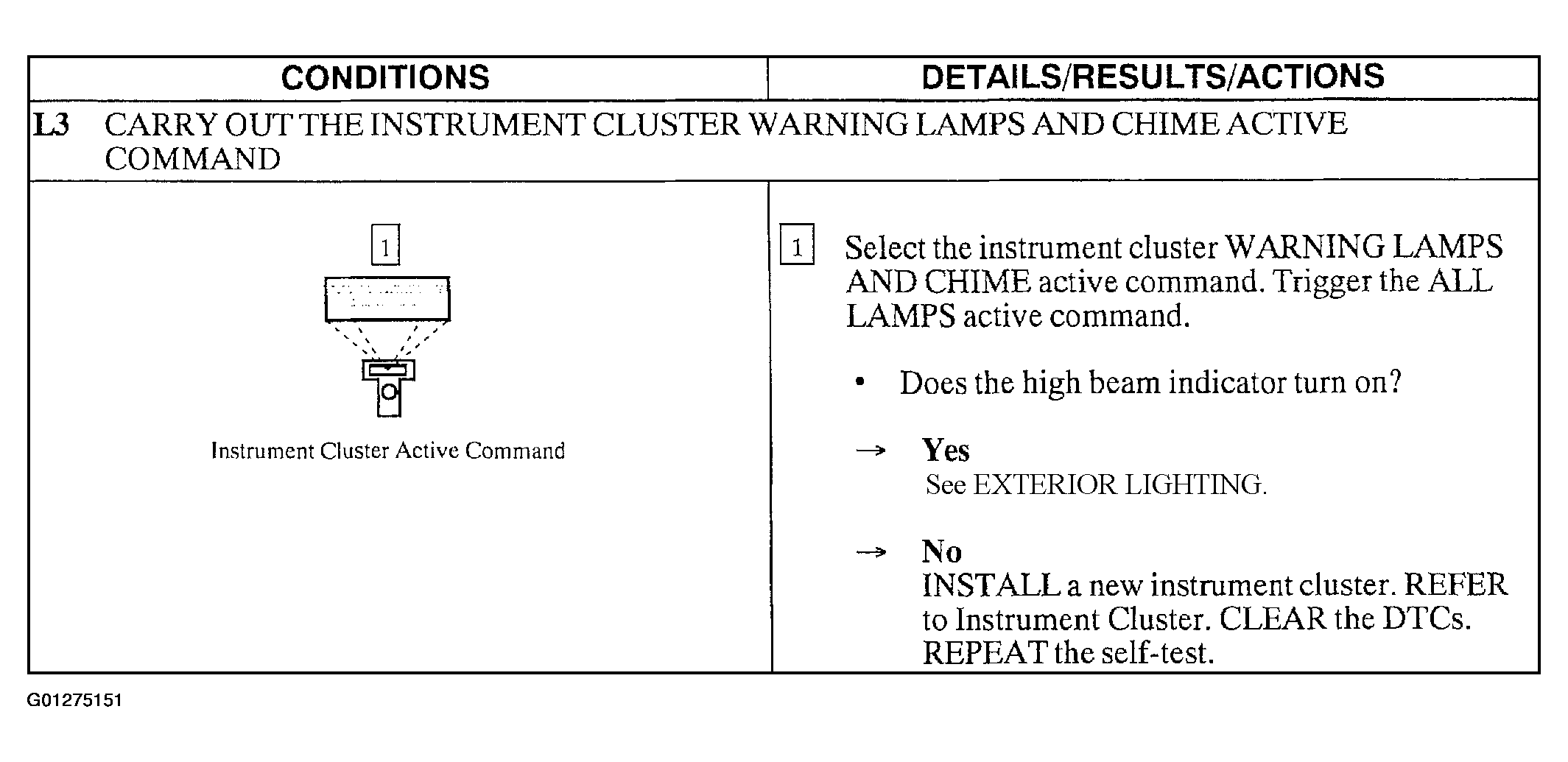

Fig 2: Pinpoint Test L: An Indicator Is Inoperative/Always On - High Beam (Step L3)

Courtesy of FORD MOTOR CO.
