Pinpoint Test K: The Brake Warning Indicator Is Always On

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

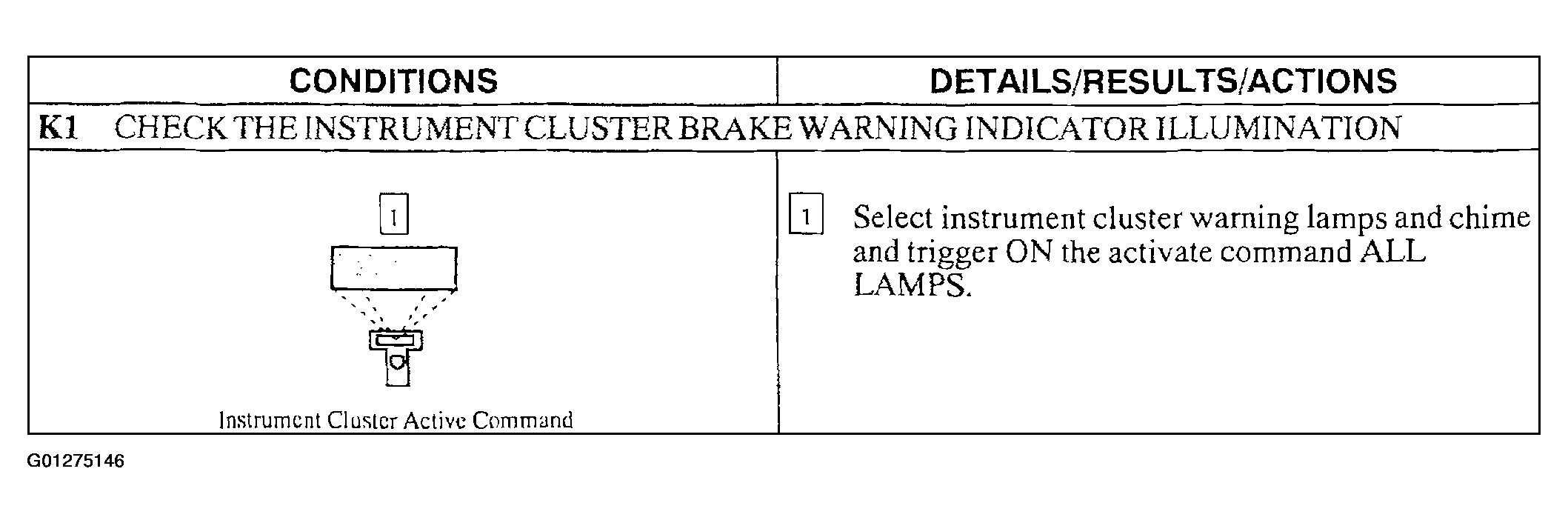

Fig 1: Pinpoint Test K: The Brake Warning Indicator Is Always On (Step K1)

Courtesy of FORD MOTOR CO.

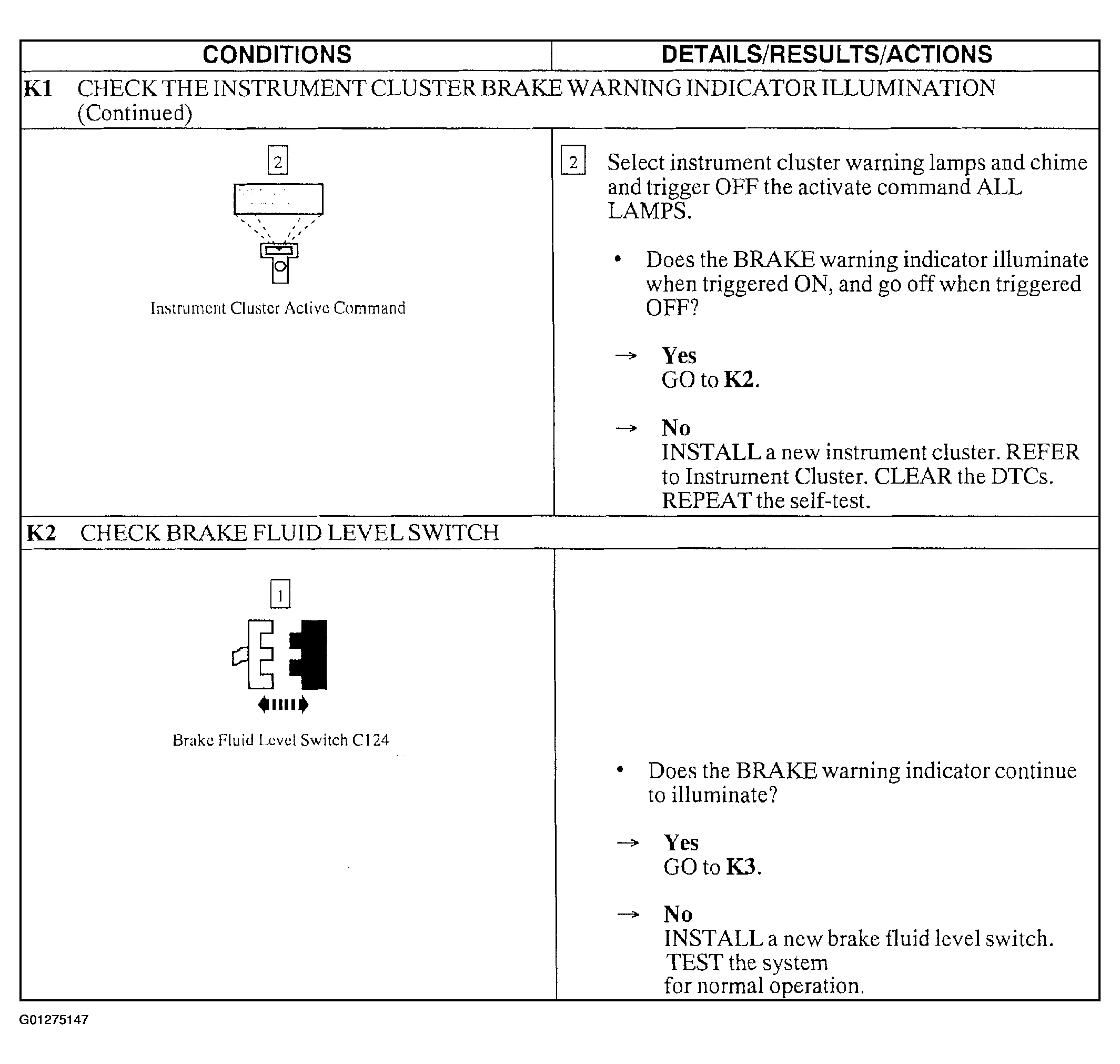

Fig 2: Pinpoint Test K: The Brake Warning Indicator Is Always On (Steps K1 & K2)

Courtesy of FORD MOTOR CO.

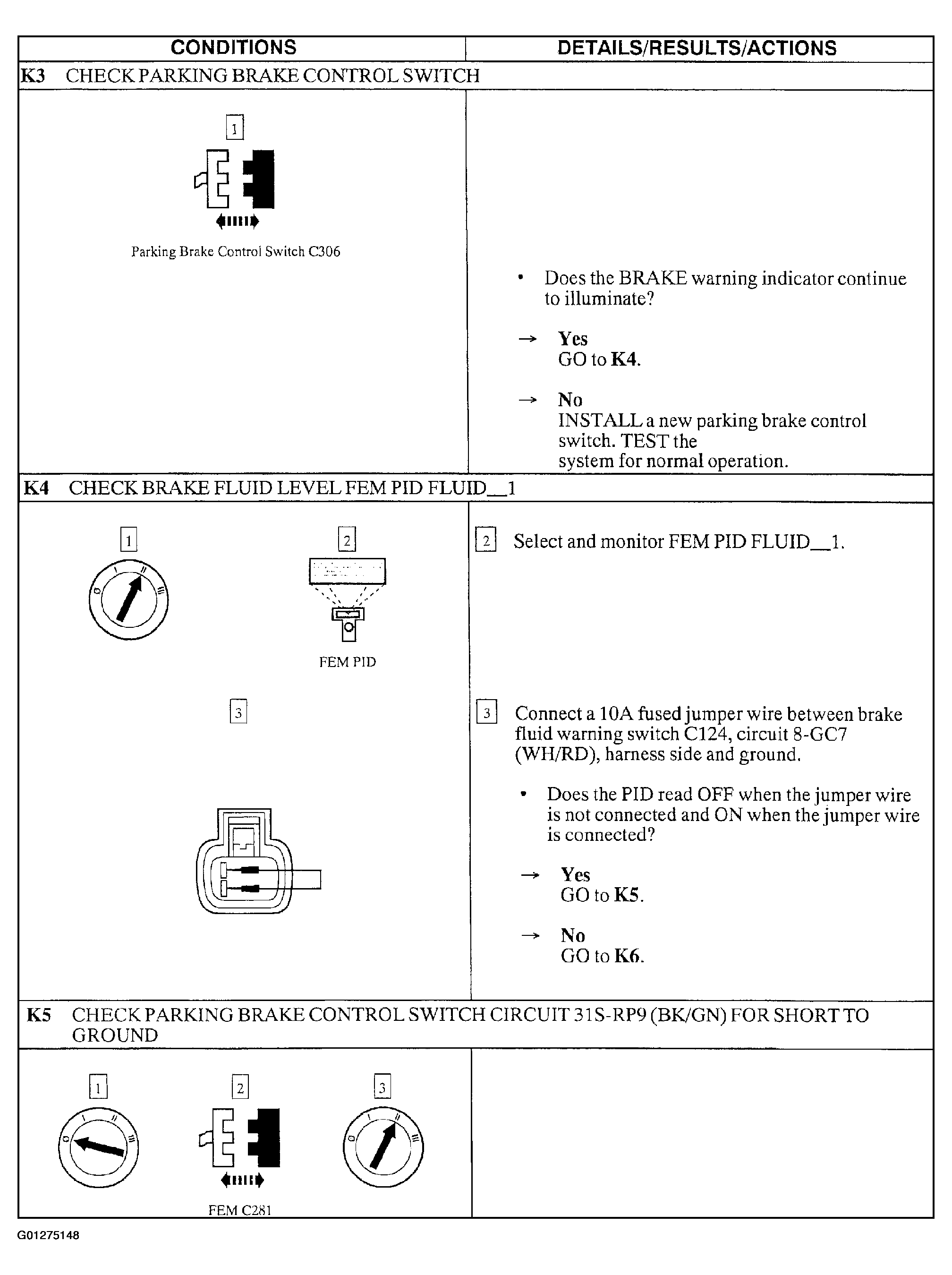

Fig 3: Pinpoint Test K: The Brake Warning Indicator Is Always On (Steps K3 To K5)

Courtesy of FORD MOTOR CO.

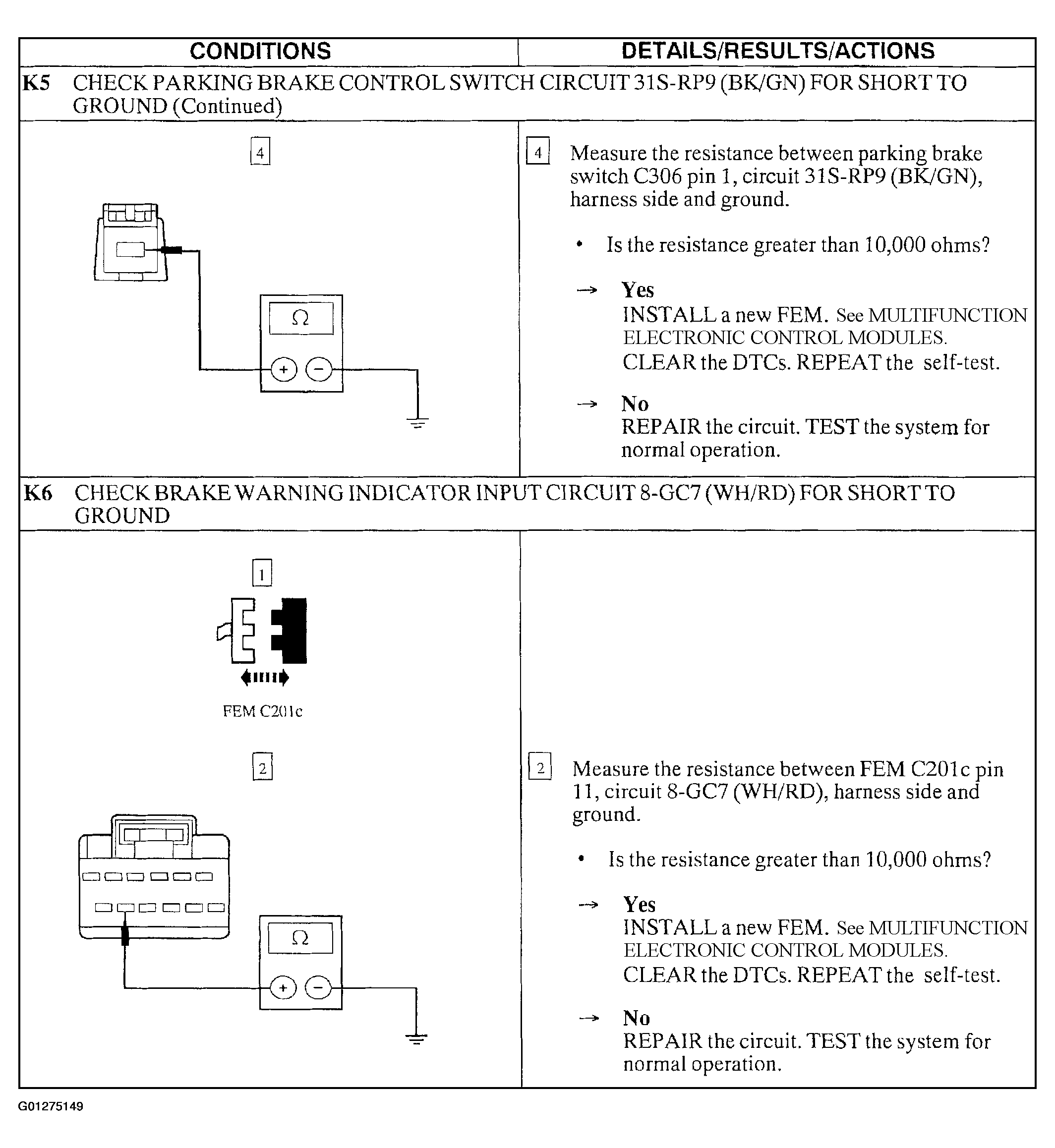

Fig 4: Pinpoint Test K: The Brake Warning Indicator Is Always On (Steps K5 & K6)

Courtesy of FORD MOTOR CO.
