Pinpoint Test J: The Charge System Warning Indicator Is Never/Always On
Pinpoint Test J: The Charge System Warning Indicator Is Never/Always On
WARNING:
This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

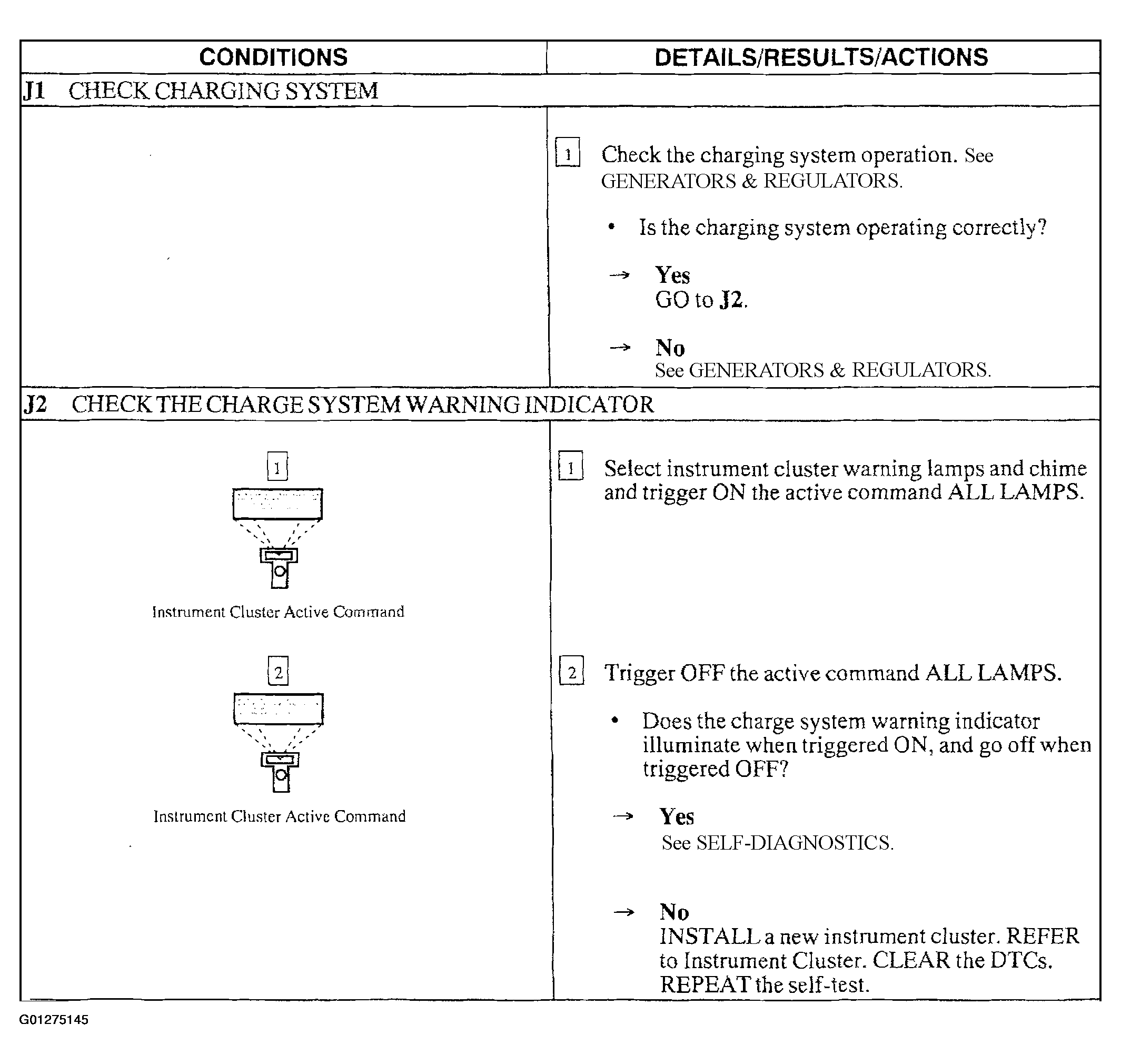

Fig 1: Pinpoint Test J: The Charge System Warning Indicator Is Never/Always On
Courtesy of FORD MOTOR CO.
