Pinpoint Test G: The Speedometer Is Inoperative
Pinpoint Test G: The Speedometer Is Inoperative
WARNING:
This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

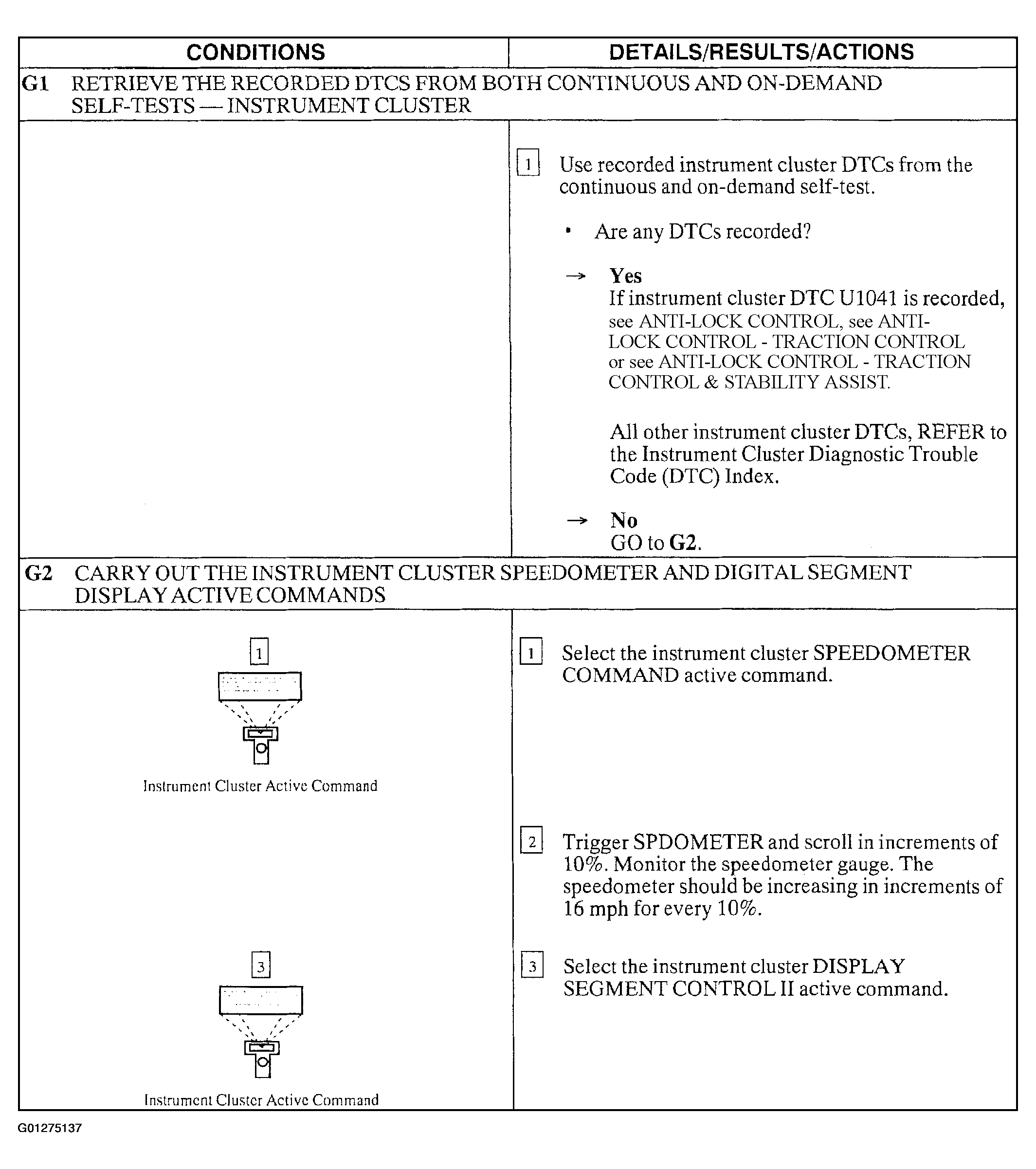

Fig 1: Pinpoint Test G: The Speedometer Is Inoperative (Steps G1 & G2)
Courtesy of FORD MOTOR CO.

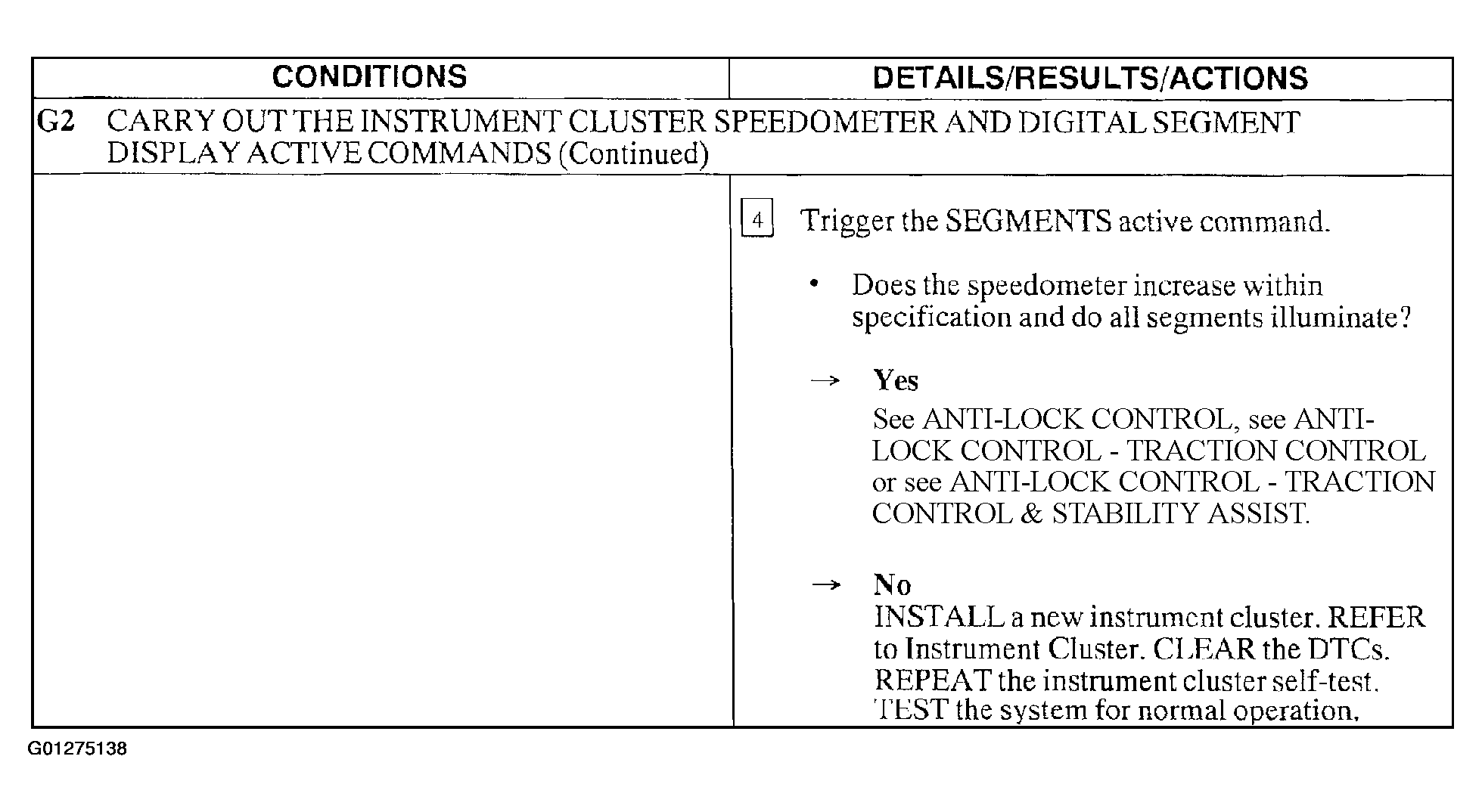

Fig 2: Pinpoint Test G: The Speedometer Is Inoperative (Step G2)
Courtesy of FORD MOTOR CO.
