Pinpoint Test F: An Indicator Is Inoperative/Always On - Low Oil Pressure

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

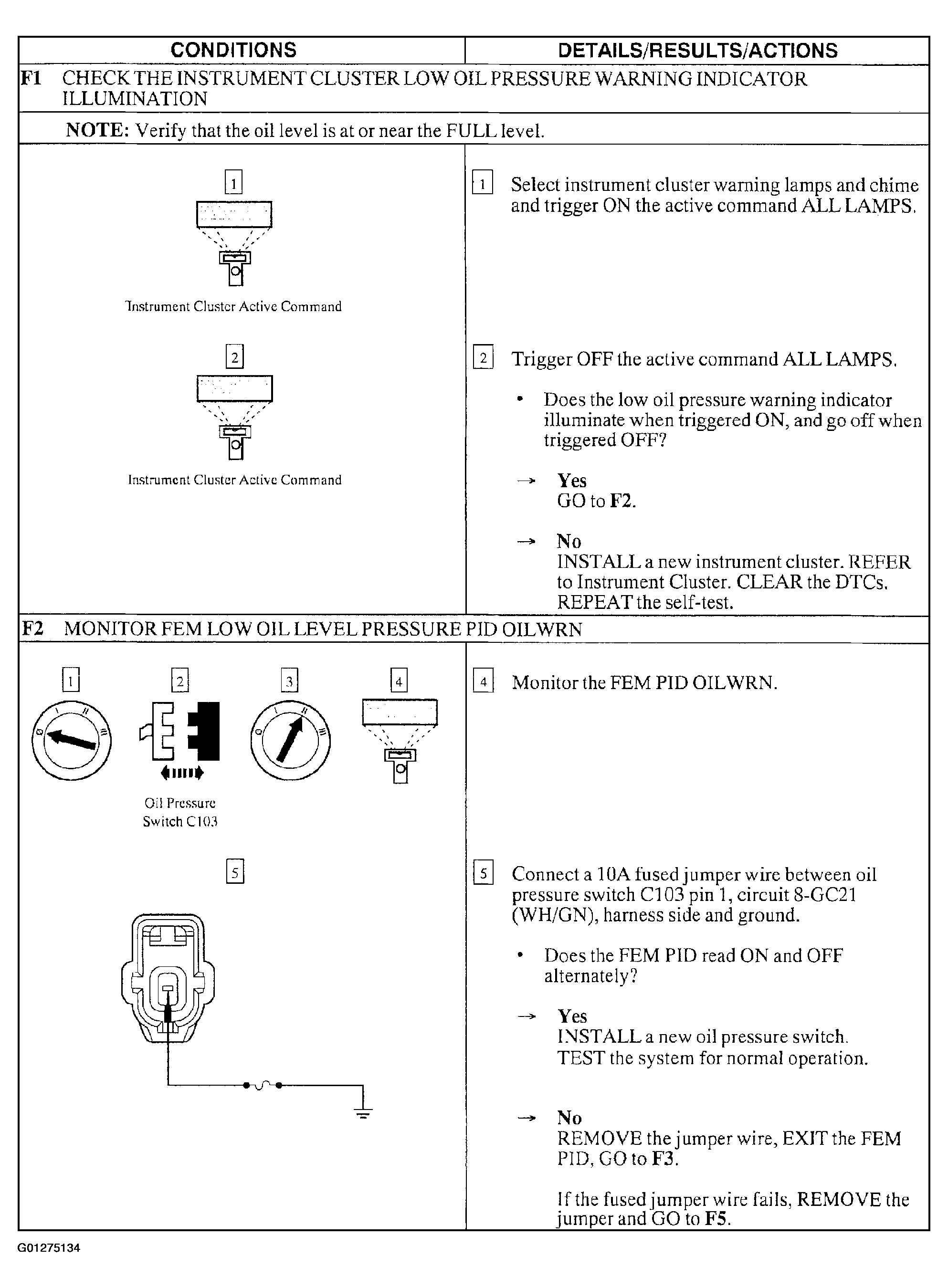

Fig 1: Pinpoint Test F: An Indicator Is Inoperative/Always On - Low Oil Pressure (Steps F1 & F2)

Courtesy of FORD MOTOR CO.

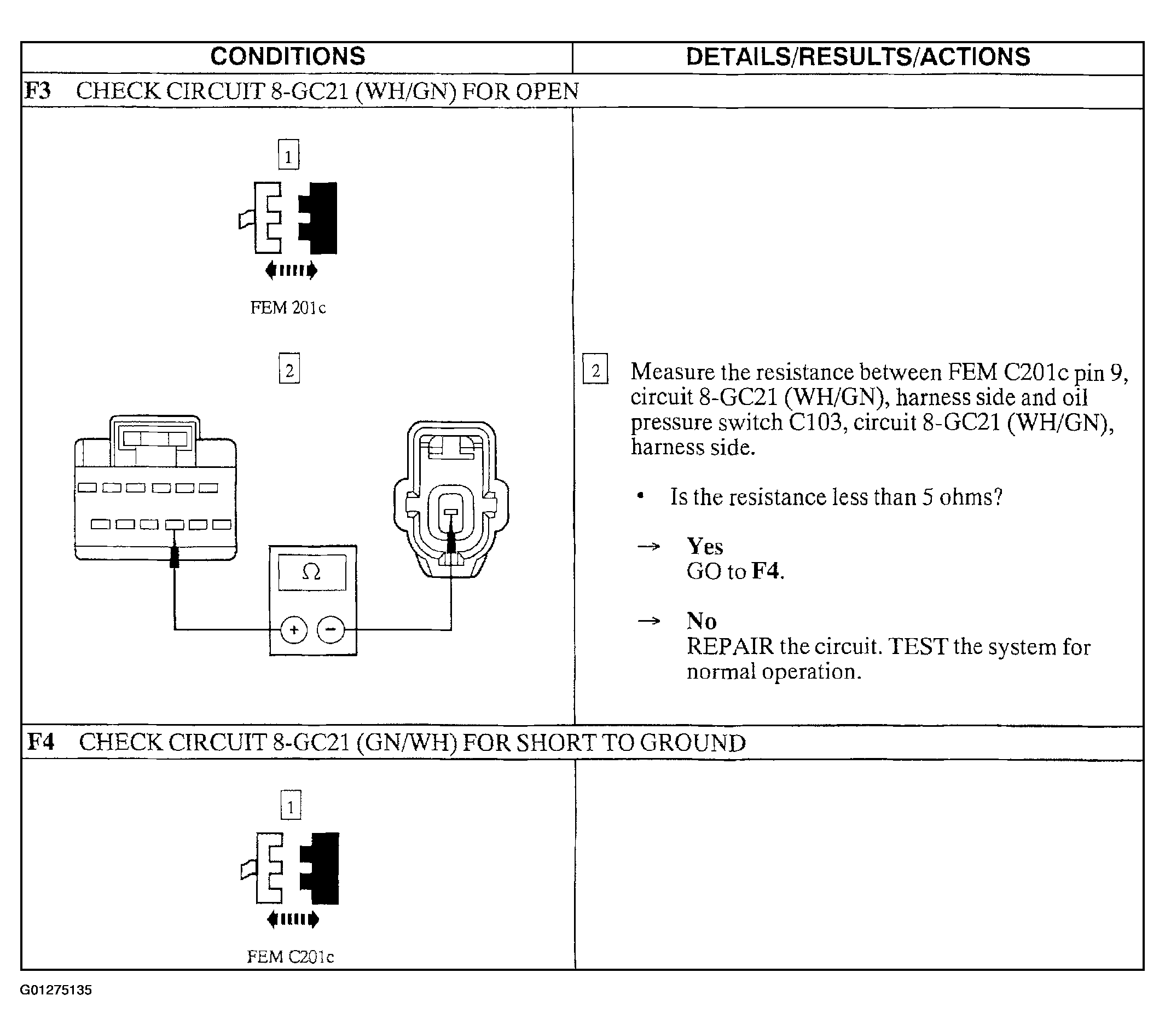

Fig 2: Pinpoint Test F: An Indicator Is Inoperative/Always On - Low Oil Pressure (Steps F3 & F4)

Courtesy of FORD MOTOR CO.

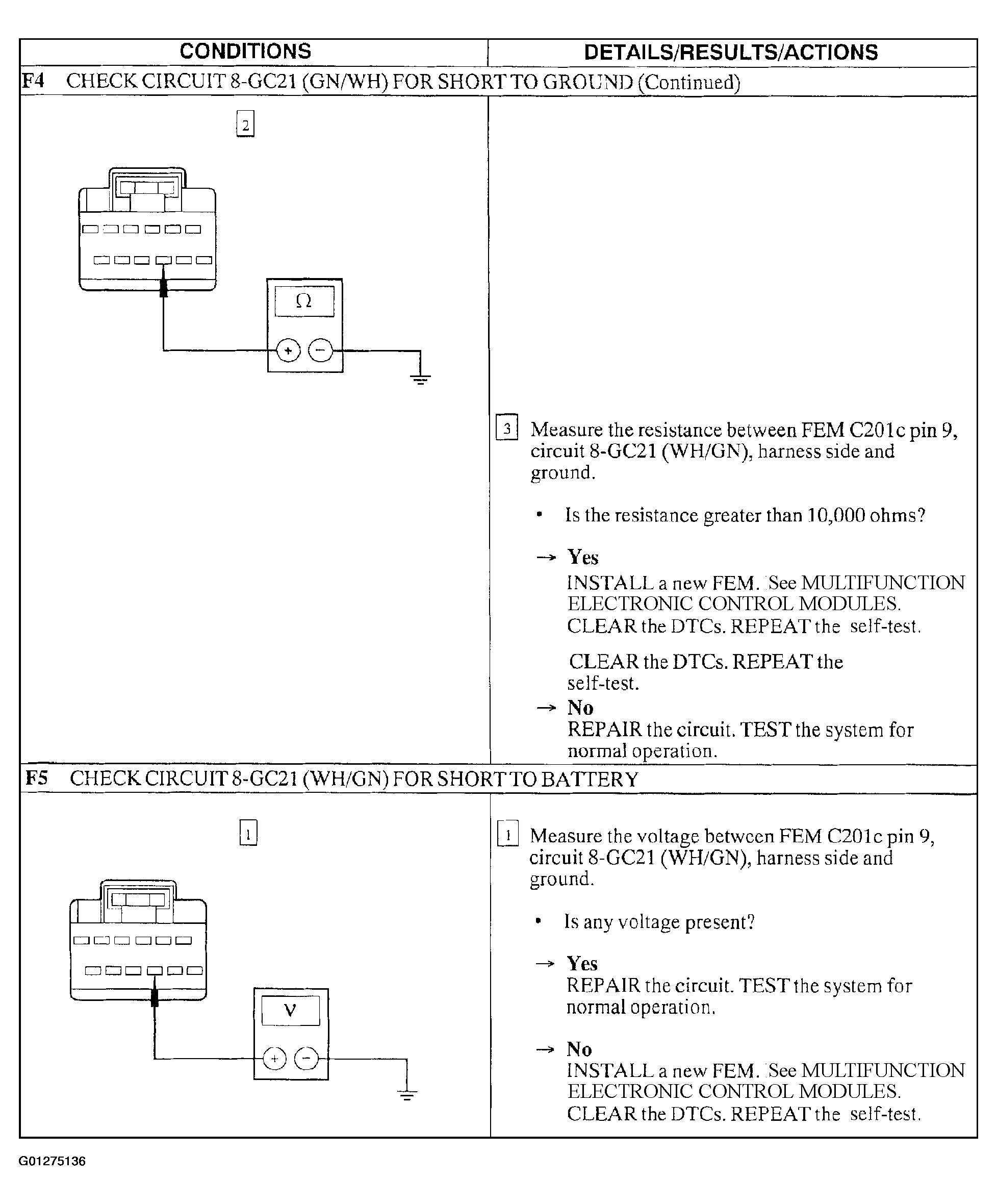

Fig 3: Pinpoint Test F: An Indicator Is Inoperative/Always On - Low Oil Pressure (Steps F4 & F5)

Courtesy of FORD MOTOR CO.
