Pinpoint Test D: Incorrect Fuel Gauge Indication

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

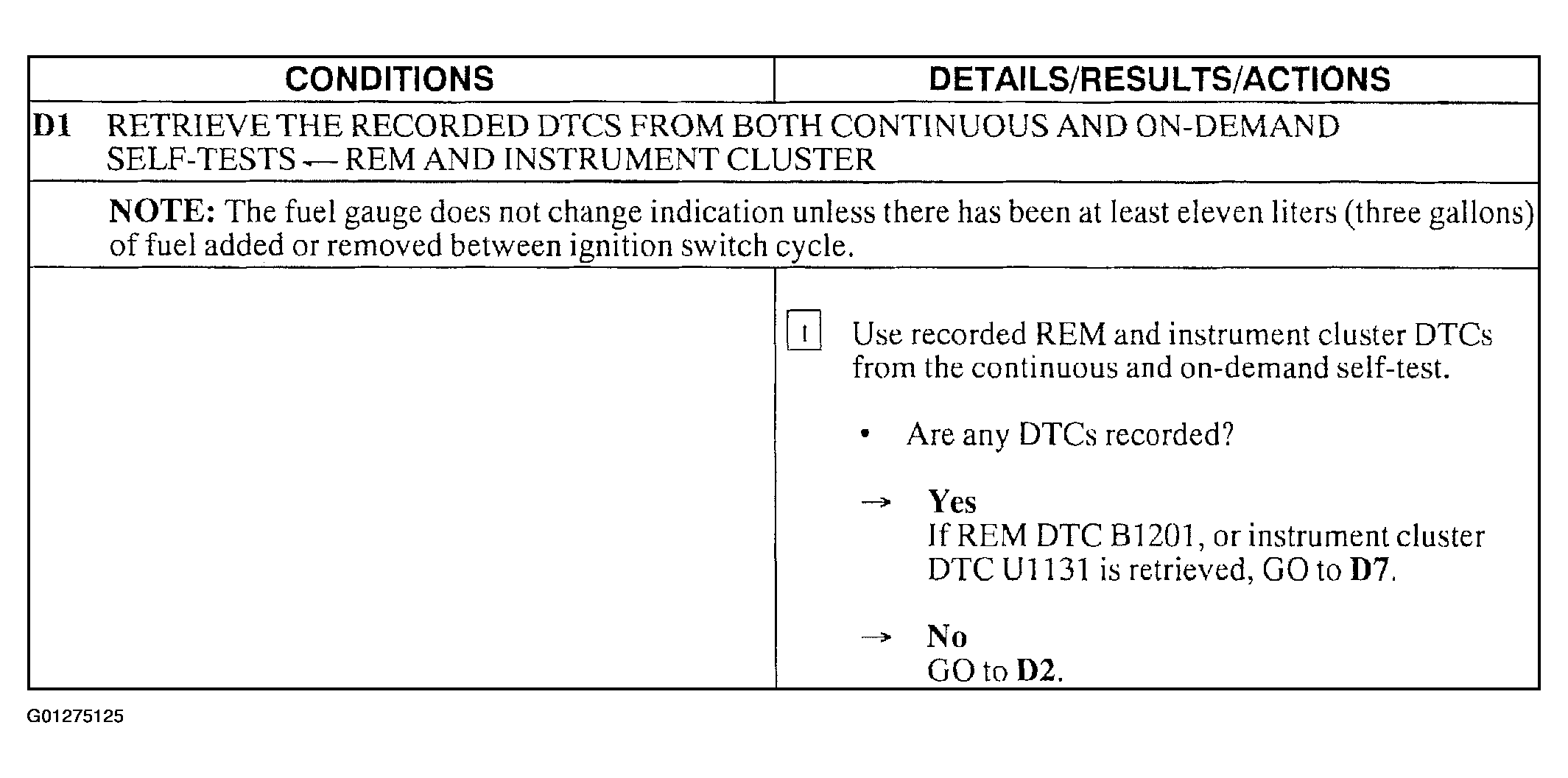

Fig 1: Pinpoint Test D: Incorrect Fuel Gauge Indication (Step D1)

Courtesy of FORD MOTOR CO.

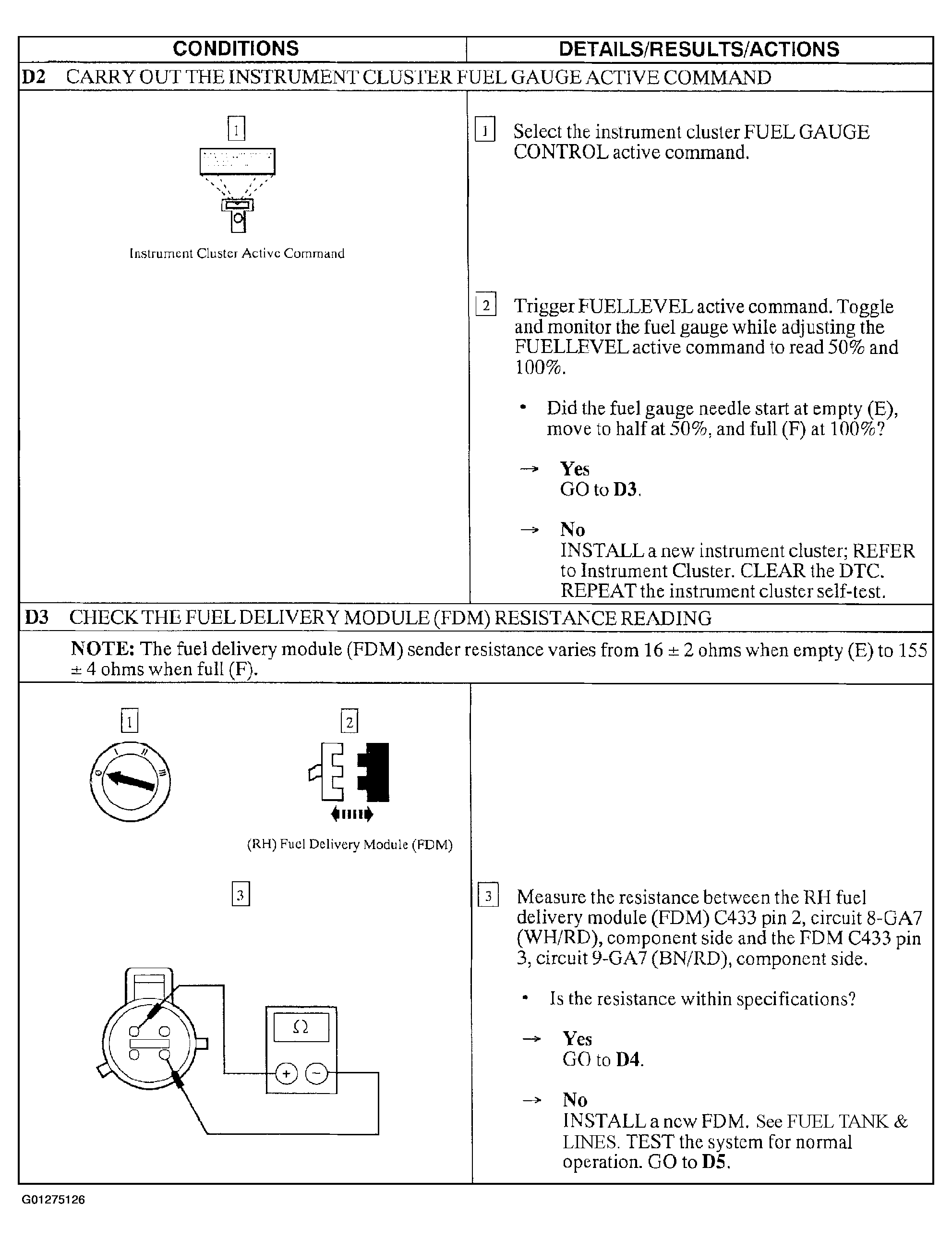

Fig 2: Pinpoint Test D: Incorrect Fuel Gauge Indication (Step D2 & D3)

Courtesy of FORD MOTOR CO.

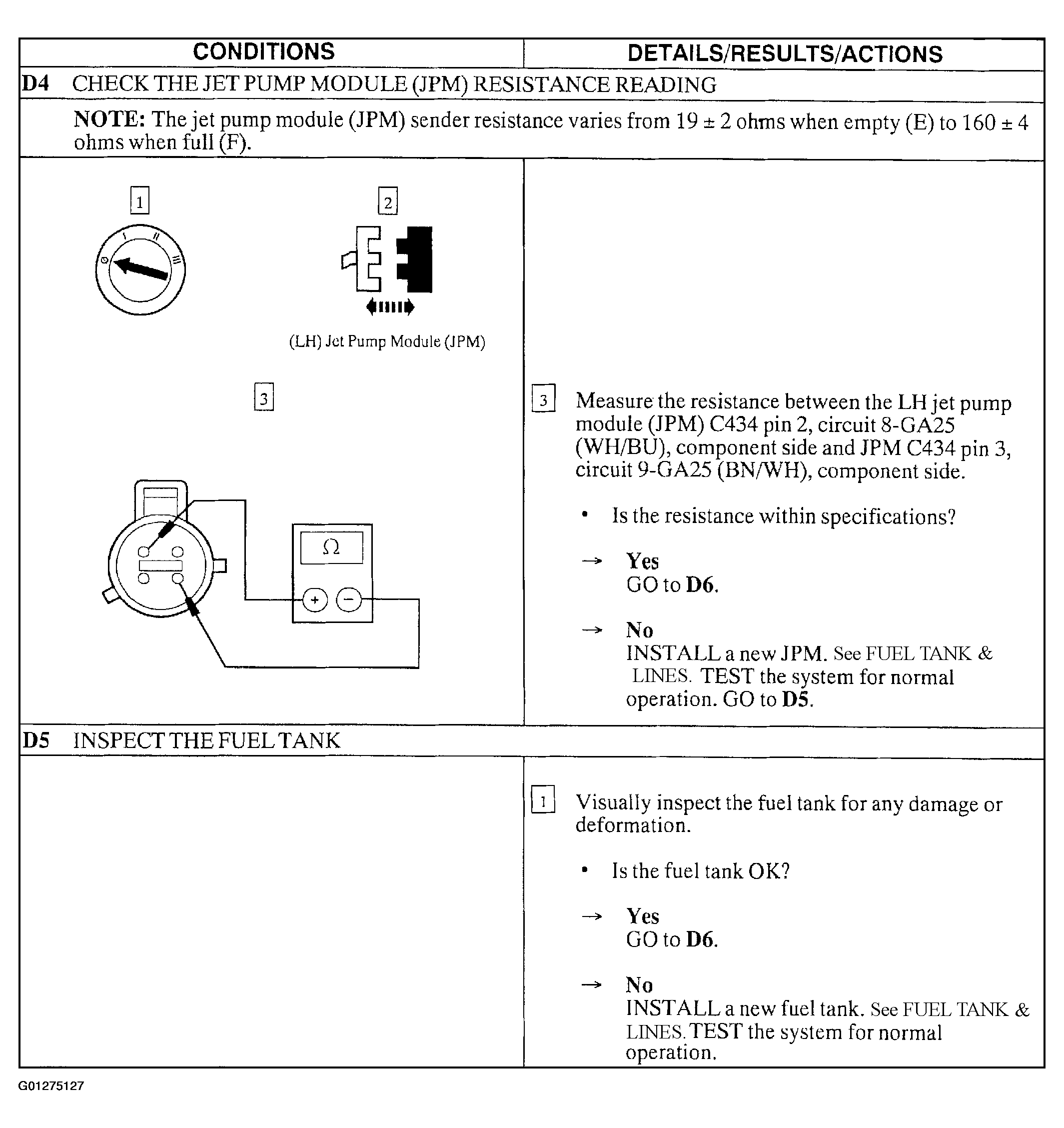

Fig 3: Pinpoint Test D: Incorrect Fuel Gauge Indication (Steps D4 & D5)

Courtesy of FORD MOTOR CO.

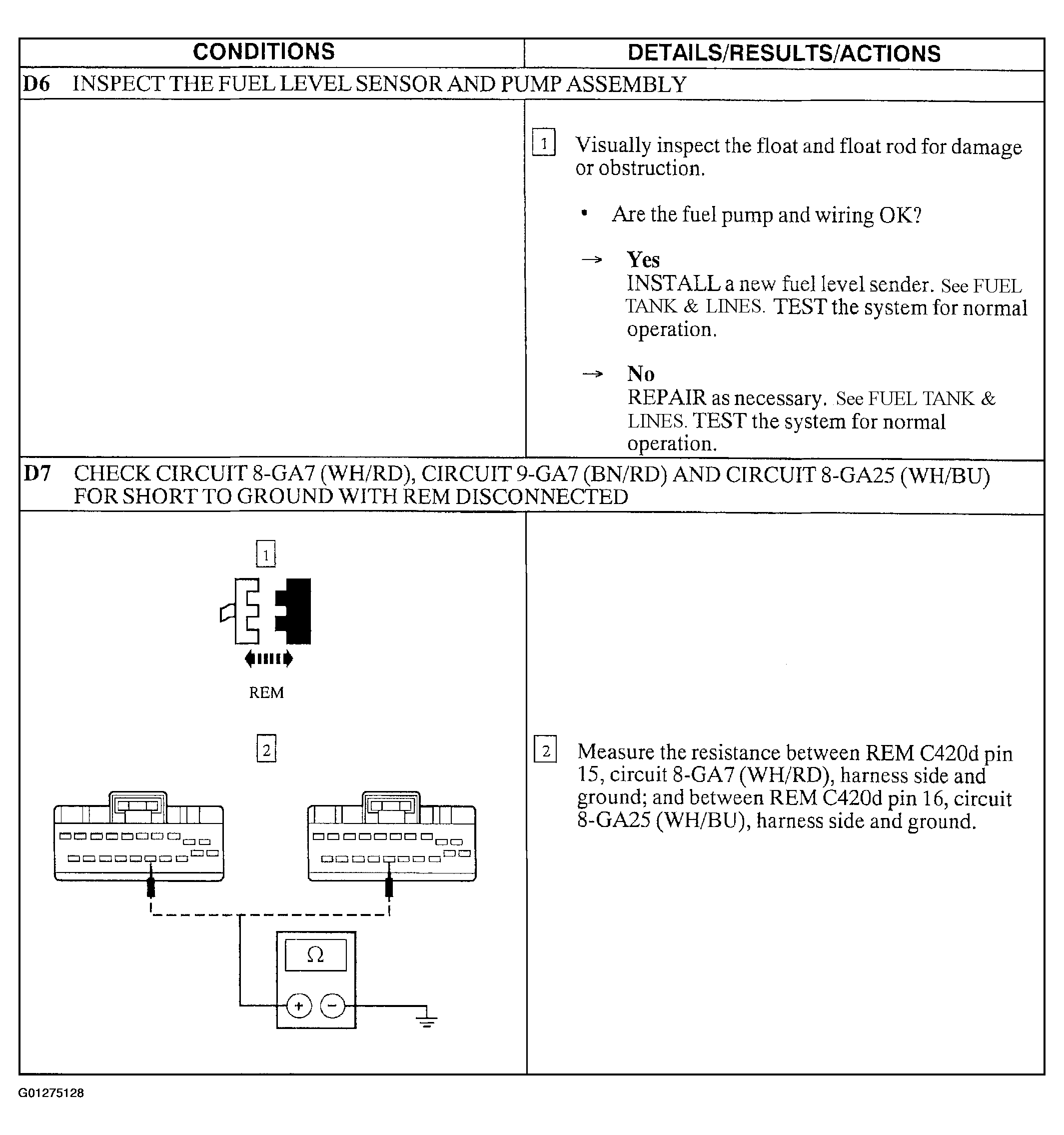

Fig 4: Pinpoint Test D: Incorrect Fuel Gauge Indication (Steps D6 & D7)

Courtesy of FORD MOTOR CO.

Fig 5: Pinpoint Test D: Incorrect Fuel Gauge Indication (Steps D7 & D8)

Courtesy of FORD MOTOR CO.

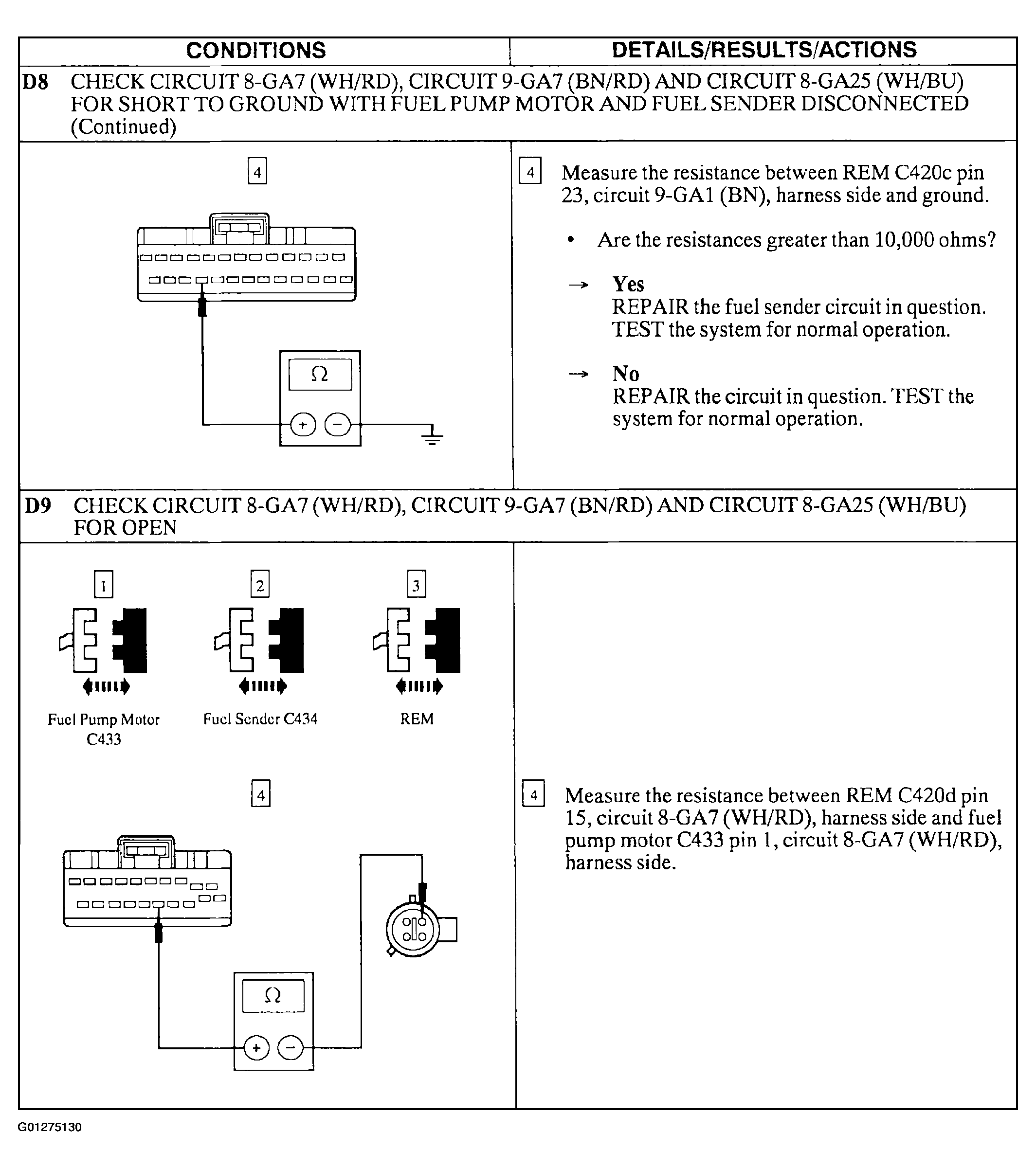

Fig 6: Pinpoint Test D: Incorrect Fuel Gauge Indication (Steps D8 & D9)

Courtesy of FORD MOTOR CO.

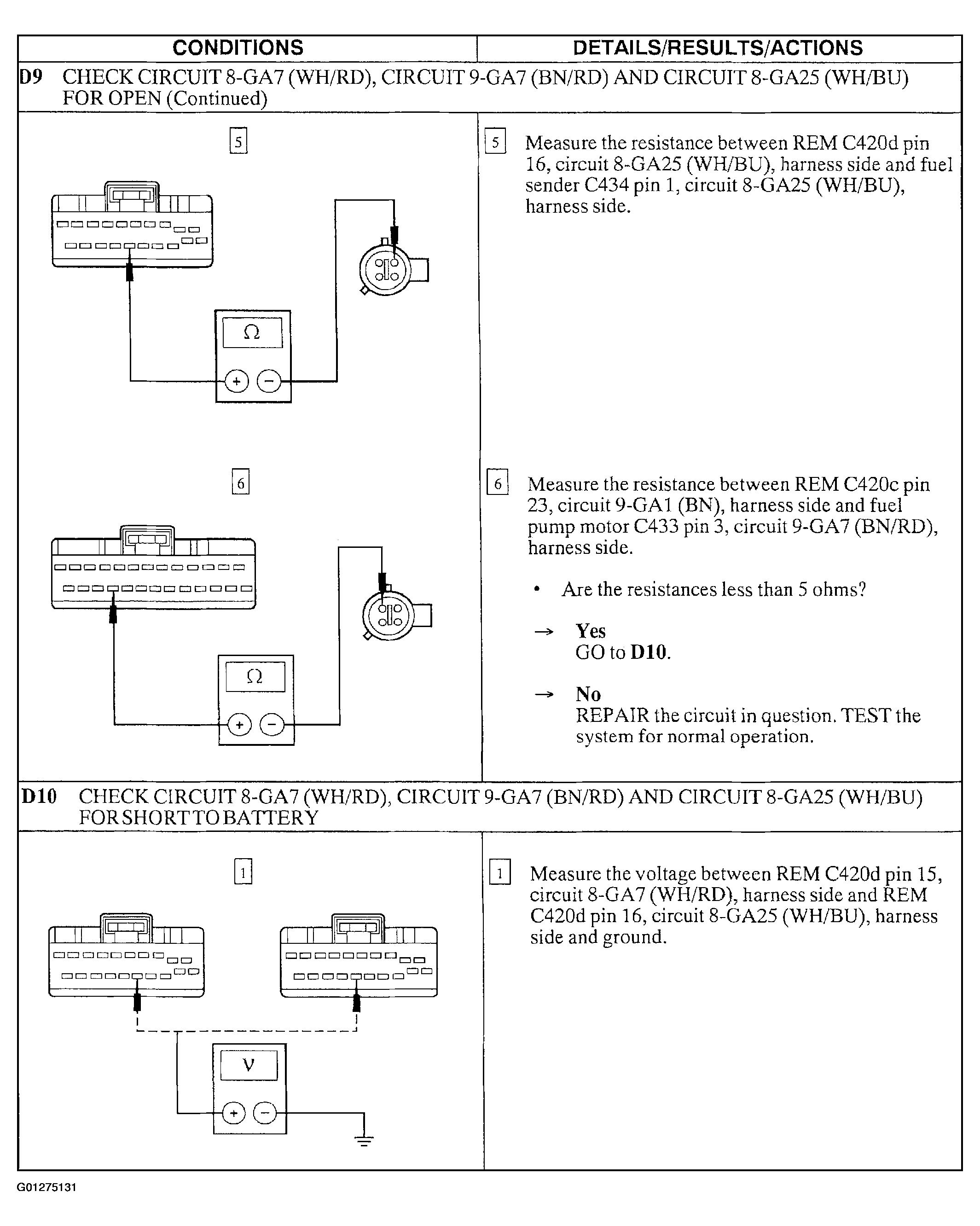

Fig 7: Pinpoint Test D: Incorrect Fuel Gauge Indication (Steps D9 & D10)

Courtesy of FORD MOTOR CO.

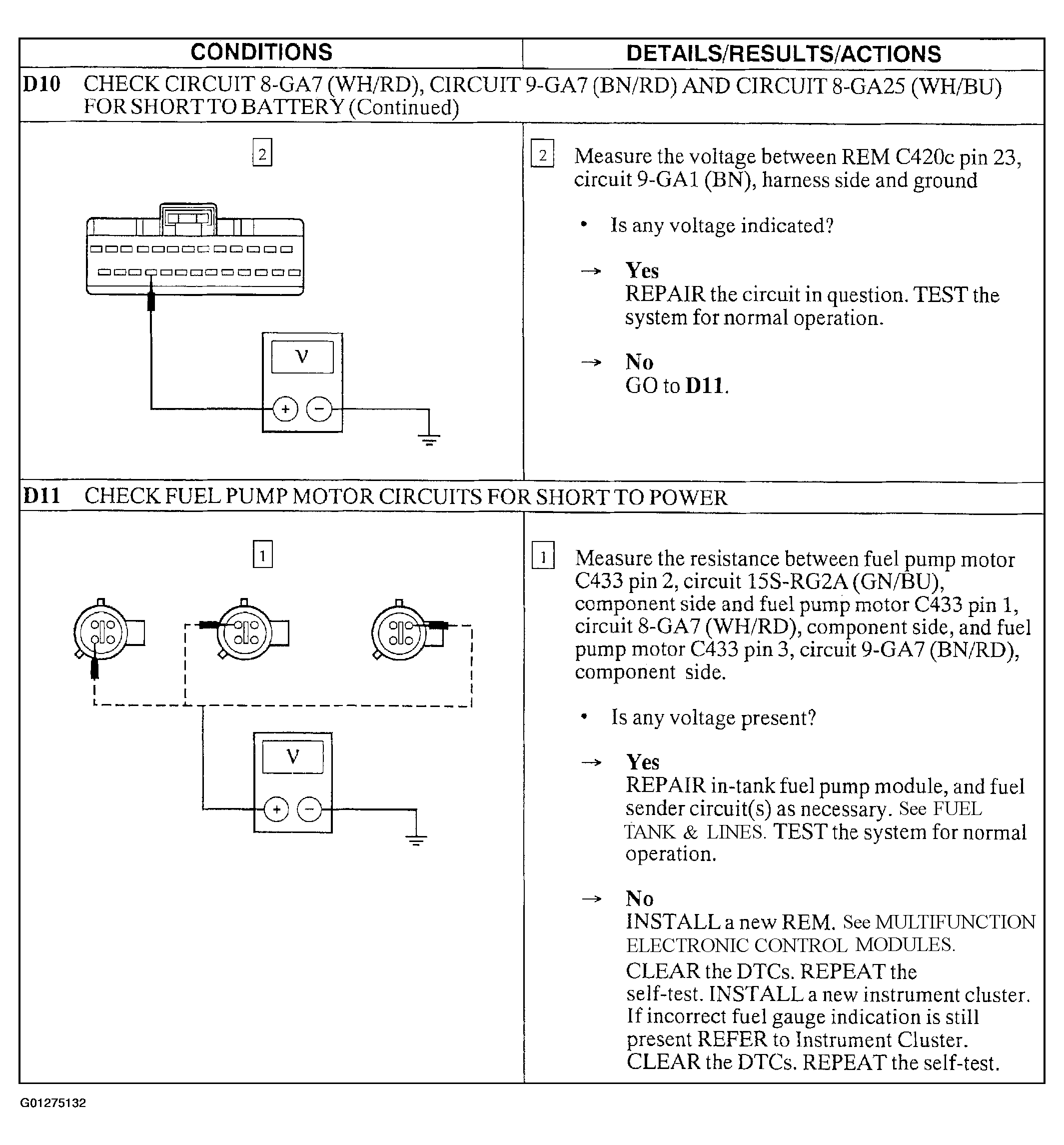

Fig 8: Pinpoint Test D: Incorrect Fuel Gauge Indication (Steps D10 & D11)

Courtesy of FORD MOTOR CO.
