Pinpoint Test AA: The Check Fuel Cap Indicator Is Inoperative/Always On

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

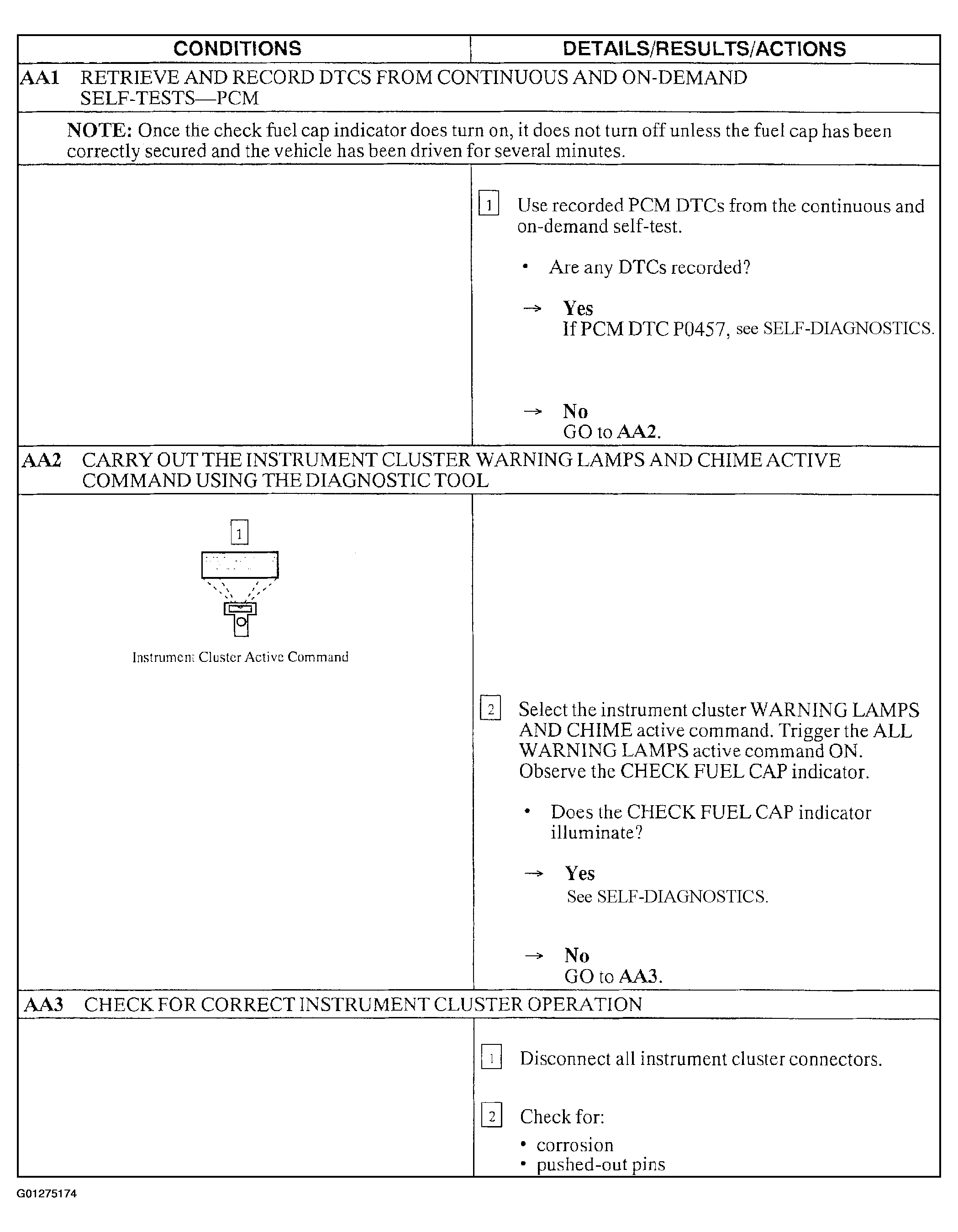

Fig 1: Pinpoint Test AA: The Check Fuel Cap Indicator Is Inoperative/Always On (Steps AA1 To AA3)

Courtesy of FORD MOTOR CO.

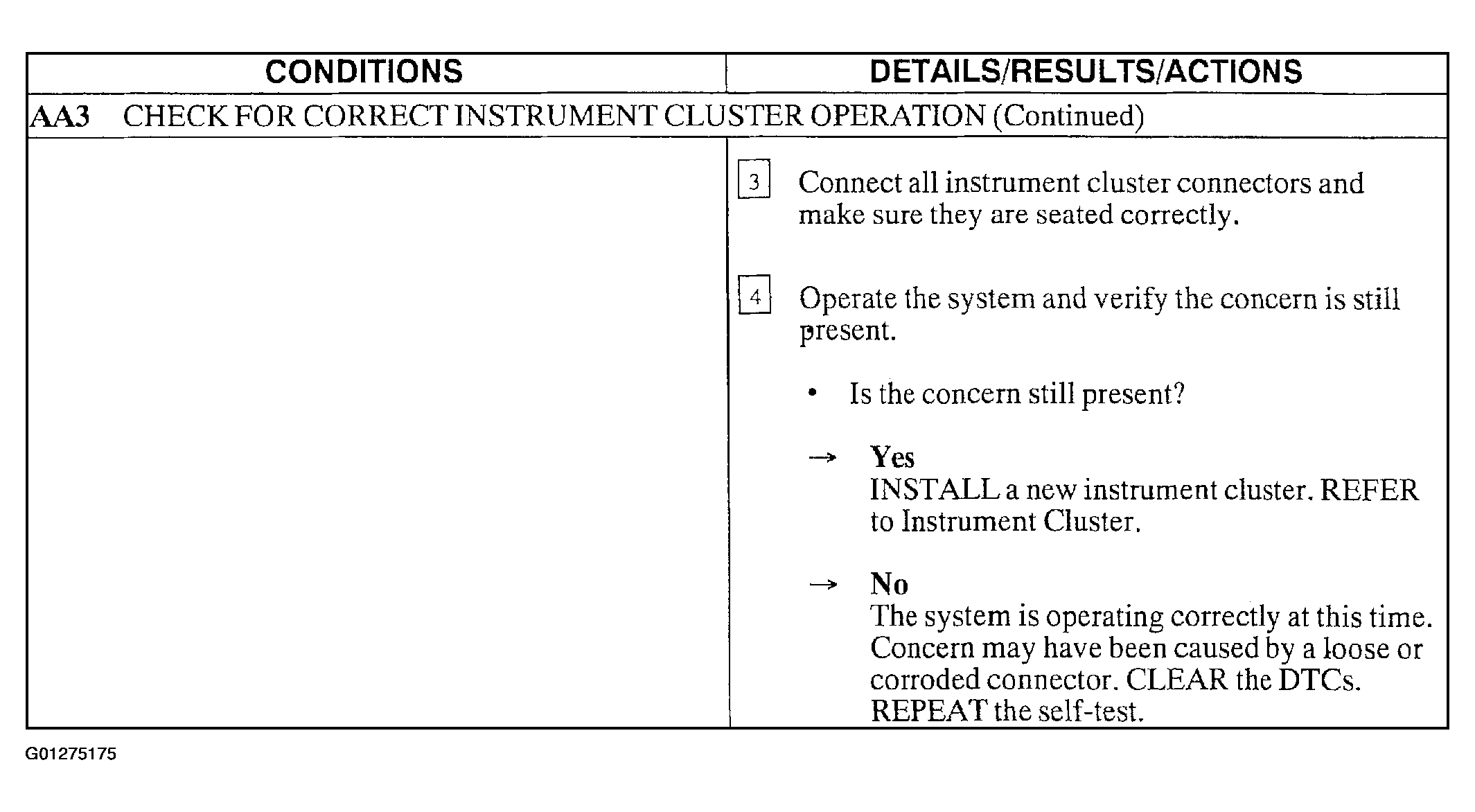

Fig 2: Pinpoint Test AA: The Check Fuel Cap Indicator Is Inoperative/Always On (Step AA3, Cont.)

Courtesy of FORD MOTOR CO.
