Instrument Cluster

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Miles per hour (mph) instrument cluster shown, kilometers per hour (km/h) instrument cluster similar.

The standard instrument cluster consists of the following:

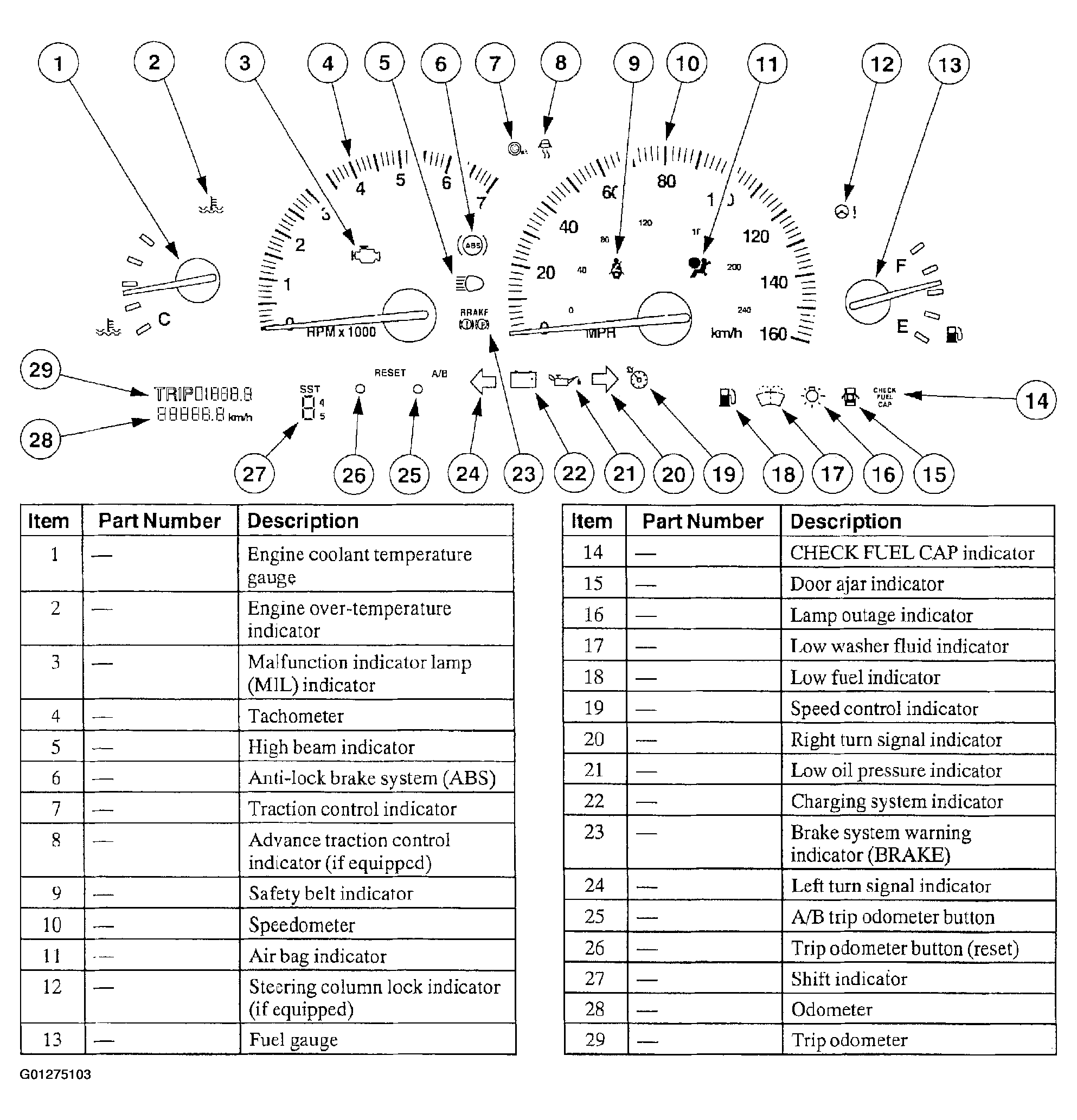

Fig 1: Instrument Cluster (Standard)

Courtesy of FORD MOTOR CO.

NOTE: Miles per hour (mph) instrument cluster shown, kilometers per hour (km/h) instrument cluster similar.

The optional instrument cluster consists of the following:

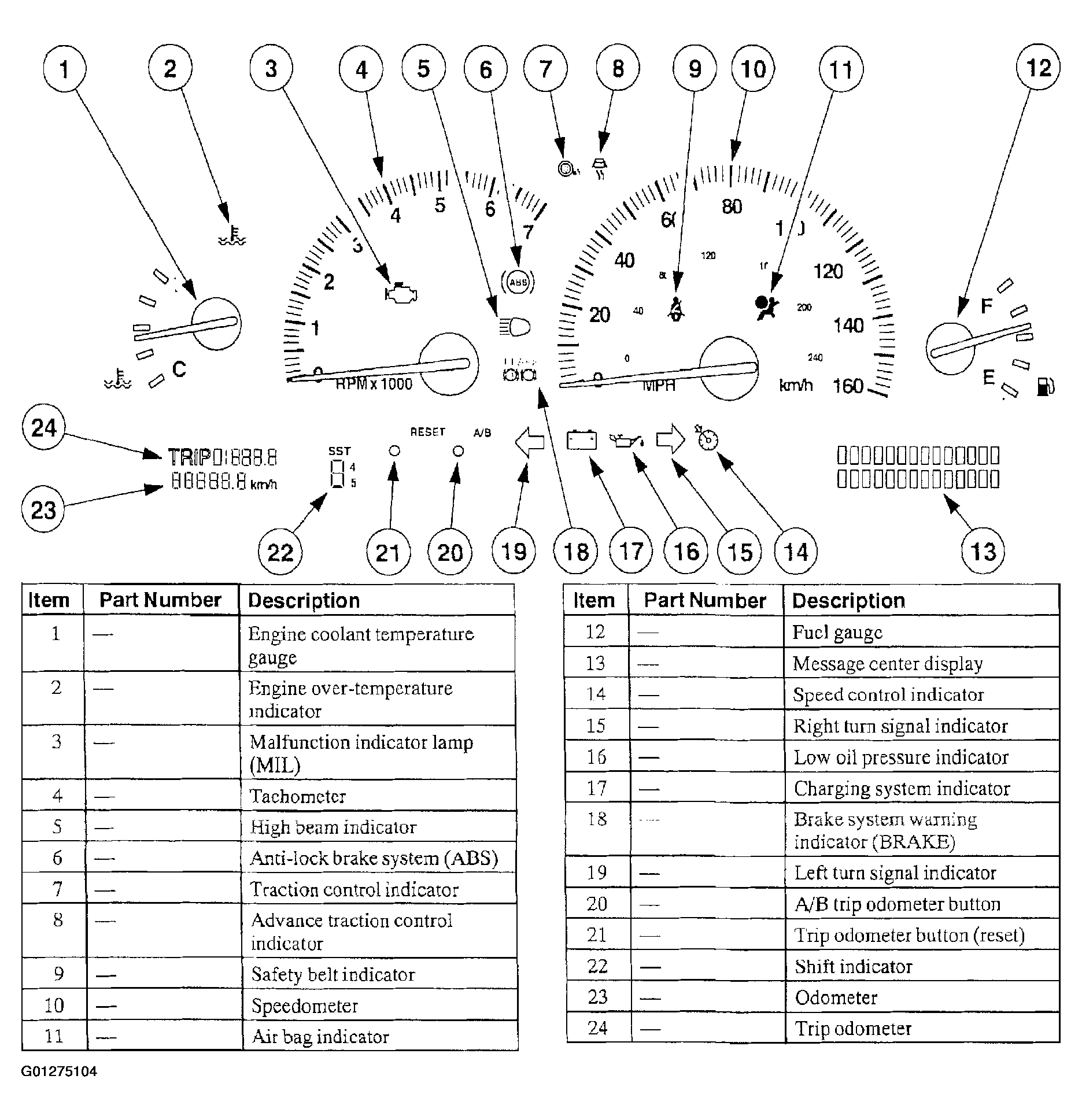

Fig 2: Instrument Cluster (Optional)

Courtesy of FORD MOTOR CO.
