Pinpoint Test I: The Instrument Panel Illumination Does Not Dim

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

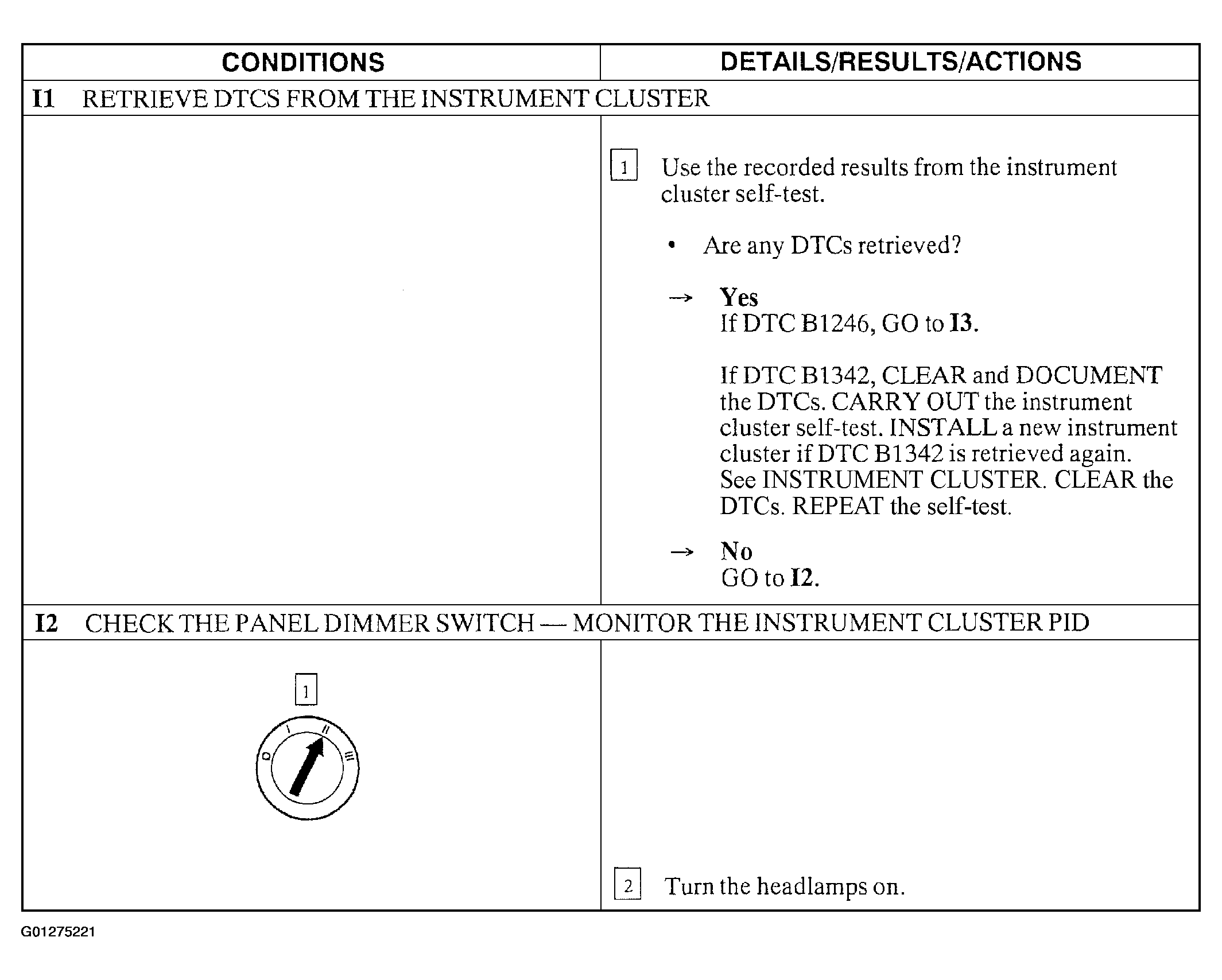

Fig 1: Pinpoint Test I: The Instrument Panel Illumination Does Not Dim (Steps I1 & I2)

Courtesy of FORD MOTOR CO.

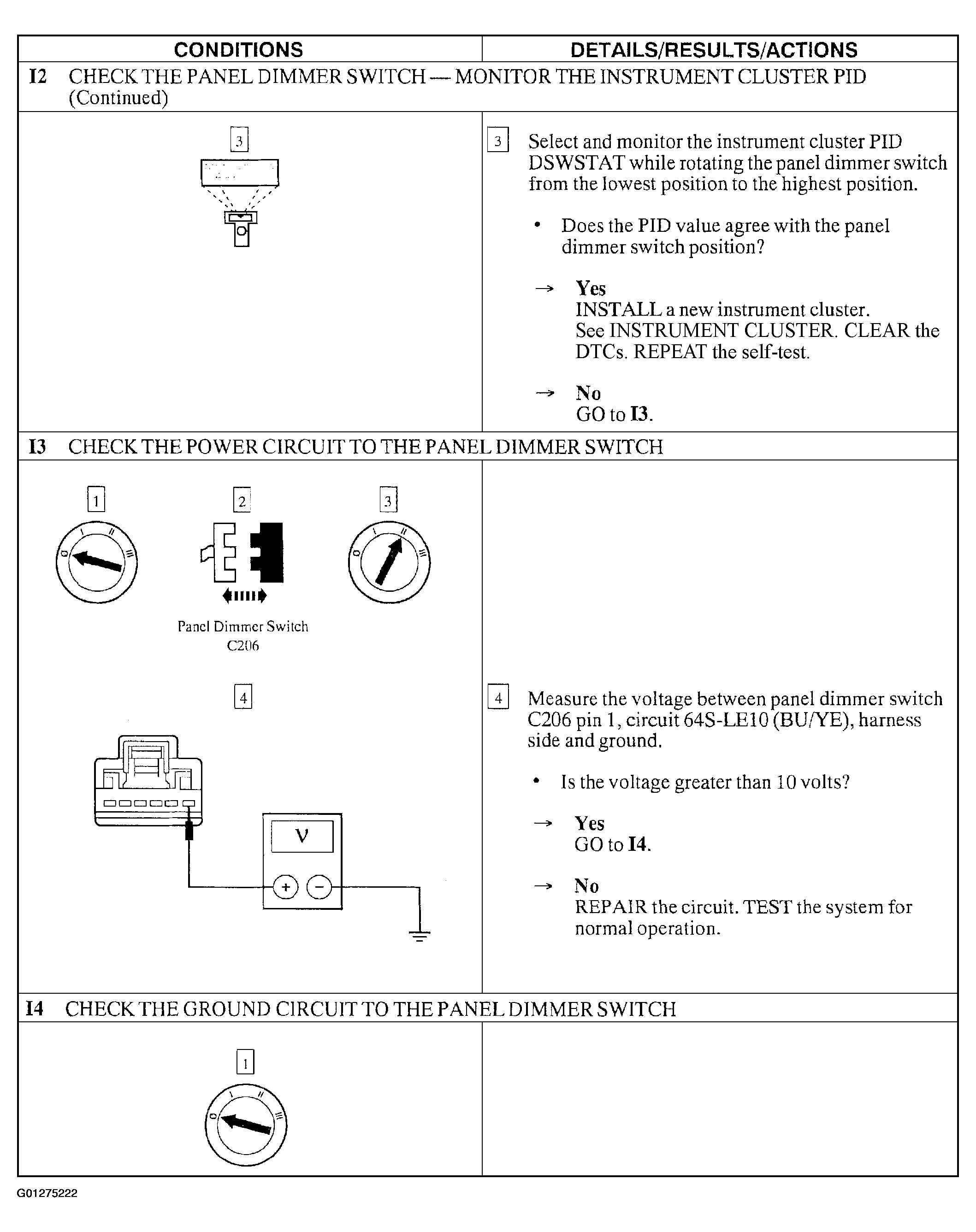

Fig 2: Pinpoint Test I: The Instrument Panel Illumination Does Not Dim (Steps I2 To I4)

Courtesy of FORD MOTOR CO.

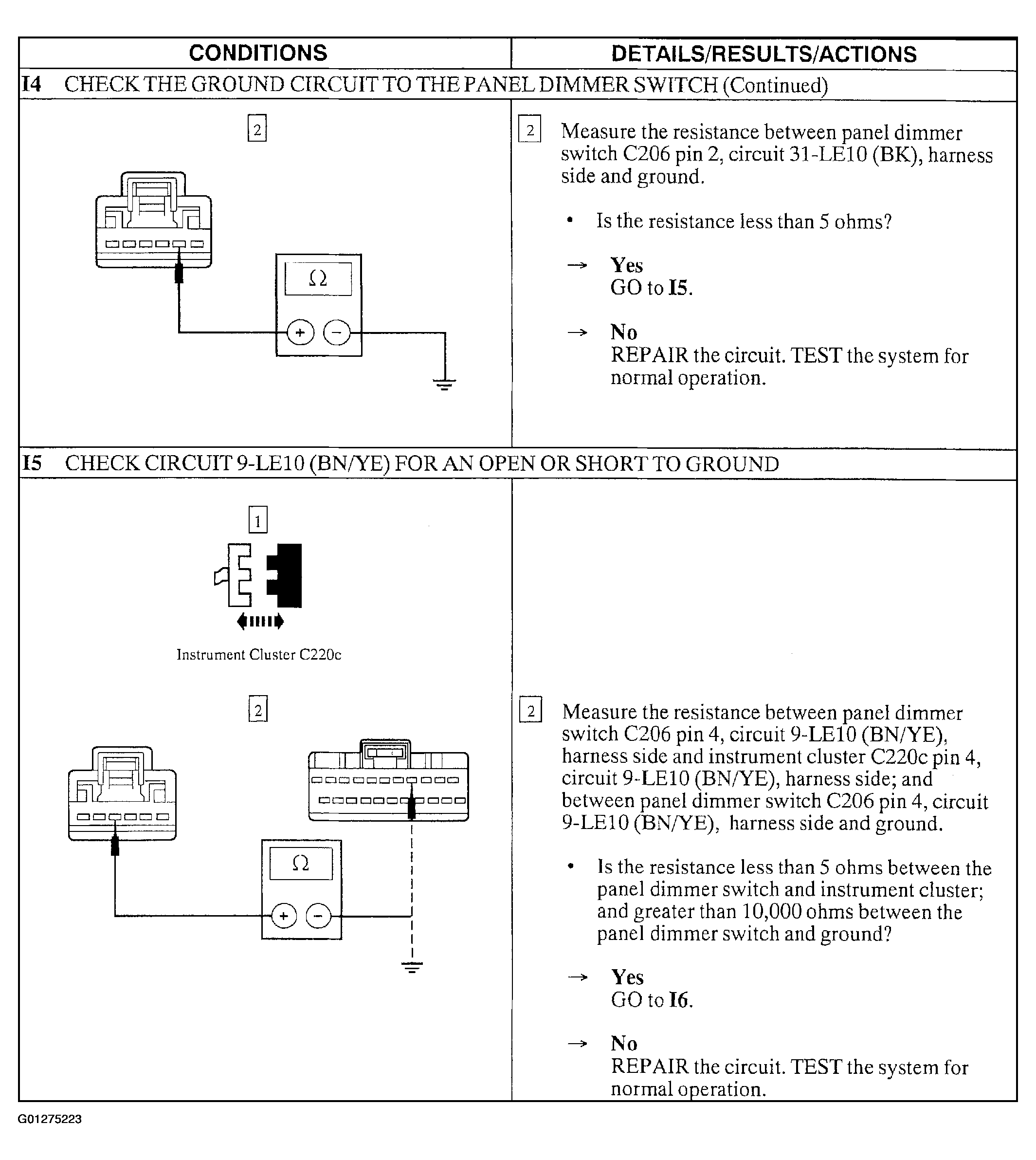

Fig 3: Pinpoint Test I: The Instrument Panel Illumination Does Not Dim (Steps I4 & I5)

Courtesy of FORD MOTOR CO.

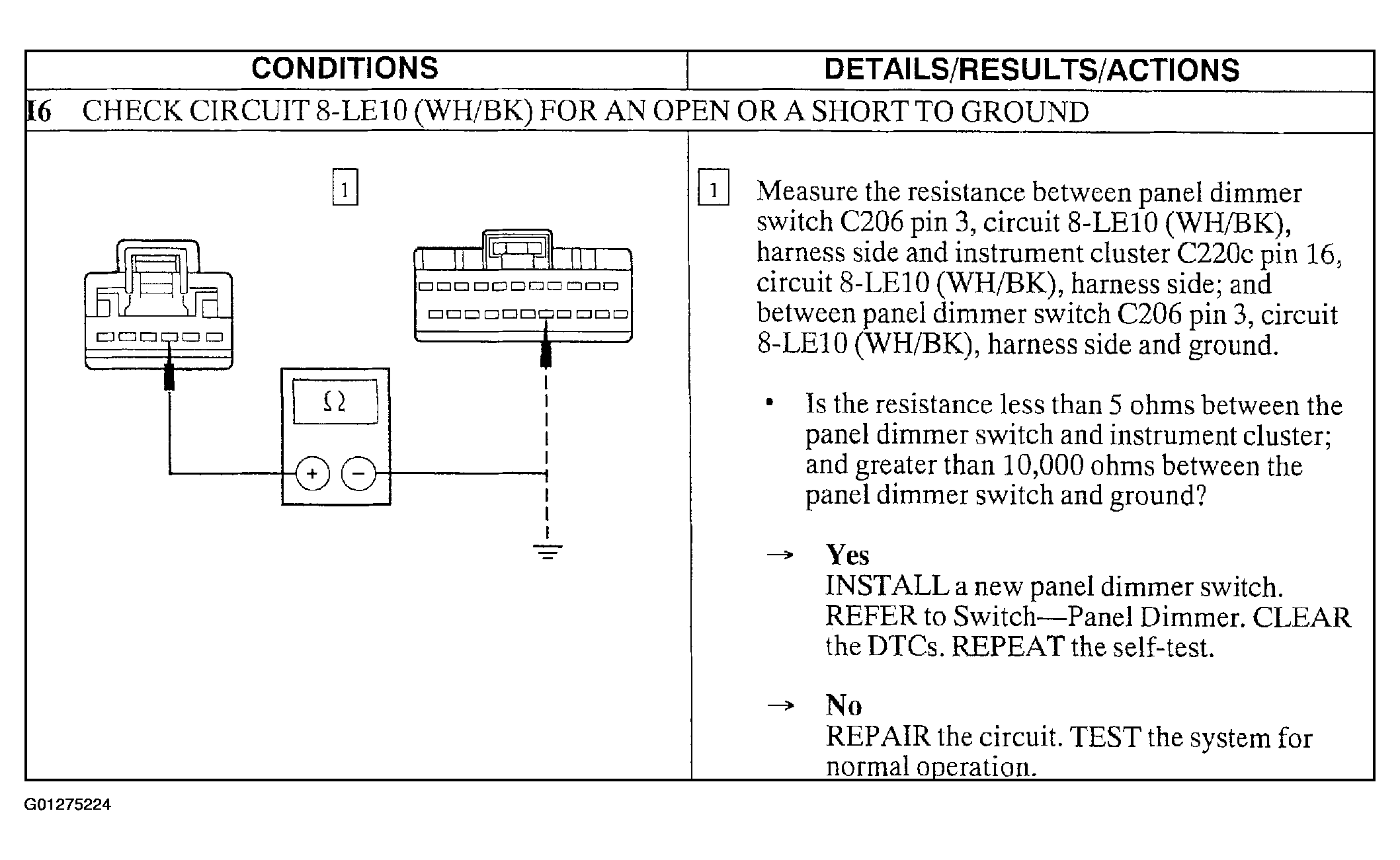

Fig 4: Pinpoint Test I: The Instrument Panel Illumination Does Not Dim (Step I6)

Courtesy of FORD MOTOR CO.
