Pinpoint Test H: A Single Illumination Source Is Inoperative

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

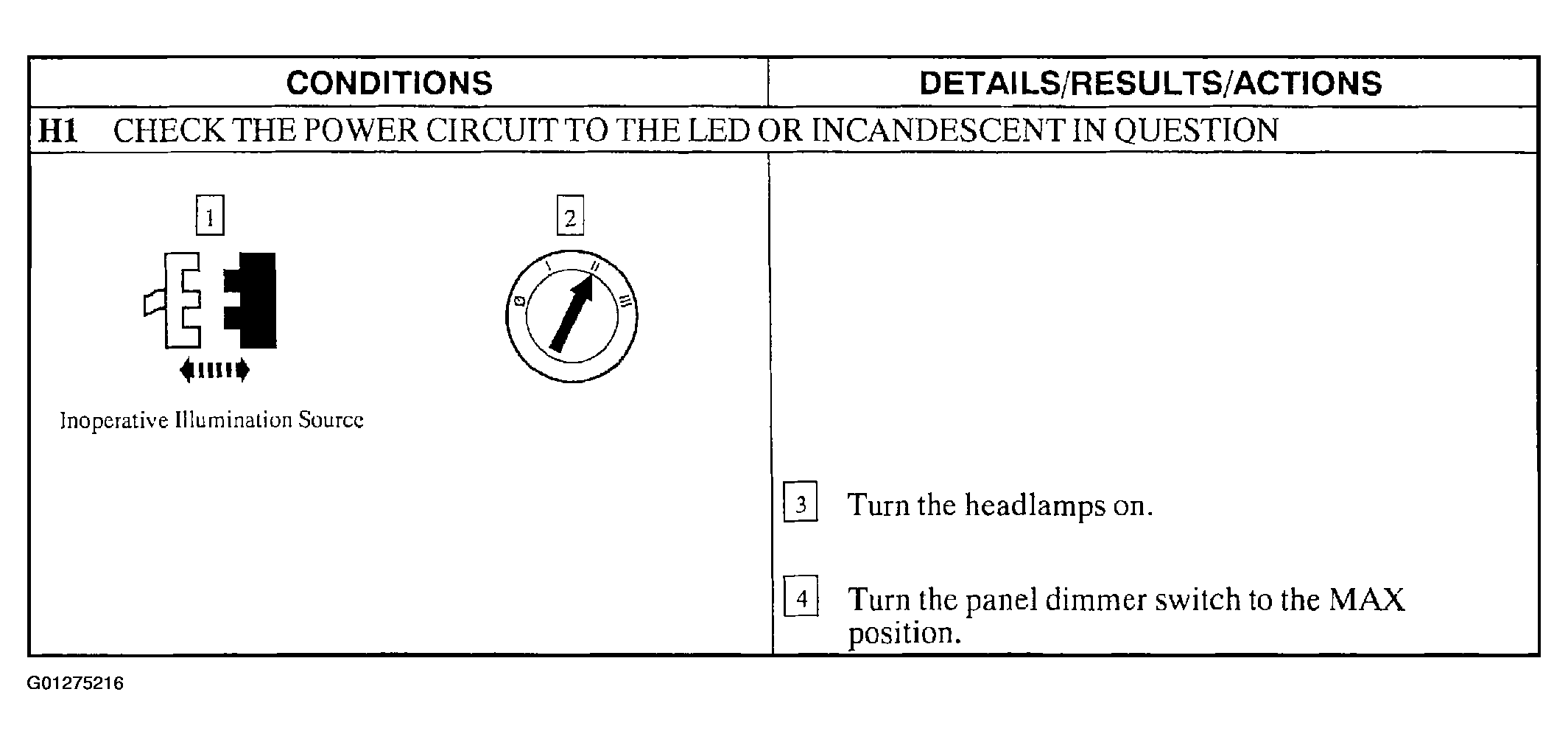

Fig 1: Pinpoint Test H: A Single Illumination Source Is Inoperative (Step H1)

Courtesy of FORD MOTOR CO.

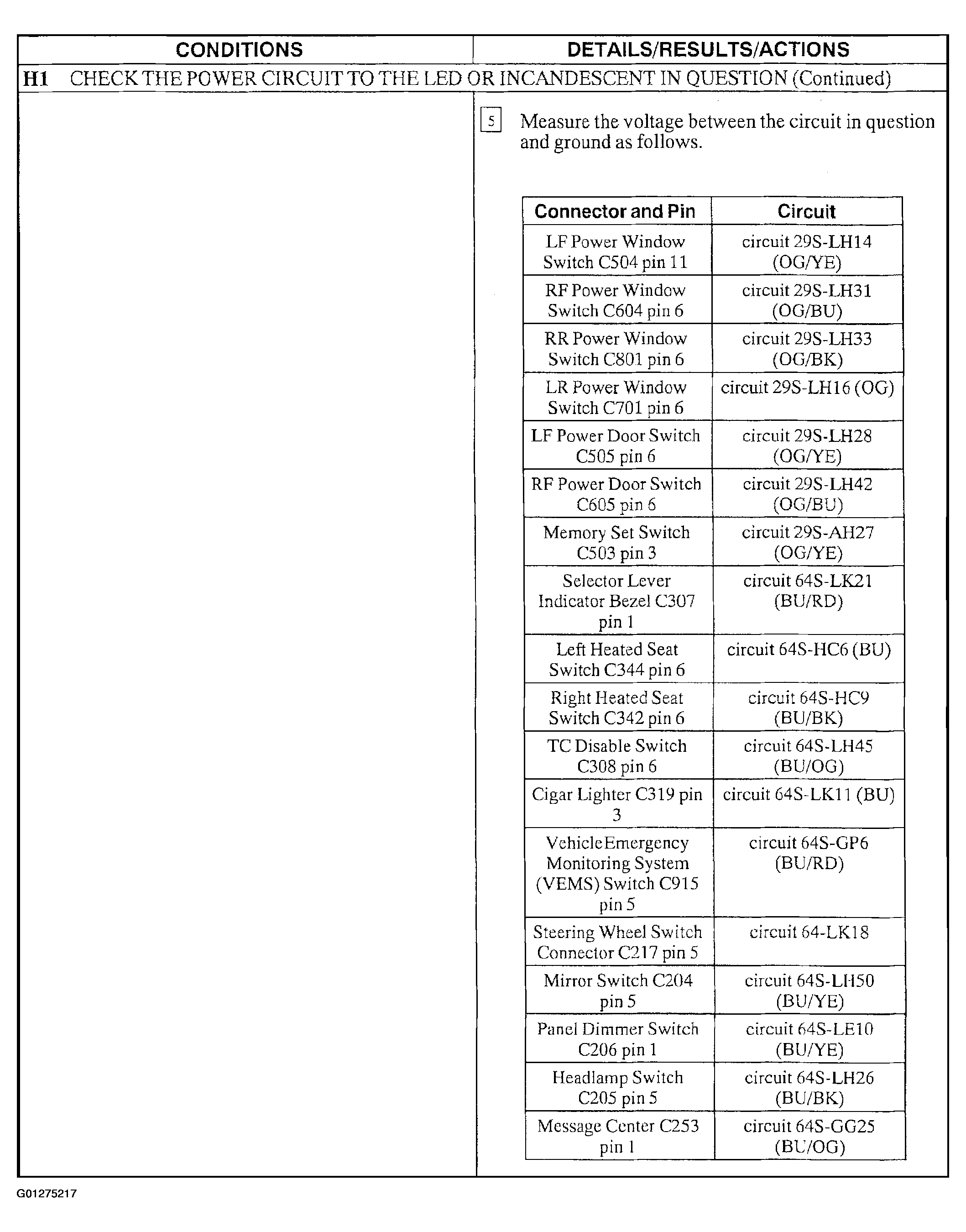

Fig 2: Pinpoint Test H: A Single Illumination Source Is Inoperative (Step H1, Cont.)

Courtesy of FORD MOTOR CO.

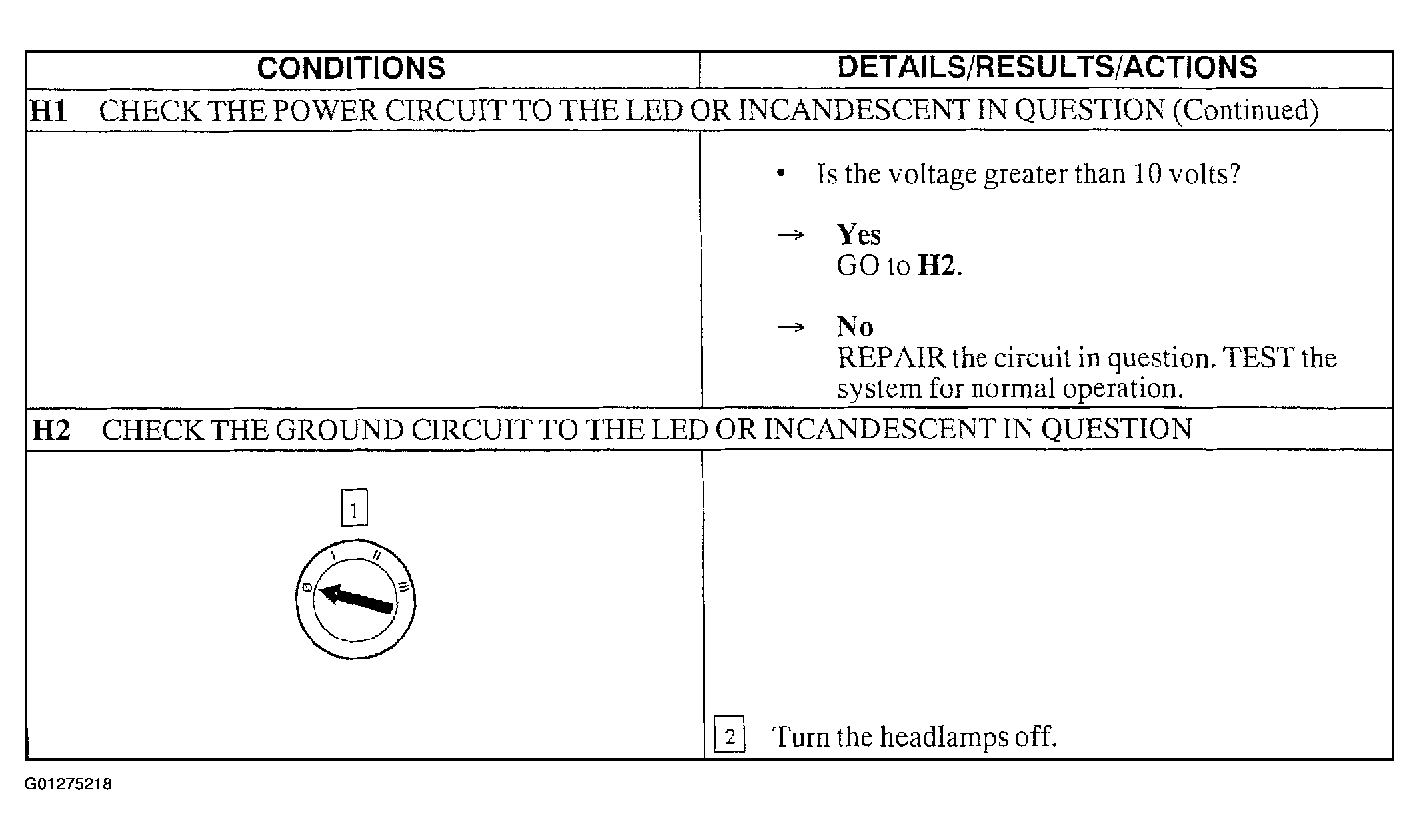

Fig 3: Pinpoint Test H: A Single Illumination Source Is Inoperative (Step H1 & H2)

Courtesy of FORD MOTOR CO.

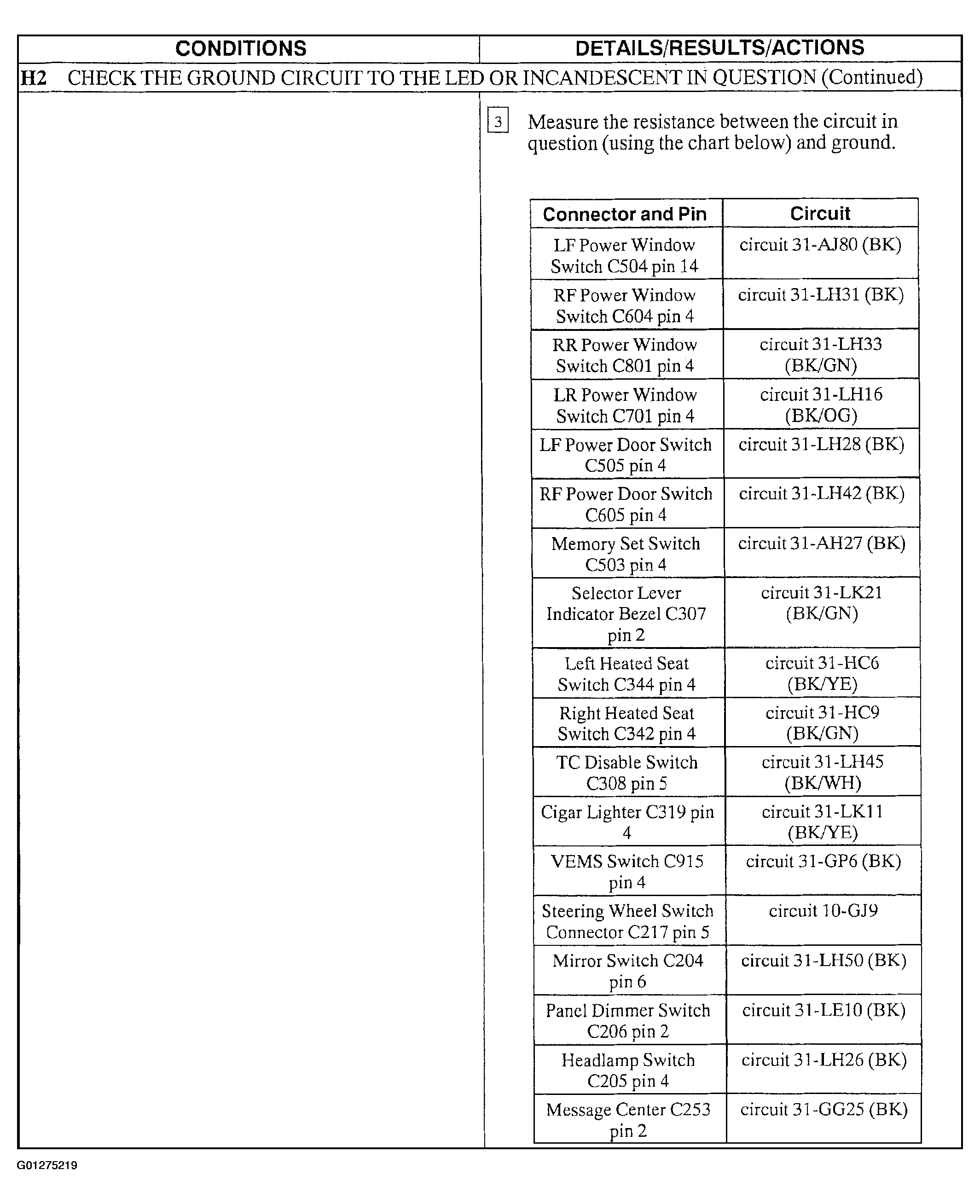

Fig 4: Pinpoint Test H: A Single Illumination Source Is Inoperative (Step H2, Cont.)

Courtesy of FORD MOTOR CO.

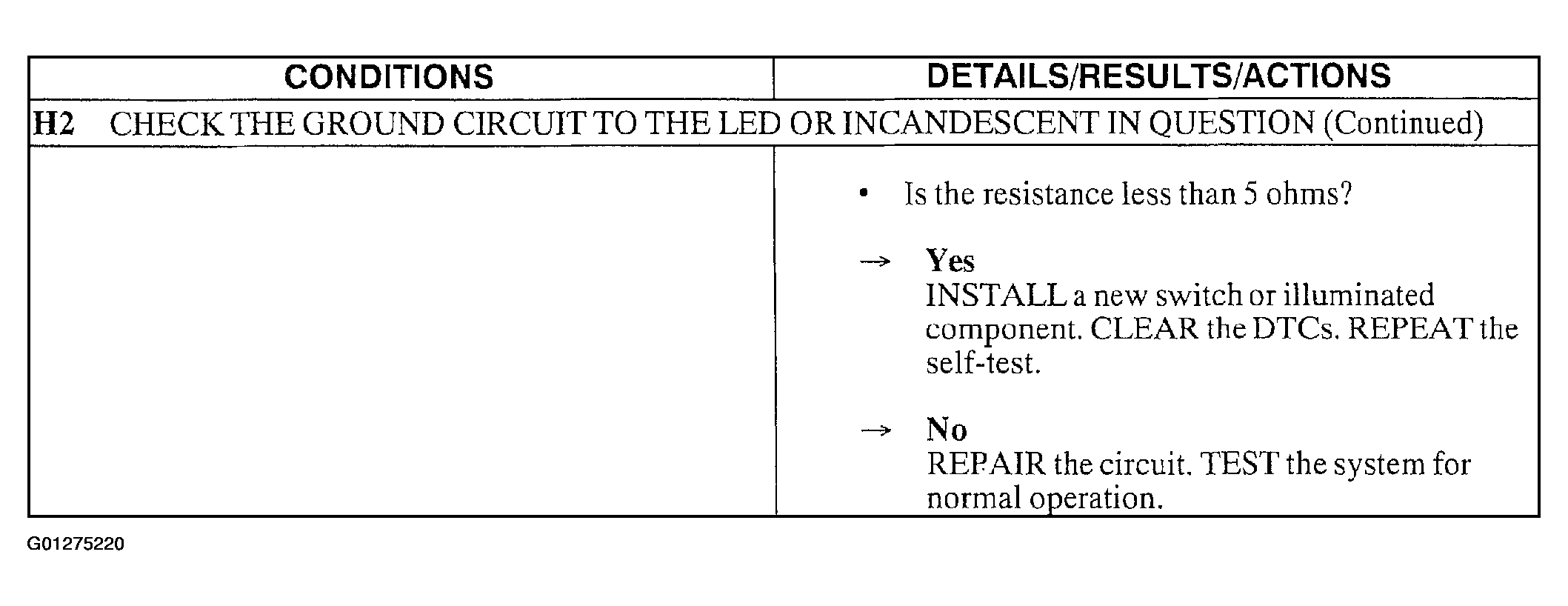

Fig 5: Pinpoint Test H: A Single Illumination Source Is Inoperative (Step H2, Cont.)

Courtesy of FORD MOTOR CO.
