Pinpoint Test F: The Control Illumination Is Always On - All LEDs Or Incandescents

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

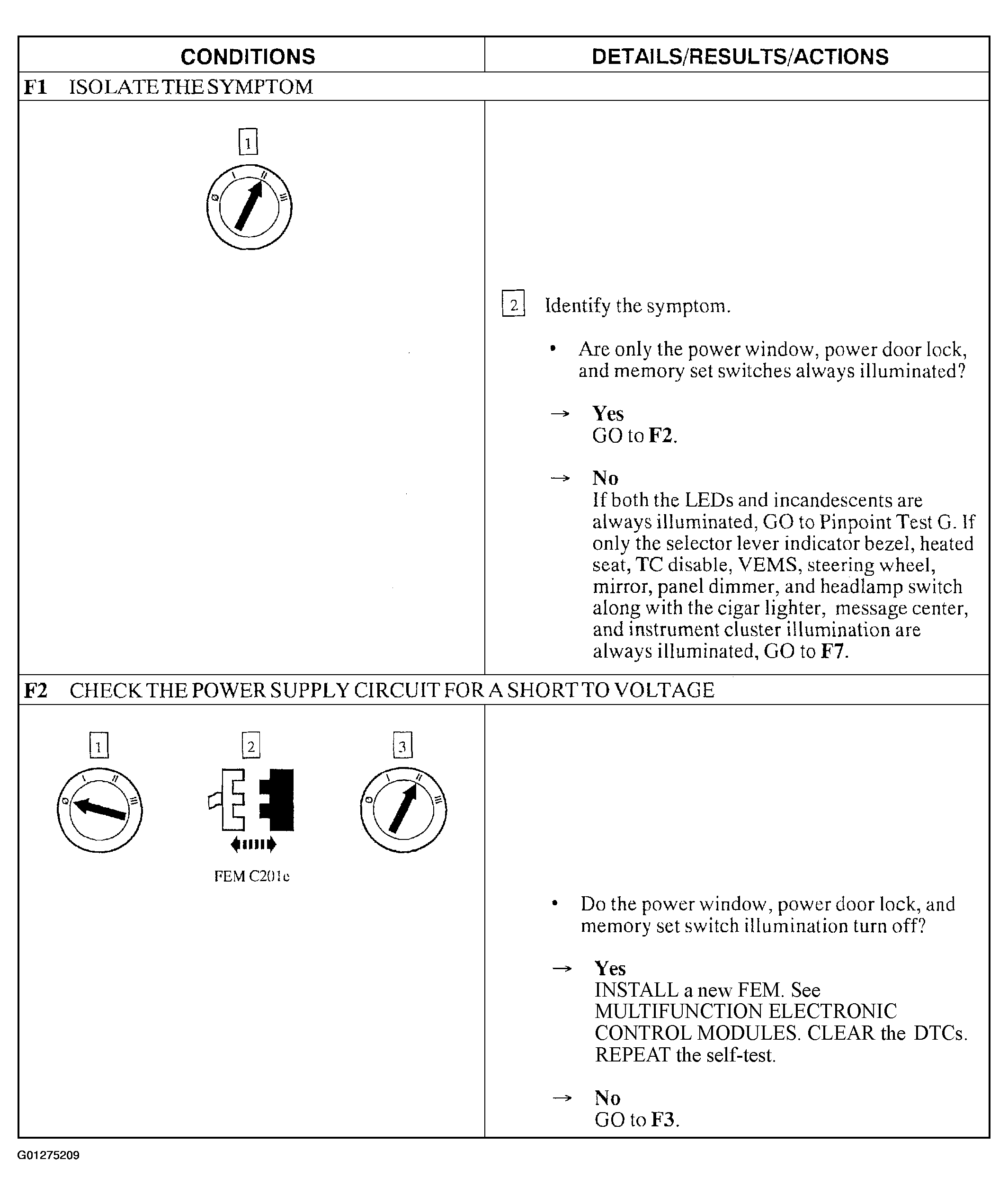

Fig 1: Pinpoint Test F: The Control Illumination Is Always On - All LEDs Or Incandescents (Step F1 & F2)

Courtesy of FORD MOTOR CO.

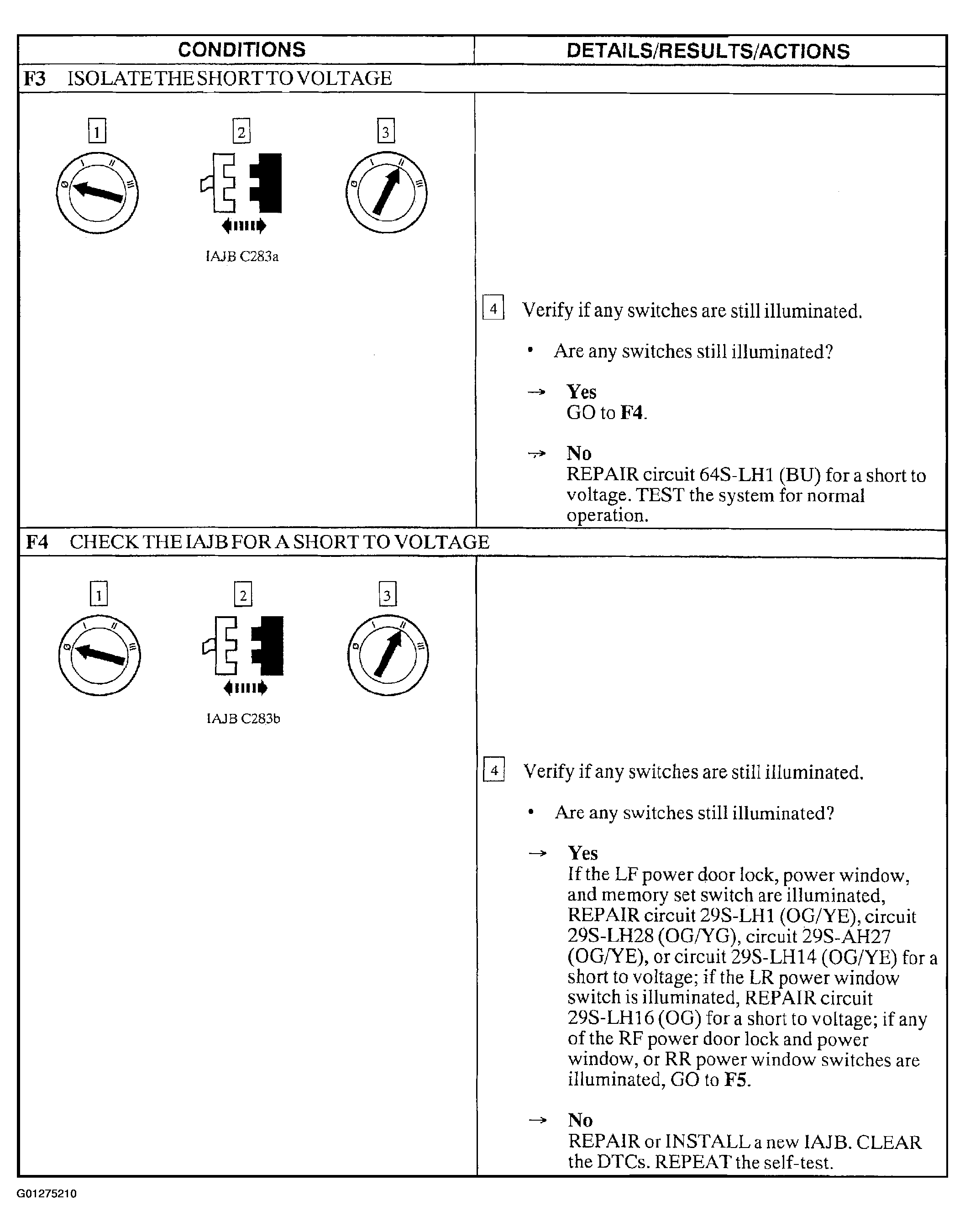

Fig 2: Pinpoint Test F: The Control Illumination Is Always On - All LEDs Or Incandescents (Steps F3 & F4)

Courtesy of FORD MOTOR CO.

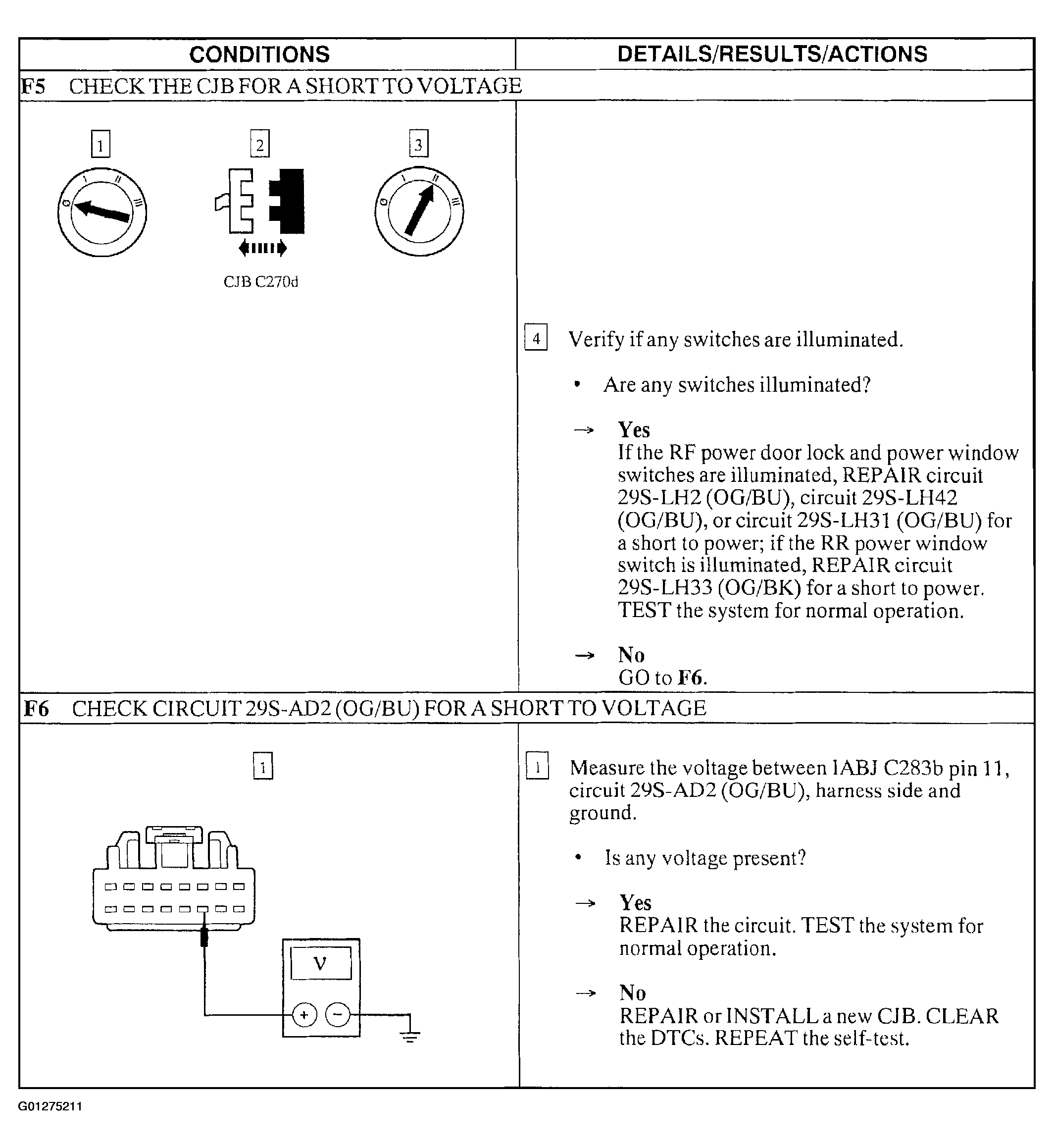

Fig 3: Pinpoint Test F: The Control Illumination Is Always On - All LEDs Or Incandescents (Steps F5 & F6)

Courtesy of FORD MOTOR CO.

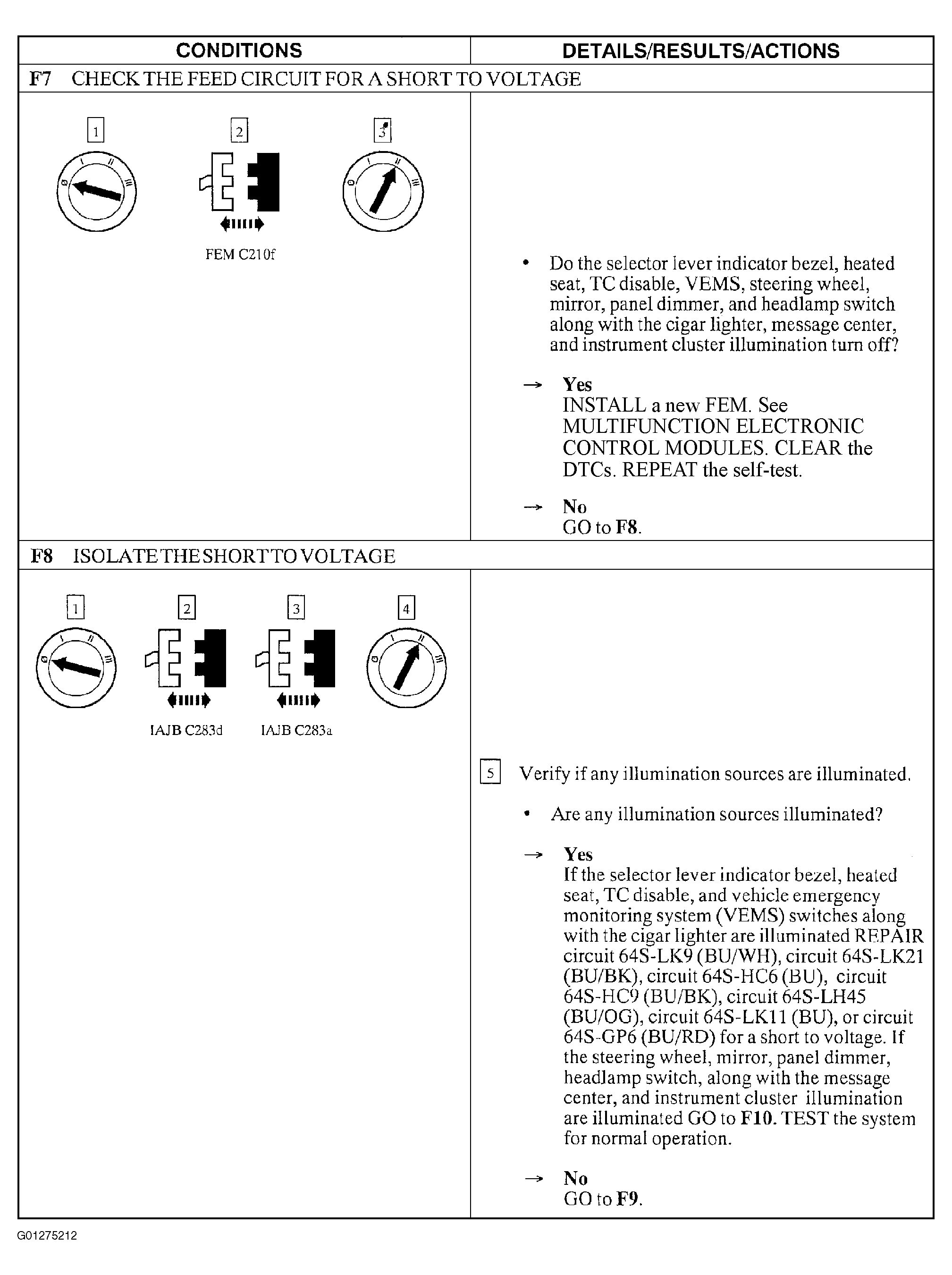

Fig 4: Pinpoint Test F: The Control Illumination Is Always On - All LEDs Or Incandescents (Steps F7 & F8)

Courtesy of FORD MOTOR CO.

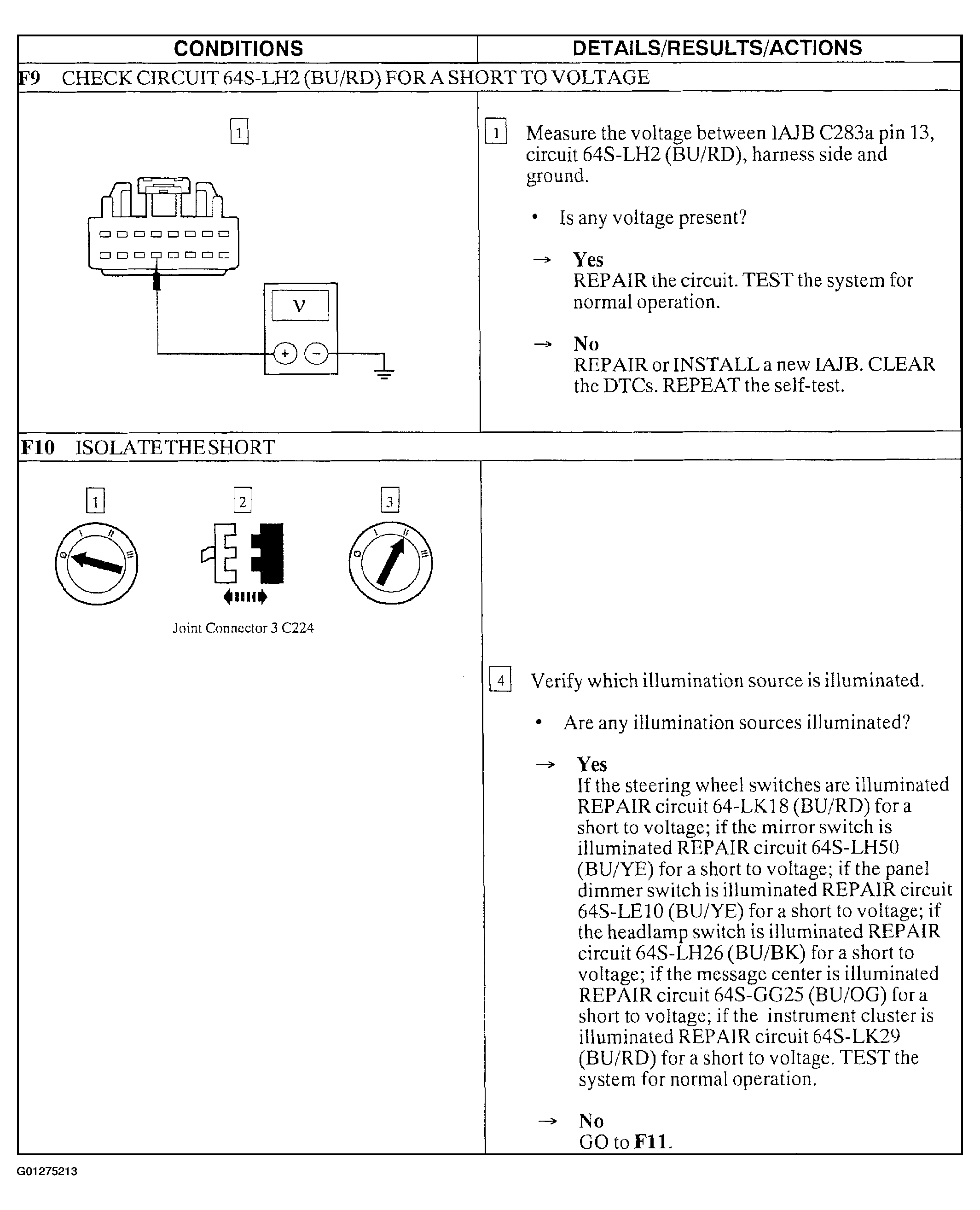

Fig 5: Pinpoint Test F: The Control Illumination Is Always On - All LEDs Or Incandescents (Steps F9 & F10)

Courtesy of FORD MOTOR CO.

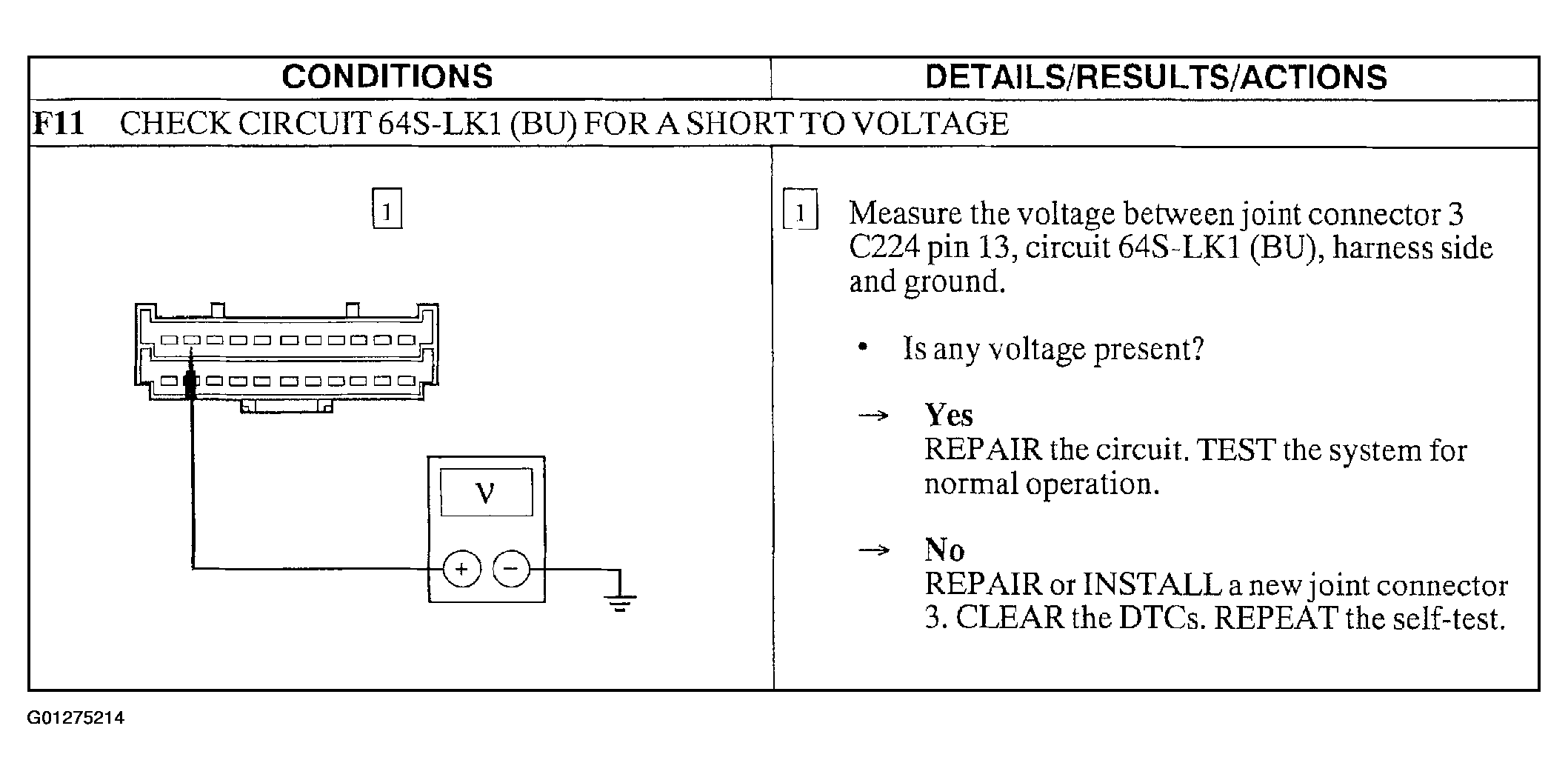

Fig 6: Pinpoint Test F: The Control Illumination Is Always On - All LEDs Or Incandescents (Step F11)

Courtesy of FORD MOTOR CO.
