Pinpoint Test E: The Control Illumination Is Inoperative - All LEDs Or Incandescents

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

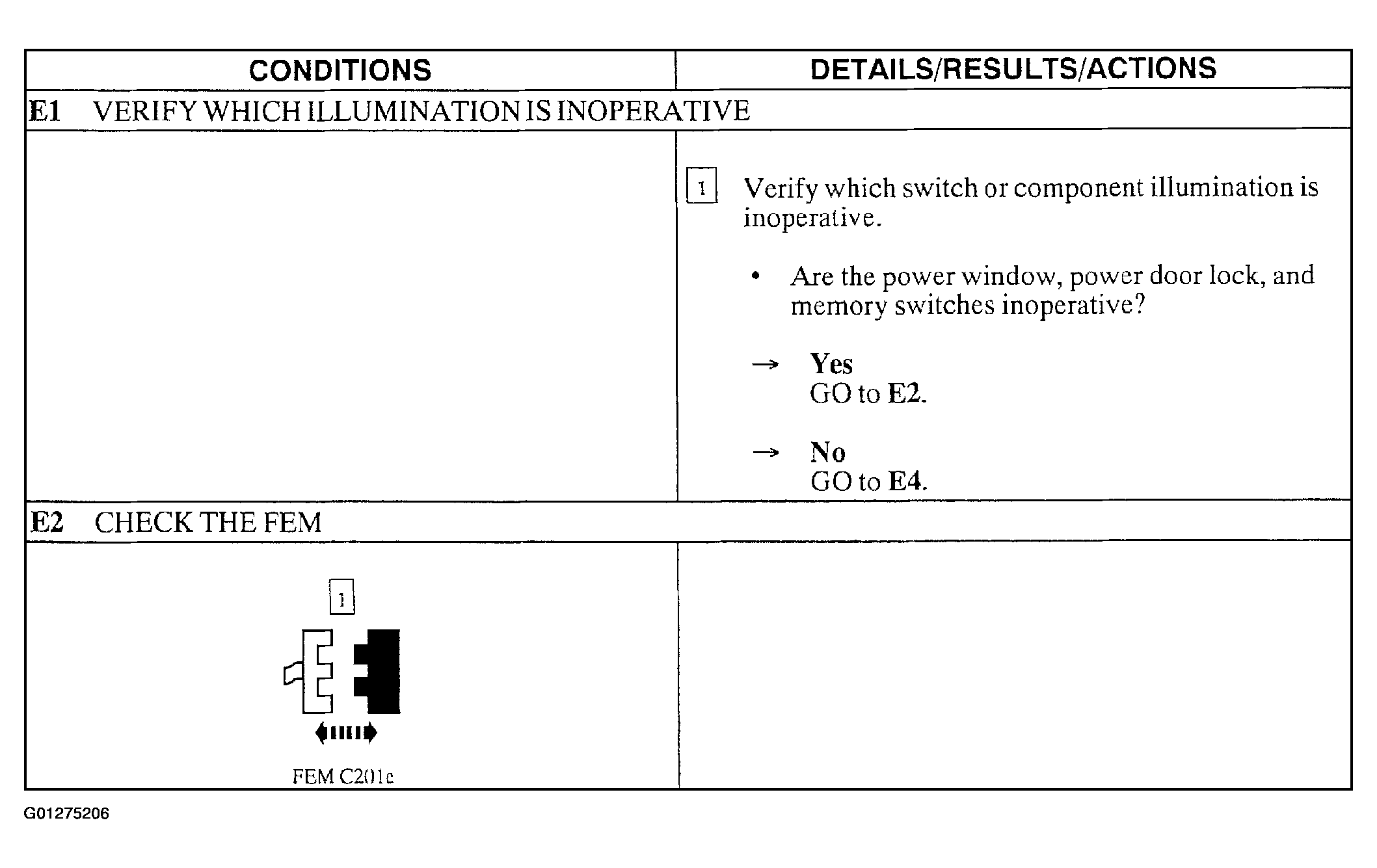

Fig 1: Pinpoint Test E: The Control Illumination Is Inoperative - All LEDs Or Incandescents (Steps E1 & E2)

Courtesy of FORD MOTOR CO.

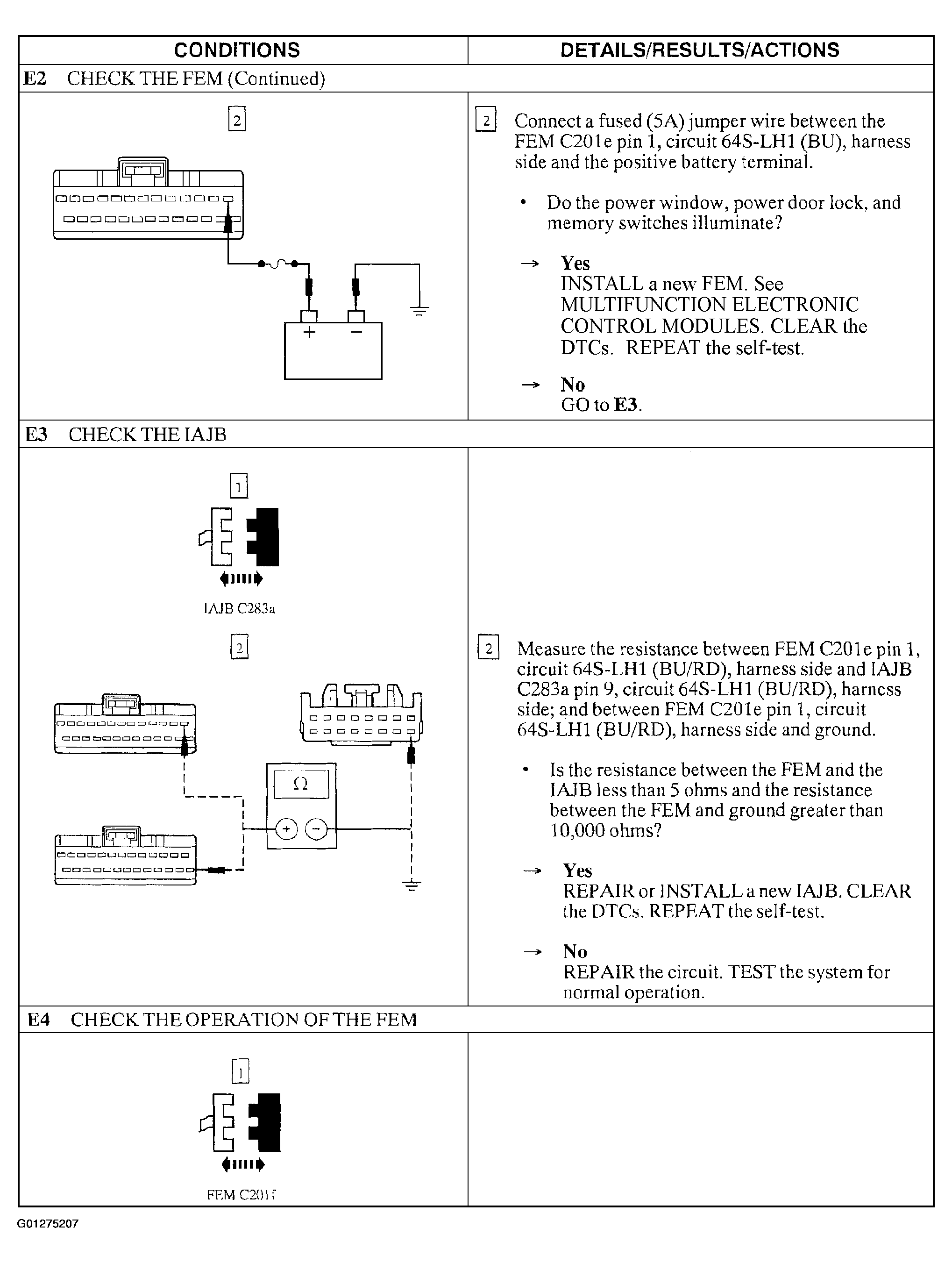

Fig 2: Pinpoint Test E: The Control Illumination Is Inoperative - All LEDs Or Incandescents (Steps E2 To E4)

Courtesy of FORD MOTOR CO.

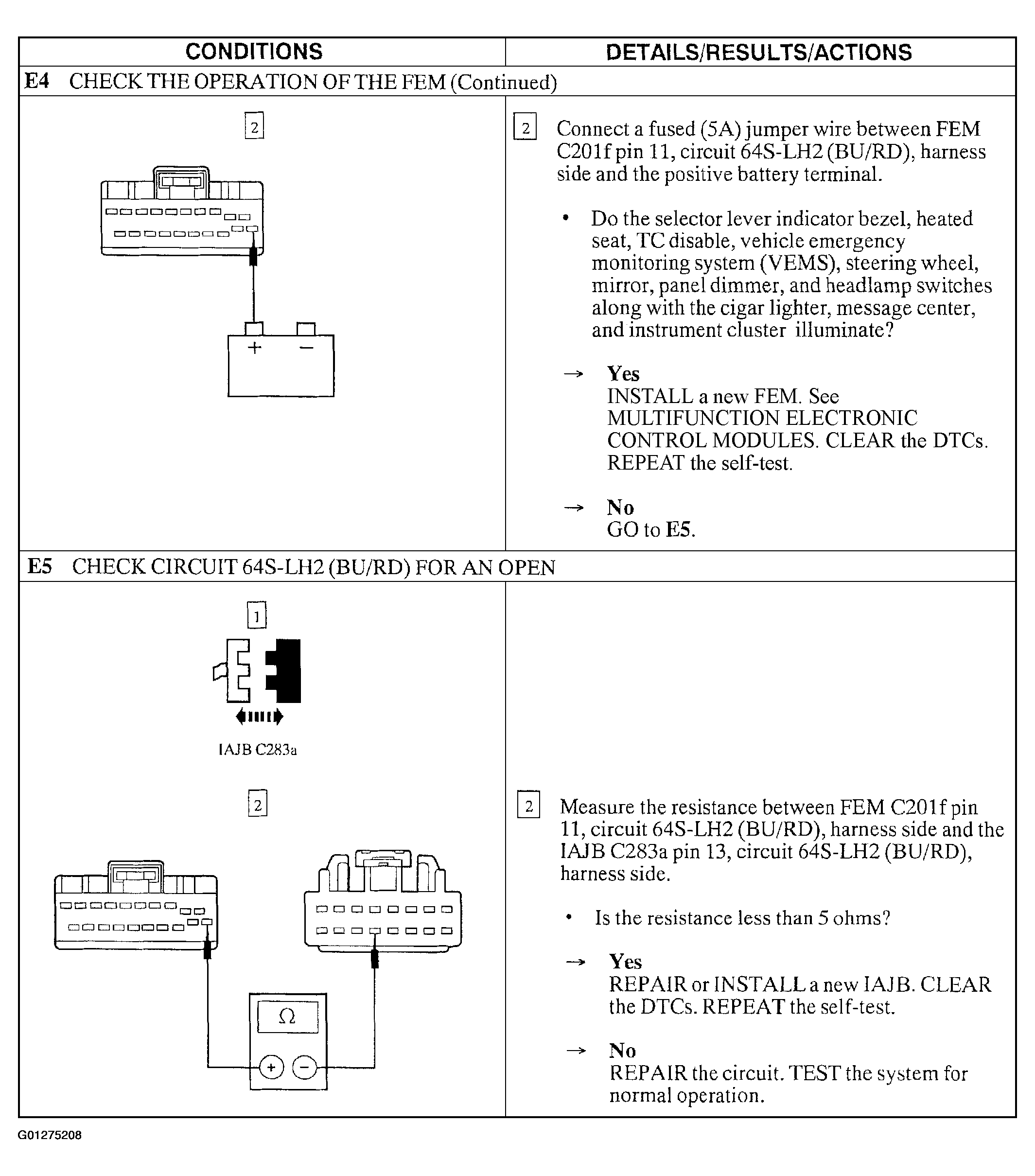

Fig 3: Pinpoint Test E: The Control Illumination Is Inoperative - All LEDs Or Incandescents (Steps E4 & E5)

Courtesy of FORD MOTOR CO.
