Pinpoint Test D: The Control Illumination Is Inoperative - All LEDs And Incandescents

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

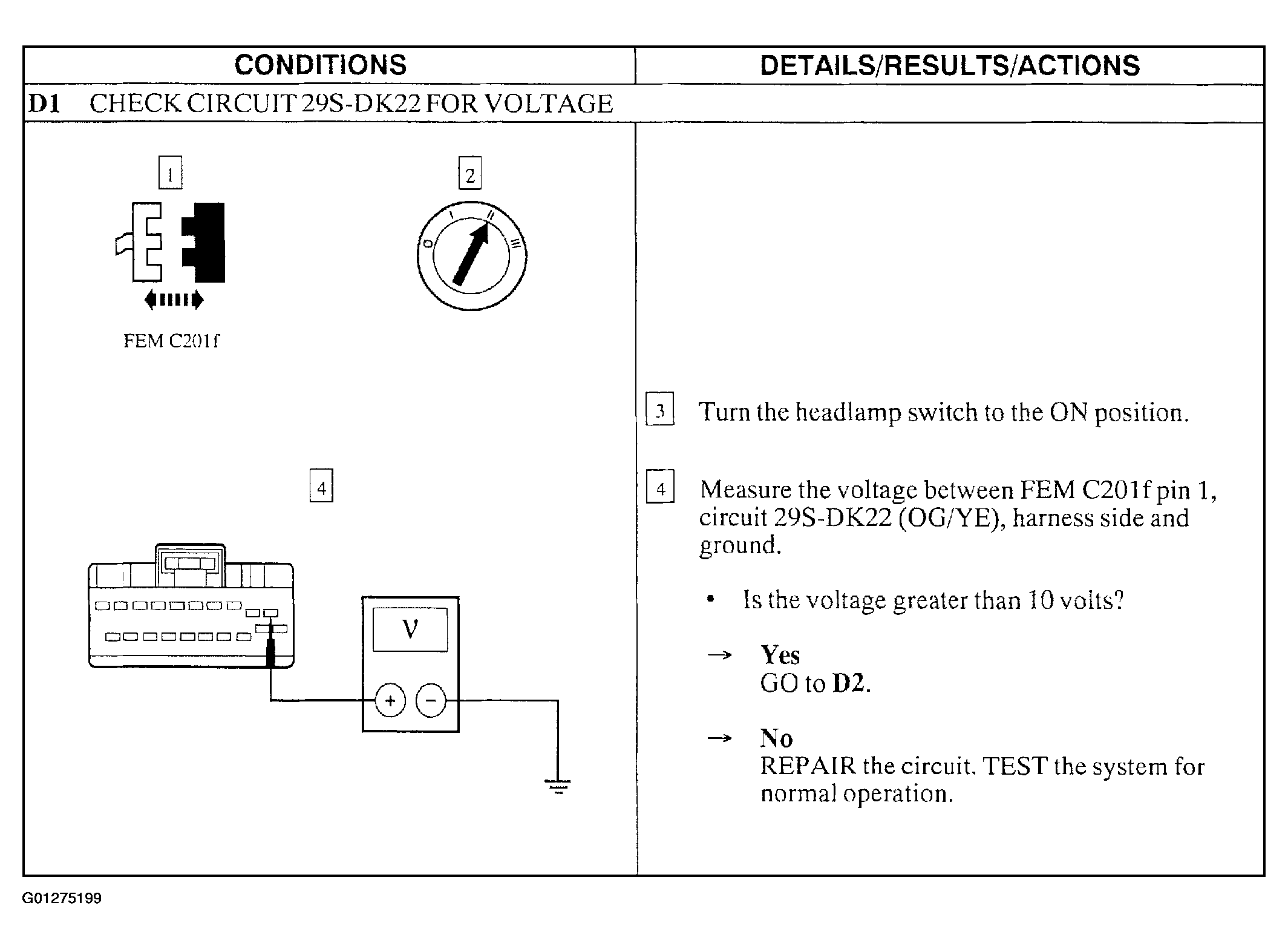

Fig 1: Pinpoint Test D: The Control Illumination Is Inoperative - All LEDs And Incandescents (Step D`)

Courtesy of FORD MOTOR CO.

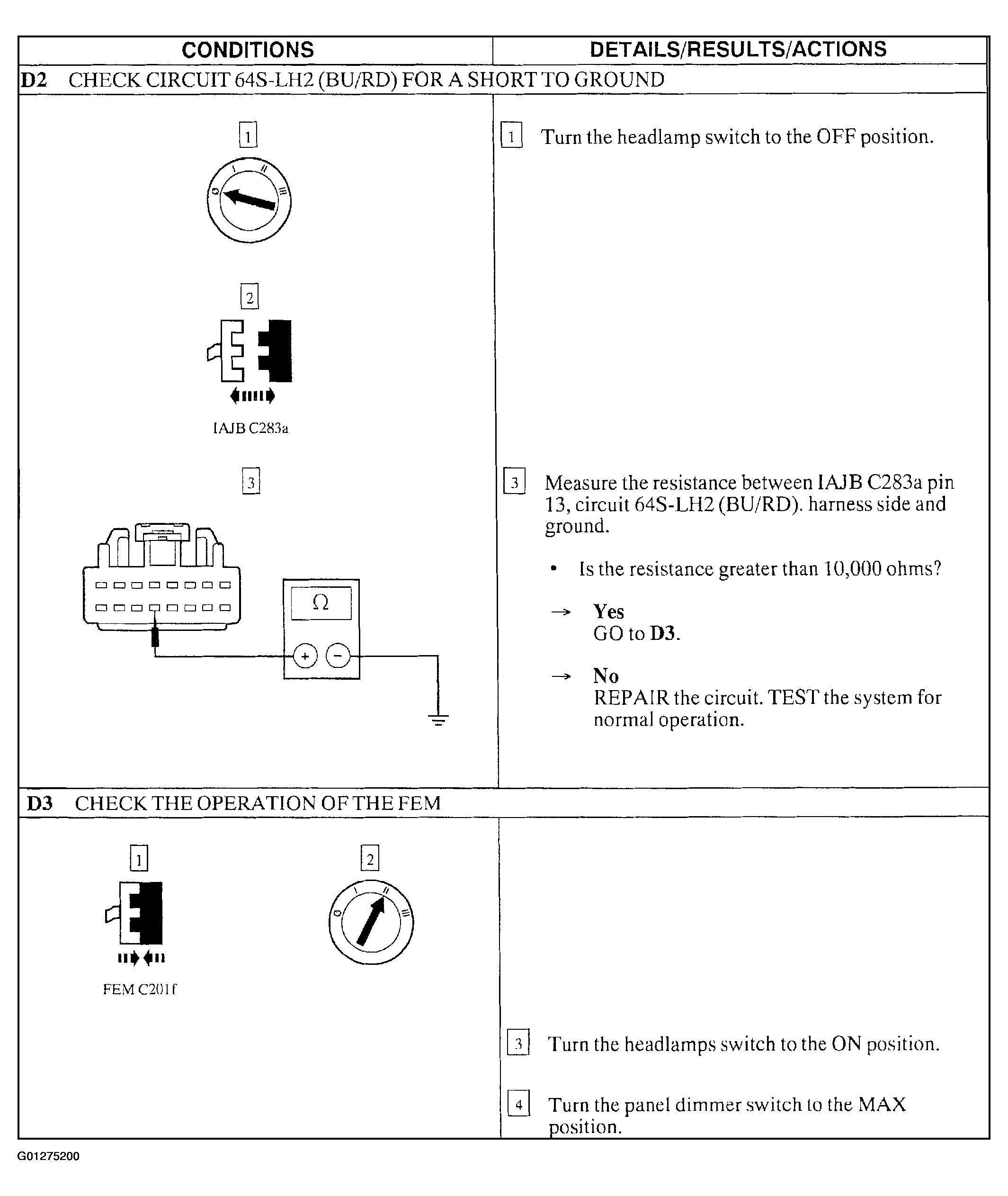

Fig 2: Pinpoint Test D: The Control Illumination Is Inoperative - All LEDs And Incandescents (Steps D2 & D3)

Courtesy of FORD MOTOR CO.

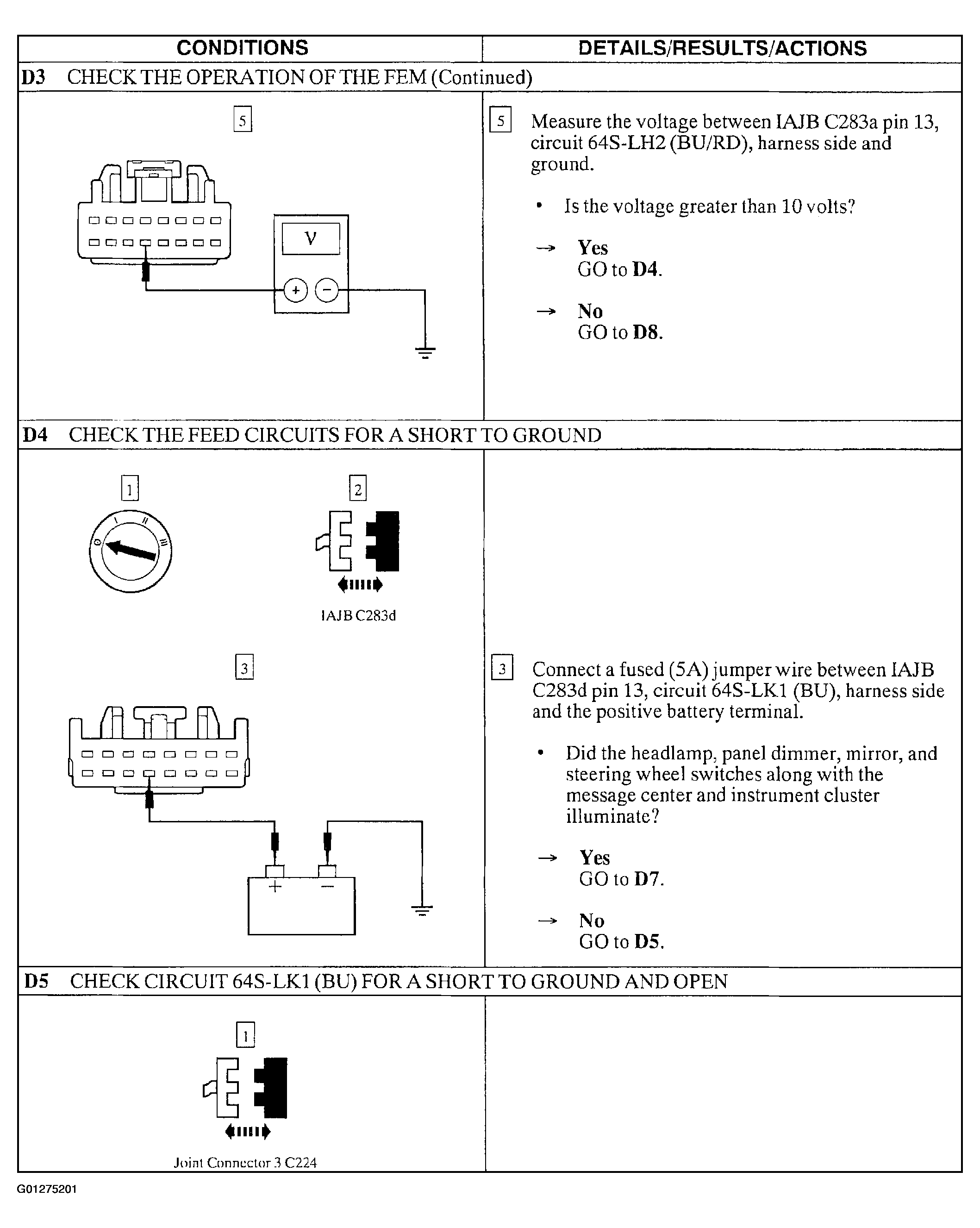

Fig 3: Pinpoint Test D: The Control Illumination Is Inoperative - All LEDs And Incandescents (Steps D3 To D5)

Courtesy of FORD MOTOR CO.

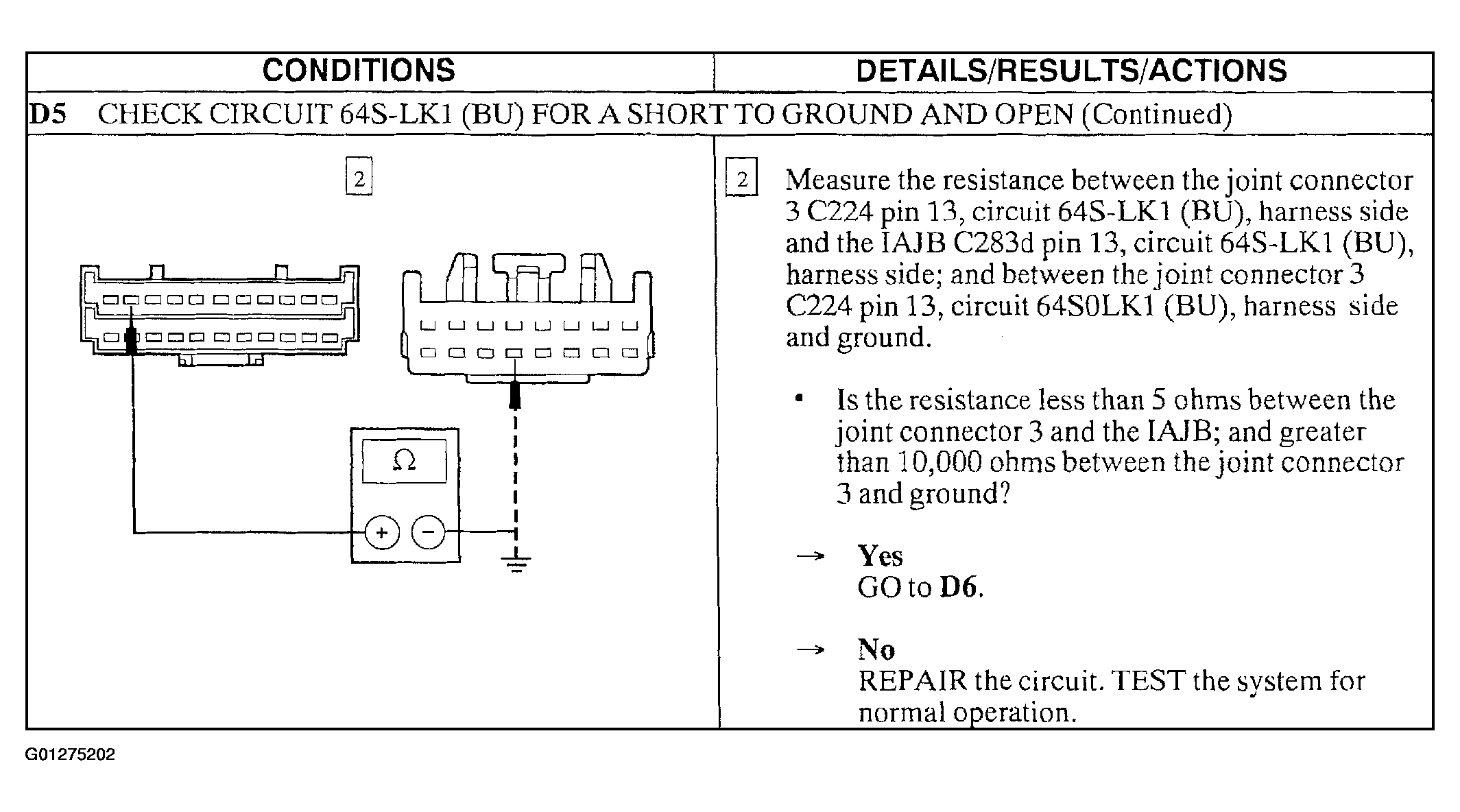

Fig 4: Pinpoint Test D: The Control Illumination Is Inoperative - All LEDs And Incandescents (Step D5, Cont.)

Courtesy of FORD MOTOR CO.

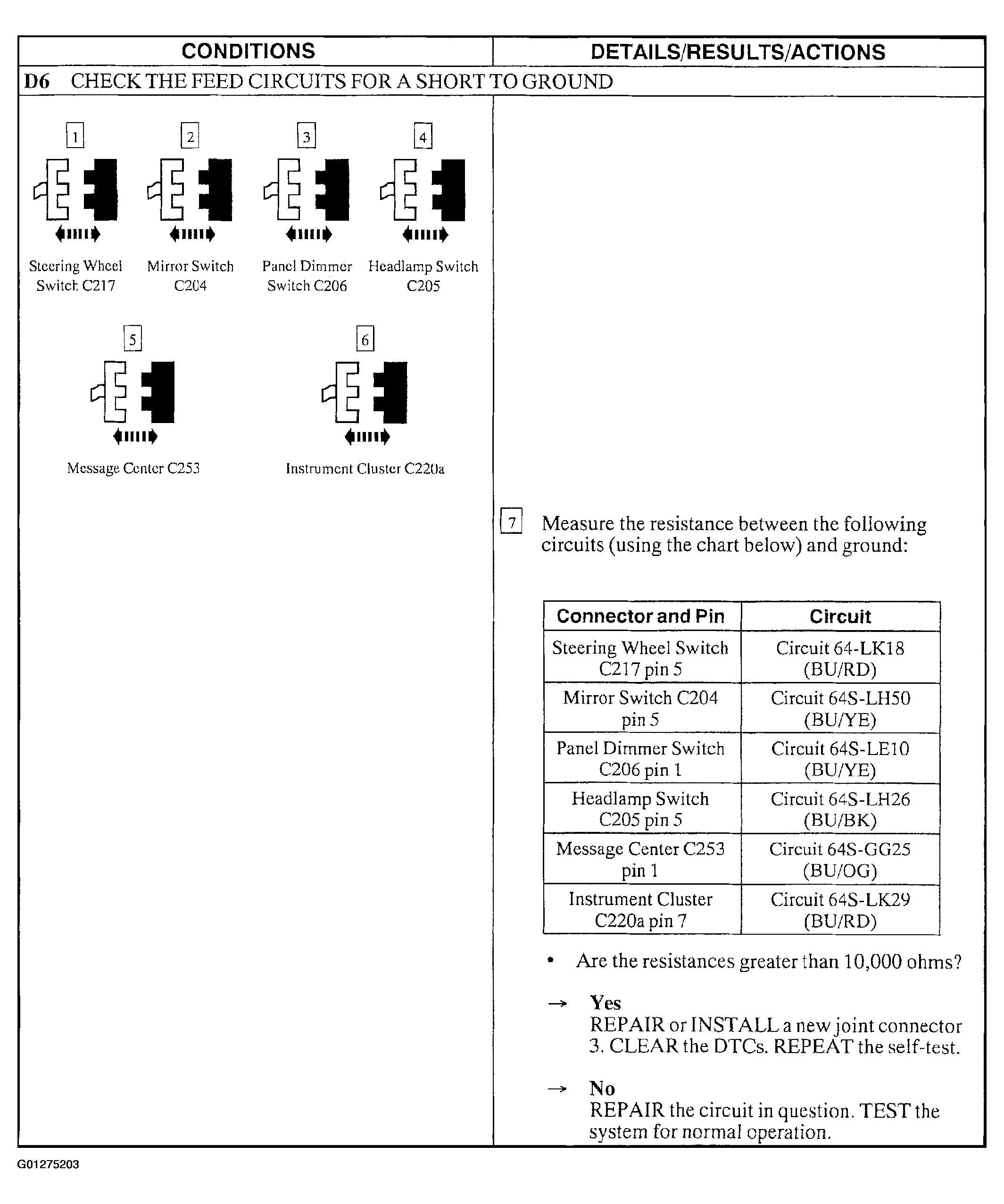

Fig 5: Pinpoint Test D: The Control Illumination Is Inoperative - All LEDs And Incandescents (Step D6)

Courtesy of FORD MOTOR CO.

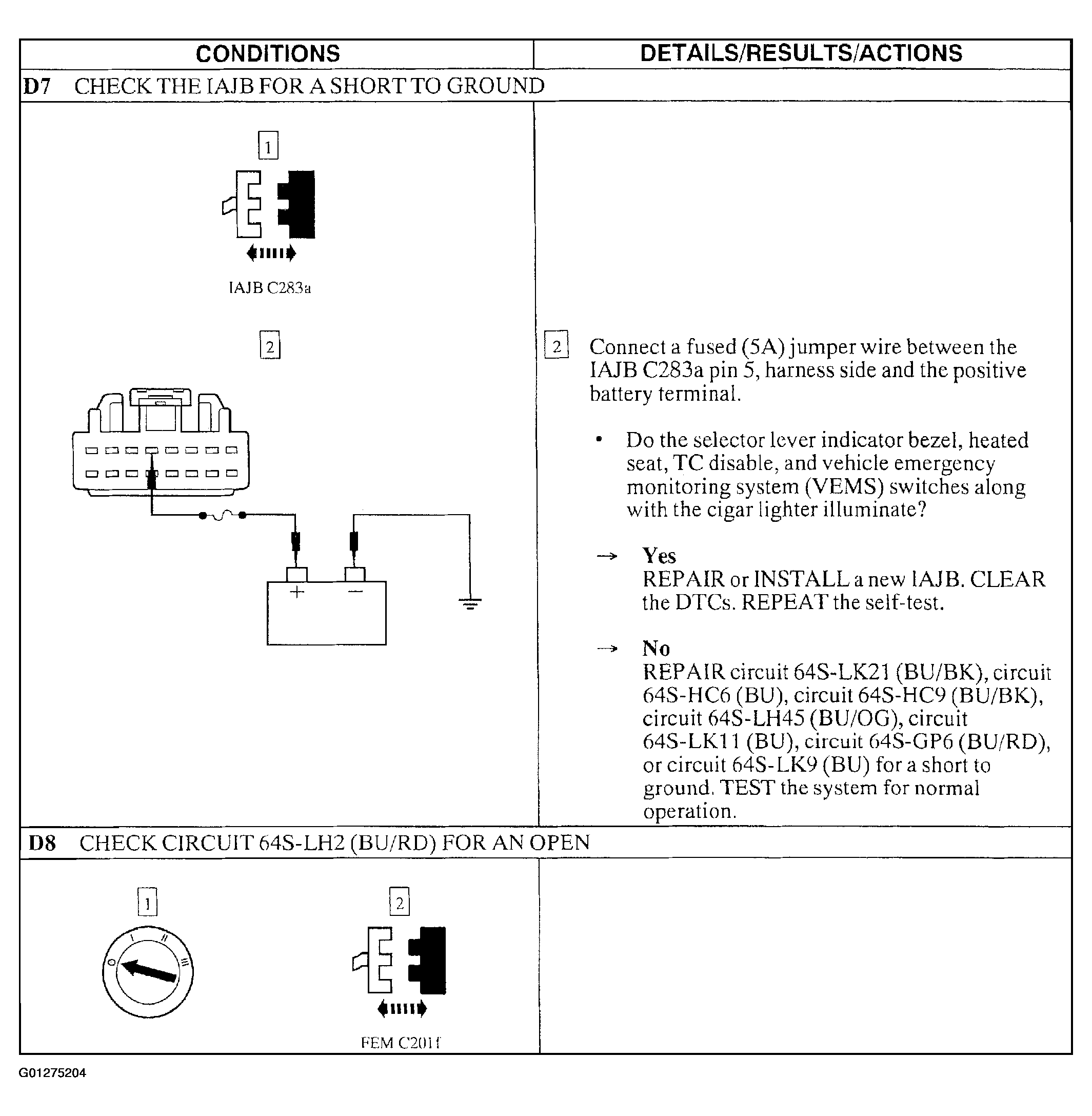

Fig 6: Pinpoint Test D: The Control Illumination Is Inoperative - All LEDs And Incandescents (Steps D7 & D8)

Courtesy of FORD MOTOR CO.

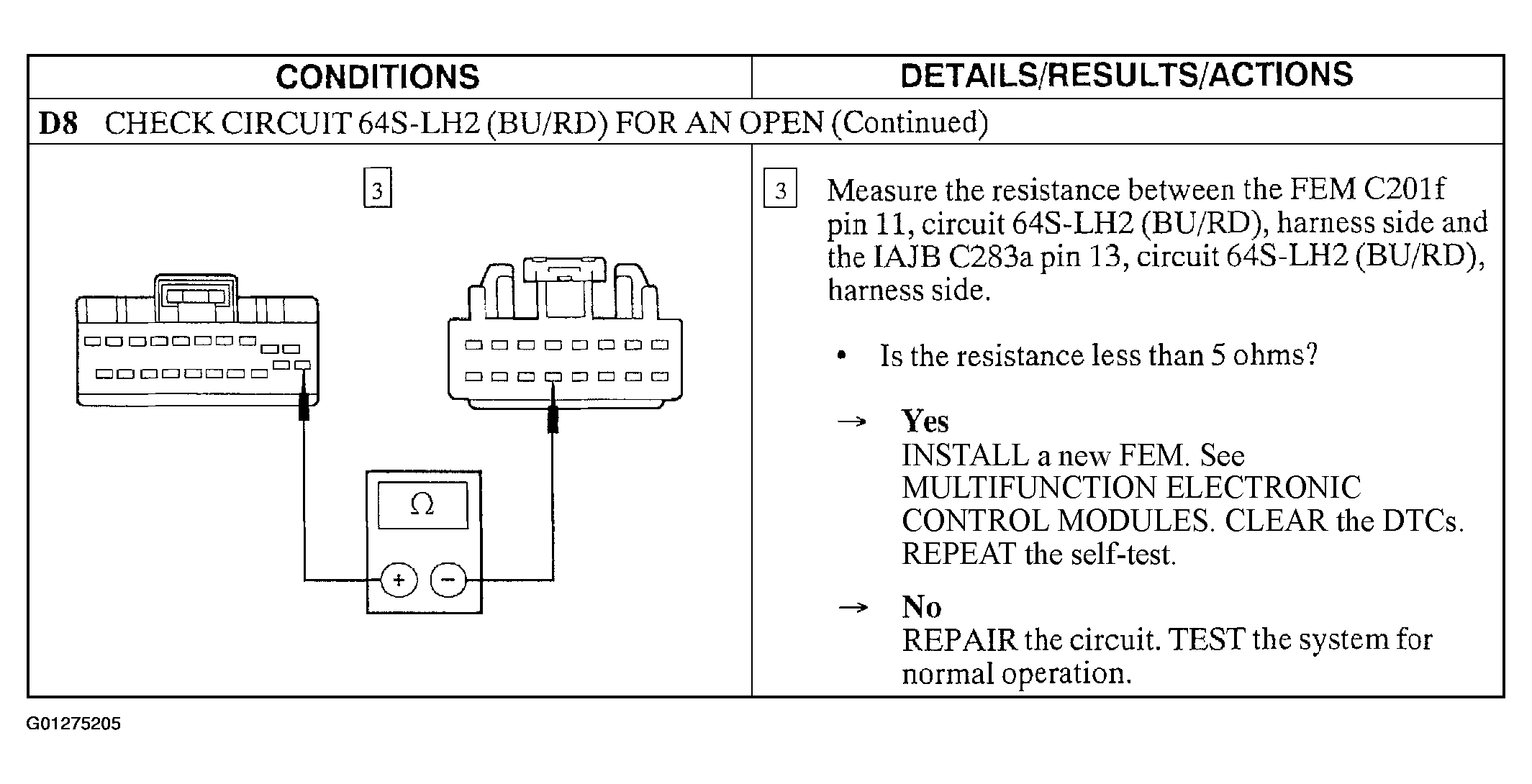

Fig 7: Pinpoint Test D: The Control Illumination Is Inoperative - All LEDs And Incandescents (Step D8)

Courtesy of FORD MOTOR CO.
