Pinpoint Test C: The Instrument Cluster Illumination Is Inoperative

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

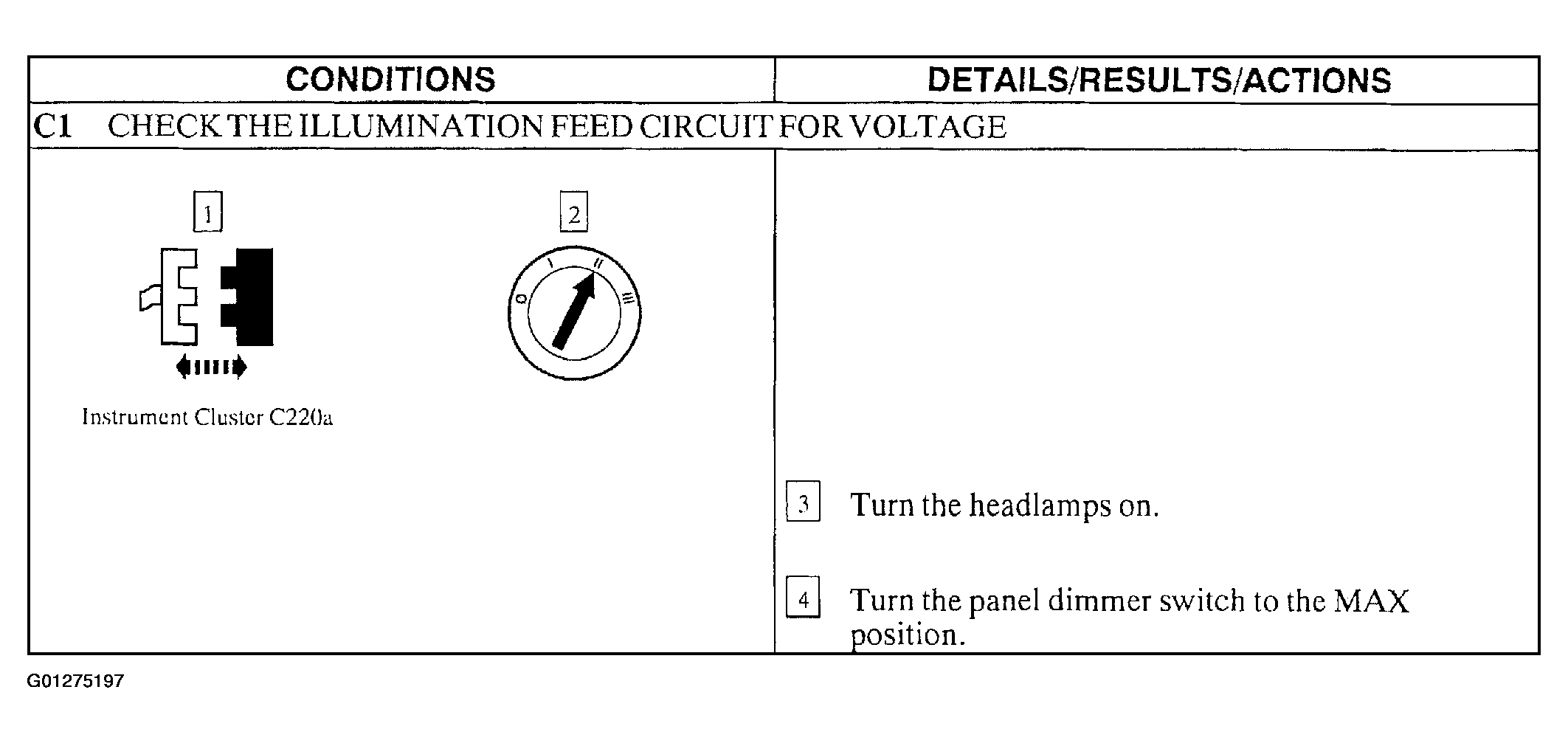

Fig 1: Pinpoint Test C: The Instrument Cluster Illumination Is Inoperative (Step C1)
G01275197Courtesy of FORD MOTOR CO.

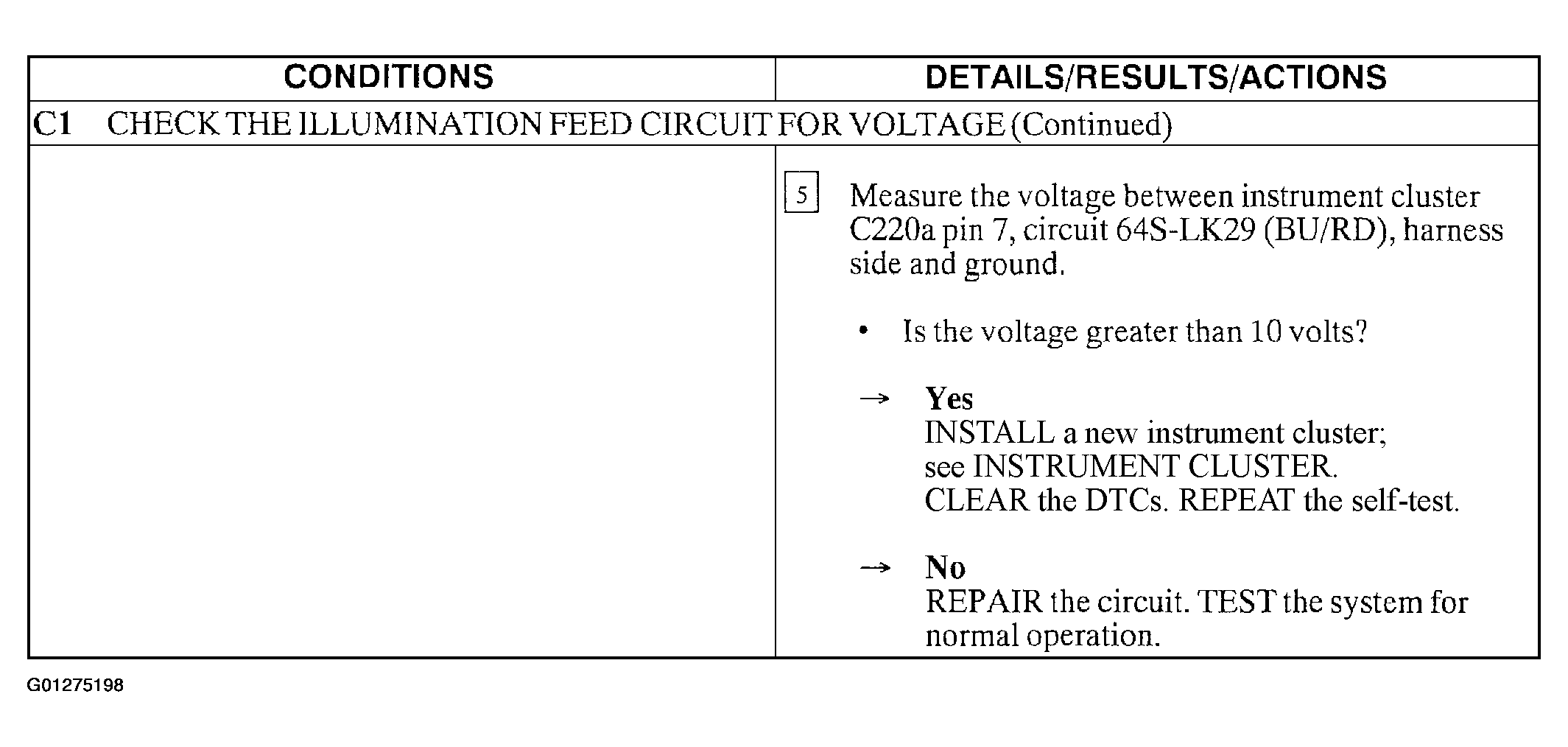

Fig 2: Pinpoint Test C: The Instrument Cluster Illumination Is Inoperative (Step C1, Cont.)
G01275198Courtesy of FORD MOTOR CO.
