Brake Booster: Installation

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the power brake booster.

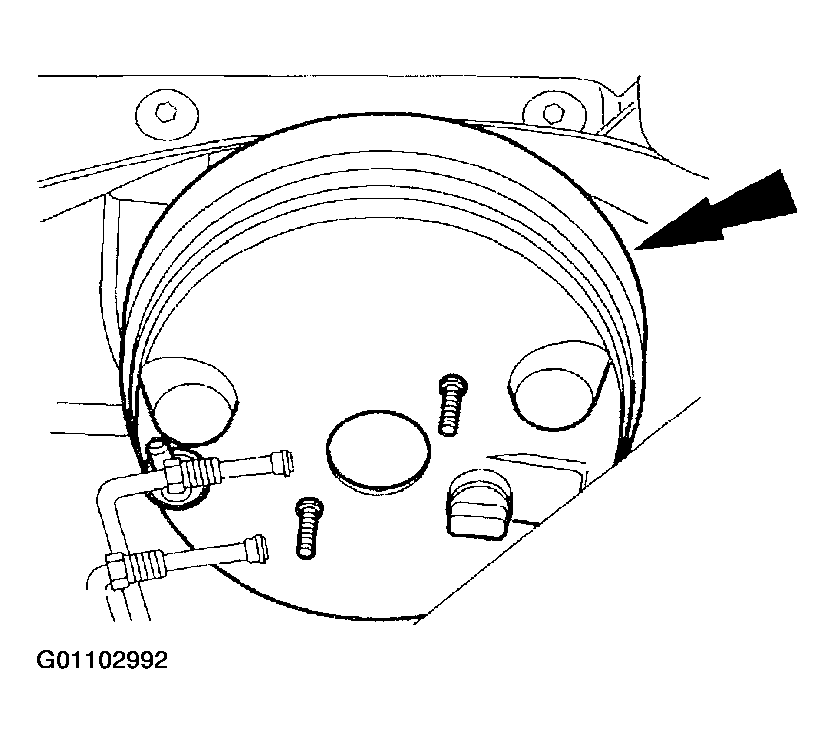

    Fig 1: Installing Power Brake Booster
    G01102992Courtesy of FORD MOTOR CO.
  2. Install the booster nuts.

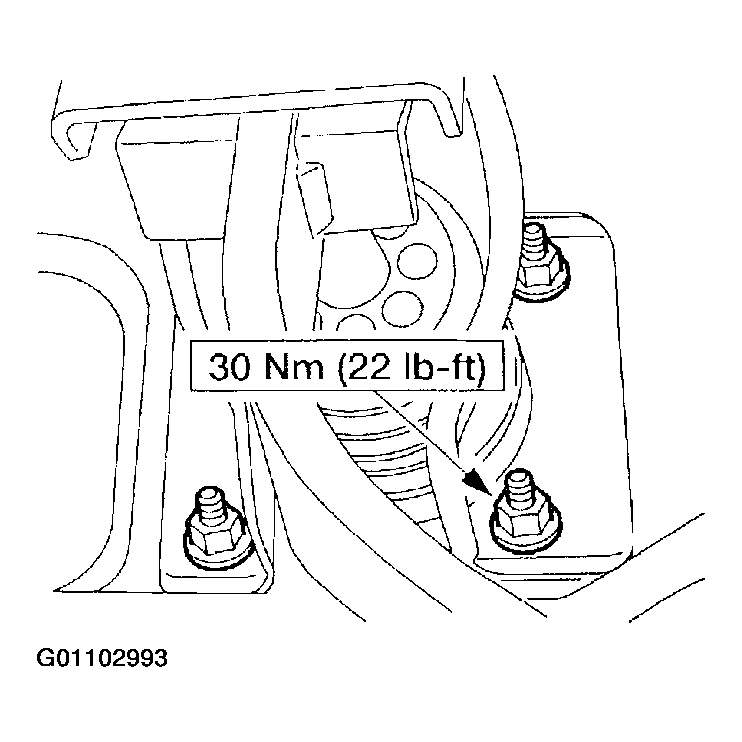

    Fig 2: Installing Power Brake Booster Nuts
    G01102993Courtesy of FORD MOTOR CO.
  3. Install the brake pedal pin.
    Fig 3: Installing Power Brake Pedal Pin
    G01102994Courtesy of FORD MOTOR CO.
  4. Install the clip on the brake pedal pin.
    Fig 4: Installing Brake Pedal Pin Clip
    G01102995Courtesy of FORD MOTOR CO.
  5. Install the radiator coolant recovery reservoir bolts.

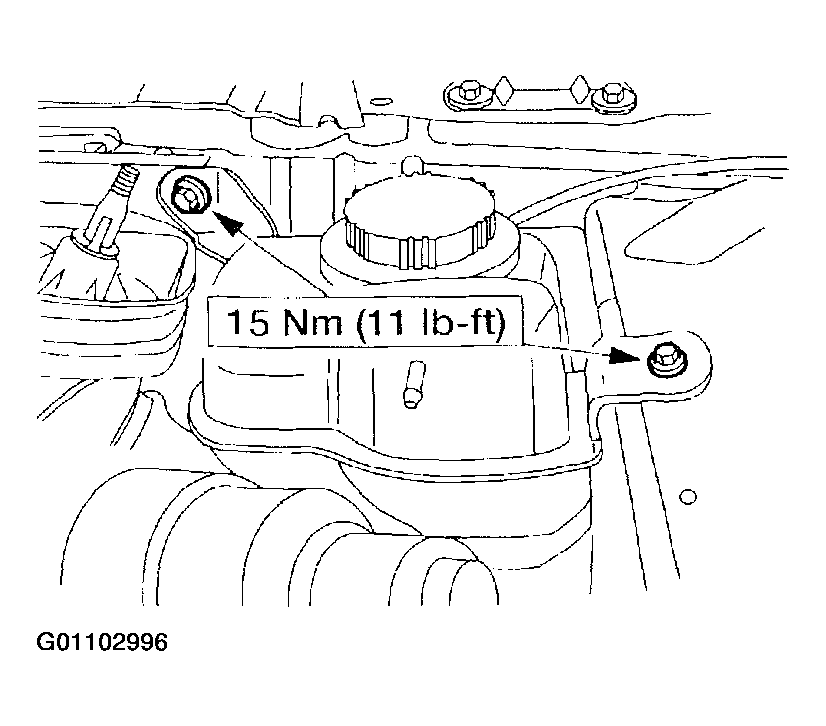

    Fig 5: Installing Coolant Recovery Reservoir Bolts
    G01102996Courtesy of FORD MOTOR CO.
  6. Connect the coolant reservoir hose.
    Fig 6: Connecting Coolant Reservoir Hose
    G01102997Courtesy of FORD MOTOR CO.
  7. Connect the power brake booster electrical connector (as applicable).
    Fig 7: Connecting Power Brake Booster Electrical Connector
    G01102998Courtesy of FORD MOTOR CO.

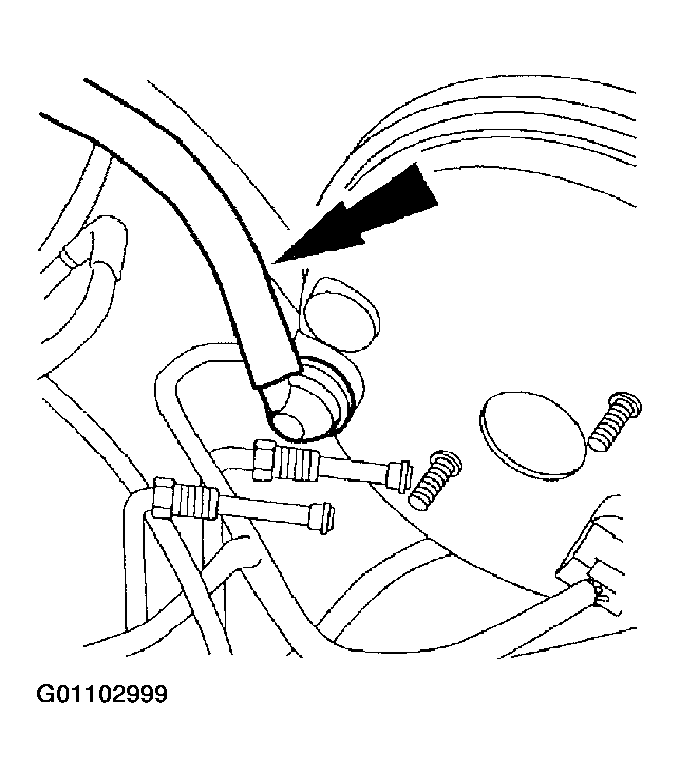

  8. Connect the power brake booster check valve.
    Fig 8: Connecting Power Brake Booster Check Valve
    G01102999Courtesy of FORD MOTOR CO.
  9. Connect the coolant reservoir return hose.

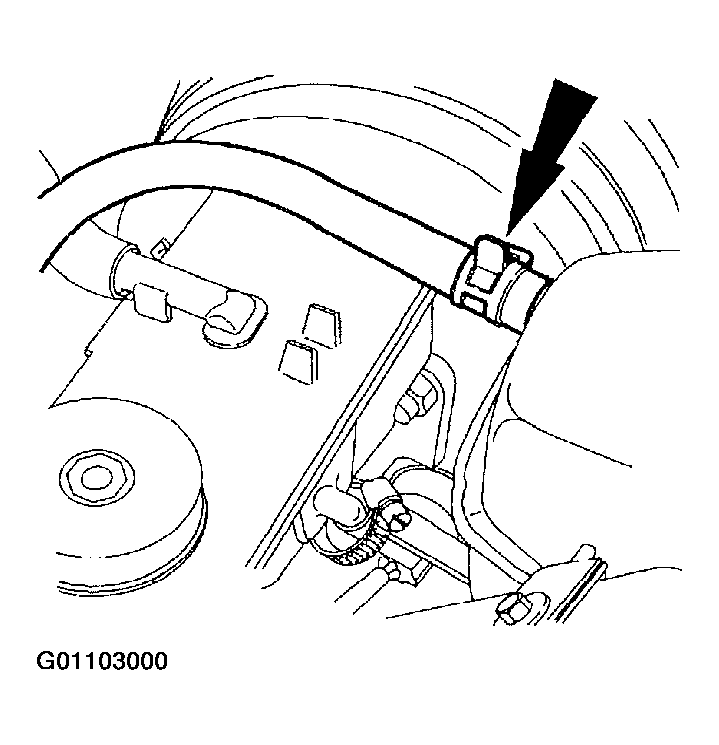

    Fig 9: Connecting Coolant Reservoir Return Hose
    G01103000Courtesy of FORD MOTOR CO.
  10. Install the brake master cylinder. For additional information, see MASTER CYLINDER .
  11. Install the cowl brace end bolts.

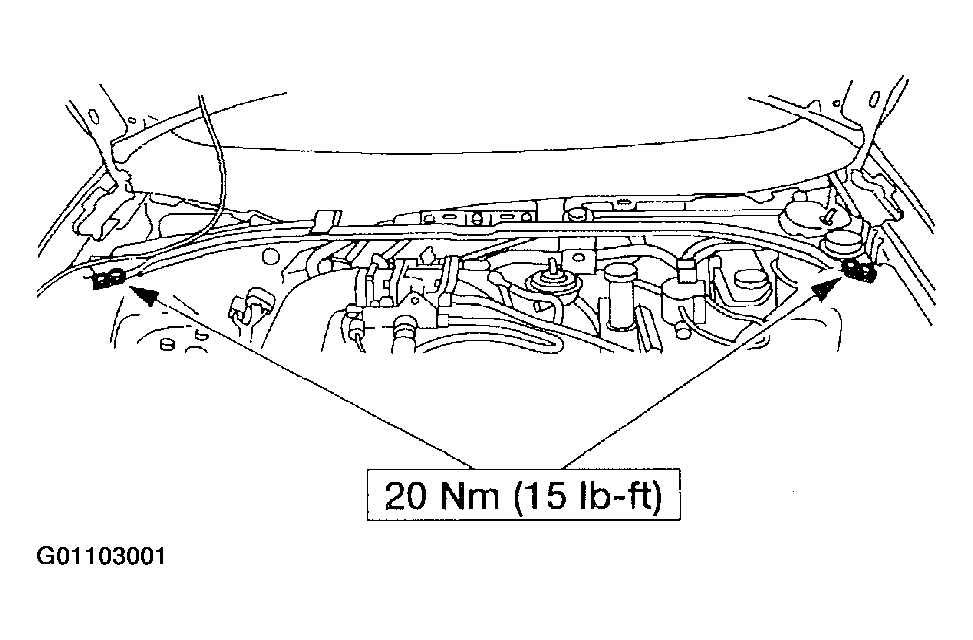

    Fig 10: Installing Cowl Brace End Bolts
    G01103001Courtesy of FORD MOTOR CO.
  12. Install the cowl brace center bolts.
    Fig 11: Installing Cowl Brace Center Bolts
    G01103002Courtesy of FORD MOTOR CO.
  13. Install the vacuum hose bracket nut.

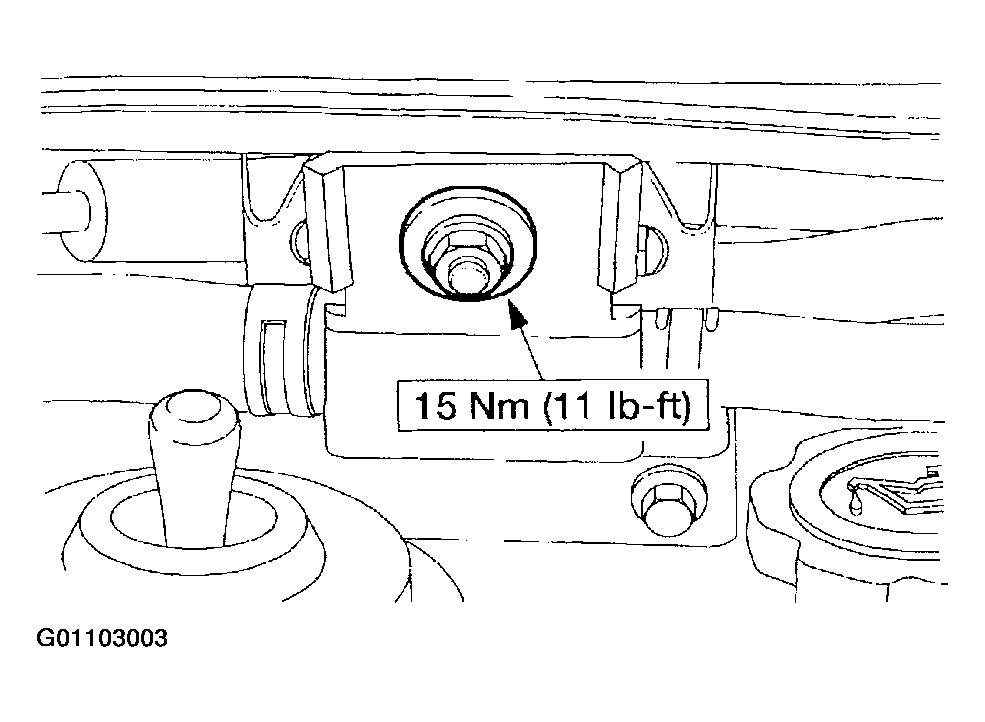

    Fig 12: Installing Vacuum Hose Bracket Nut
    G01103003Courtesy of FORD MOTOR CO.
  14. Install the cowl cover.
    1. Install the cowl cover.
    2. Install the cowl cover rubber trim.
    3. Install the cowl cover pushpins.

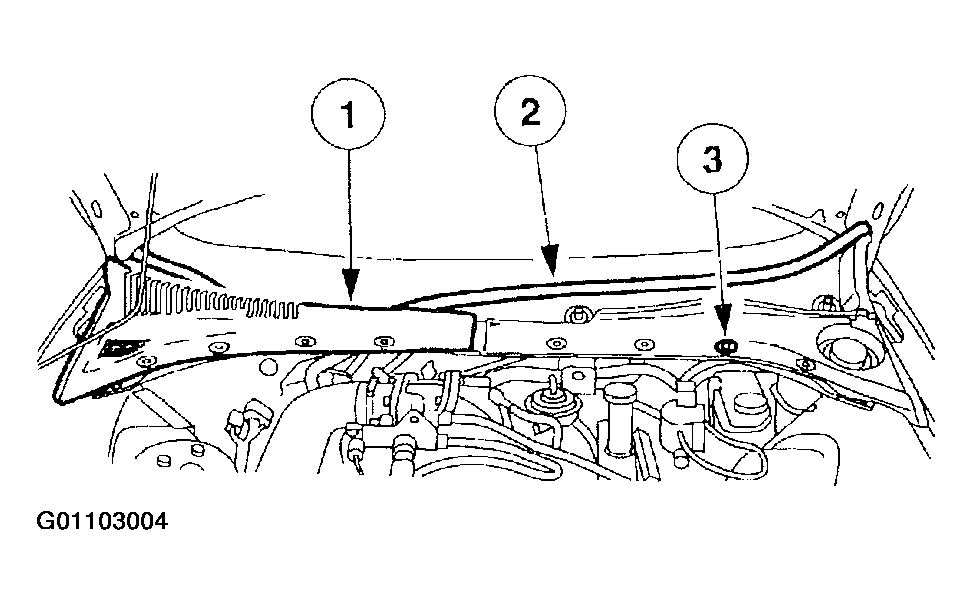

      Fig 13: Installing Cowl Cover
      G01103004Courtesy of FORD MOTOR CO.
  15. Connect the washer hose.
    Fig 14: Connecting Washer Hose
    G01103005Courtesy of FORD MOTOR CO.
  16. Install the wiper arm nuts.

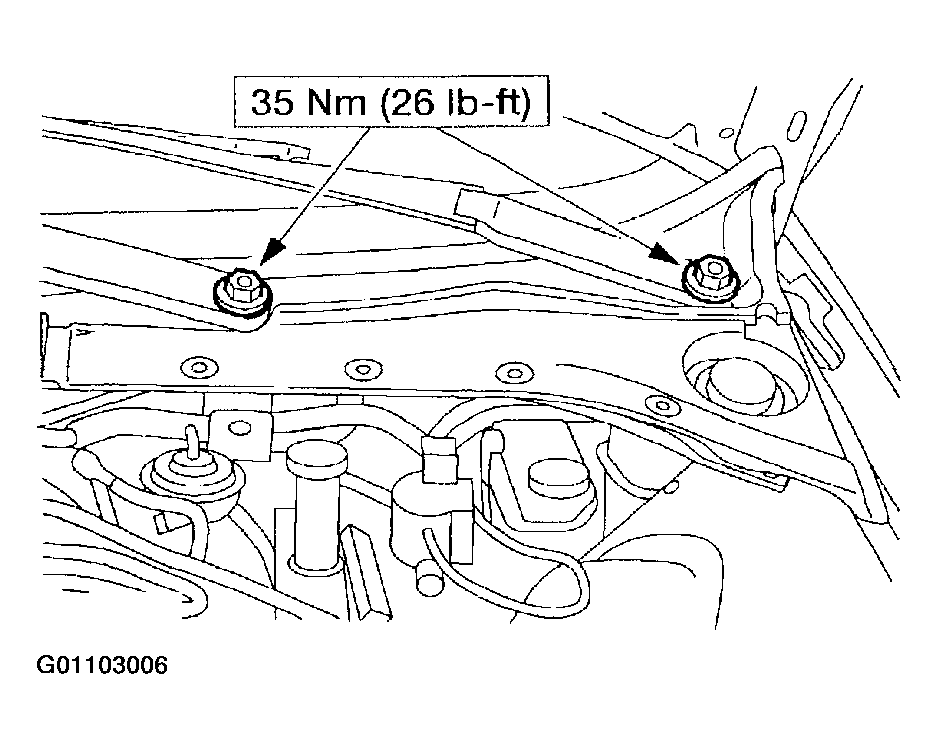

    Fig 15: Installing Wiper Arm Nuts
    G01103006Courtesy of FORD MOTOR CO.
  17. Bleed brake system. For additional information, see BLEEDING BRAKE SYSTEM .
  18. Check the coolant level. Fill as necessary. For additional information, see ENGINE COOLING.
