Yaw Rate Sensor: Installation

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The stability assist module needs to be recalibrated whenever a component is disconnected, moved, or a new component is installed. For additional information regarding the recalibration procedure and when the recalibration procedure should be carried out, refer to PRINCIPLES OF OPERATION . For additional information regarding the module configuration procedure, see MODULE CONFIGURATION .

NOTE: The yaw rate sensor is positioned with the connector pointed to the left side of the vehicle. Be sure to mount the sensor in this orientation during the installation procedure.

To install, reverse the removal procedure.

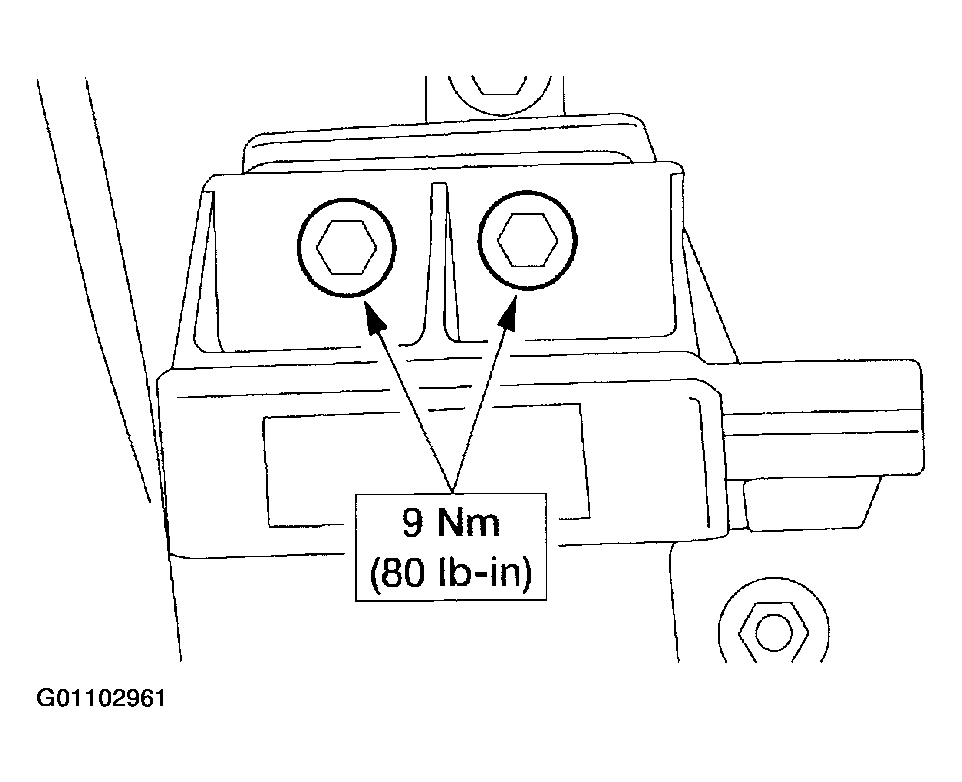

Fig 1: Installing Yaw Rate Sensor
Courtesy of FORD MOTOR CO.
