Transducer - Secondary: Removal

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The stability assist module needs to be recalibrated whenever a component is disconnected, moved, or a new component is installed. For additional information regarding the recalibration procedure and when the recalibration procedure should be carried out, refer to PRINCIPLES OF OPERATION . For additional information regarding the module configuration procedure, see MODULE CONFIGURATION .

Position the vapor management valve aside.
1. Remove the vapor management valve bracket bolts.
2. Position the vapor management valve aside.

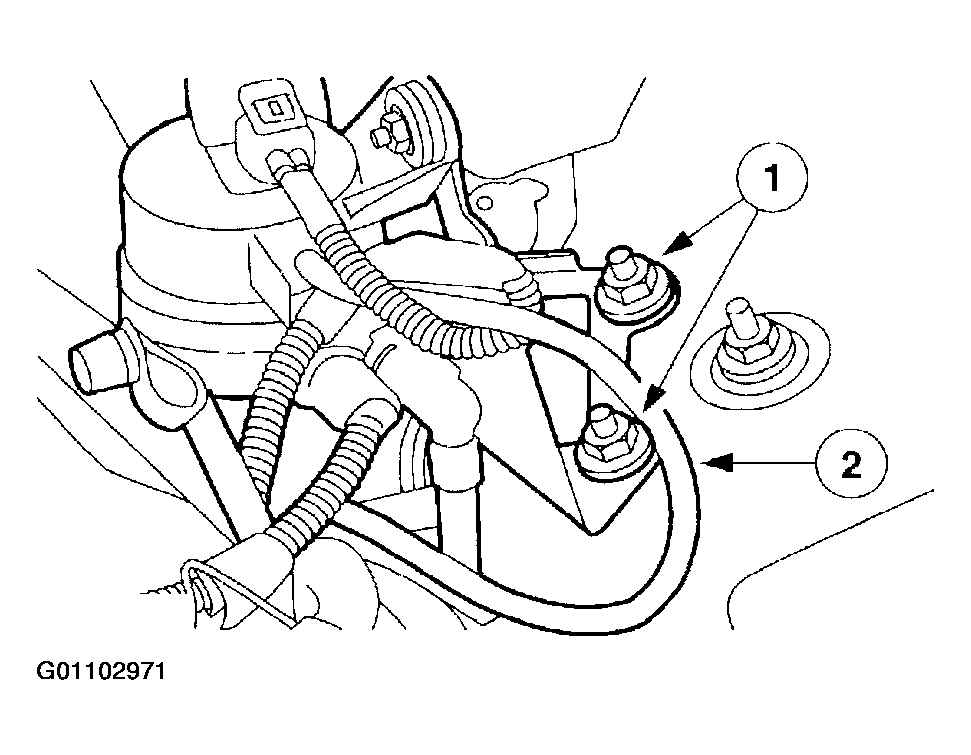

Fig 1: Positioning Vapor Management Valve Aside
Courtesy of FORD MOTOR CO.
Disconnect the redundant pressure transducer electrical connector.

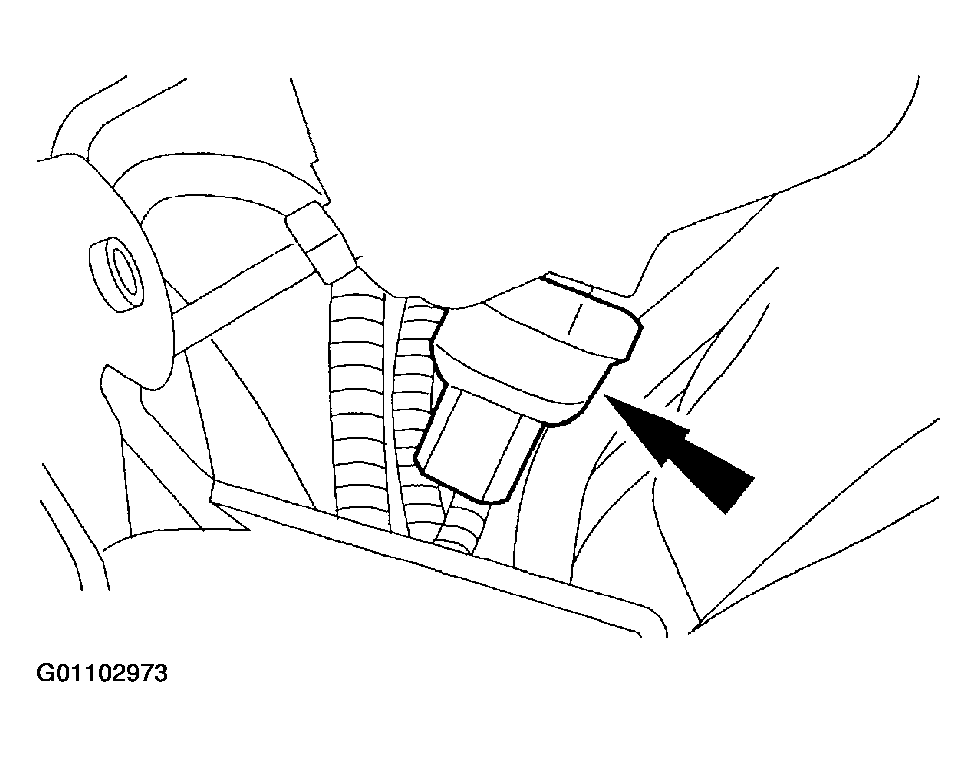

Fig 2: Disconnecting Redundant Pressure Transducer Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the redundant pressure transducer.

Fig 3: Removing Redundant Pressure Transducer
Courtesy of FORD MOTOR CO.
