Traction Control Actuator - Advance Trac: Removal

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the floor console finish panel. For additional information, see INSTRUMENT PANELS & CONSOLE - LS .
  2. Disconnect the Advance Trac control switch electrical connector.
    Fig 1: Disconnecting Advance Trac Control Switch Electrical Connector
    G01102962Courtesy of FORD MOTOR CO.
  3. Remove the Advance Trac control switch.
    1. Remove the Advance Trac control switch screws.
    2. Remove the Advance Trac control switch.

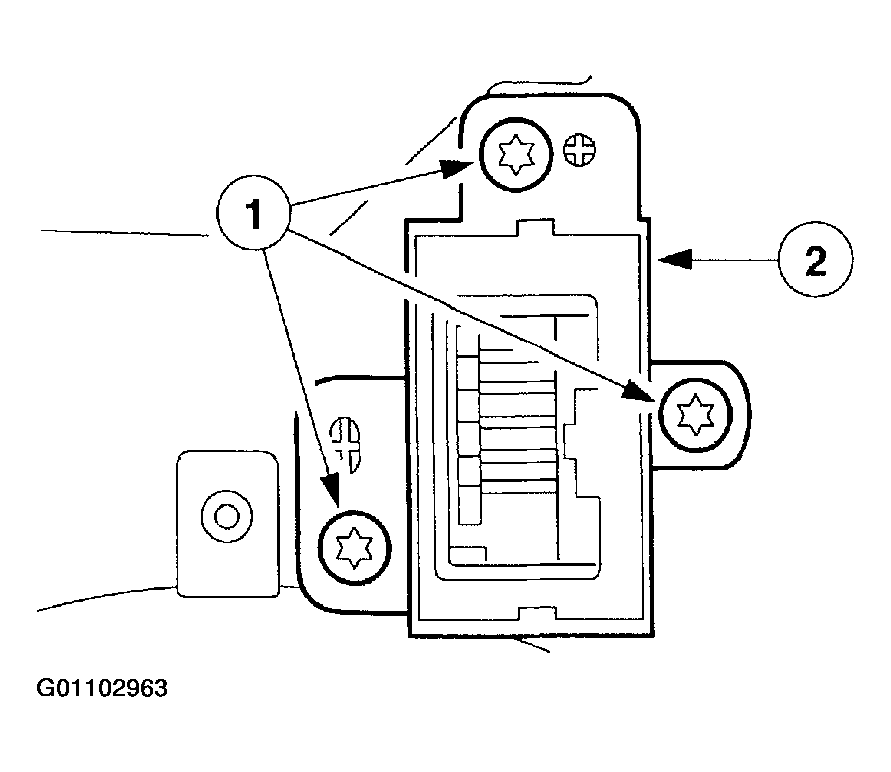

    Fig 2: Removing Advance Trac Control Switch
    G01102963Courtesy of FORD MOTOR CO.
