Removal and Installation

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. For additional information, see JACKING & HOISTING .
Disconnect the rear anti-lock brake sensor electrical connector.

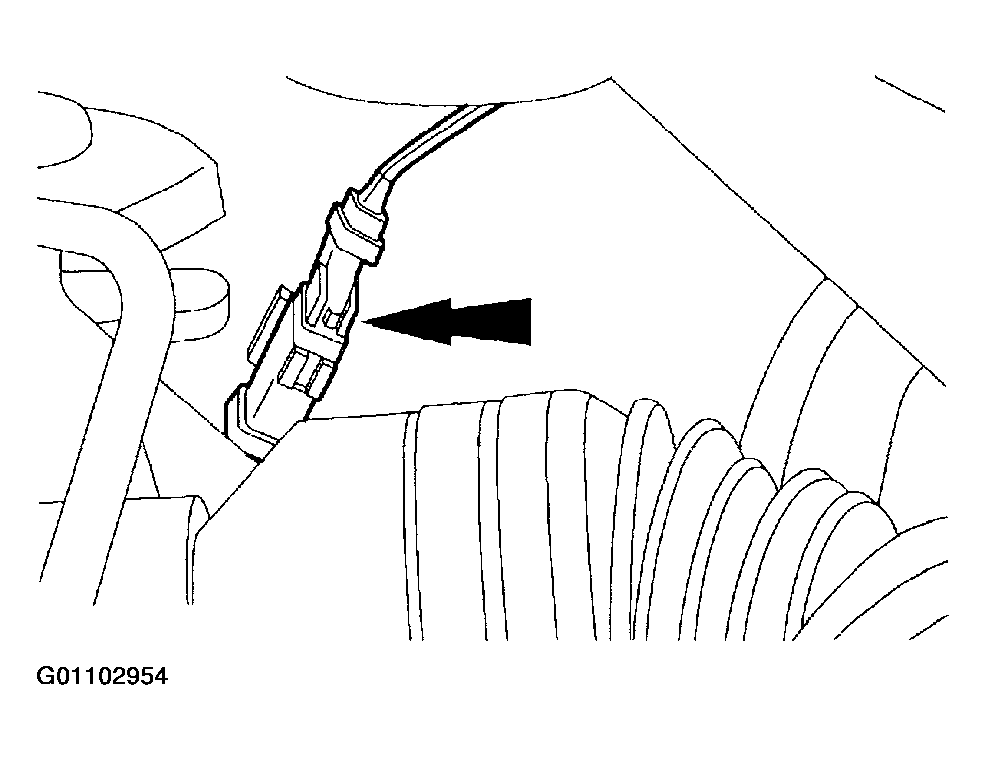

Fig 1: Disconnecting Rear Anti-Lock Brake Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the rear anti-lock brake sensor harness from the control arm clips.

Fig 2: Removing Rear Anti-Lock Brake Sensor Harness
Courtesy of FORD MOTOR CO.

NOTE: Clean off dirt and foreign material that may have collected around the rear anti-lock brake sensor before removal.

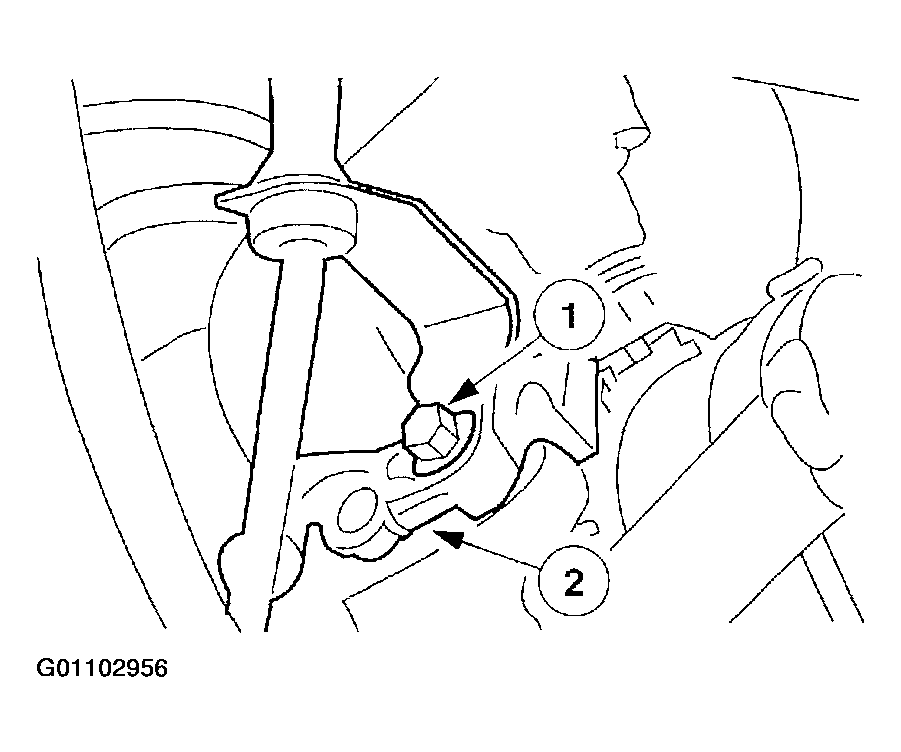

Fig 3: Removing Rear Anti-Lock Brake Sensor

Courtesy of FORD MOTOR CO.

Remove the rear anti-lock brake sensor.
1. Remove the anti-lock brake sensor bolt.
2. Remove the anti-lock brake sensor.
To install, reverse the removal procedure.

Fig 4: Installing Rear Anti-Lock Brake Sensor
Courtesy of FORD MOTOR CO.
