Anti-Lock Brake System (ABS) Module - Stability Assist: Removal

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Before the module is removed, it is necessary to upload the module configuration information to the New Generation STAR (NGS) tester. For additional information, see MODULE CONFIGURATION .

Disconnect the battery ground cable.

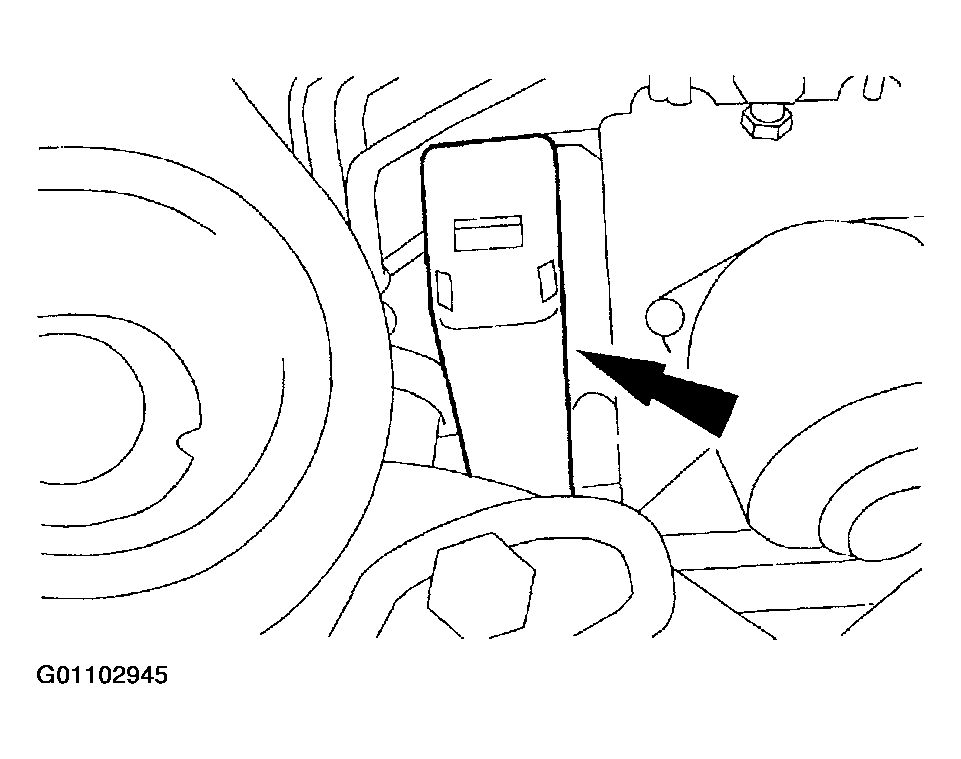

Disconnect the anti-lock brake control module electrical connector by lifting up on the release tab.

Fig 1: Disconnecting Anti-Lock Brake Control Module Electrical Connector
Courtesy of FORD MOTOR CO.

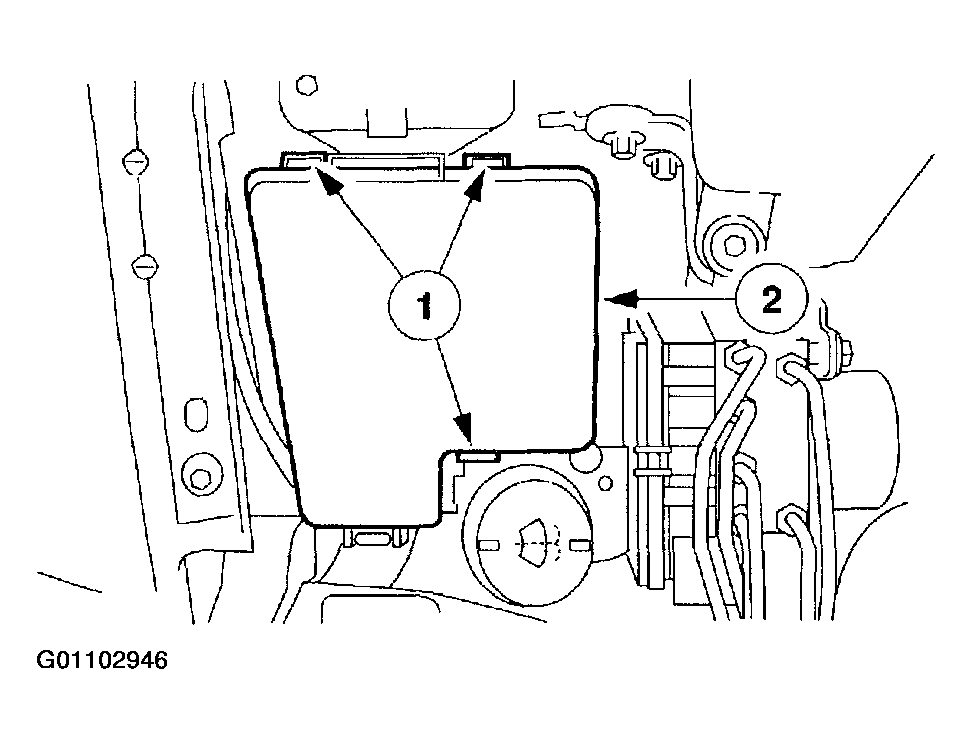

Position aside the underhood auxiliary junction box (AJB).
1. Release the underhood AJB clips.
2. Position the underhood AJB aside.
Fig 2: Releasing AJB Clips
Courtesy of FORD MOTOR CO.

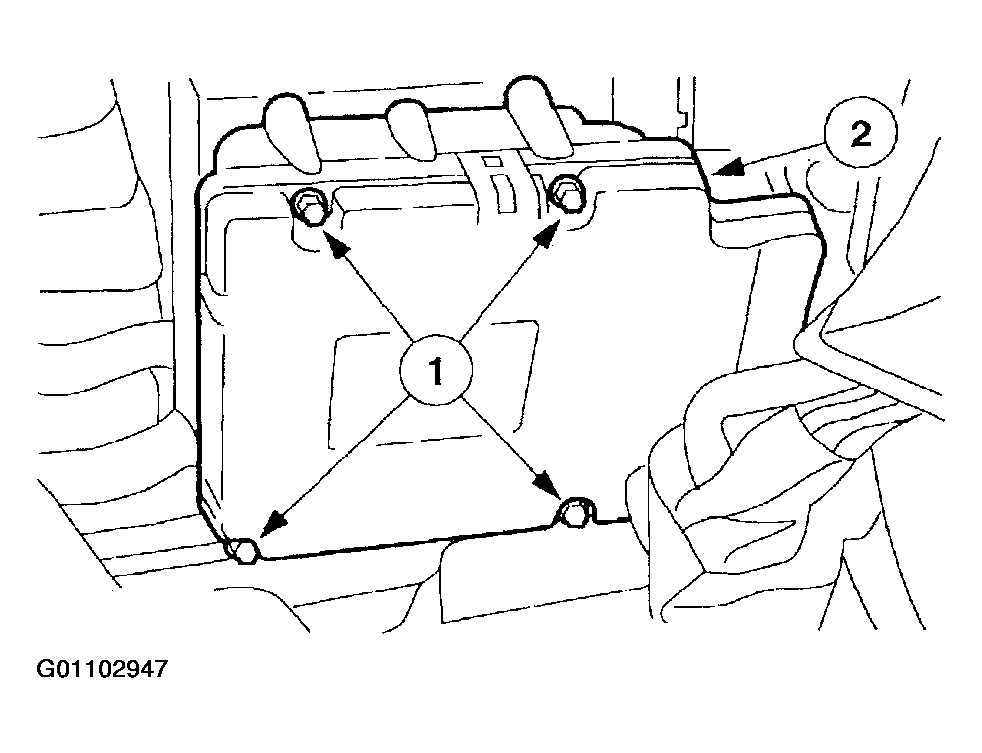

Remove the stability assist control module.
1. Remove the bolts.
2. Remove the control module.
Fig 3: Removing Stability Assist Control Module
Courtesy of FORD MOTOR CO.
