Anti-Lock Brake System (ABS) Module - Stability Assist: Installation

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Once the new module is installed, it is necessary to download the module configuration information from the New Generation STAR (NGS) Tester into the module. For additional information, MODULE CONFIGURATION .

NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 mi) or more to relearn the strategy.

To install, reverse the removal procedure.

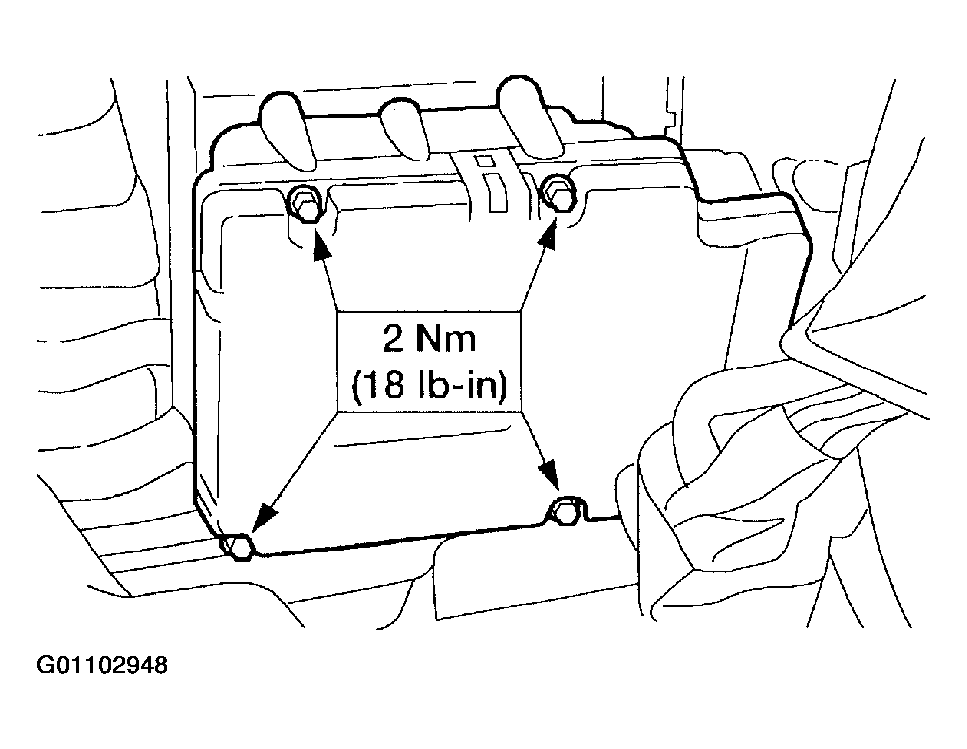

Fig 1: Installing Stability Assist Control Module
Courtesy of FORD MOTOR CO.
