Stability Assist Calibration List

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The need to re-calibrate the stability assist module is indicated by the active/fail lamp flashing. See STABILITY ASSIST MODULE CALIBRATION  for other service actions requiring recalibration. The lamp will flash after the clearing of DTC's that are indicated on the stability assist calibration list.

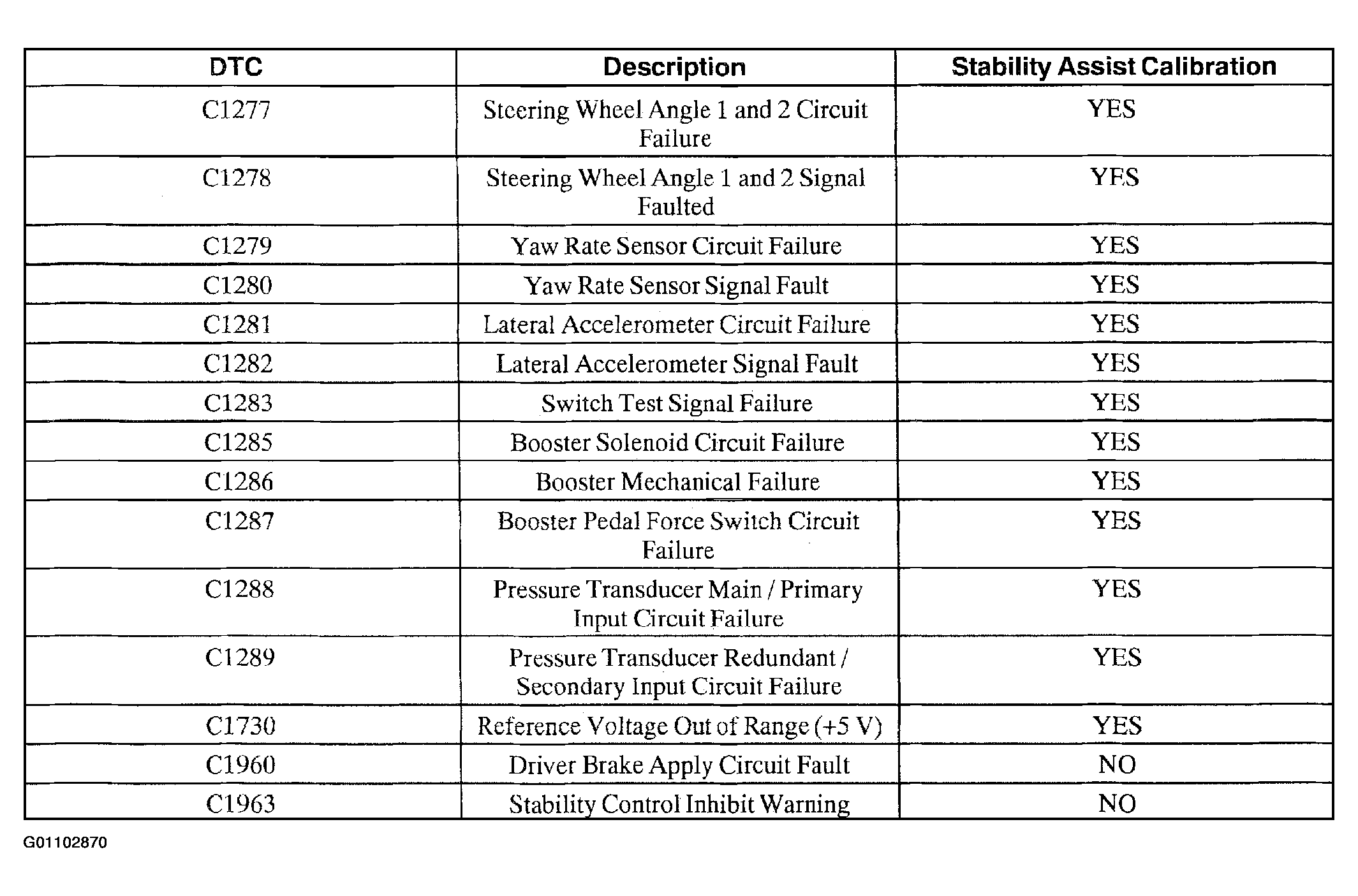

Fig 1: Stability Assist Calibration List
G01102870Courtesy of FORD MOTOR CO.
