Pinpoint Test T: The Stability Assist System Cannot Be Disabled

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

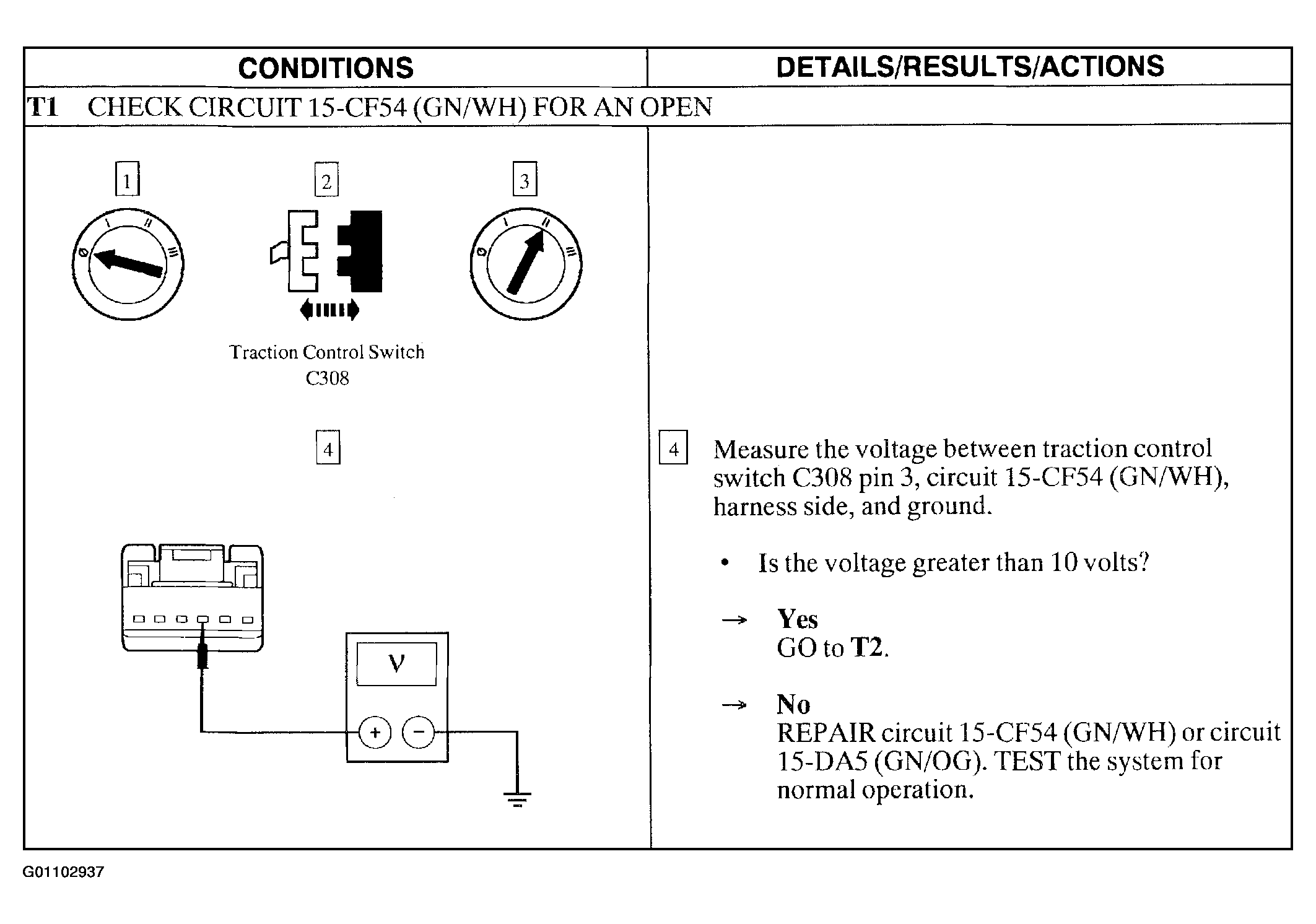

Fig 1: Pinpoint Test T: The Stability Assist System Cannot Be Disabled (Step T1)
G01102937Courtesy of FORD MOTOR CO.

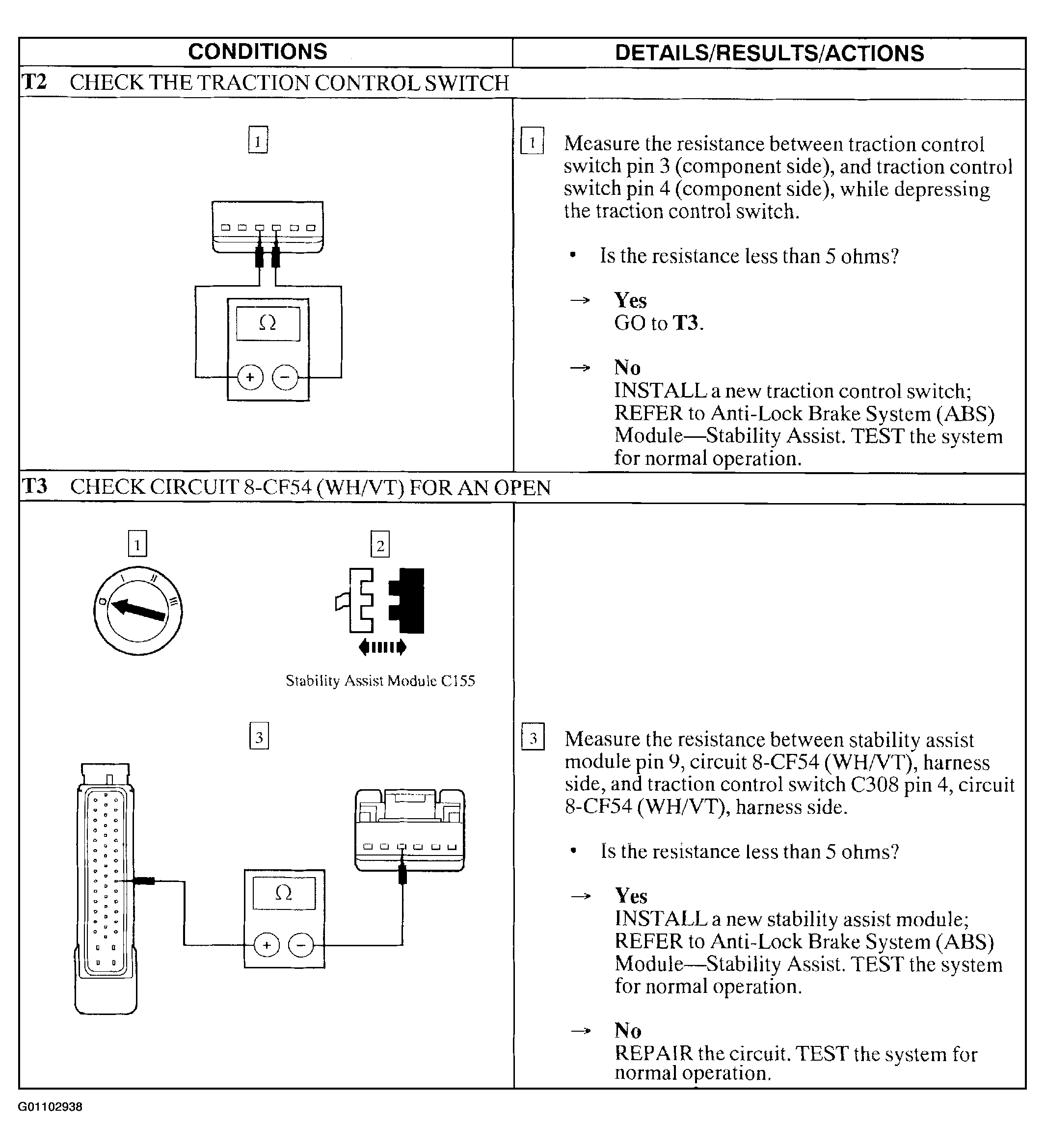

Fig 2: Pinpoint Test T: The Stability Assist System Cannot Be Disabled (Steps T2 & T3)
G01102938Courtesy of FORD MOTOR CO.
