Pinpoint Test S: The Stability Assist/Traction Control Switch Indicator Is Never/Always On

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

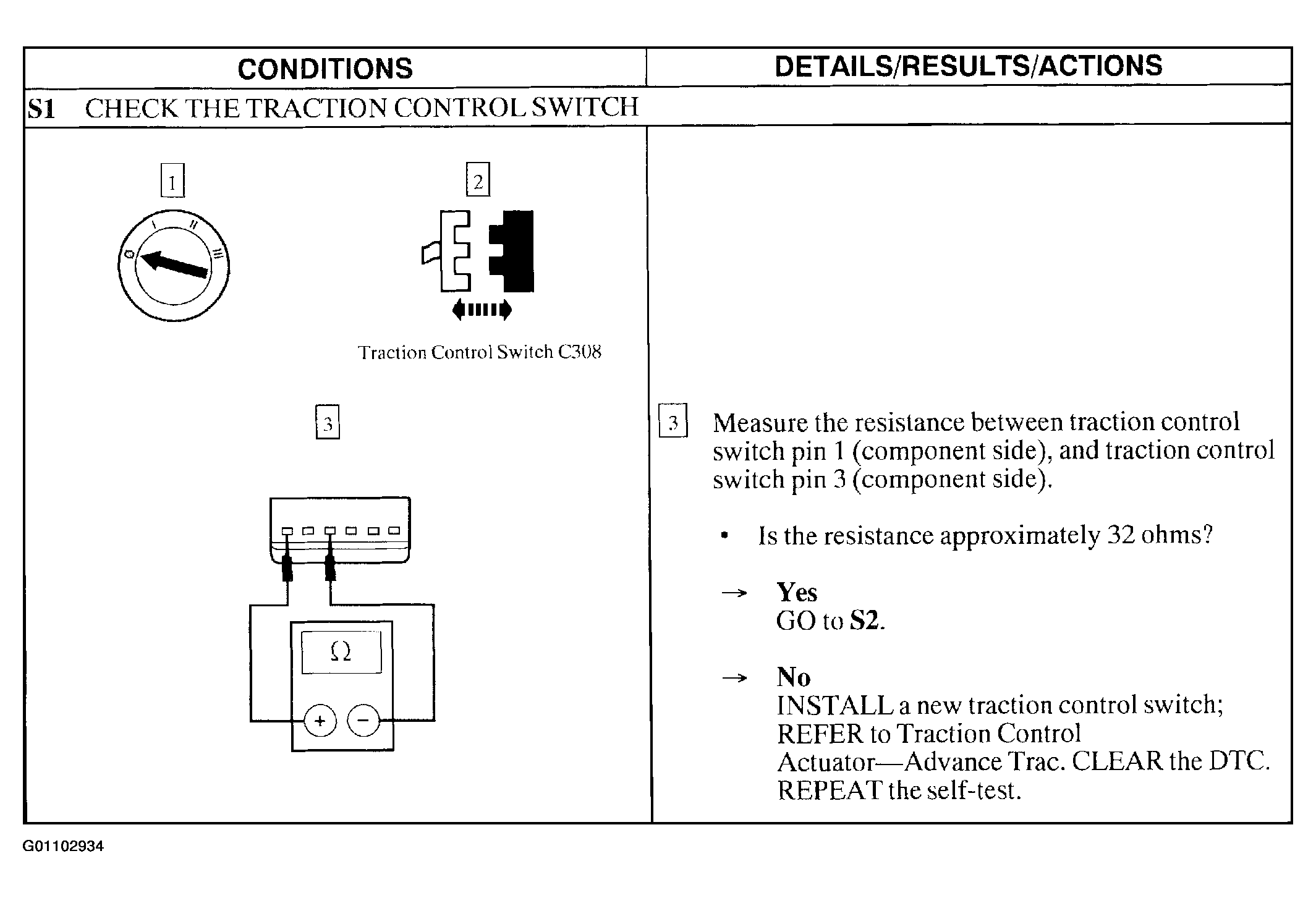

Fig 1: Pinpoint Test S: The Stability Assist/Traction Control Switch Indicator Is Never/Always On (Step S1)

Courtesy of FORD MOTOR CO.

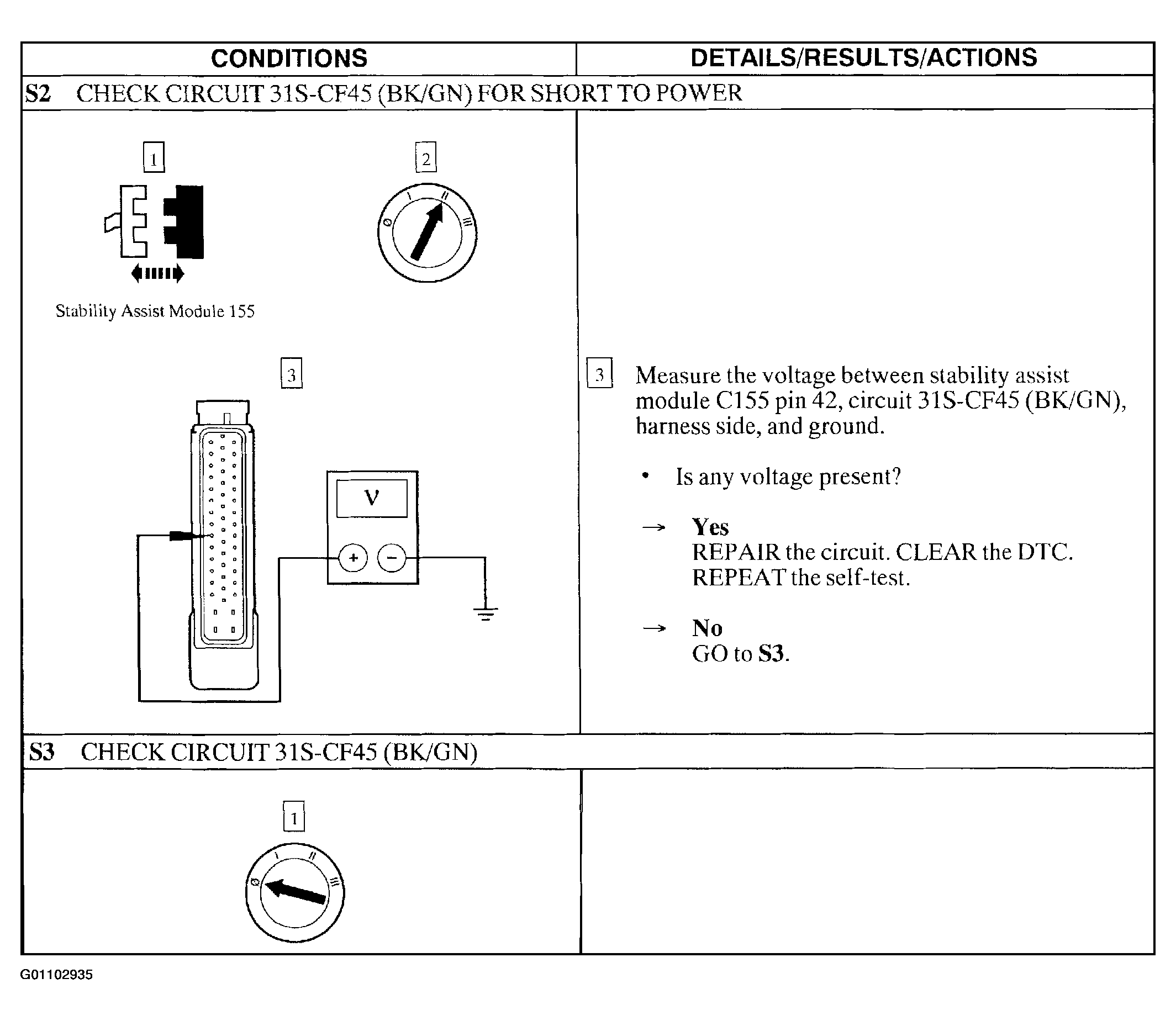

Fig 2: Pinpoint Test S: The Stability Assist/Traction Control Switch Indicator Is Never/Always On (Steps S2-S3)

Courtesy of FORD MOTOR CO.

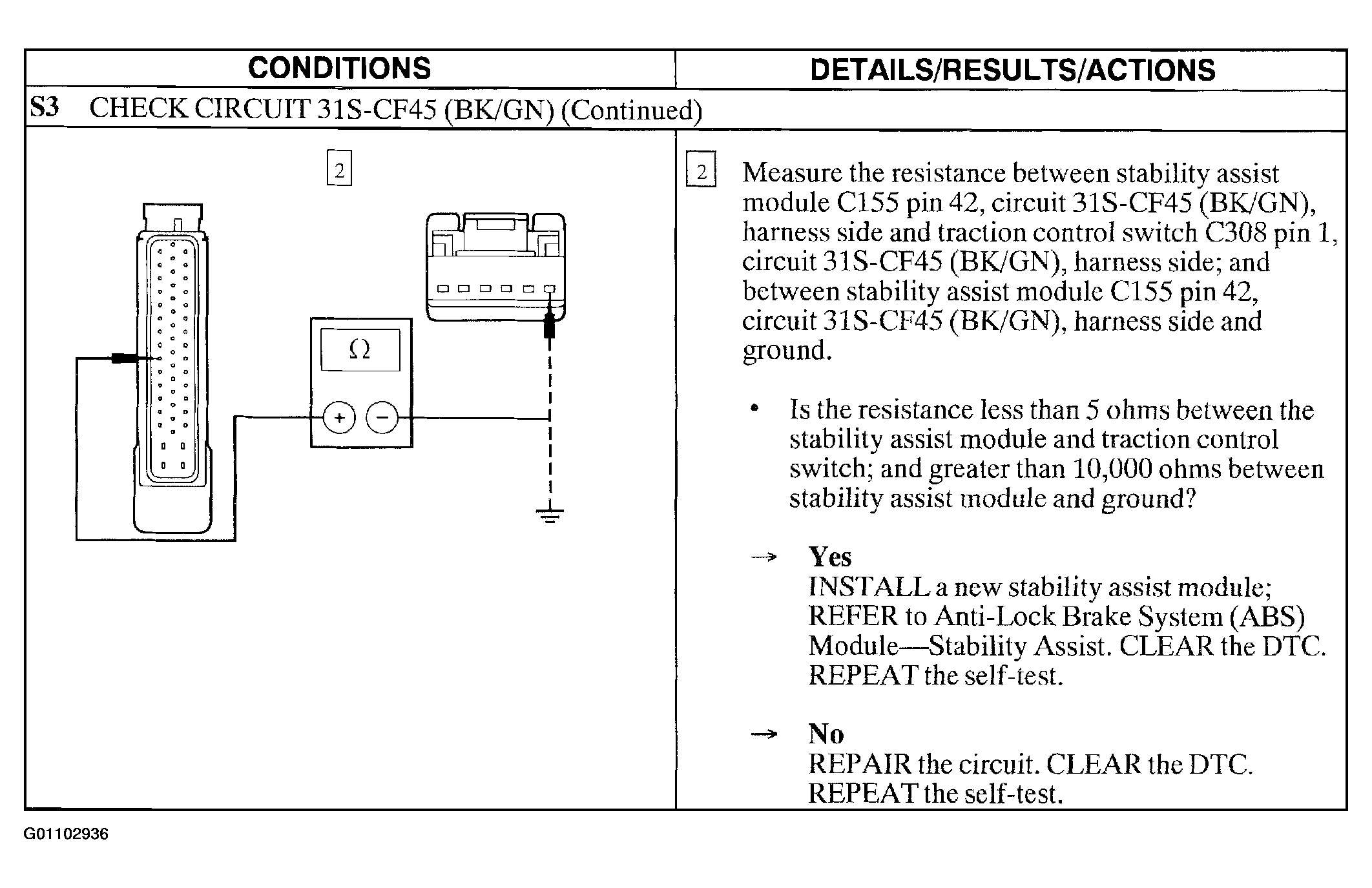

Fig 3: Pinpoint Test S: The Stability Assist/Traction Control Switch Indicator Is Never/Always On (Step S3 Cont.)

Courtesy of FORD MOTOR CO.
